Apr 23, 2024
I just took some spare LEDs I had lying around and touched them to the ones that were already in place. I made sure the + and - were correct. They didn't light up.
I will see if I can get a picture of the underside of my PCB, but I am wary of taking it out of the case too many times as the screw holes are not lined with metal and could be stripped.

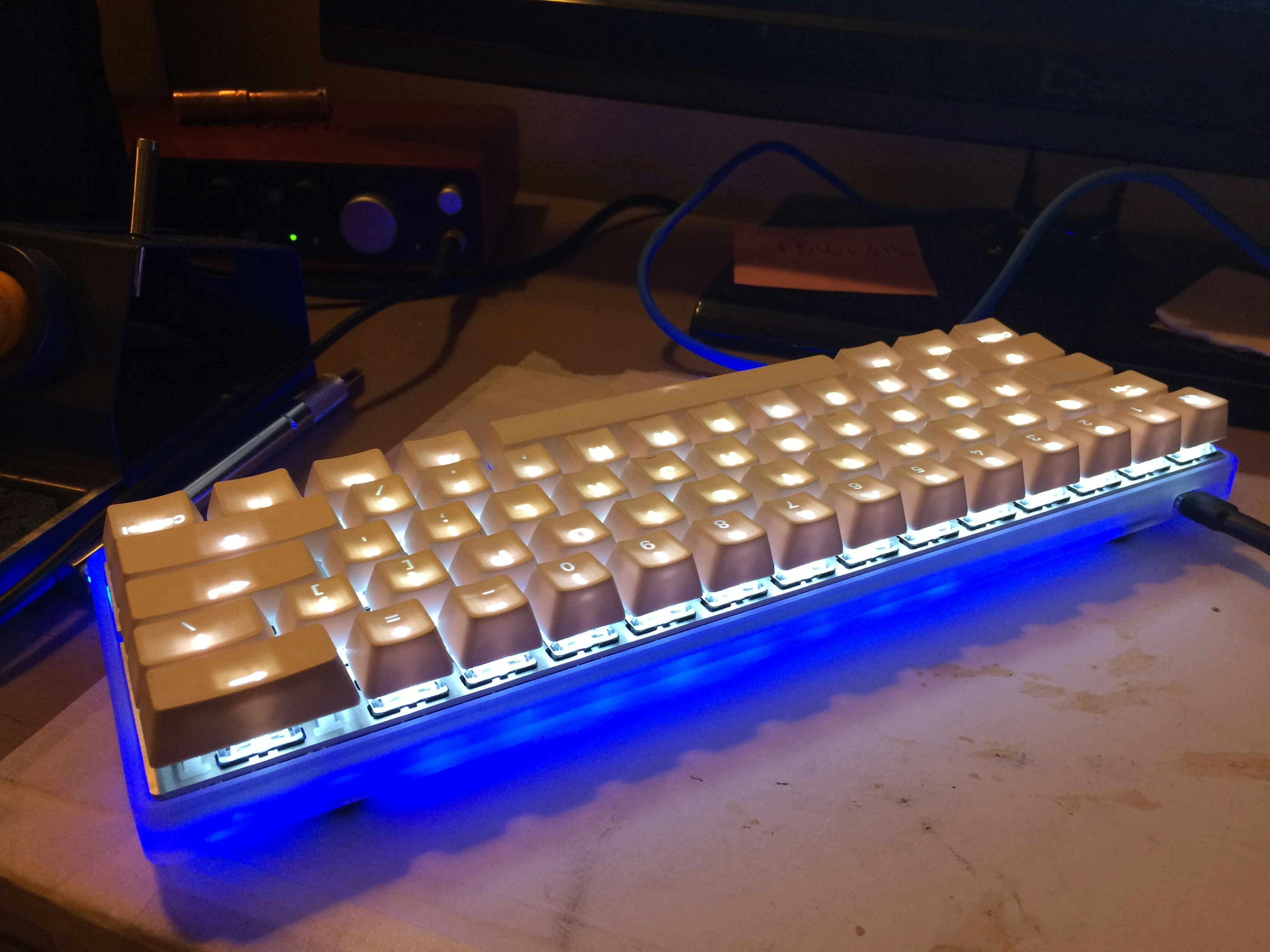

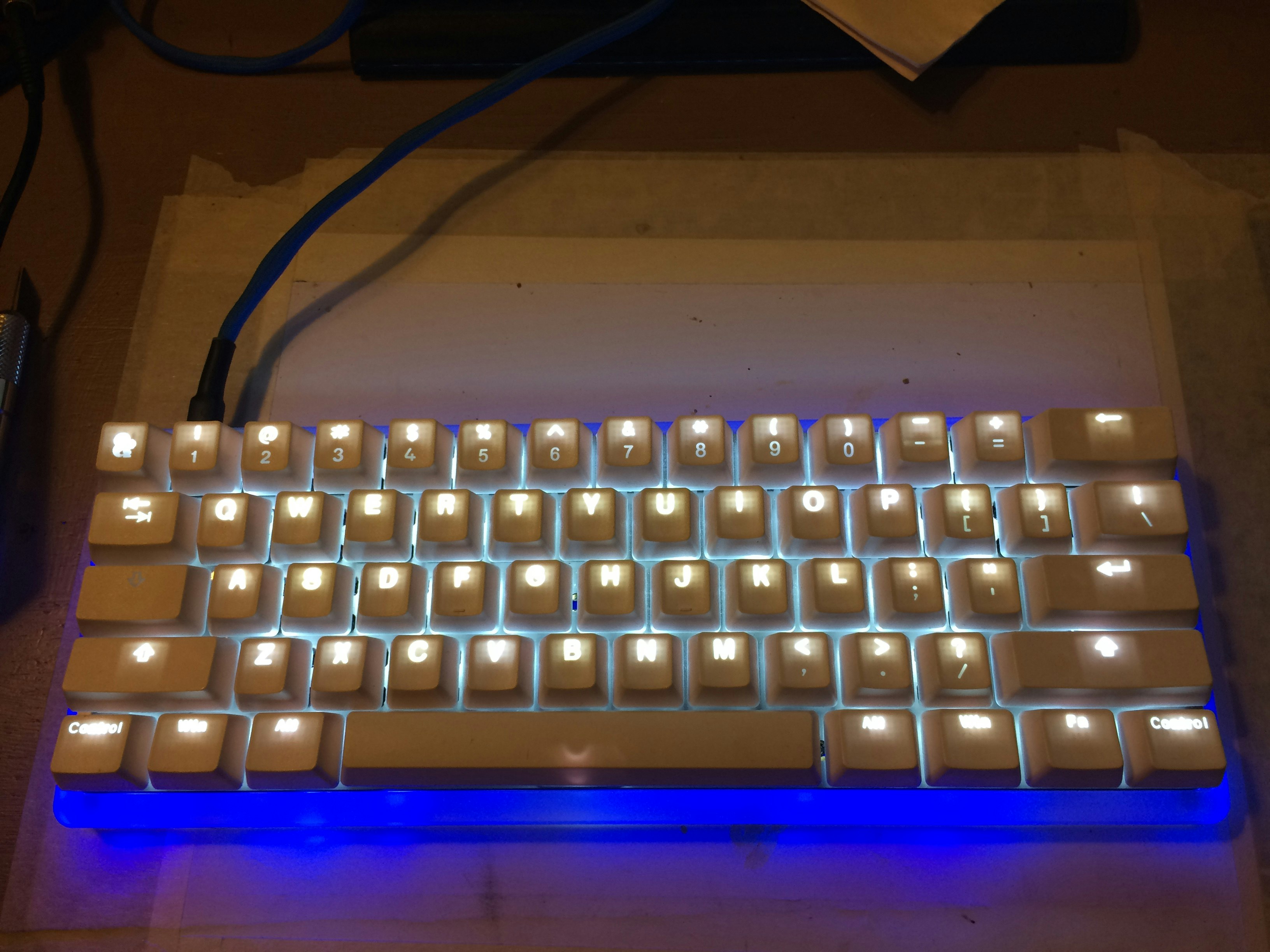

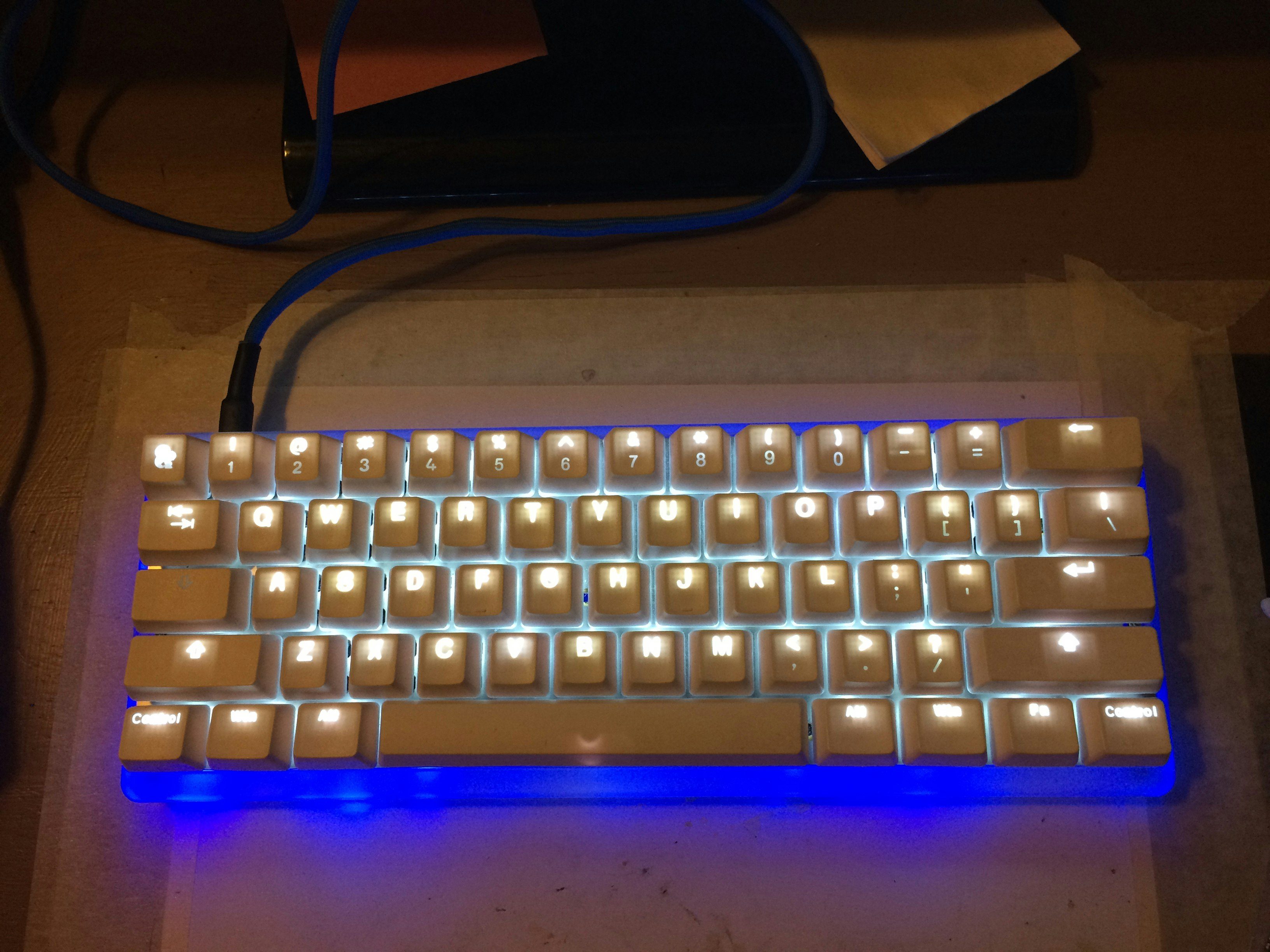

Managed to fit seven LEDs under the PCB (sharing spots with LShift, Rshift, Spacebar, Esc, Backspace & 2 others). They all lit up fine, although the light diffusion/glowing effect through the acrylic was kinda underwhelming.
However. half a minute into use, the switch LED for my LShift key literally exploded. Not sure wtf I did wrong.
As for your exploding LED, I don't know what to tell you. I'm sure you could find some dual-color through hole LED to replace it, but I've never had to deal with that before.
I wonder where KBP get theirs from.
