willgreenzilla

Jan 8, 2019

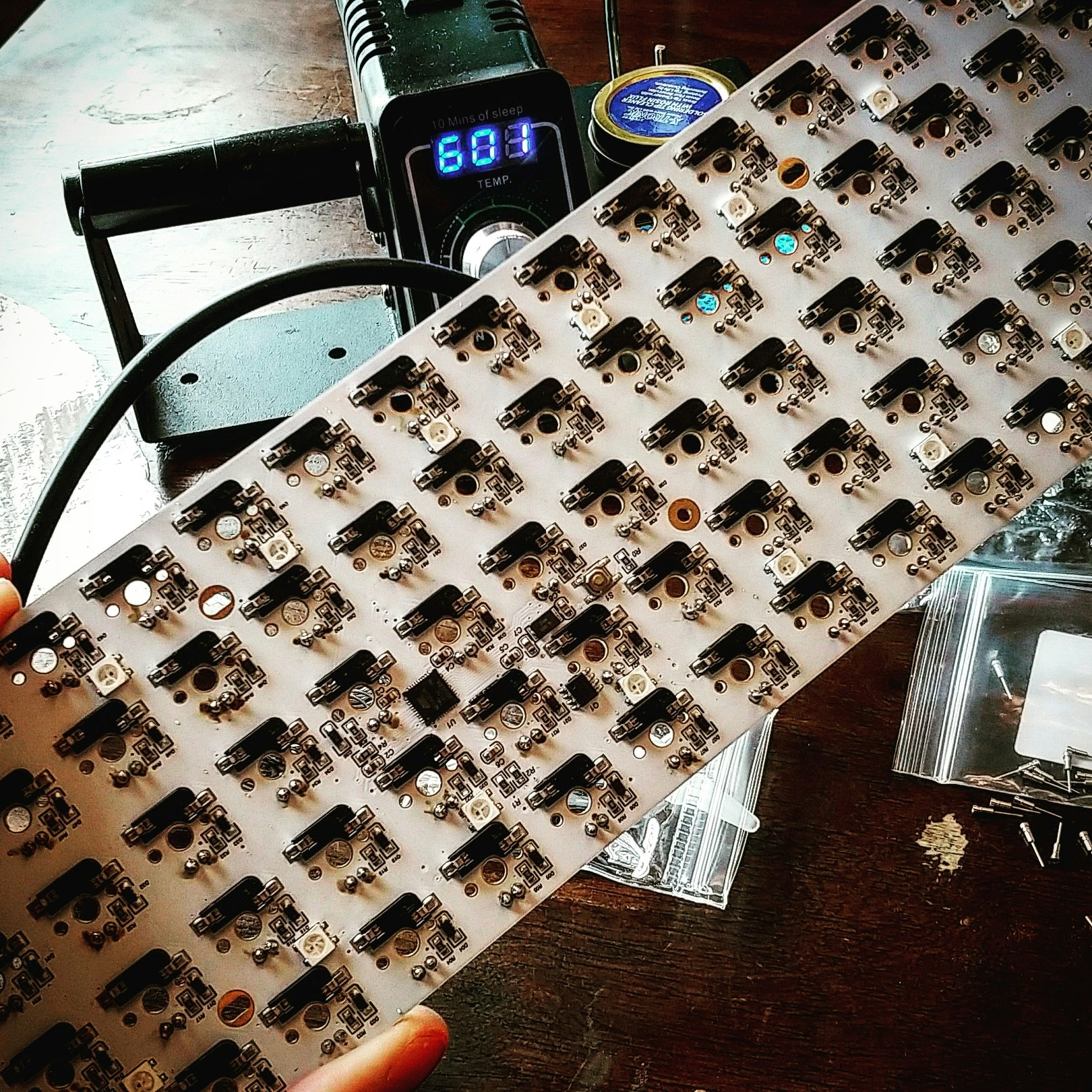

Finally got around to putting my keyboard together... Pretty easy (first time assembling a full kit). I added SIP sockets that I soldered into the board for the switch LEDs and everything hooked up fine and the LEDs all came on without an issue. The board seemed of good quality as did the case and plate though removing a switch from the plate after the switch is mounted was near impossible for me (ripped the switch in half to get it back out lol). The bottom of the board:

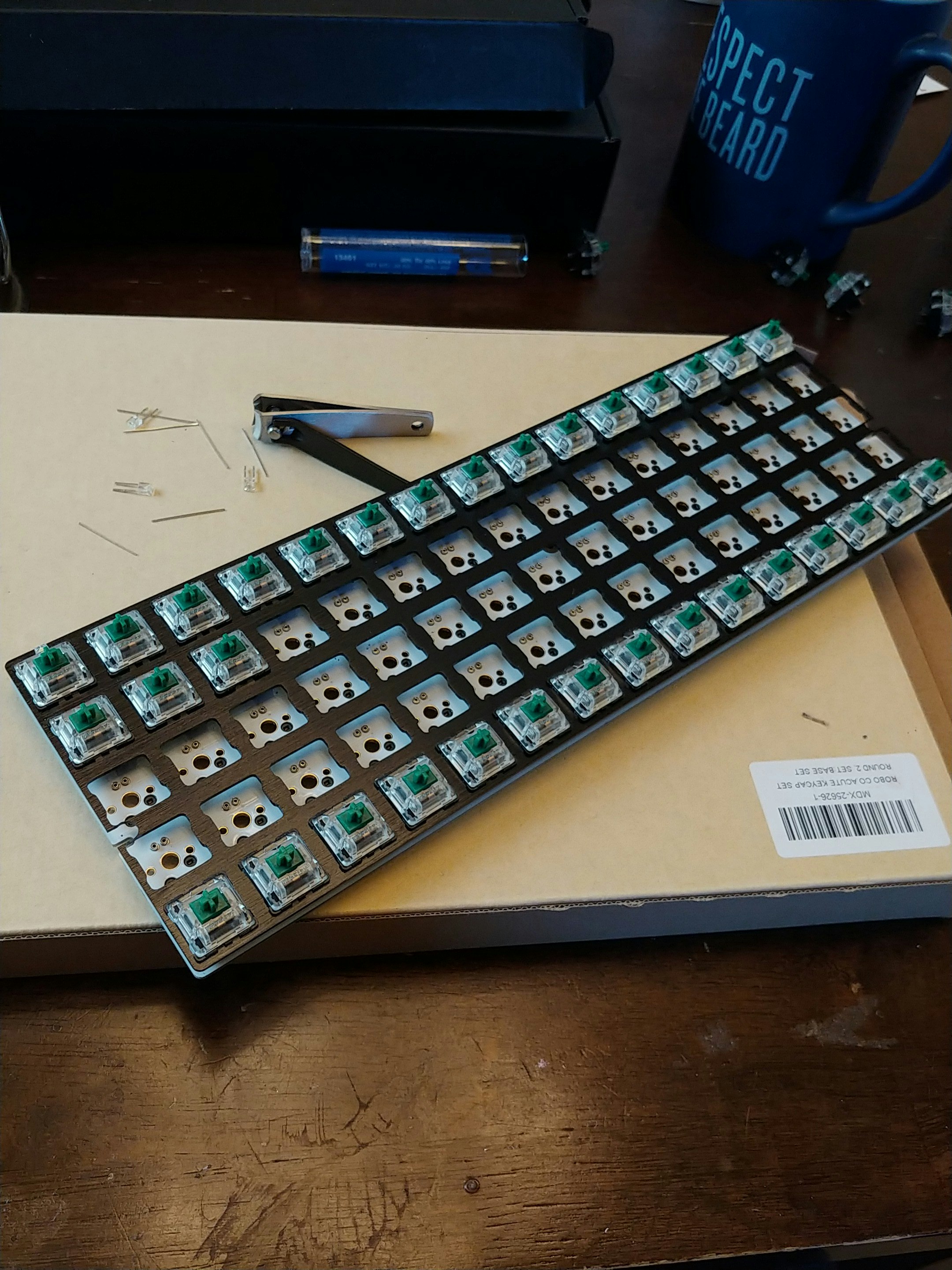

The top of the board with plate and some switches installed:

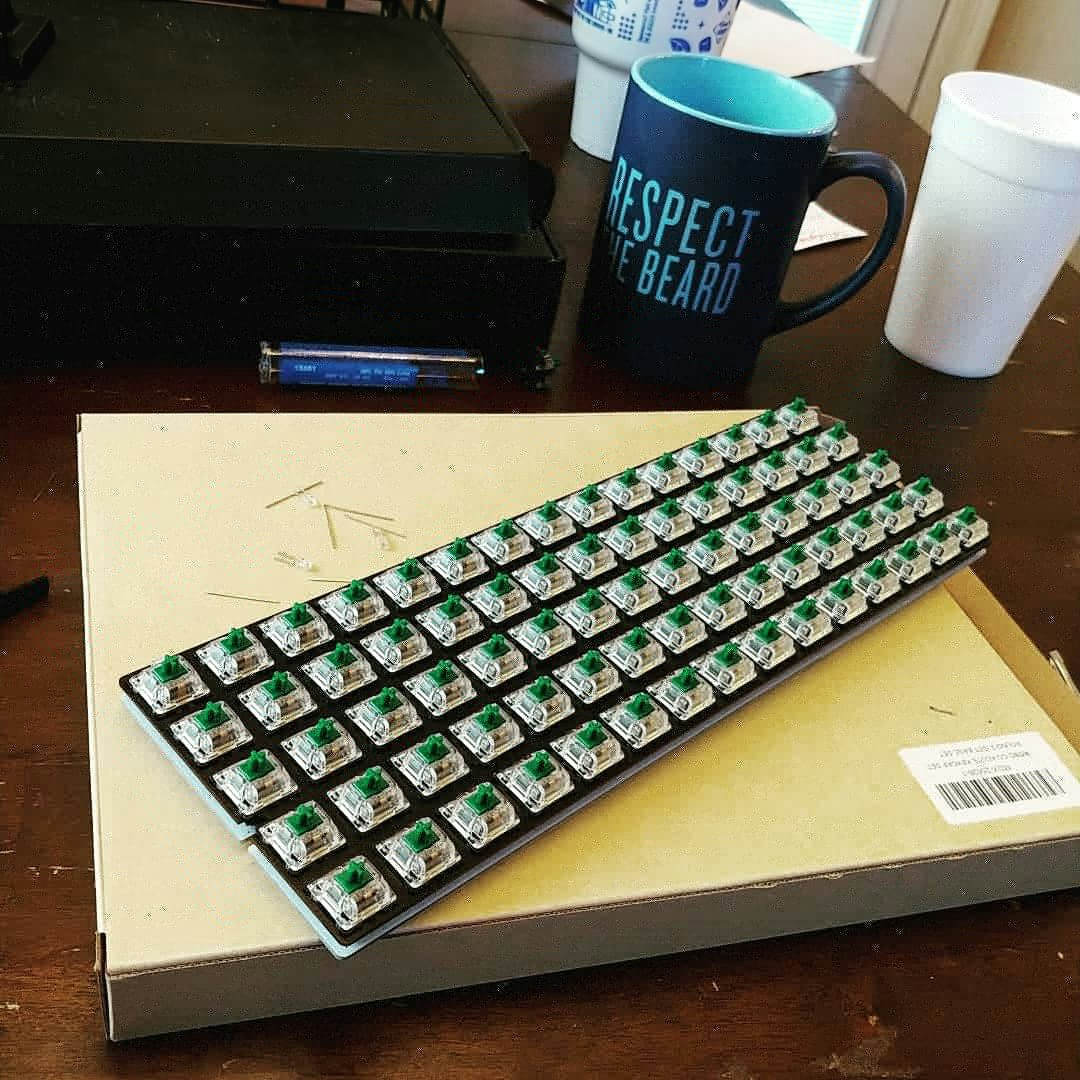

The top of the plate with switches installed (no caps):

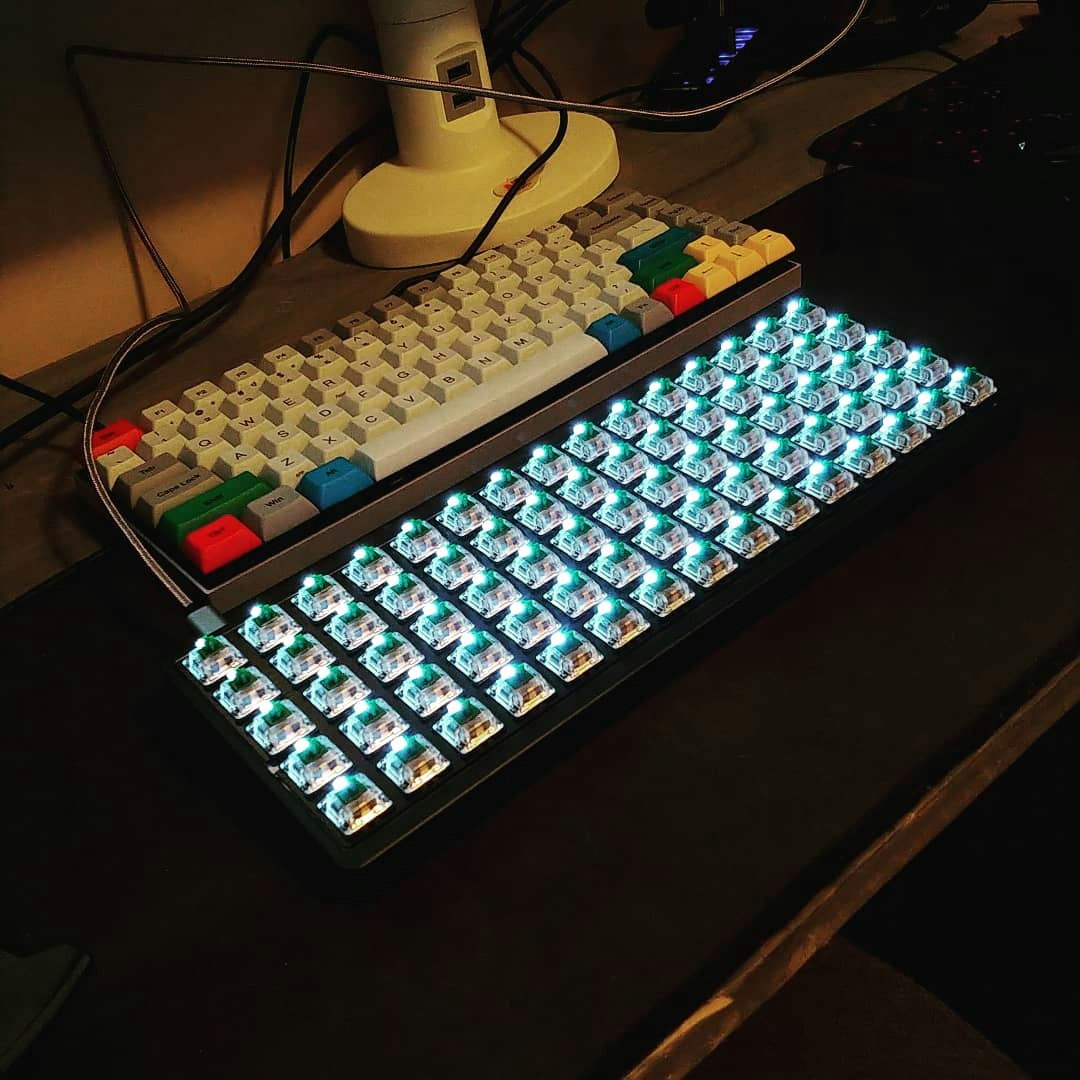

The top of the plate with switches installed (no caps), plugged in, with LEDs on:

I still need to figure out getting my build environment workings correctly so that I can program the keyboard as the default layout is horrible lol. Mostly built this so get more familiar with building keyboards in general as I have a Planck sitting in a box that I still need to build as well and I'd rather of messed up with this one first :D
