Product Description
From Singapore-based Advanced AcousticWerkes’ Musiker line, the newest generation of the A3H  is available in CIEM and universal-fit styles. Both are fitted with the highly regarded Null Audio Ethos Plus cable, which uses 5N OCC SPC copper wiring in Litz 5 construction with compact connectors ... Read More
The Latest Generation

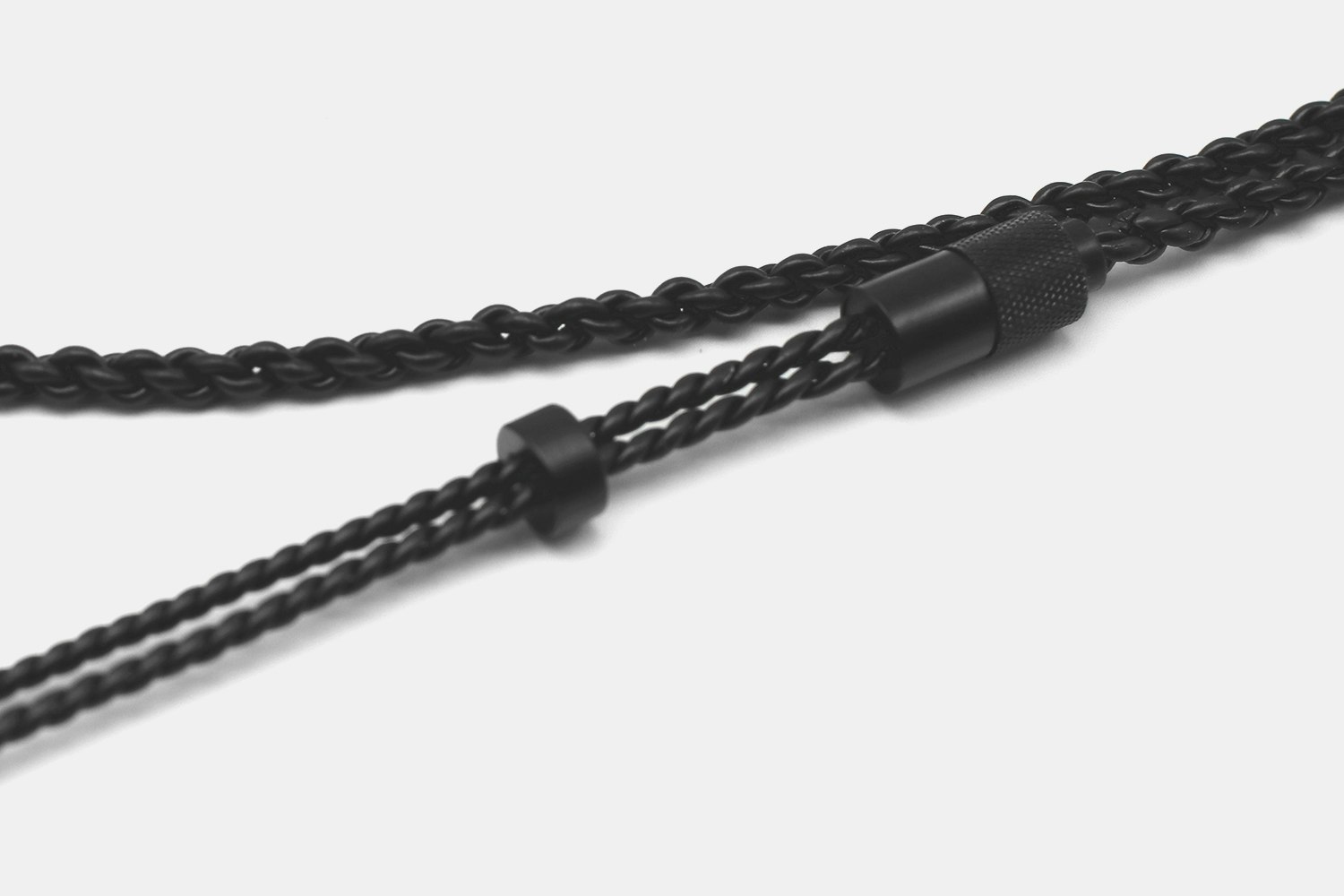

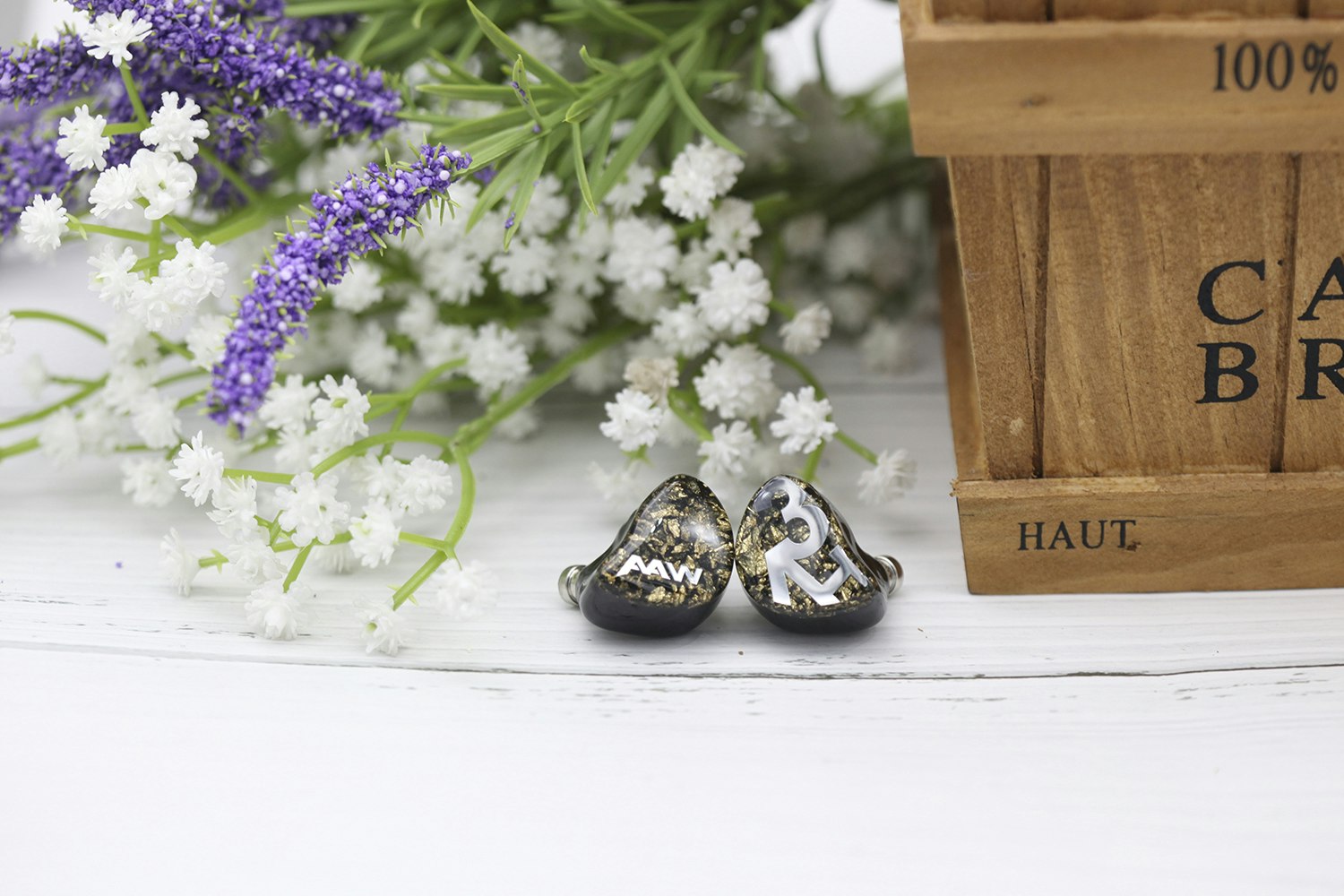

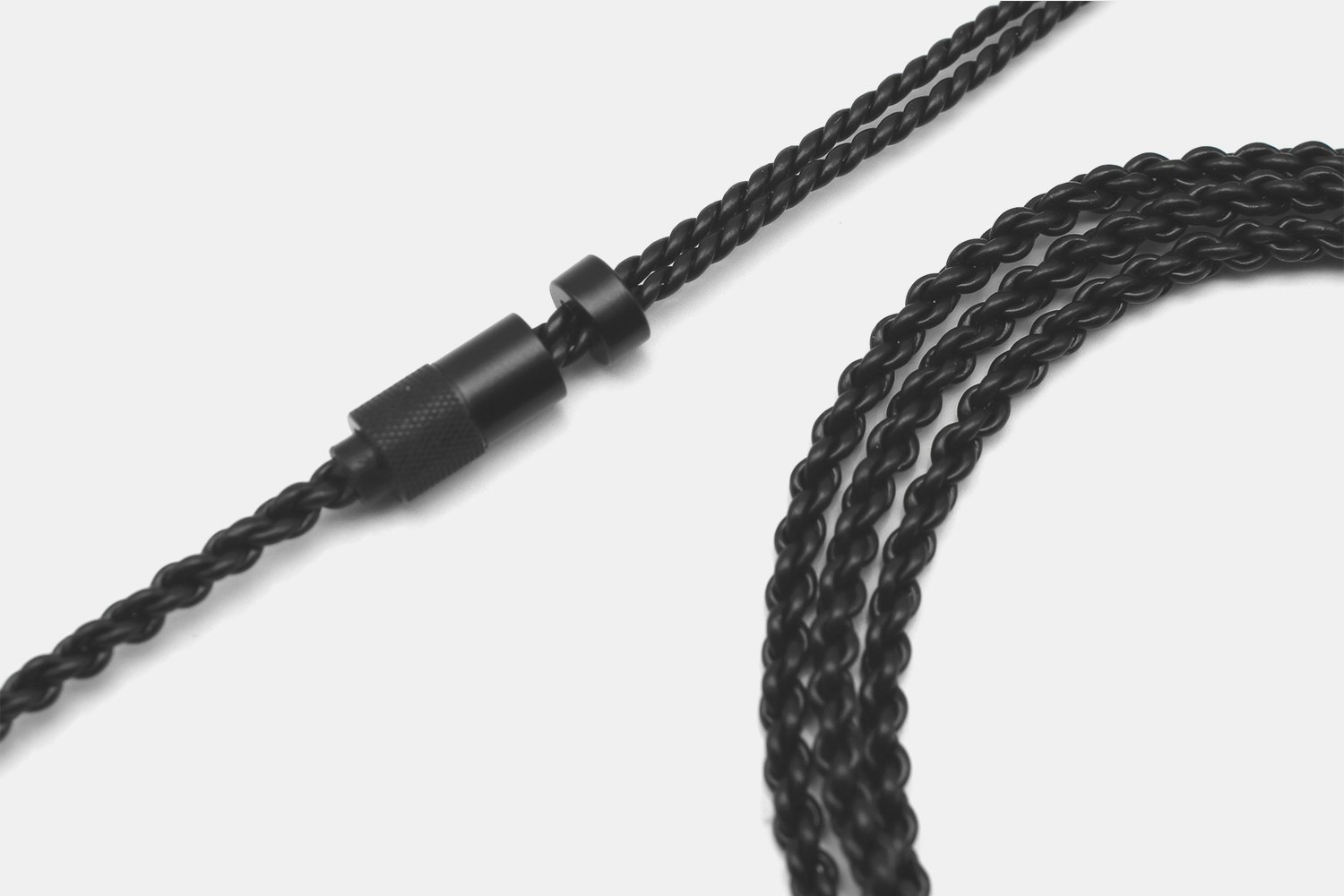

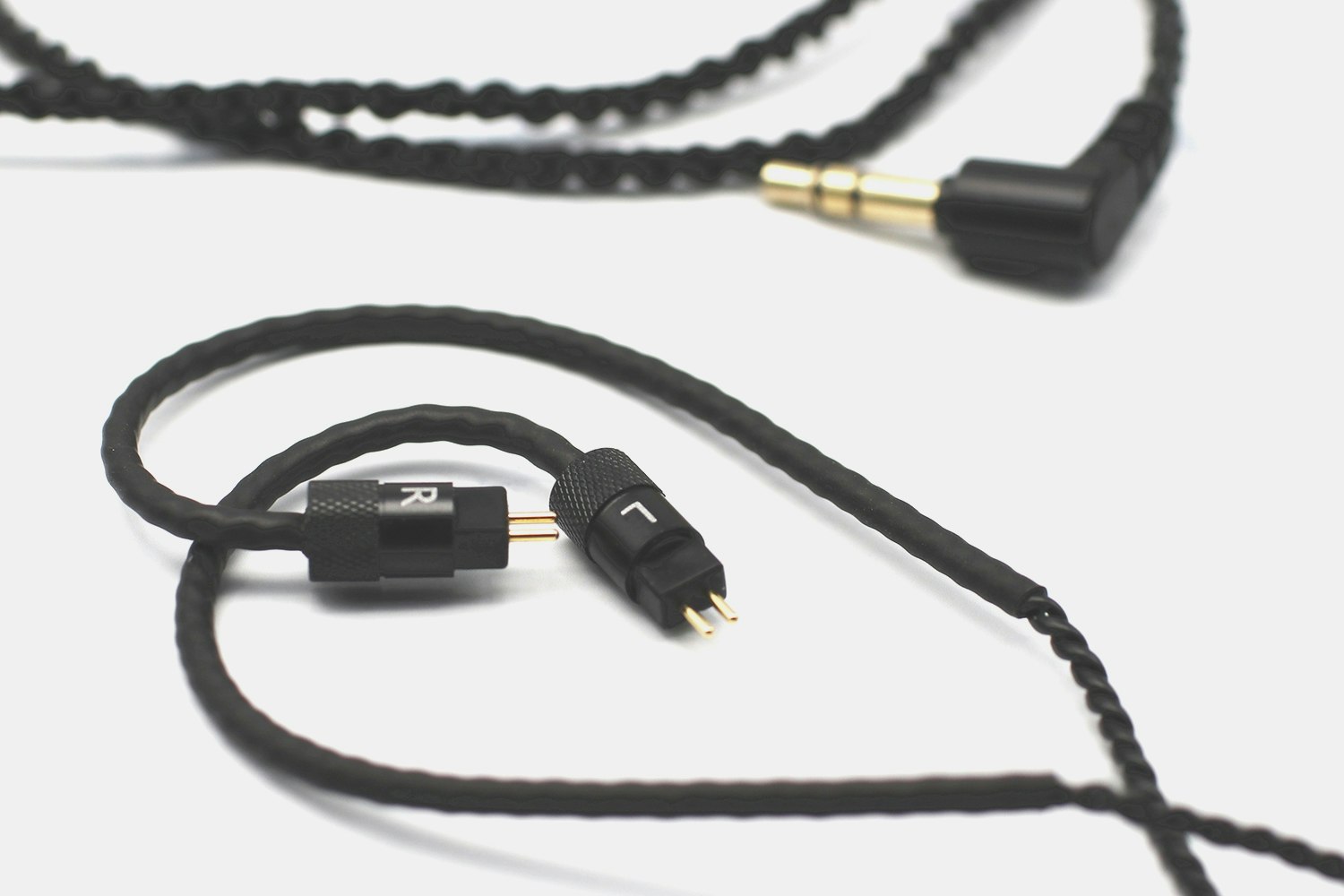

From Singapore-based Advanced AcousticWerkes’ Musiker line, the newest generation of the A3H  is available in CIEM and universal-fit styles. Both are fitted with the highly regarded Null Audio Ethos Plus cable, which uses 5N OCC SPC copper wiring in Litz 5 construction with compact connectors. This hybrid in-ear monitor features one 10-millimeter proprietary dynamic driver and two balanced armature drivers, assembled in a TruXross three-way crossover and retuned for superior performance in the treble frequencies. The result is a clear, detailed sound with a pleasing low end and a top end that doesn’t get harsh at higher levels.

Note: At checkout, choose the A3H CIEM with a number of customizable options (prices vary). Or for $70 less, get the universal-fit variant in the Gold Nuggets or Starry Night colorway. You can also add the AAW Capri 2-pin cable (Lightning or USB type C, 1.2m or 1.5m) for an additional $50.  If you choose universal fit, select "I am choosing a universal-fit IEM" in all other fields where this selection is possible. Note that universal IEMs may not fit everyone, and they aren't covered by the refit guarantee. See below for important information on ear impressions and ordering.

Ear Impressions & Ordering

Custom in-ear monitors are like custom suits. They need to be tailored to your body. So as part of the ordering process for the CIEM option, you'll need to visit an audiologist for ear impressions. Then, you’ll need to mail those impressions to the AAW lab (address will be provided). The vendor must receive tracking info on the impressions within 3 weeks of the drop completing, or the offer will be canceled and refundedno exceptions or extensions.

Optional Capri Cable

A headphone cable with a built-in DAC/amp, the AAW Capri allows the default DAC/amp on your iOS or Android device to be bypassed for a much higher-quality DAC/amp combo. It’s constructed with 99.9997-percent purity OCC copper wire from cable specialist Null Audio for excellent conductivity, very low impedance, and additional shielding against EMI interference. The inline remote allows you to adjust volume, select tracks, take phone calls, and call Siri. The high-sensitivity microphone and 24 bit/48 kHz ADC circuitry support normal and conference calls, along with any apps that use microphone functions. All the while, the noise-filtering design ensures crystal-clear call quality and the flexible memory wire provides a secure over-the-ear fit.

Shell and Tip Color Options

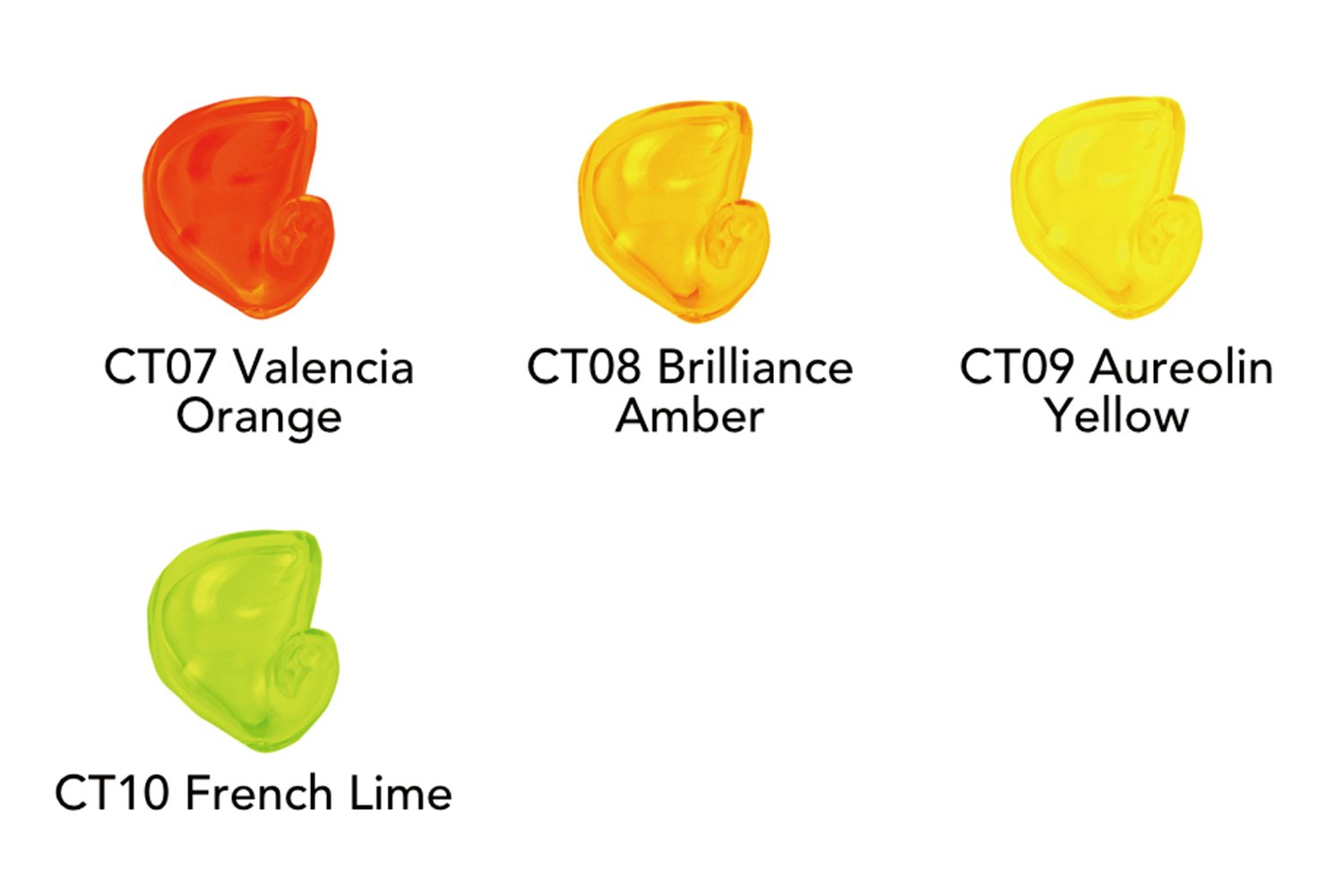

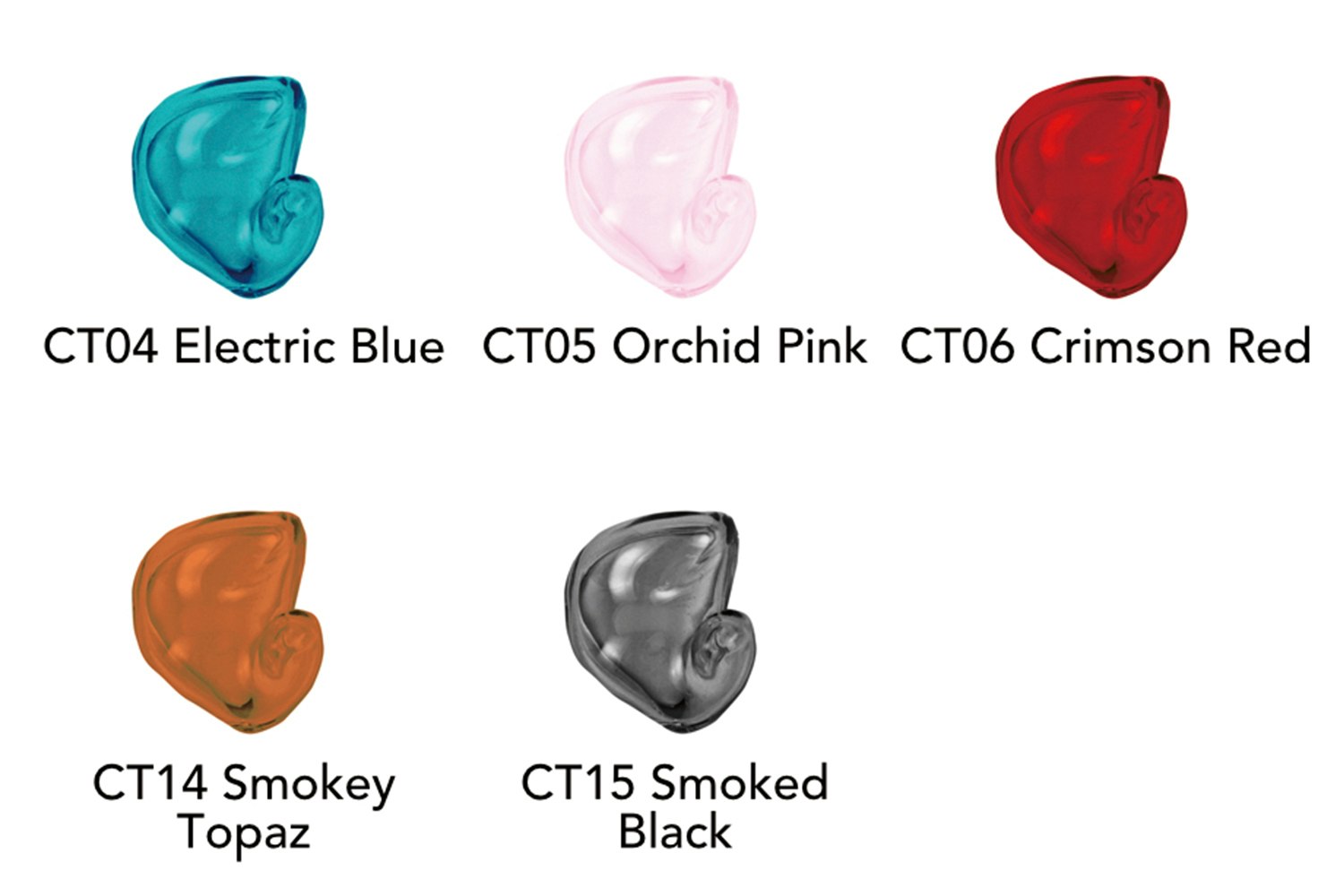

Translucent
Translucent
Translucent

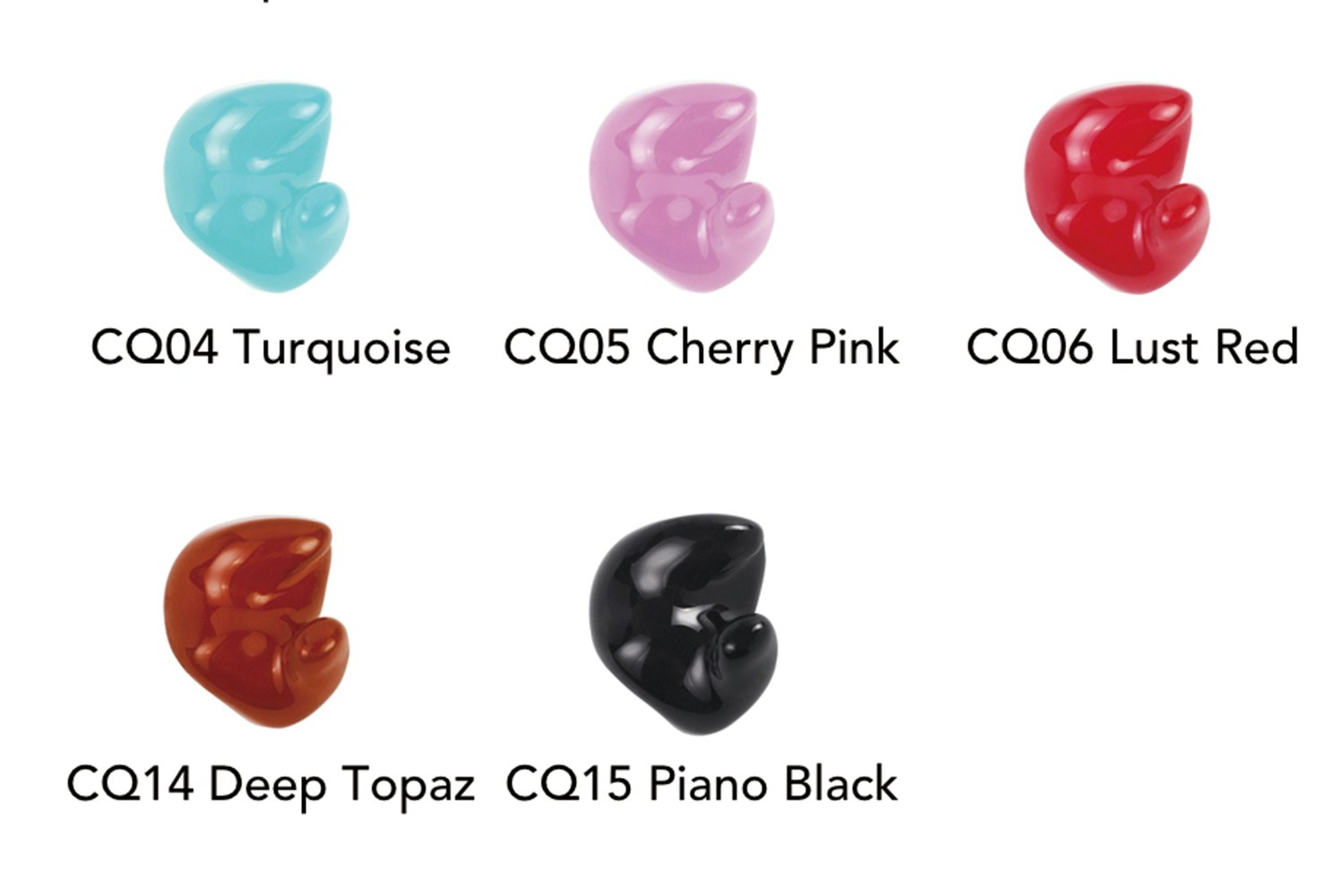

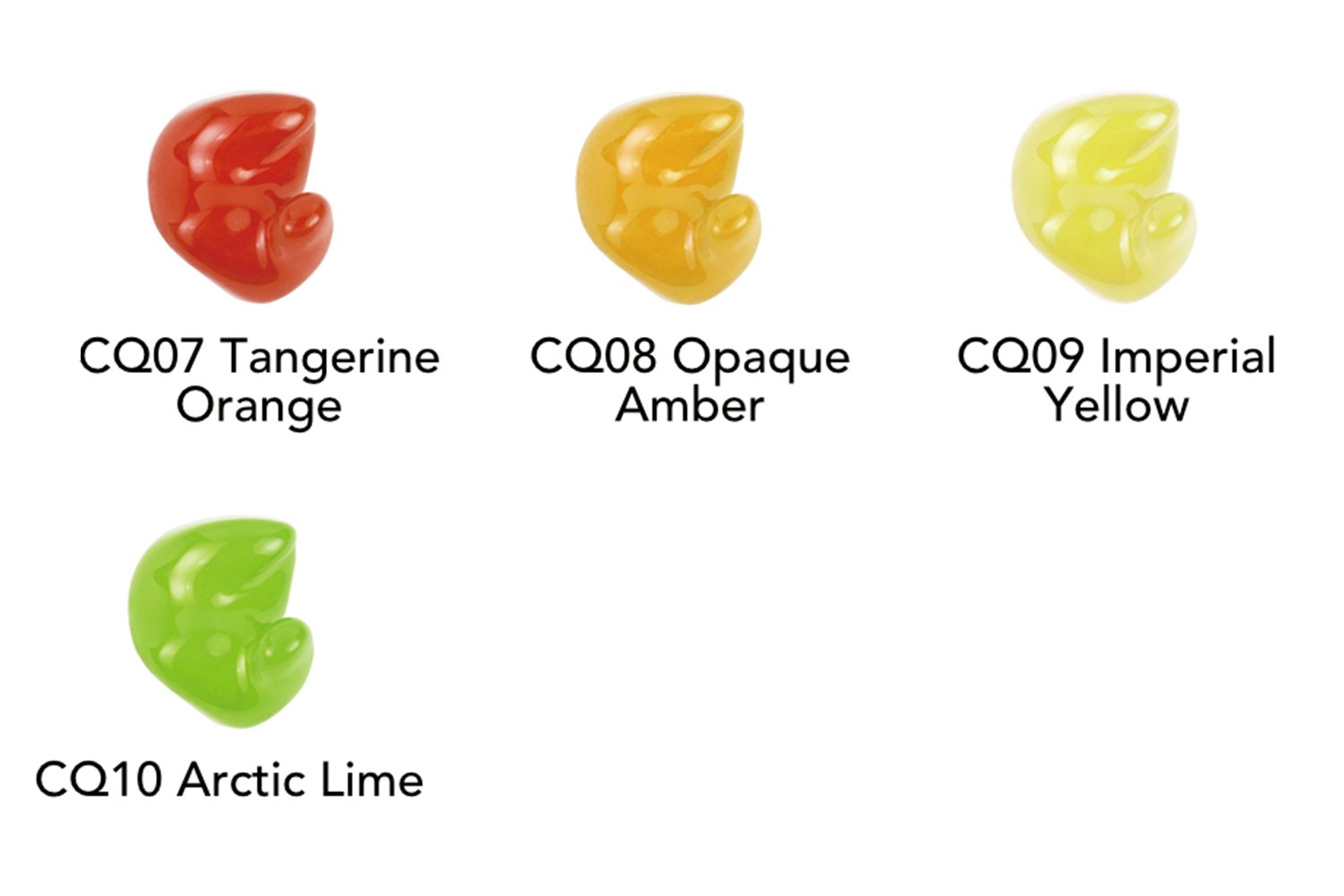

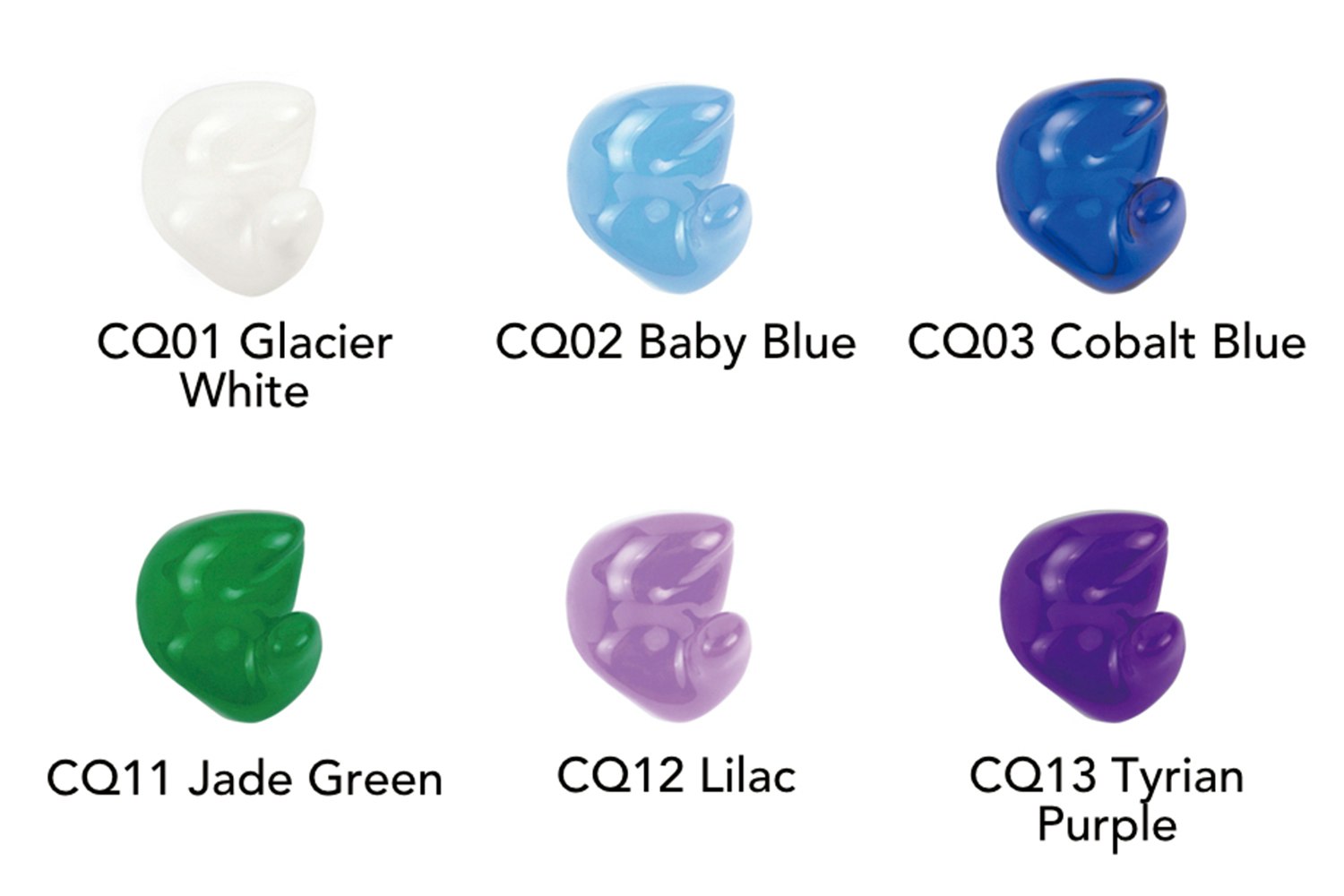

Opaque
Opaque
Opaque

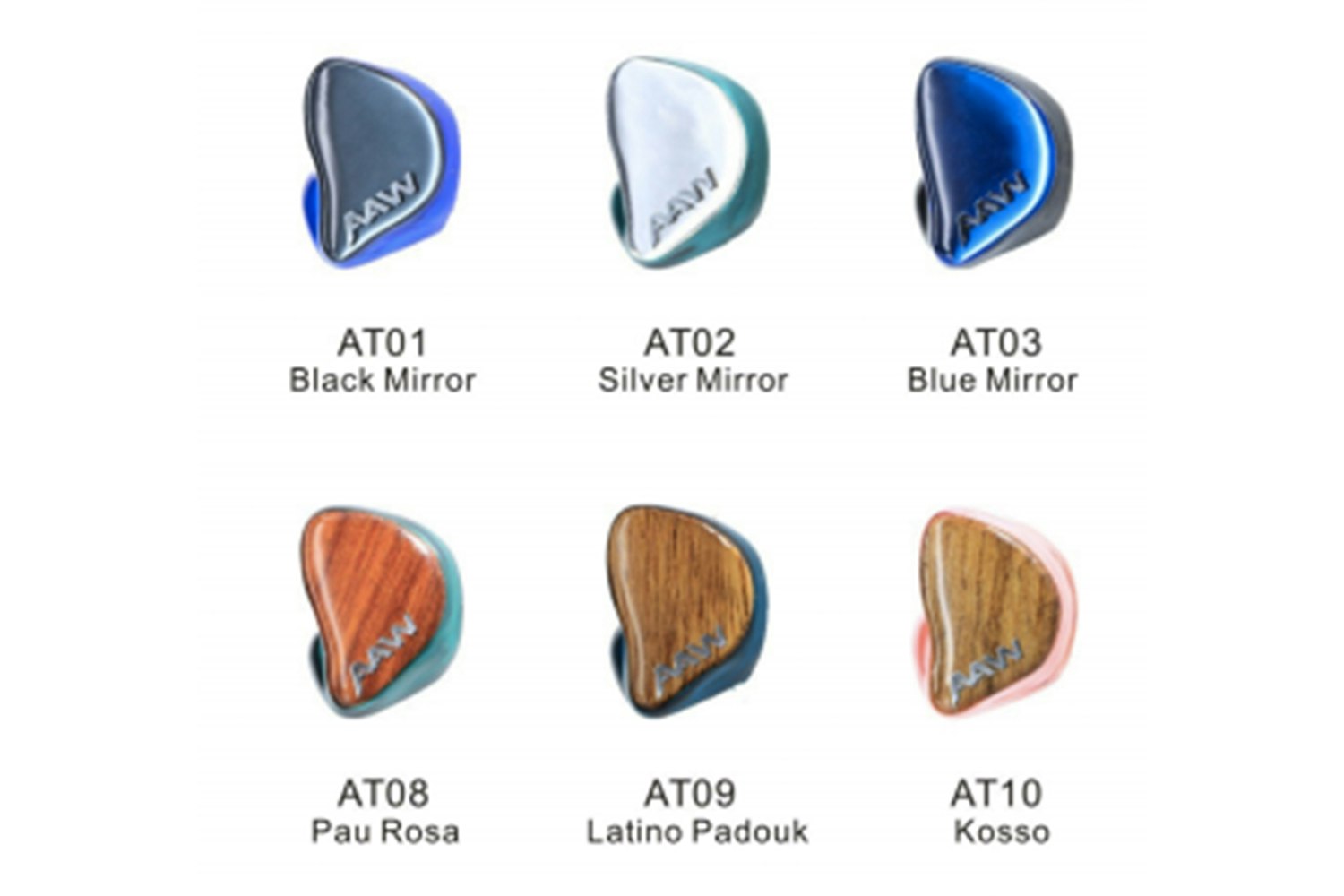

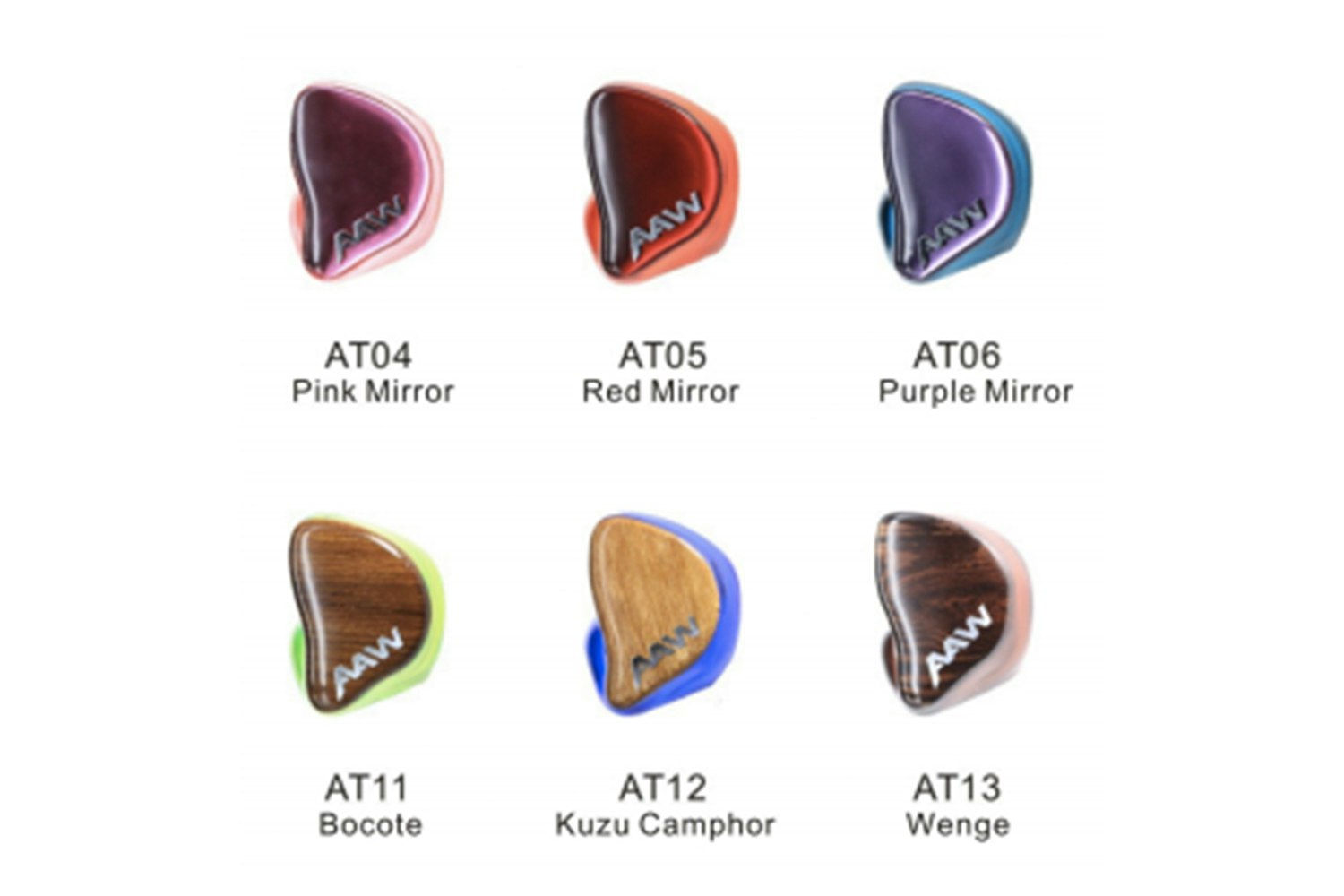

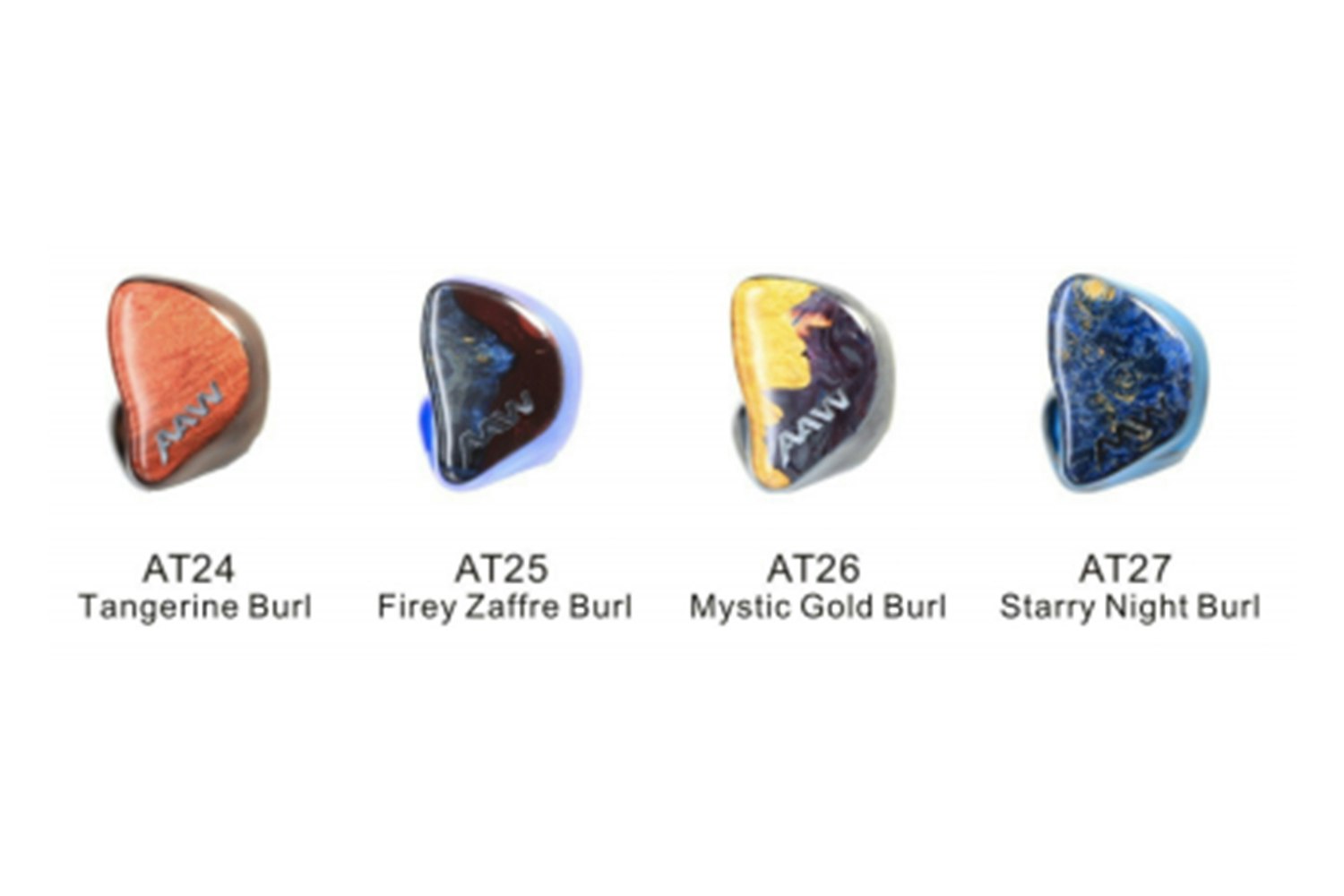

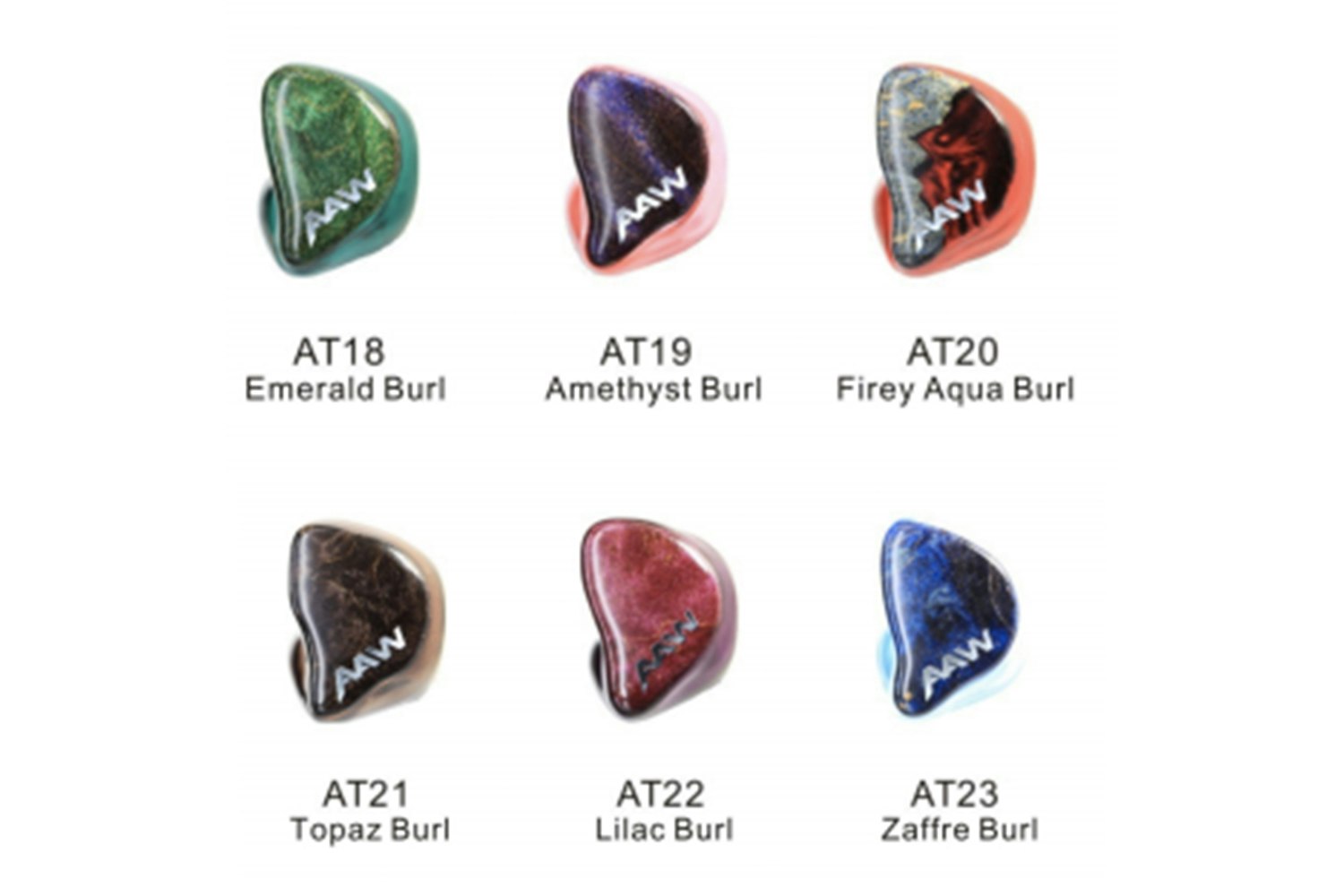

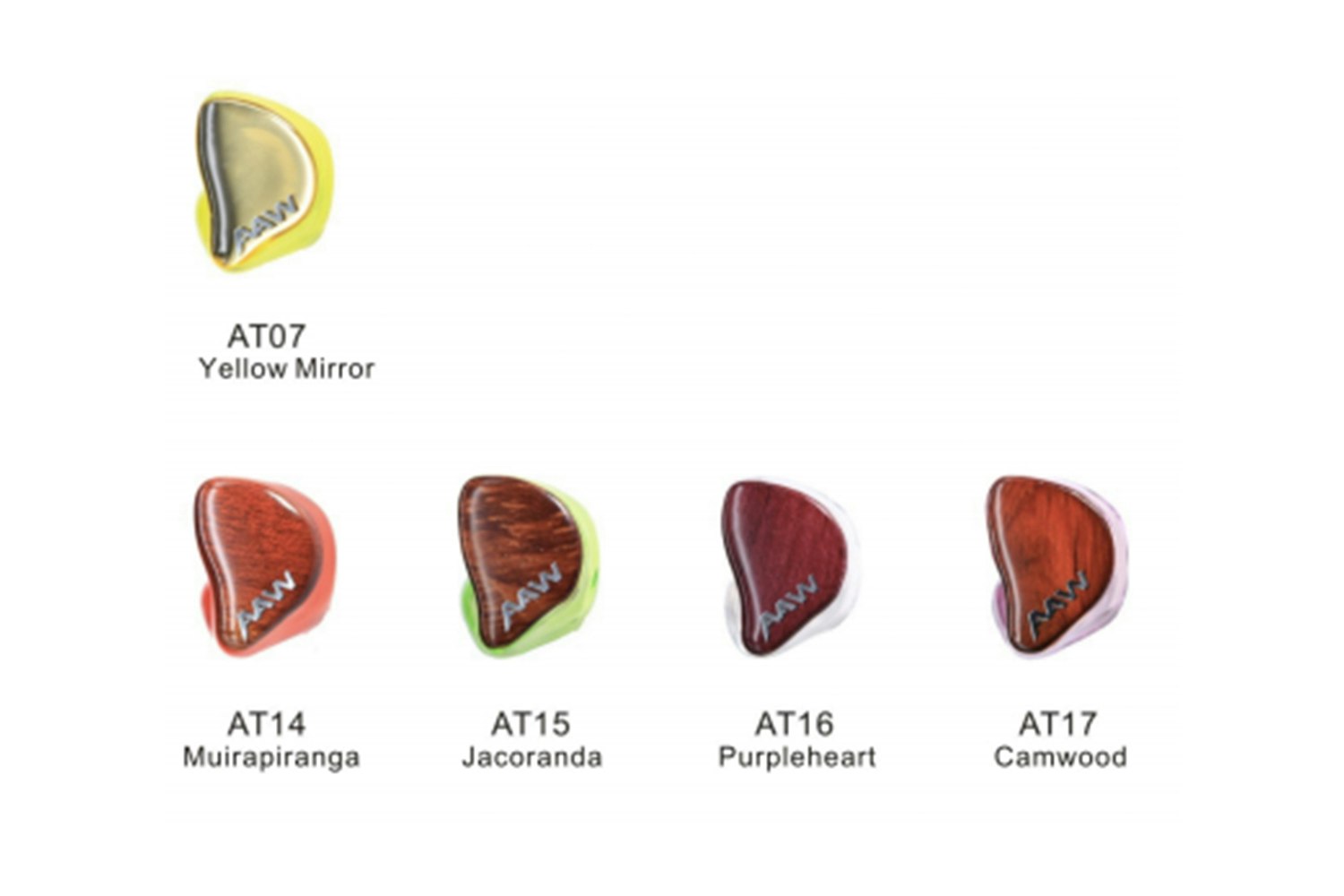

Face Plate Options: Artisan
Artisan
Artisan
Artisan
Artisan
Artisan

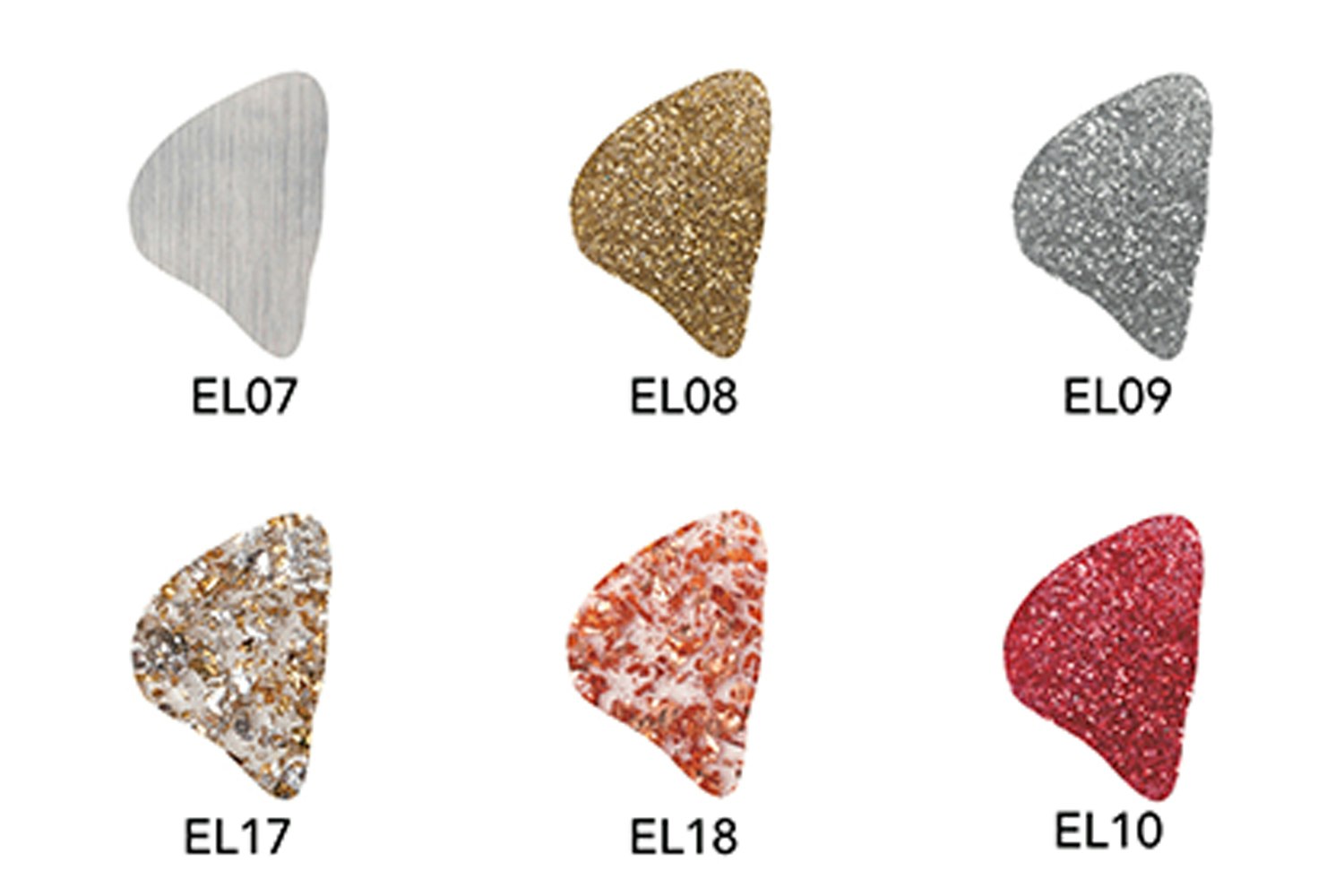

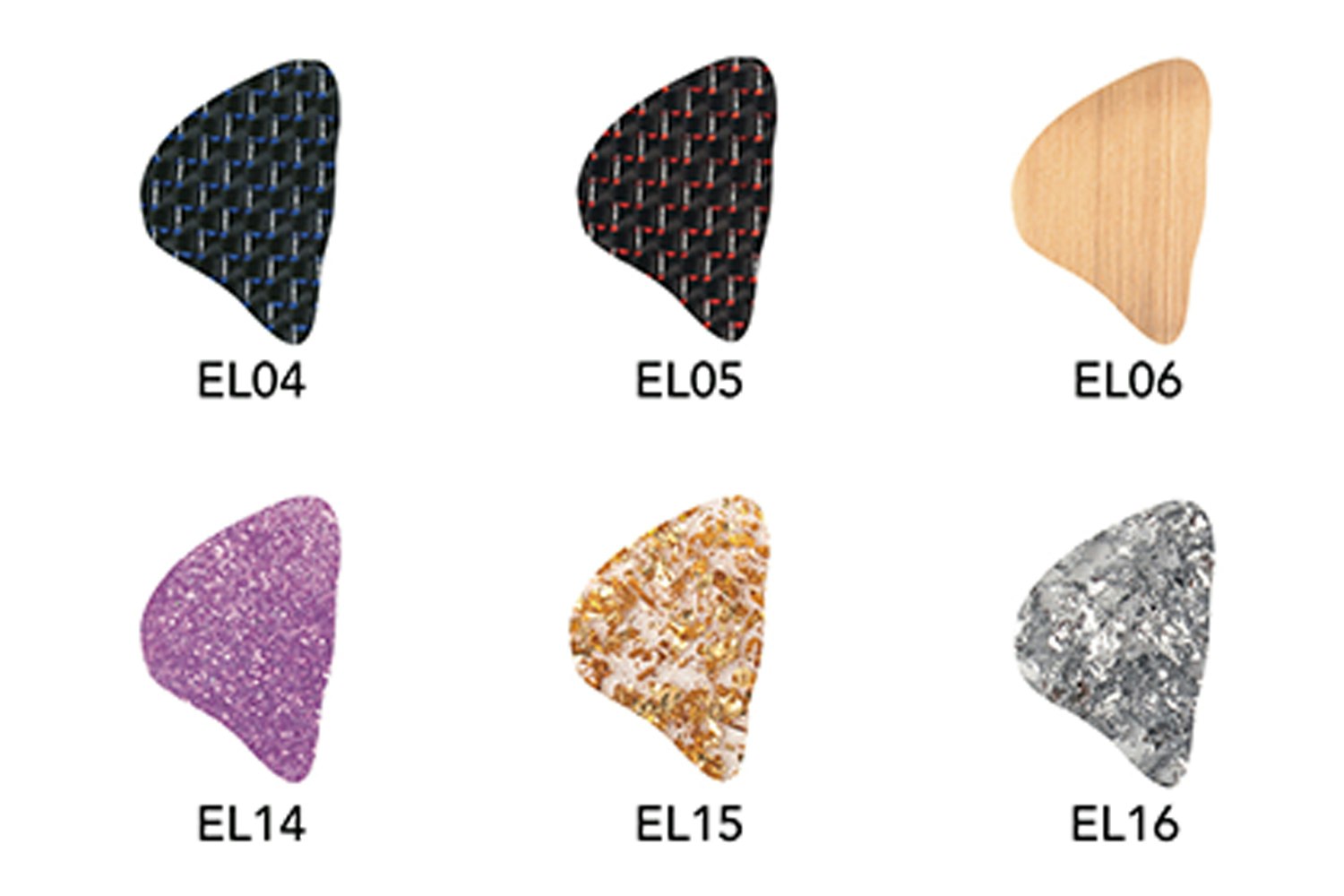

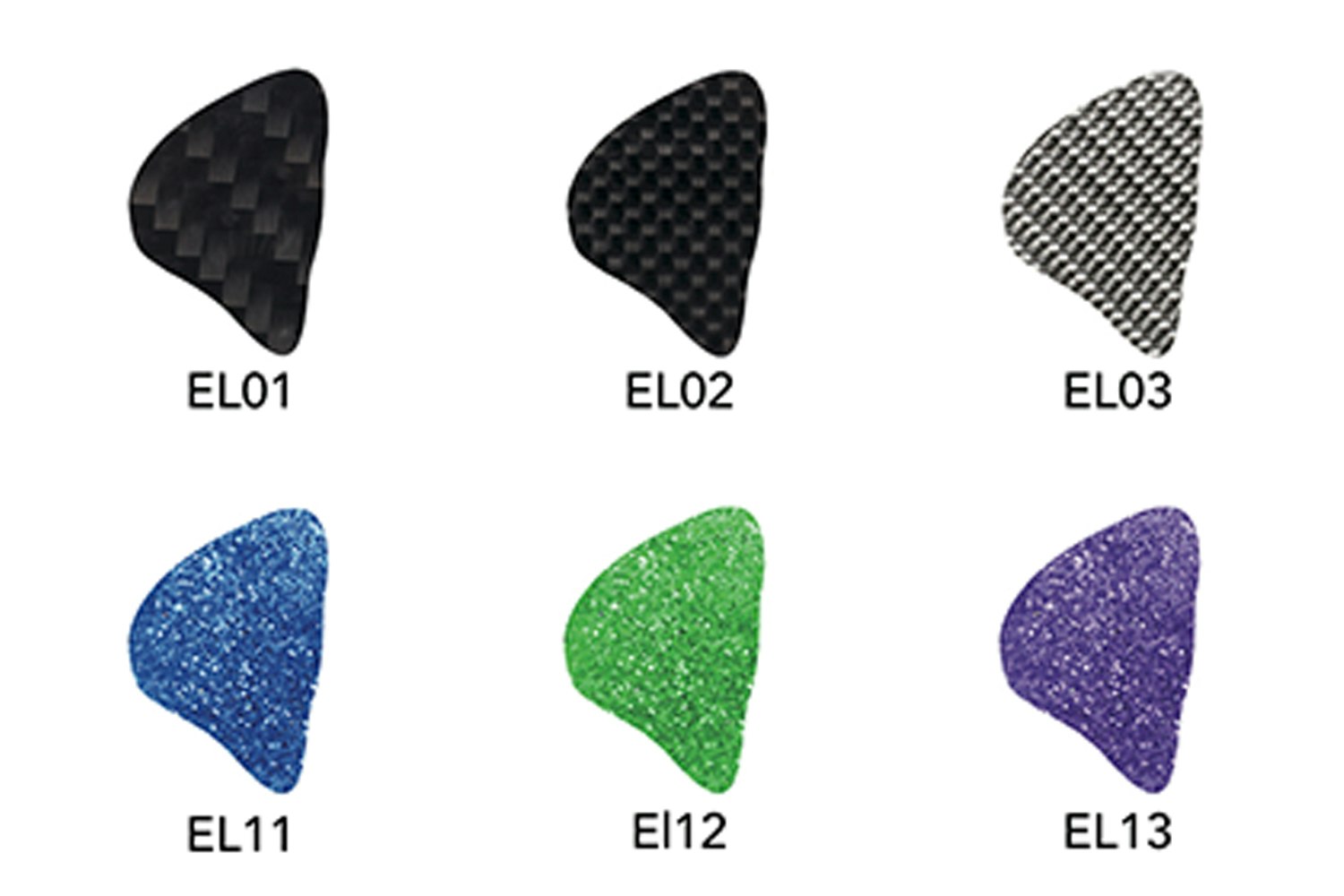

Elegance
Elegance
Elegance
Elegance

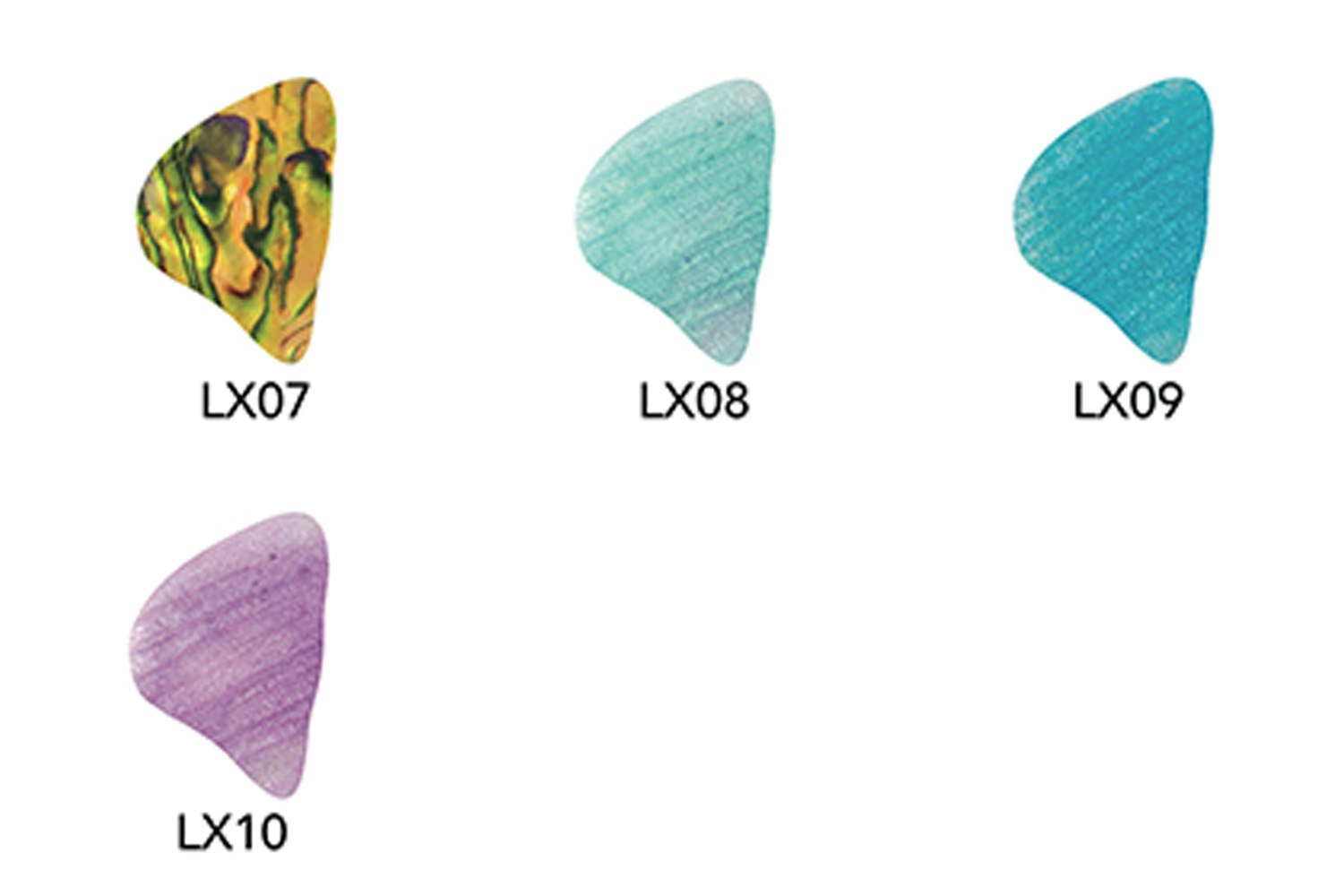

Luxury
Luxury
Luxury
Luxury
Specs

AAW A3H CIEMs

  • 10mm proprietary dynamic driver + 2 balanced armatures
  • TruXross 3-way crossover
  • Dual sound-bore design
  • Frequency response: 10–40,000 Hz
  • Sensitivity: 106 dB SPL @1 mW
  • Impedance: 22 ohms @ 1 kHz
  • THD: ≤ 0.5% @ 1 kHz

AAW A3H Universal-Fit IEMs

  • 10mm proprietary dynamic driver + 2 balanced armatures
  • TruXross 3-way crossover
  • Dual sound-bore design
  • Frequency response: 20–20,000 Hz
  • Sensitivity: 105 dB SPL @ 1 mW
  • Impedance: 16 ohms @ 1 kHz
  • THD: ≤ 0.5% @ 1 kHz

Optional AAW Capri Cable

  • Frequency response: 5 Hz–45 kHz
  • Maximum power output: 128 mW at 16 ohms
  • THD+N: < 0.01%
  • Signal-to-noise ratio: > 101 dB (unweighted), > 106 dB (A-weighted)
  • Input: Lightning or type C
  • Output impedance: < 1.0 ohms
  • USB controller: LAM or USB audio 2.0
  • PCM sample rates supported: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Bit depth supported: 1 bit, 16 bit, 24 bit
  • Connectors: 2-pin; Lightning or USB type C
  • Cable length: 3.9 ft (1.2 m) or 4.9 ft (1.5 m)

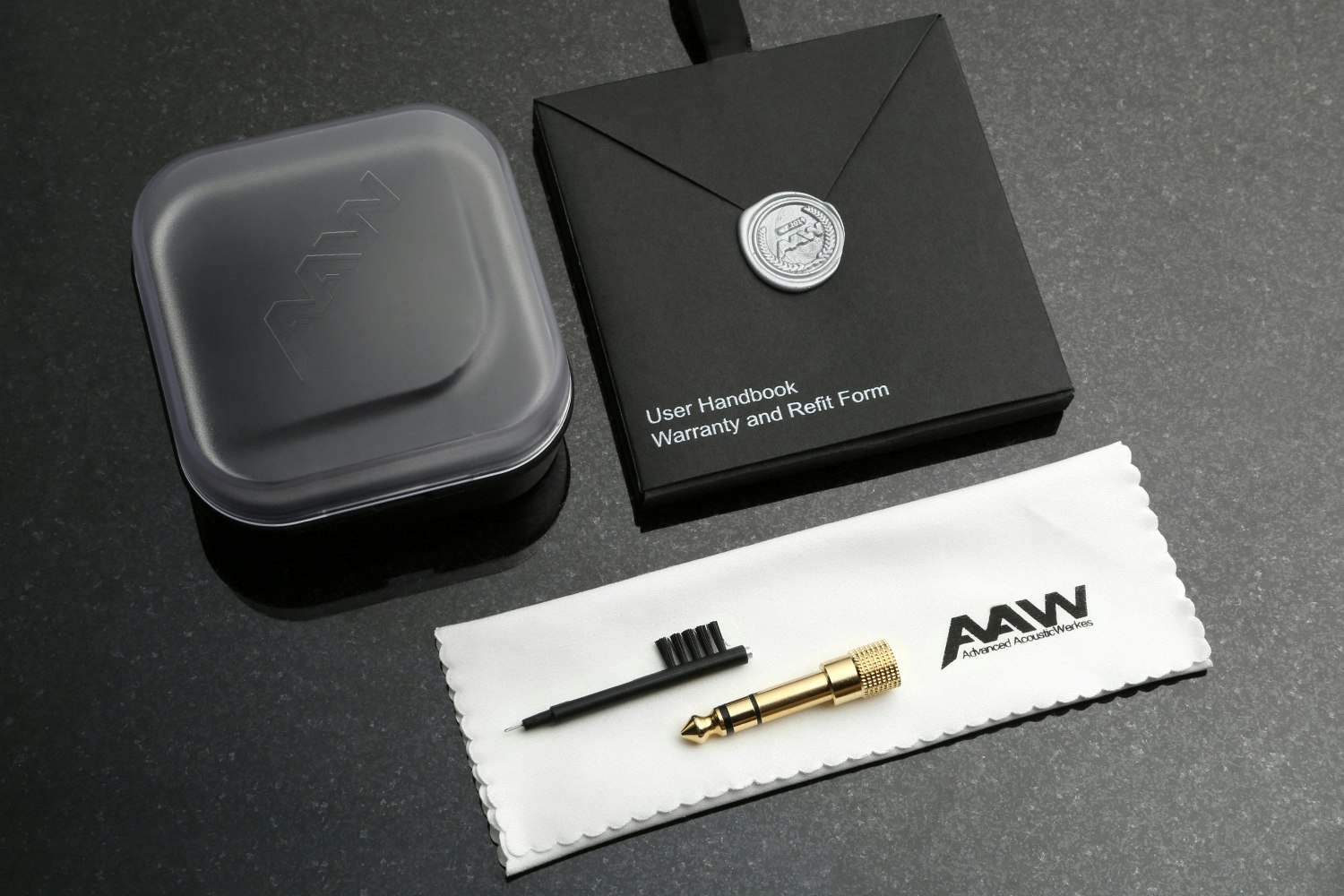

Included
  • AAW shockproof carrying case
  • Cleaning brush and cloth
  • 1-year limited warranty
  • 30-day refit guarantee (on CIEMs only)
Shipping

All orders will be shipped by the vendor.

Estimated ship date is Feb 12, 2019 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
