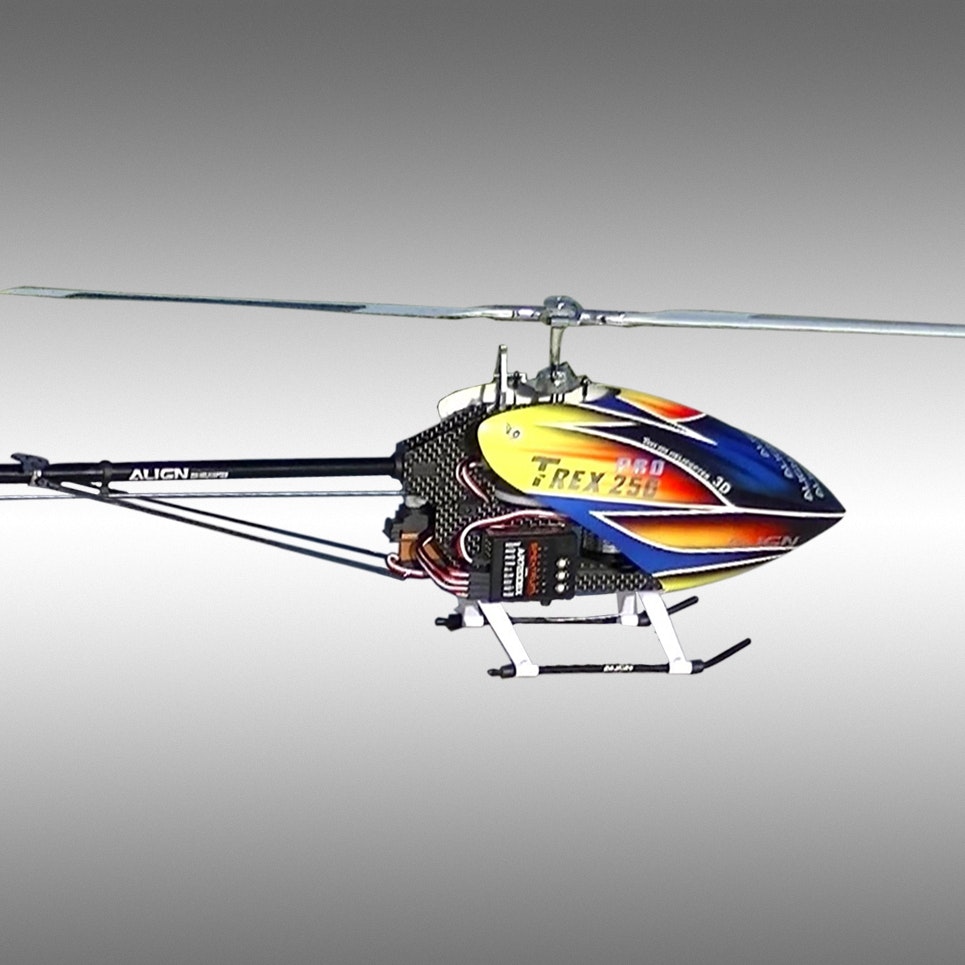

Align T-Rex 250 Pro DFC Super Combo 3GX

Align T-Rex 250 Pro DFC Super Combo 3GX

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
6 requests
Product Description
Now built with the 3GX flybarless system, the T-Rex 250 Pro DFC is more stable and easier to fly than ever before, allowing it to be flown in confined outdoor spaces or even large indoor spaces. That’s because it features a low-CG design that reduces resistance, increases responsiveness, and improves precision during flight Read More

The Most Stable ‘Copter of Its Kind

Now built with the 3GX flybarless system, the T-Rex 250 Pro DFC is more stable and easier to fly than ever before, allowing it to be flown in confined outdoor spaces or even large indoor spaces. That’s because it features a low-CG design that reduces resistance, increases responsiveness, and improves precision during flight. It doesn’t hurt that the highly efficient shaft-drive system minimizes tail power output loss, and the integrated tail gearbox features a new rudder control system for greater precision. And for easier maintenance and greater structural rigidity, the T-Rex 250 is built with a composite of plastic and carbon fiber.

Note: This drop includes the T-Rex 250 Pro DFC, motor, ESC, servos, and the flybarless gyro version 3GX. Spektrum reciever and battery depicted are not included.

Align T-Rex 250 Pro DFC Super Combo 3GX

Watch the T-Rex 250 Pro in Action!

3GX Flybarless System Features

  • Smallest and lightest flybarless system on the market
  • 2 ports connect Spektrum and JR satellite receivers + full support of Futaba's S-BUS system
  • Quick setup; supports all CCPM swashplate systems on the market
  • Supports Bluetooth connectivity
  • No external governor needed
  • Custom parameters allow fine tuning of numerous settings for swashplate and rudder
  • 3GX utilizes brand new gyroscope sensors for harsh conditions
  • Dual axis plus rudder sensor dramatically improves swashplate and rudder correction precision
  • 16-bit processor is 4 times faster than previous generation
  • Built-in pirouette compensation function offers fixed-point stabilization during pirouetting
  • Rudder allows consistent rudder feel even under high speed conditions
  • APS gyro allows self stabilization, hold position and altitude, and autonomous way point flights
Align T-Rex 250 Pro DFC Super Combo 3GX
Align T-Rex 250 Pro DFC Super Combo 3GX
Align T-Rex 250 Pro DFC Super Combo 3GX
Align T-Rex 250 Pro DFC Super Combo 3GX
Align T-Rex 250 Pro DFC Super Combo 3GX

Specs

Align T-Rex 250 Pro DFC

  • Length: 17 in (431 mm)
  • Height: 5.9 in (150 mm)
  • Main blade length: 8.1 in (205 mm)
  • Main rotor diameter: 18.1 in (460 mm)
  • Tail rotor diameter: 4.3 in (108 mm)
  • Motor pinion gear: 15T
  • Main drive gear: 120T
  • Tail drive gear: 28T
  • Drive gear ratio: 1:8:4.28
  • Weight (with motor): 260 g

3GX Flybarless System

  • Operating voltage range: DC 3.5V~8.4V
  • Operating current consumption: <80mA @4.8V
  • X and Y axis operating angle range:-300~+300 degree
  • Z axis operating angle range :-600~+600 degree
  • Sensor resolution: 12bit
  • Supports 90/120/135/140 CCPM swashplates
  • Spektrum and JR Satellite antennas support (Replaces original factory receiver)
  • Futaba S.BUS system support
  • Supports Wide/Narrow Bandwidth Digital and brushless servos
  • Compatible with 2 to 5 blades rotor heads
  • Built in governor function
  • Maximum working voltage: 8.5V
  • Compatible with 1024/2048 resolution Spektrum receivers
  • Field setup without the use of a PC
  • Support up to 6 servos
  • Automatic servo type recognization
  • Operating temperature: -20 – 60 degrees
  • Operating humidity: 0%~95%
  • Size: 36.5 x 25.2 x 15.6 mm
  • Weight: 11g
