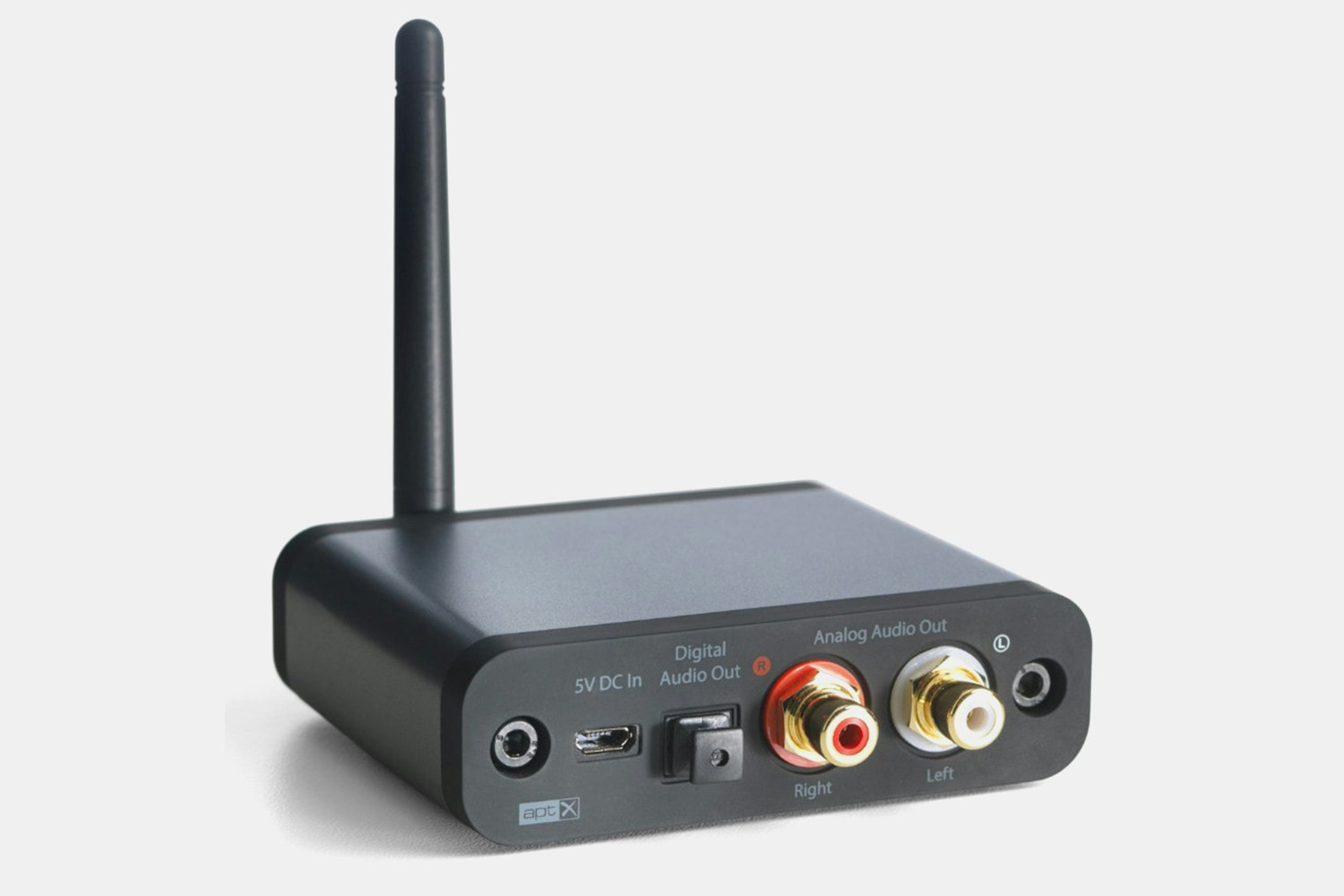

Audioengine B1 Bluetooth Receiver
Complete Your Sound System With Bluetooth
When it comes to maximizing convenience in any audio system, wireless is the way to go. If you have high-performing equipment without wireless capability, Audioengine has a solution to bridge the gap. The B1 is a compact Bluetooth receiver that connects to speakers, DACs, or amps to make it easy to play music wirelessly straight from your smartphone, computer, or other device. Onboard Bluetooth 5.0 with support for aptX HD and aptX codecs ensures high-resolution playback, while stereo RCA and SPDIF outputs increase your device connectivity options. Small enough to fit in the palm of your hand, the B1 is sure to find a spot in your setup.
Specs
- Audioengine
- Input: Bluetooth
- Outputs: Stereo analog RCA, digital optical (SPDIF)
- DAC chip: AKM AK4396
- Bluetooth version: Bluetooth 5.0
- Bluetooth codecs supported: aptX HD, aptX, AAC, SBC
- Bluetooth profiles supported: A2DP, AVRCP
- Bluetooth range: 98.4 ft (30 m)
- Required power: 5V, 200mA
- Full-scale output: 2.0V RMS
- Output impedance: 57 ohms
- Power filtering: 3-stage redundant regulations
- SNR: 100 dB (DC to 20 kHz)
- THD+N: <0.02% (1 kHz FS 96 kS/s)
- Frequency response: 10 Hz – 20 kHz
- Crosstalk: > -86 dB
- Input bit depth: 24-bit (upsampled)
- Input data rate: Determined by Bluetooth
- Latency: Approximately 30 milliseconds
- Operating temperature: 32° – 105°F (0°C – 40°C)
- Storage temperature: -4°0 – 115°F (-20°C – 46°C)
- Relative humidity: 5% – 95%, non-condensing
- Dimensions: 3.5 x 4 x 1 in (8.9 x 10.2 x 2.5 cm)
Included
- US plug
- RCA-to-RCA cable
- USB adapter
