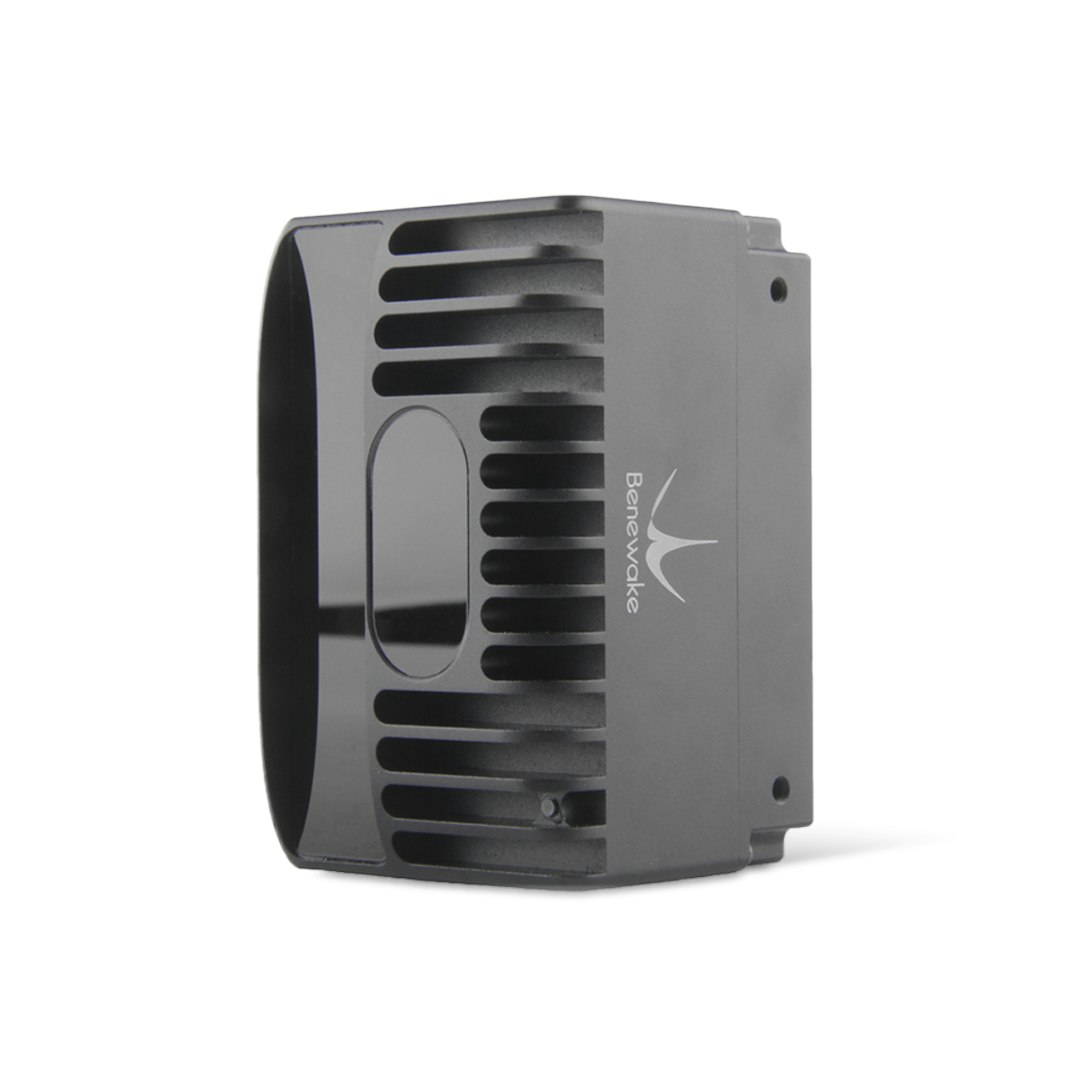

Benewake CE30 Solid State TOF LiDAR

Benewake CE30 Solid State TOF LiDAR

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
27 requests
3 Sold
Product Description
Designed to work with warehouse robots, drones, and mobile machines, the Benewake CE30 solid-state TOF LiDAR creates real-time 3D images based on laser renderings. Fitted with a wide field-of-view sensor, the device measures the distance, depth, altitude, terrain, and more by scanning the environment with infrared lasers Read More

Fast & Accurate Laser Scanning

Designed to work with warehouse robots, drones, and mobile machines, the Benewake CE30 solid-state TOF LiDAR creates real-time 3D images based on laser renderings. Fitted with a wide field-of-view sensor, the device measures the distance, depth, altitude, terrain, and more by scanning the environment with infrared lasers. Similar to obstacle-avoidance modes found in other LiDAR devices, a region-of-interest (ROI) mode can be customized to focus on obstacle information that’s unique to the surrounding environment. Since there are no rotating mechanical components, the device has triple the lifespan of other LiDAR scanners.

Benewake CE30 Solid State TOF LiDAR
Benewake CE30 Solid State TOF LiDAR
Benewake CE30 Solid State TOF LiDAR

Specs

  • Model number: 109990325
  • Detecting range: 0.3–13.1 ft (0.1–4 m)
  • Pixel resolution: 320 x 24
  • Ranging resolution: 0.3 in (1 cm)
  • Repeatability: ≤ 1.1 in (3 cm)
  • Accuracy: ≤ 1.9 in (5 cm)
  • FOV: (horizontal) 132°, (vertical) 9°
  • Communication protocol: CAN/TCP
  • Protection: IP65
  • Operating temperature: 32–122° F (0–50° C)
  • Photobiological safety: Risk group 0 in accordance with EN 62471
  • Power consumption: ≤ 4.5W
  • Supply voltage: 12V
  • Dimensions: 5.4 x 5.4 x 3.3 in (13.8 x 13.8 x 8.5 cm)
  • Weight: 7.7 oz (219 g)

Included

  • Power cable
