Cayin CS-845A Tube Integrated Amplifier

Cayin CS-845A Tube Integrated Amplifier

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
51 requests
4 Sold
Product Description
In the world of integrated amplifiers, few names match the reputation of Cayin. After impressing audiophiles worldwide with the flagship M845i integrated amplifier, the company is back with a scaled-down alternative: the CS-845A Read More

Custom Transformers, High-Quality Amplification

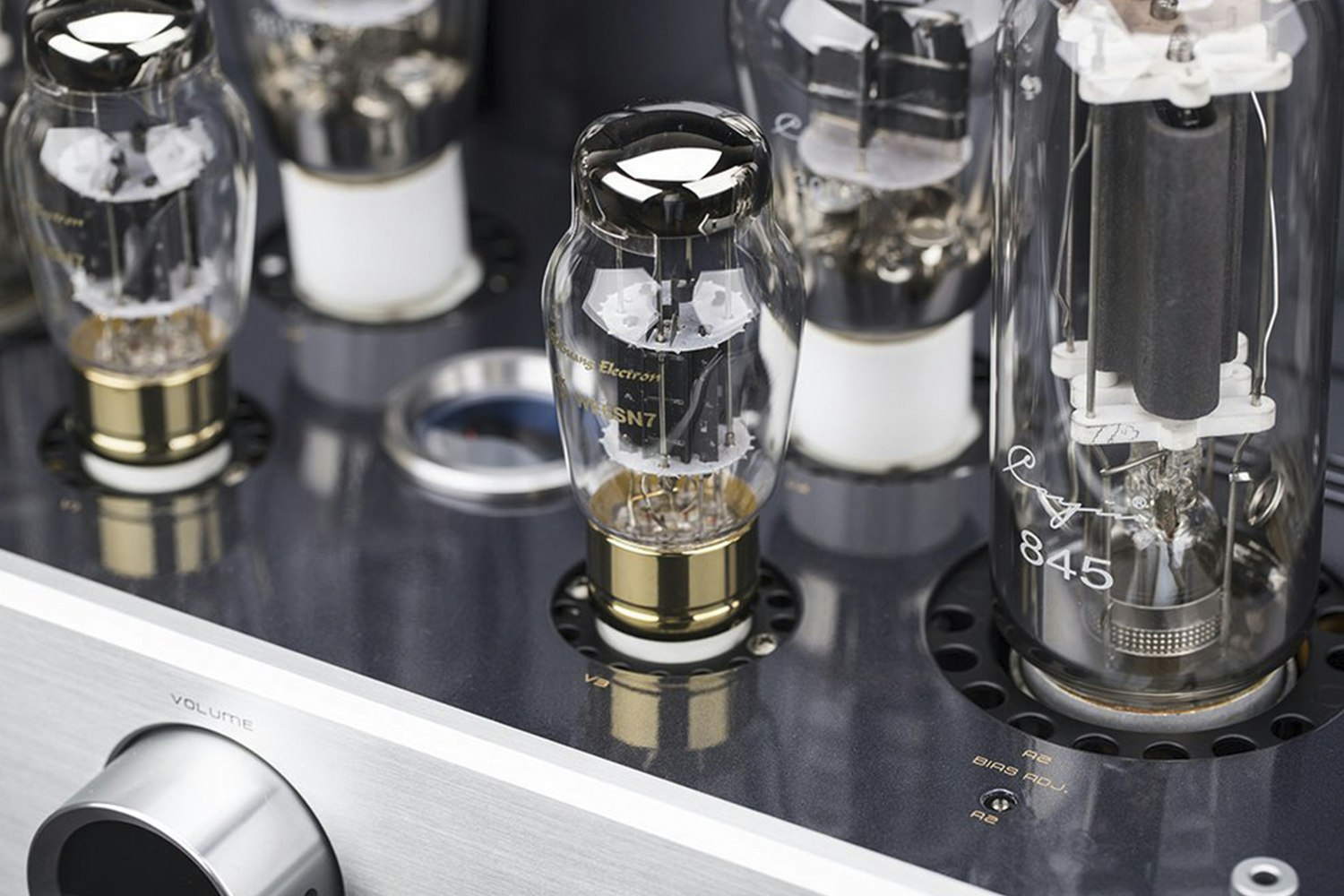

In the world of integrated amplifiers, few names match the reputation of Cayin. After impressing audiophiles worldwide with the flagship M845i integrated amplifier, the company is back with a scaled-down alternative: the CS-845A. Equipped with Cayin’s custom toroidal power transformer and EI-output transformers, this Class A single-end triode amplifier delivers signature warmth and clarity you won’t find anywhere else. Contributing to its audio and amplification performance, the CS-845A features six Shuguang tubes: dual WE6SN7 tubes for voltage amplification, dual 845 power tubes, and dual ceramic-base, gold-pin 300B tubes to drive the power tubes. Outfitted with a -3-decibel NFB feature, the CS-845A gives listeners the ability to adjust tone for a more customized sound. Handwired and encased in aluminum, it’s a workhorse worthy of any system.

Cayin CS-845A Tube Integrated Amplifier
Cayin CS-845A Tube Integrated Amplifier
Cayin CS-845A Tube Integrated Amplifier
Cayin CS-845A Tube Integrated Amplifier
Cayin CS-845A Tube Integrated Amplifier
Cayin CS-845A Tube Integrated Amplifier

Model

Specs

  • Cayin
  • Power output: 24 W + 24 W
  • Vacuum tubes: (2) WE6SN7, (2) 300B, (2) 845

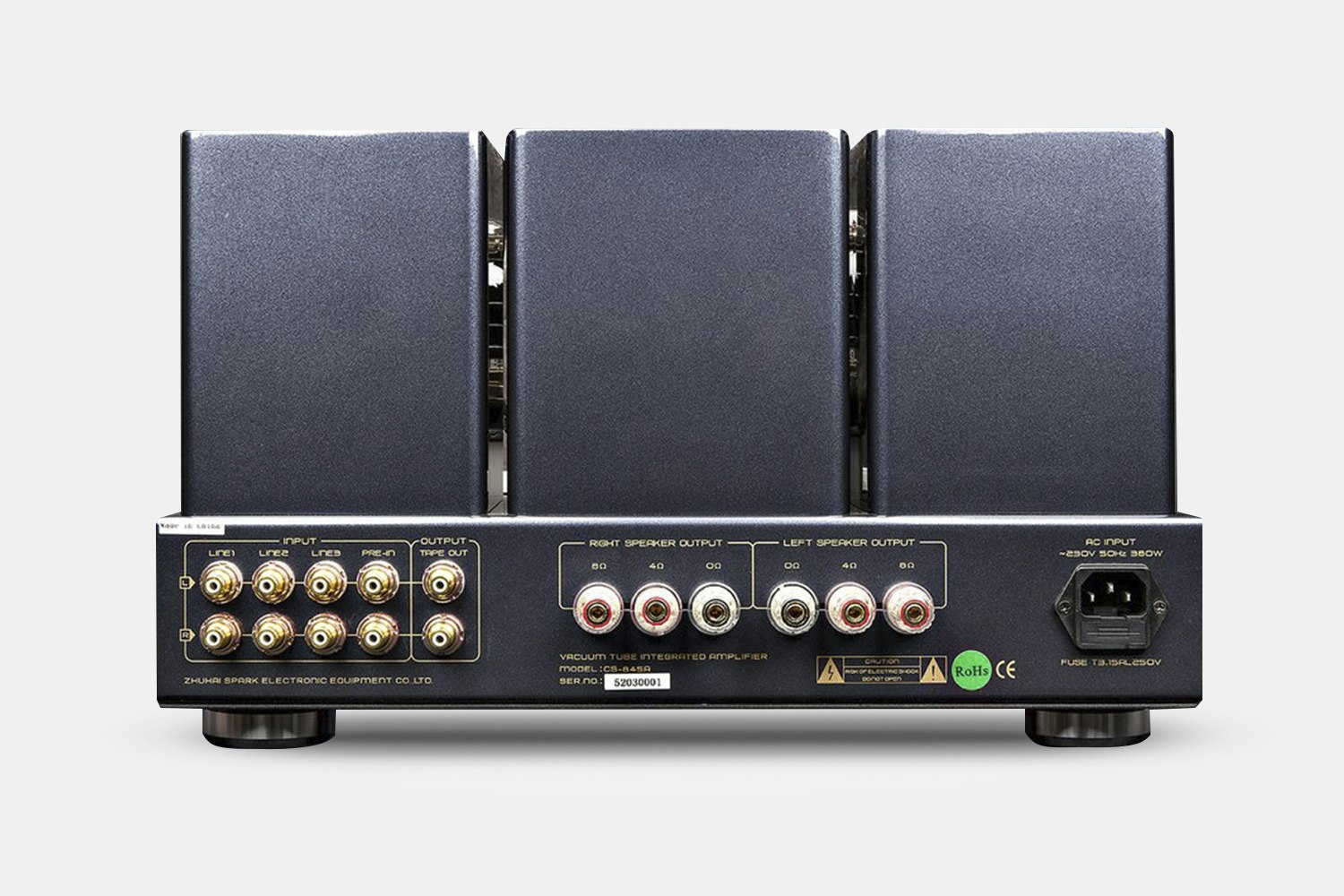

  • Inputs: (3) stereo line, stereo pre-in

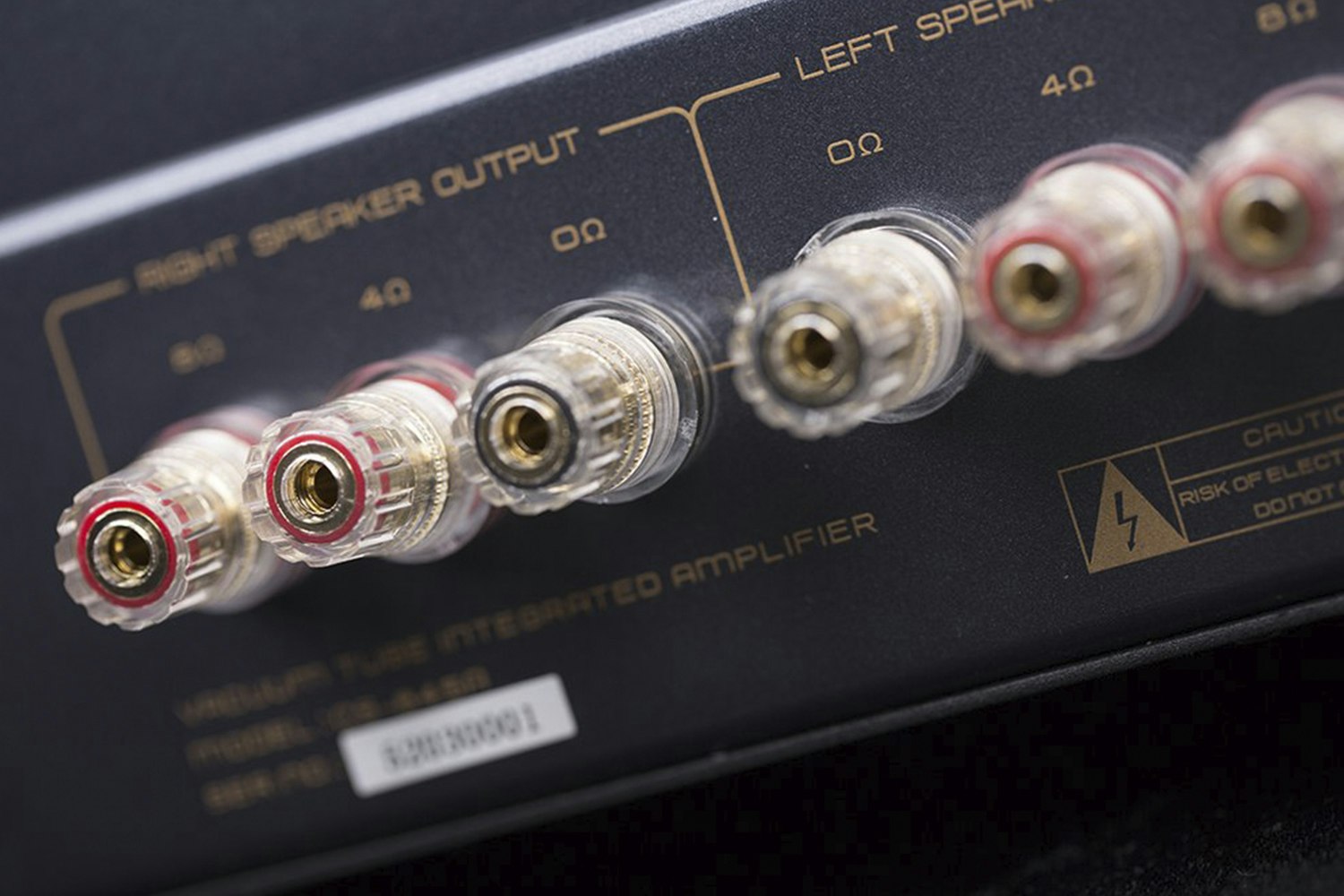

  • Outputs: Stereo tape-out, stereo speaker (0 ohms), stereo speaker (4 ohms), stereo speaker (8 ohms)
  • Frequency response: 10 Hz – 26 kHz (-3 dB)
  • THD: 0.3% (1 kHz)
  • S/N ratio: 90 dB
  • Input sensitivity (integrated): 300 mV
  • Input sensitivity (pre-in): 1300 mV
  • Input impedance: 100 kohms
  • Output impedance: 0 ohms, 4 ohms, 8 ohms
  • Power consumption: 380W
  • Dimensions: 16.5 x 15.3 x 9.5 in (42 x 38.9 x 24 cm)
  • Net weight: 81.6 lbs (37 kg)

Included

  • Remote
