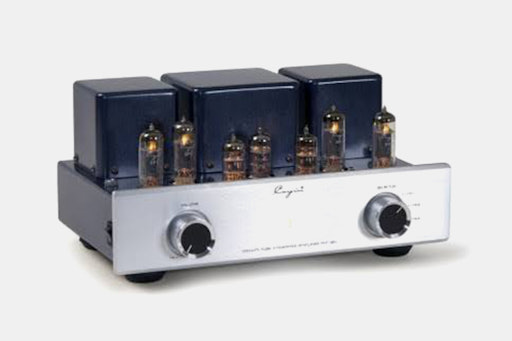

Cayin MT-12N EL84EH Integrated Amplifier
$479
$853

Cayin MT-12N EL84EH Integrated Amplifier

bookmark_border
$479
$853
Ready to Ship
Members who purchase earn
479
Drop Rewards
Frequently bought together:
add
Massdrop x Sennheiser HD 6XX Headphones
add
Xduoo TA-03S Tube DAC/Amp
add
Cayin MT-35MK2 Tube Integrated Bluetooth Amp

Legendary Tubes, Updated Engineering

In the latest version of Cayin’s highly regarded MT-12N amplifier, components take center stage. The biggest stars are four EL84 power tubes from Electro Harmonix—one matched pair per channel—famous for their sweet and musical tone. Controlling these classics are two 6N1 double-pole 3-pin tubes, and completing the preamp circuit is the popular 12AX7 tube. Alongside this impressive tube roster, the new MT-12N also features updated tube socket wiring, as well as gold-plated connectors for optimal durability and conductivity. Its Class A/B push-pull amplification circuit offers solid output power to suit a wide range of setups. On the redesigned wood panel, you’ll find separate outputs for 4-ohm and 8-ohm speakers, plus three line inputs with solid RCA jacks.

Cayin MT-12N EL84EH Integrated Amplifier
Cayin MT-12N EL84EH Integrated Amplifier
Cayin MT-12N EL84EH Integrated Amplifier

Model

Specs

  • Cayin
  • Integrated amplifier
  • Circuit: Class A/B
  • Tubes: (4) EL84 EH, (2) 6N1, (1) 12AX7
  • Inputs: (3) RCA line inputs
  • Outputs: (1) 4-ohm speaker output, (1) 8-ohm speaker output
  • Frequency response: 10 Hz – 35 kHz (-3 dB)
  • THD: 0.5% (1kHz)
  • SNR: 86 dB
  • Input impedance: 100 kohms
  • Input sensitivity: 260 mV
  • Speaker impedance: 4 ohms – 8 ohms
  • Output power (RMS) at 4 and 8 ohms: 9W + 9W
  • Maximum power consumption: 80 VA
  • Mains voltage: 110V AC / 50 Hz
  • Front panel material: Real wood and chrome
  • Dimensions: 13 x 9.7 x 6.3 in (33 x 24.5 x 16 cm)
  • Weight: 18.3 lbs (8.3 kg)

Shipping

Estimated ship date is Mar 7, 2024 PT.

Payment will be collected at checkout. Cancellations are accepted up to 2 hours after checkout, after which all sales final.

View Similar Deskscapes
Top Customer Questions38
search
close
Question
I almost bought this but unfortunately  it is a Push Pull design which lacks even order harmonics. That means that even though these designs give you more tube watts for your dollar, they have much less tube euphonic sound which is the even order harmonics. You can google this yourselves.
Mar 2, 2021
Top Answer
cash1489
87
That's a very narrow view of SE vs. PP tube amps. Many highly regarded tube amps on the market today are Push-Pull designs...both types have pros and cons..Read More
Apr 12, 2021
Question
would this power bowers and Wilkins 603 speakers?
Feb 27, 2021
Top Answer
CForsythe
25
The b&w are not very efficient speakers I don’t think 9 watts per channel would be enough power for them.Read More
Feb 27, 2021
See 6 More
Question
Anybody know if this would be a good match for Klipsch RP600s?
Feb 27, 2021
Top Answer
Versahchee
12
Yep just don’t turn it up to ear blasting levelsRead More
Feb 27, 2021
Showing 3 of 38 questions
View All Questions
User Photos11

Customer Reviews

4.9
(18 reviews)
5star
(16)
4star
(2)
3star
(0)
2star
(0)
1star
(0)
100% would recommend to a friend
Showing 0 of 18 reviews
