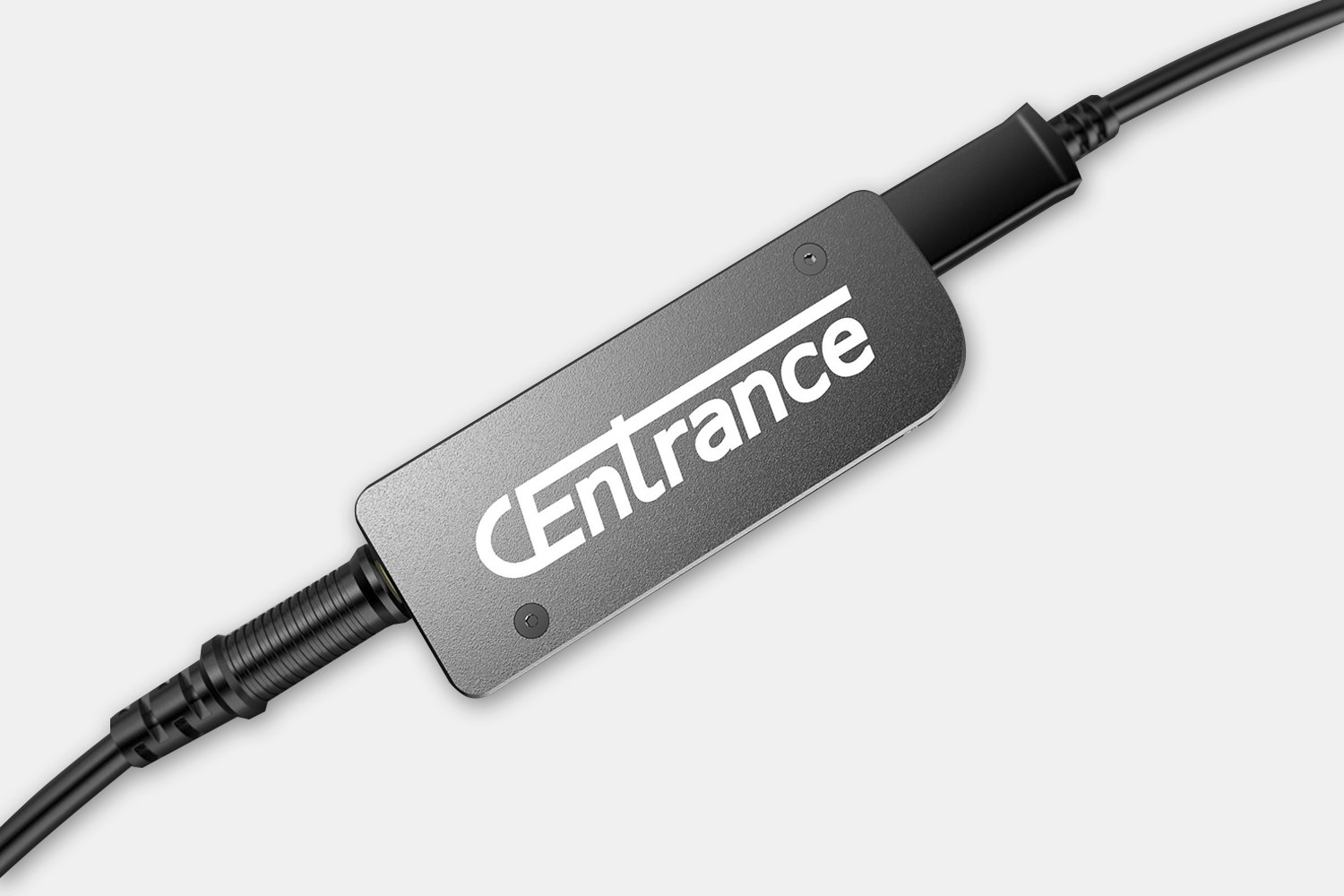

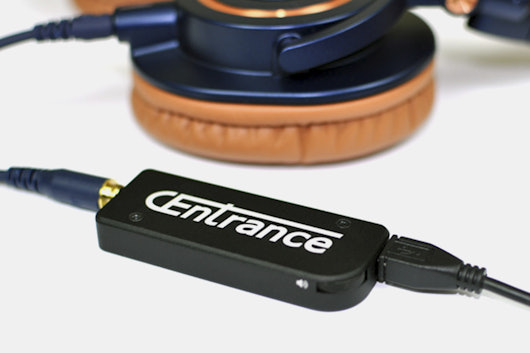

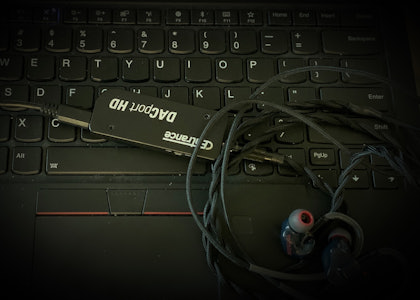

Centrance DACport HD
More Power for High-End Cans

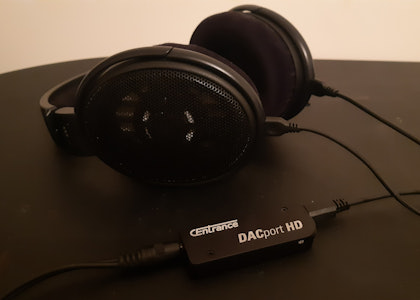

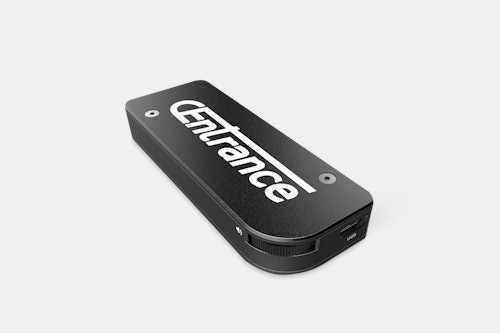

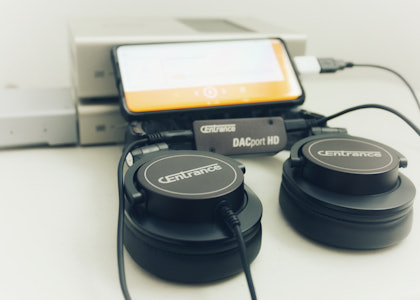

The CEntrance DACport HD takes everything you loved about the original DACport Classic and Massdrop-exclusive DACport Slim, and ramps up the power for running high-end headphones from a compact device. It pairs the highly regarded AKM4490 DAC with a Class-A headphone amp that brings 775 mW of output power—all without the use of an internal battery. Connect the DACport HD to your favorite headphones and experience 32-bit/384kHz music, as well as DSD files, in full resolution with ultra-low noise and jitter. One Head-Fi reviewer says, “Big cans are where the DACport shows its brilliance most of all. For the last 5 days, I’ve listened to the DACport HD with HIFIMAN’s HE400s, and I think it's one of the best combos by price/sound ratio."
Features
- Audiophile-grade AK4490 D/A converter plays HD music with bit-perfect accuracy
- Amp designed for listening without fatigue; offers clarity, soundstage, and detail
- Ergonomic, side-mounted rotary volume control for single-handed adjustment
- Volume control with perfect tracking, so your L/R channels are always in balance
- Plug ‘n’ play operation with Mac and Linux; driver available for Windows
- No power adapter or batteries; product uses USB power from your laptop

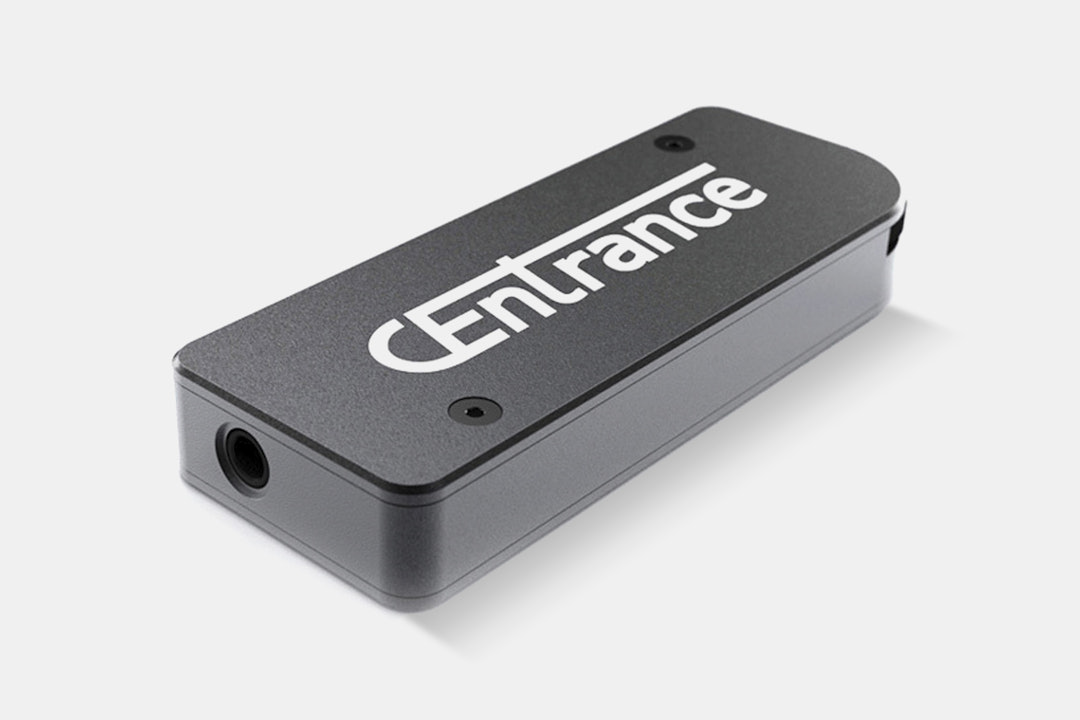

- Aircraft aluminum chassis, anodized for extra scratch protection and durability
- ⅛-inch headphone jack drives the most advanced headphones on the market
Specs
Digital
- Max sample rate: 384kHz (Also: 44.1, 48, 88.2, 96, 176.4, 192, 352kHz), DSD
- Max resolution: 32-bit (Also supports 16-bit and 24-bit)
- Connection: USB 2.0, asynchronous
- Local clock: Mil-spec clock, 10 ppm precision, 1 ps jitter
- Compatibility: Any computer running Mac, PC, Linux; driver available for Windows
Analog
- Frequency response: 20Hz–40kHz +/-0.2dB
- Dynamic range: 112 dB, re +14.5dBu, max gain
- THD + N: 0.002% (FS, 1kHz)
- Noise floor: 7 µV RMS (A-weight), max gain

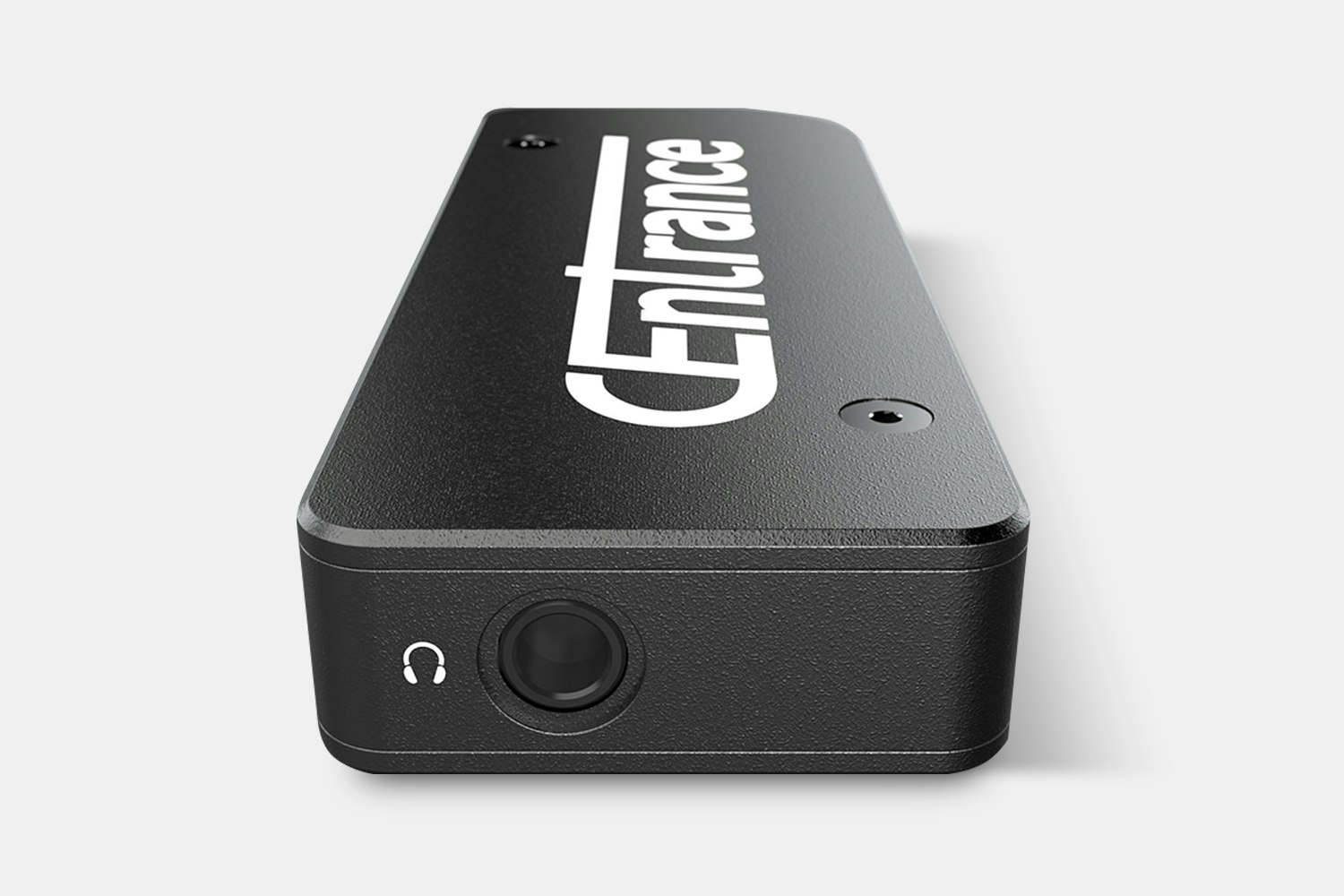

- Audio output: Stereo 3.5mm (1/8") jack, headphone or line output
Headphone Amplifier
- Output impedance: 1 ohm
- Amplifier type: Direct Class-A, no caps in the signal path
- Max level: 4.1 V rms / +14.5 dBu
- Output power: 775mW (total), drives 600-ohm headphones
General
- Input power: USB bus (no external power supply needed)

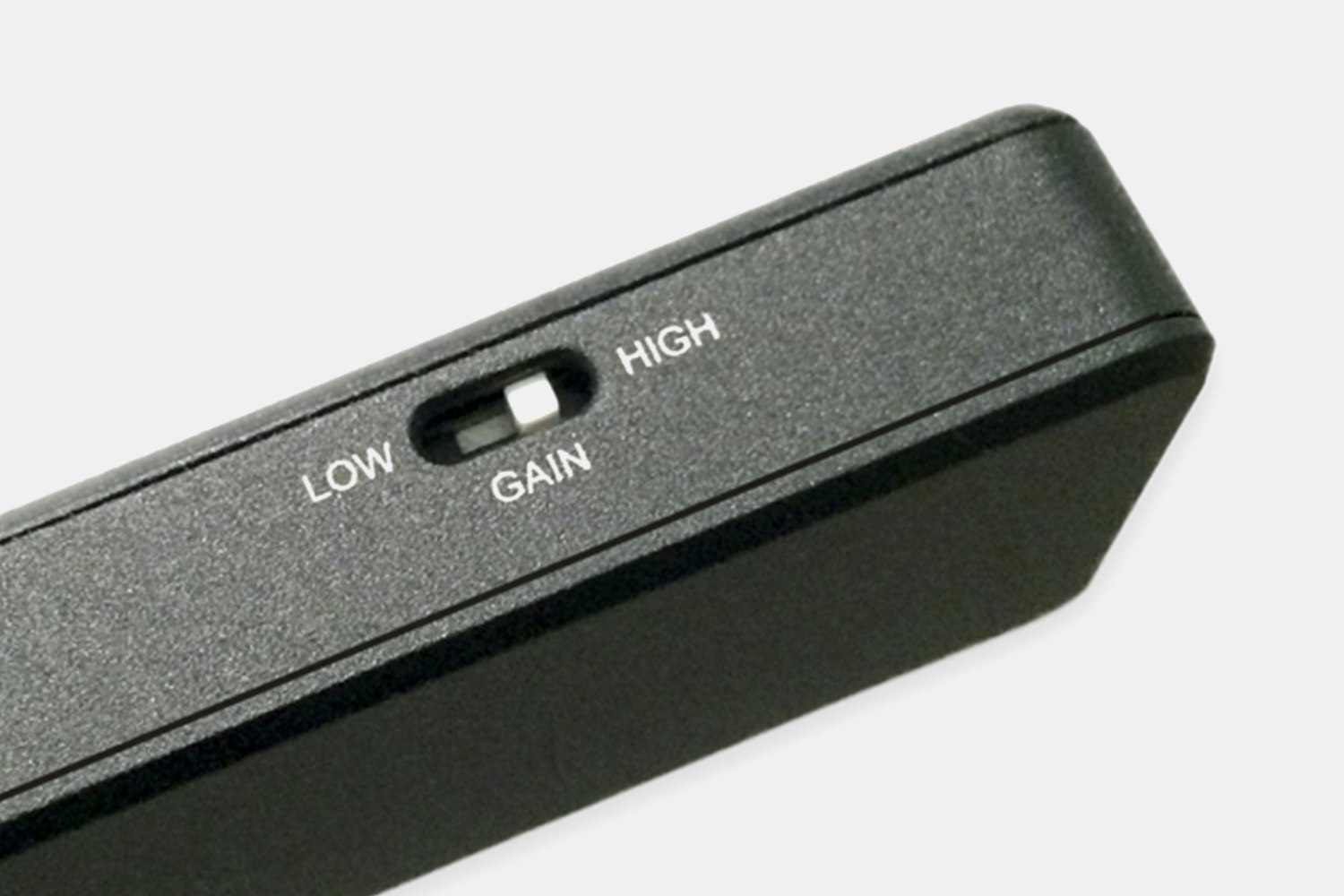

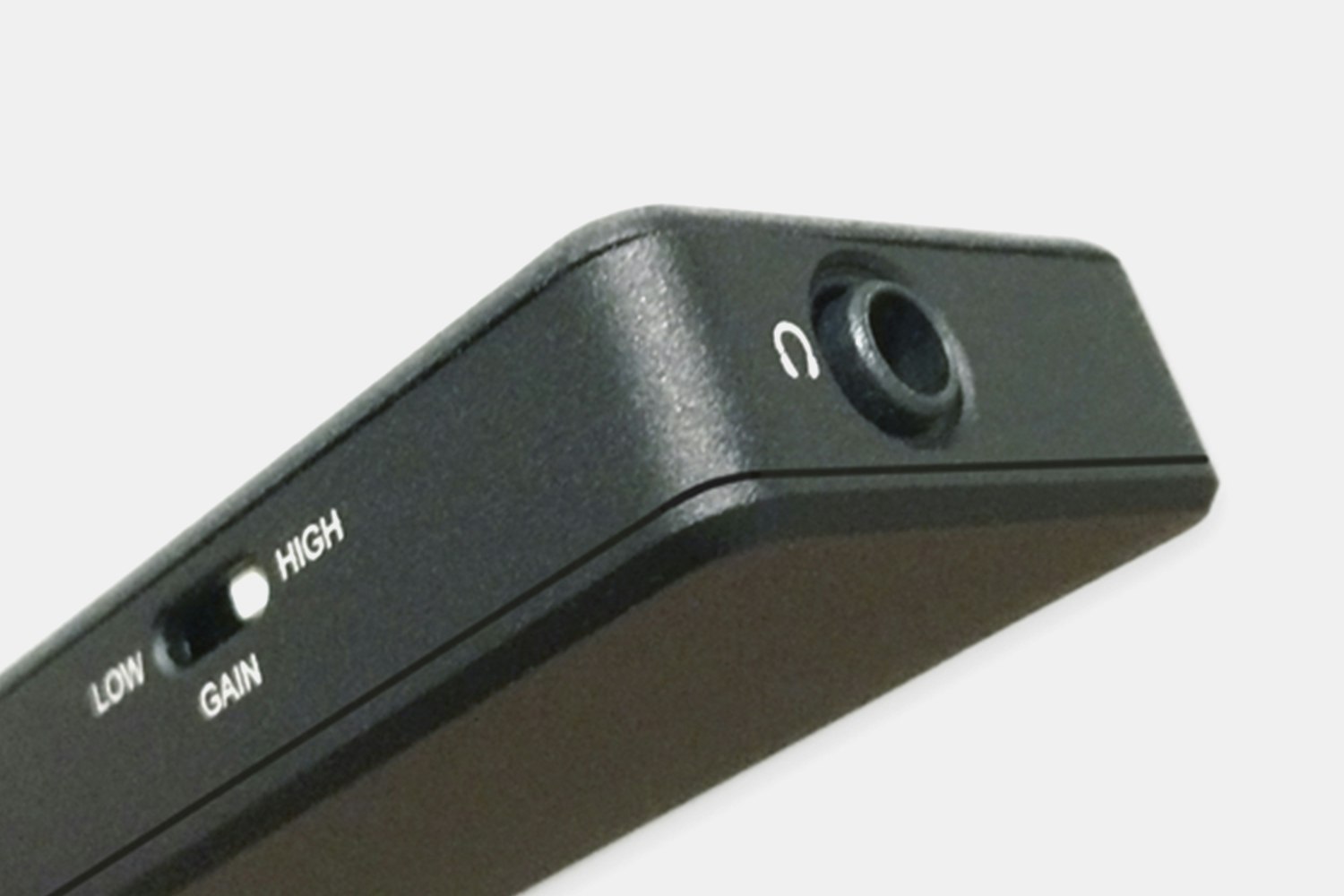

- Gain switch: 20dB range
- Internal power supplies: ±9V, dual, super-clean analog rails
- Dimensions: 3 x 1.1 x 0.4 in (7.6 x 2.9 x 1.1 cm)
- Weight: 2.5 oz (72 g)
Shipping
Estimated ship date is Dec 9, 2020 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
