Crazepony MINI Quadcopter
Small, Smart & Easy to Pilot

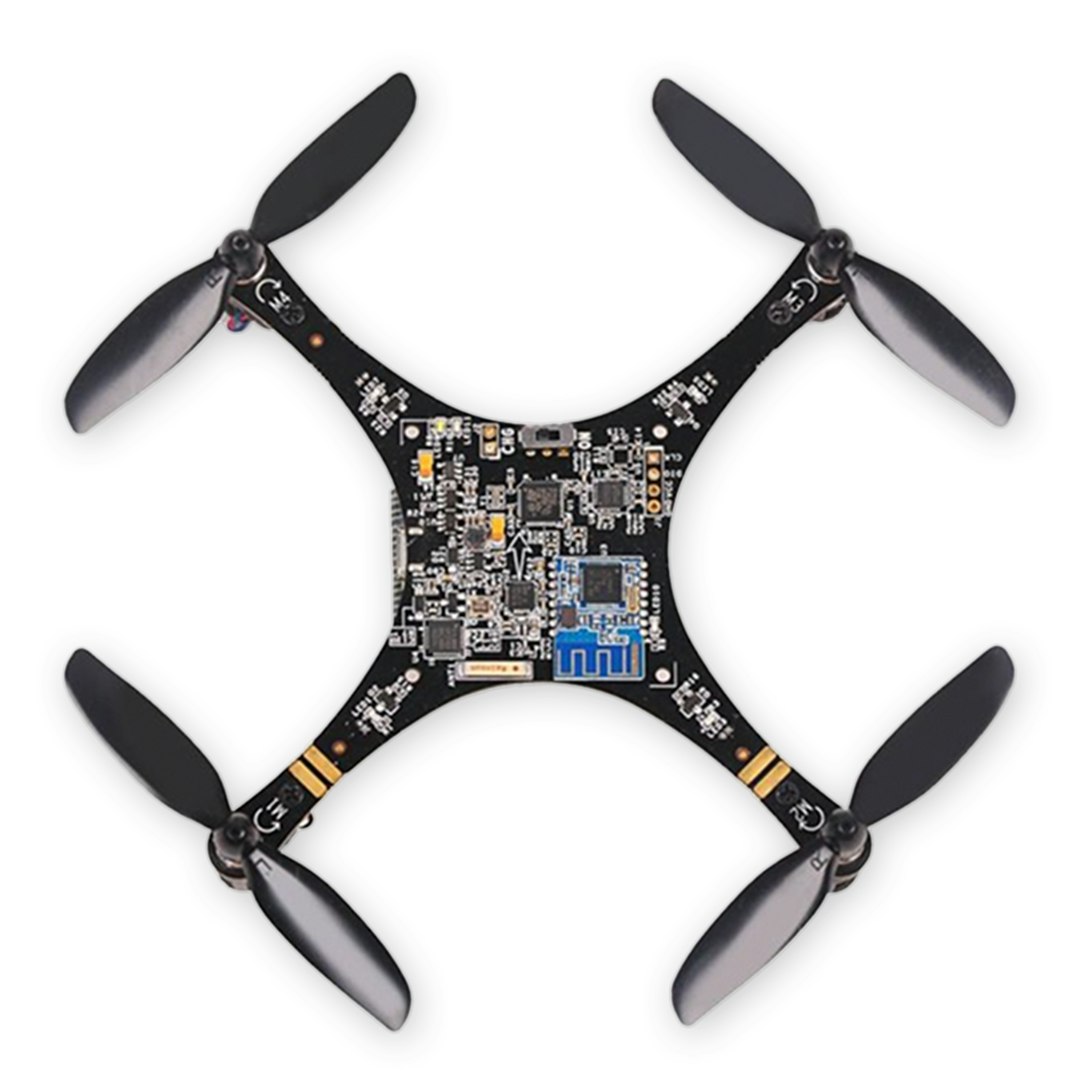

About the size of your palm, the Crazepony MINI quadcopter is ready to take to the skies right out of the box. At its core is a 32-bit STM32F103T8U6 microprocessor and an onboard low-energy radio chip to help it communicate. The four dual-propellers are powered by a coreless 720 motor. A three-axis gyroscope keeps the done balanced at all times, while an integrated altimeter and compass provide real-time information about the current height and direction of the drone. You can use the included remote to pilot the drone, or use Bluetooth 4.0 technology to control it from your phone.
Specs
Crazepony MINI Drone
- Model number: AKA04020A
- Processor: 32-bit STM32F103T8U6 72 MHz (64Kbs flash, 20kb RAM)
- On-board low-energy radio based chip
- Gyroscope: 3-axis Invensense MPU-6050
- Altimeter: MS5611-01BA03.
- Compass: HMC5883L
- USB to UART bridge CP2102
- Bluetooth: 4.0 LE (with TI CC2541 chip)
- Battery: 650 mAh lithium ion battery
- Flight time: Up to 6 minutes on a full charge
- Open-source hardware
- Dimensions: 3.9 x 3.9 in (10 x 10 cm)
- Weight: 1.6 oz (46 g)
Crazepony Remote
- Processor: 32 bit MCU: STM32F103T8U6 72 MHz (64Kbs flash, 20kb RAM).
- Pluggable nRF24L01+ dongle
- Range: Up to 328 fty (100 m) with power amplifier (PA) and SMA antenna
- USB to UART bridge CP2102
Included
- MINI remote control
- 2 custom 720 coreless motor backups
- User manual
Shipping
Estimated ship date is June 12, 2019 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
