Hi guys, and hallo to community I have the question for you, actually i have: iMac-->Schiit Modi 2---->Schiit Sys Pre-Amp---->Audioengine A+ speaker.
Yesterday i bought the DarkVoice and now i'm waiting to arrive in my home, but my question is: i have only one RCA output on DAC and is employed for SYS Pre-Amp. What do you suggest? a second DAC for DarkVoice? :/
Thanks in advance
Davide
Jul 2, 2016
bwcgrx
5
Jul 2, 2016
bookmark_border
KaiserSoze85
Since the Sys is totally passive in nature, you could reverse the Sys in your chain. Plug the DAC into the output and then you can plug the Audioengine A+ Speakers into one of the inputs of the Sys and the Darkvoice into the other input. The selector switch can then be used to select between the two destinations. That is the way I'm using mine. I can feed one DAC output to two different amps and switch between them. This functionality has been confirmed by Schiit. The one caveat is that supposedly you have to turn the volume knob on the Sys all the way up for it to work in reverse mode which means that you would loose the passive pre-amp aspect. Interestingly in my case the volume control still works reversed however it does not have a very fine level of control. I only use it as a switch anyway so I leave the volume nob at 100% all the time. In your case I guess you would need to use the Audioengine's volume control knob which may be inconvenient.
Jul 2, 2016
KTMD
195
Jul 3, 2016
bookmark_border
Can you post pictures of this please? I have a sys too with a Magni and modi connected to the Darkvoice. I couldn't get mine to work in reverse so I bought an rca splitter.
Jul 3, 2016
Tacoboy
32
Jul 3, 2016
bookmark_border
The DarkVoice comes with a line-output, so you can hook the DarkVoice up between the Schiit and the Audioengine A+
Jul 3, 2016
bwcgrx
5
Jul 3, 2016
bookmark_border
An even better and much more obvious solution!
Edit... One issue, I assume, with using the Darkvoice pre-amp outs is that it would have to be turned on when using the Audioengine speakers. Depending on how often the speakers would be used it would incease tube wear as they are on when the amp is not being used for headphone listening.
Jul 3, 2016
bwcgrx
5
Jul 3, 2016
bookmark_border
I'm unable to take a picture of the wiring as there is no way to get behind it the way the amps and gear on my desk are arranged. It is really just as simple as using the outputs as inputs and inputs as outputs. Again the pre-amp functionality is suspect. In my testing just now the volume knob on the Sys works however it seems that the volume changes the most from 7 o'clock to about 9 o'clock. From about 9 o'clock to about 1 o'clock it does not seem to change much and then it appears to pick up from about 2 o'clock until maxed out at 5 o'clock. I've not used the Sys as designed so I don't know if this is normal behavior for this potentiometer. I can't think of any logical reason why it would not work with the Darkvoice too. I'm switching between an Asgard 2 and Supreme Sound Lycan with the source being an Aune S16.
Jul 3, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
search
so, this is actually chain!
Jul 4, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
So the best solution? connect Darkvoice to SYS pre-amp? right?
Jul 4, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
thanks!
Jul 4, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
i don't know if i understand the chain, sorry :/
Jul 4, 2016
KTMD
195
Jul 4, 2016
bookmark_border
Jul 4, 2016
KTMD
195
Jul 4, 2016
bookmark_border

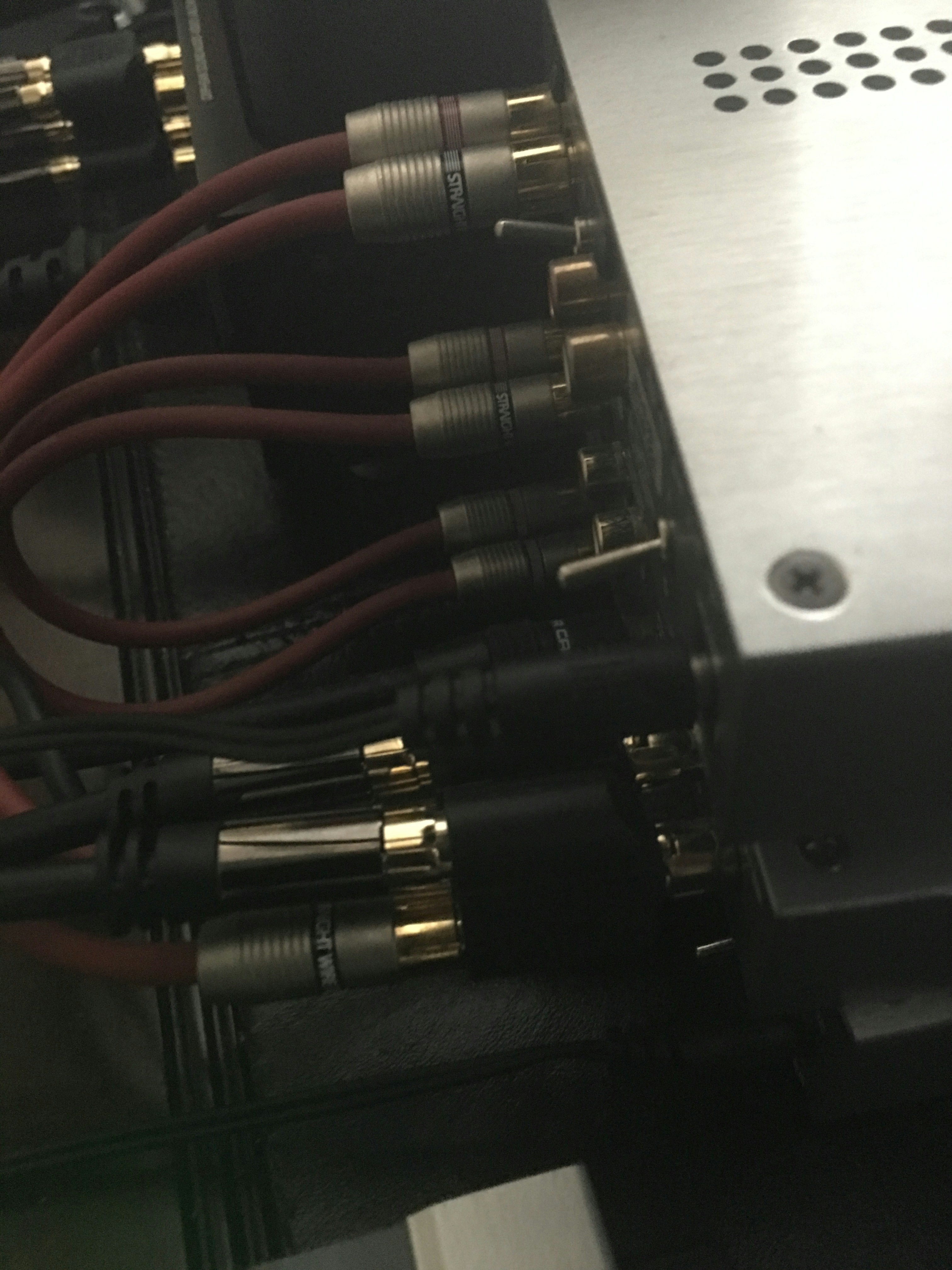

That's how I did mine, but I just added splitters
Jul 4, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
uhm....
Jul 4, 2016
KTMD
195
Jul 4, 2016
bookmark_border
Just have the Modi feed into the SYS. And the SYS out to the Darkvoice and the Magni. That way all you have to do is press a button on the SYS to choose between the tube and the slate amp.
In my chain, I went to Amazon and bought 5 rca splitters for $9 that way I still have the option to feed into speakers, but I bought something else for my powered monitors
Jul 4, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
i understand, but the splitter is never a good solution :/ for the sound...
Jul 4, 2016
KTMD
195
Jul 4, 2016
bookmark_border
It's the same thing. Same with cables. You can spend hundreds on cables, the sound won't change.
As long as there's a signal and connection, the sound won't deteriorate
Jul 4, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
thanks for helping me!
Jul 4, 2016
KTMD
195
Jul 4, 2016
bookmark_border
Welcome! If you ever get a chance, roll the tubes on the Darkvoice to tune the sound to your liking. Either way, enjoy
Jul 4, 2016
KaiserSoze85
2
Jul 4, 2016
bookmark_border
wich selector? on mac?
Jul 4, 2016
bwcgrx
5
Jul 12, 2016
bookmark_border
The selector button on the sys
Jul 12, 2016
KaiserSoze85
2
Jul 28, 2016
bookmark_border
Ok 👍
