DFRobot Gravity Flexible RGB LED Matrix Panels
DFRobot Gravity Flexible RGB LED Matrix Panels
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
22 Sold
Product Description
Flexible and vibrant, these RGB LED Matrix Panels from DFRobot will inspire your creativity. Available in three different sizes, they’re compatible with the Gravity interface and offer the full spectrum of color to experiment with Read More
Bright Arduino-Compatible LEDs

Flexible and vibrant, these RGB LED Matrix Panels from DFRobot will inspire your creativity. Available in three different sizes, they’re compatible with the Gravity interface and offer the full spectrum of color to experiment with. Each pixel can be tweaked individually with 256 levels of brightness—not to mention it has a scanning frequency of 400 hertz. With a soldered XH2.54 3-pin interface, the panels have pin mappings that perfectly match the Arduino expansion shield.

Note: At checkout, choose a grid layout from the following: 16 x 16, 8 x 32, and 8 x 8 (-$35).

Model Options
16 x 16
8 x 32
8 x 8 (- $35)
Specs

16 x 16 Panel

  • Full color RGB
  • Supports cascade control
  • Compatible with Gravity Interface
  • Supports external power supply
  • Flexible build
  • Compatible with Arduino I/O expansion shields without any soldering
  • Operating voltage: 5V
  • LED type: SK6812/WS2812
  • Communication interface: Gravity 3-pin interface
  • Operating temperature: -25 ~ 80ºC
  • Dimensions: 6.3 x 6.3 in (16 x 16 cm)
  • Weight: 6.1 oz (172 g)

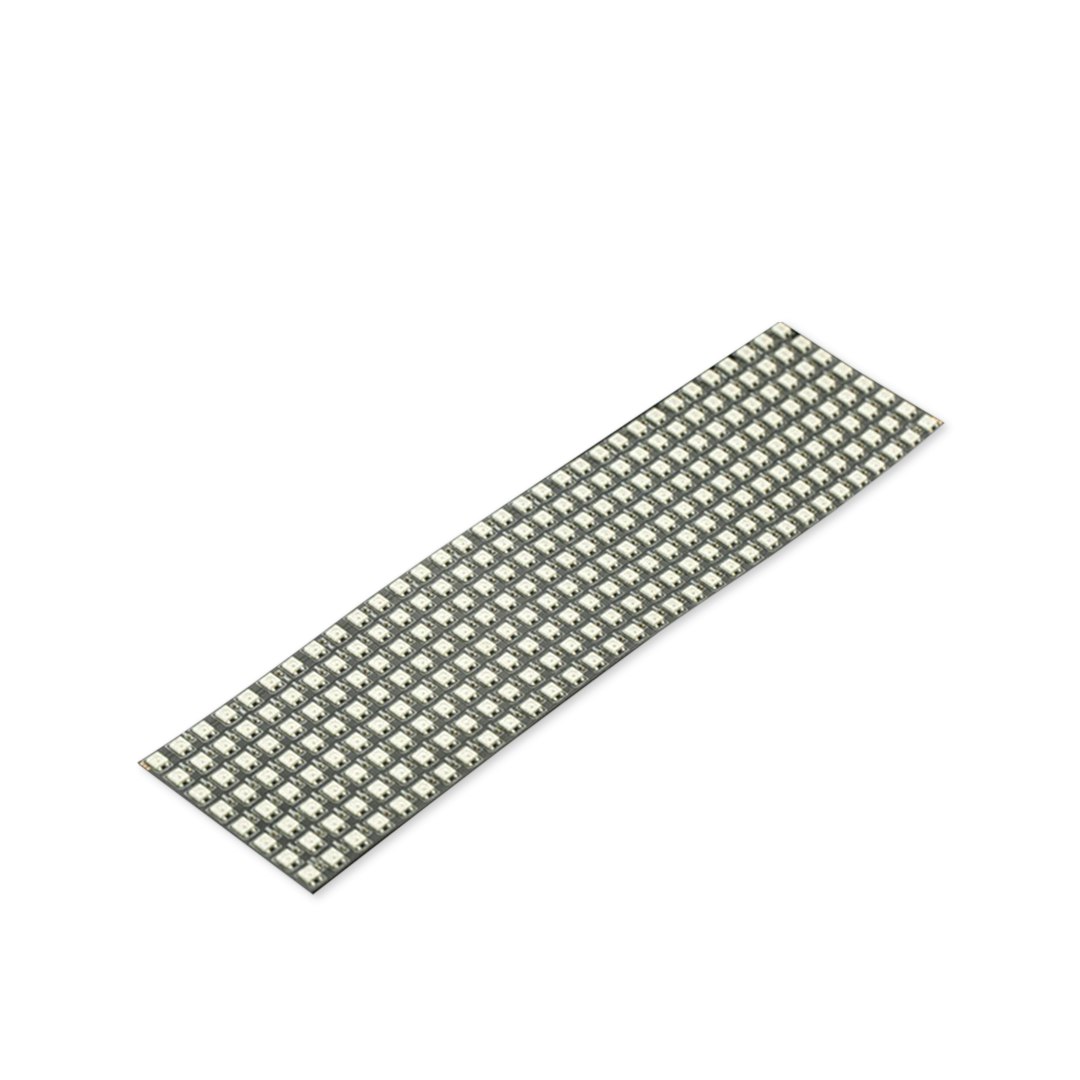

8 x 32 Panel

  • Full color RGB
  • Supports cascade control
  • Compatible with Gravity Interface
  • Supports external power supply
  • Flexible build
  • Operating voltage: 5V
  • LED type: SK6812/WS2812
  • Communication interface: Gravity 3-pin interface
  • Operating temperature: -25 ~ 80ºC
  • Dimensions: 3.2 x 12.6 in (8 x 32 cm)
  • Weight: 6.6 oz (188 g)

8 x 8 Panel

  • Full color RGB
  • Supports cascade control
  • Compatible with Gravity Interface
  • Supports external power supply
  • Flexible build
  • Operating voltage: 5V
  • LED type: SK6812/WS2812
  • Communication interface: Gravity 3-pin interface
  • Operating temperature: -25 ~ 80ºC
  • Dimensions: 3.2 x 3.2 in (8 x 8 cm)
  • Weight: 4.6 oz (130 g)
Included (All Options)
  • Matrix Gravity Interface cable
  • DC barrel jack adapter (female)
Shipping

All orders will be shipped by Drop.

Estimated ship date is Oct 24, 2018 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
