Rainbow Cube Kit
LED Cube

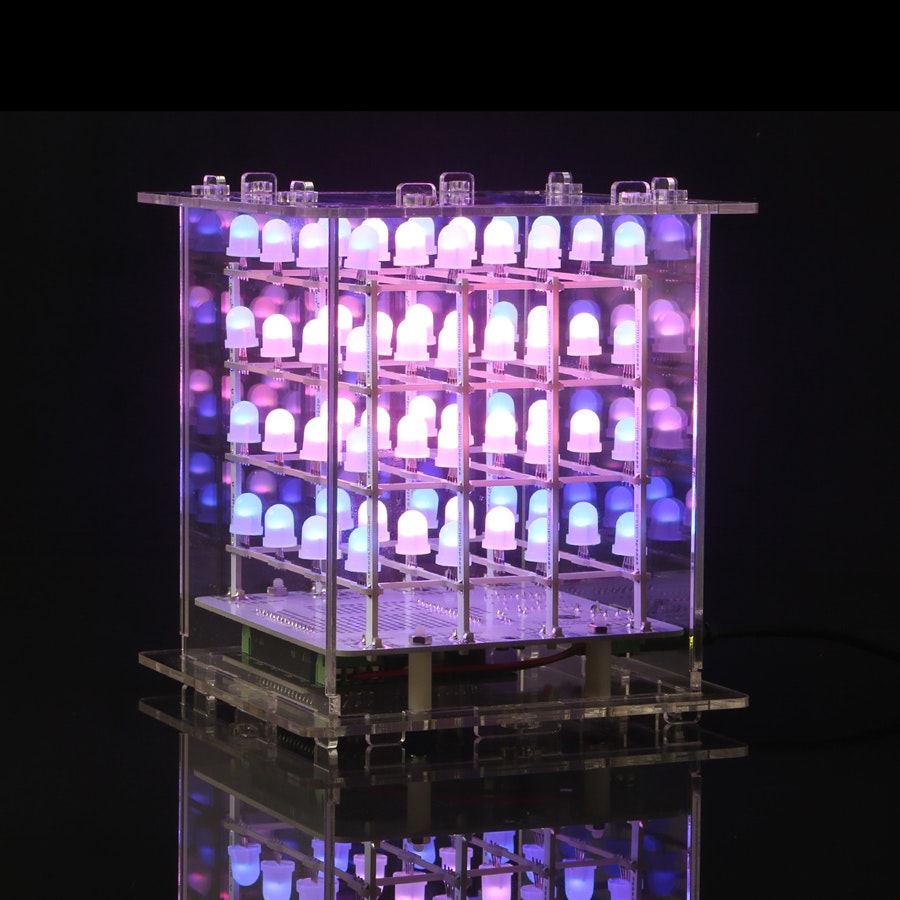

If you’re new to coding and want a visual representation of your progress and edits, link your language to an integrated LED device that proudly displays your hard work. A cube of 64 RGB LEDs that can be easily controlled by your computer, the Rainbow Cube Kit lets you try out of all the colors of the sky right at your desk.
Note: At check-out, you can select between the Assembled Kit (+$20) and the DIY Kit. If you go for the DIY, a Rainbowduino v3.0 is available as an add-on(+$17.99).
Construction
If you opt for the Assembled Kit, your Rainbow Cube comes ready to roll. All you have to do is plug the included Rainbowduino to your computer, get coding, and you’re on your way. If you go for the DIY Kit, you will not receive a surrounding acrylic box or a Rainbowduino. You can use other micro-controllers with the Rainbow Cube, but only the Rainbowduino is optimized to complement the cube, so it’s advised to add one to your order. After a few hours of soldering, your structure will be all set for the light show.
Helpful Documents and Links
Specs
- Seeed Studio
- 64 x 8 mm RGB LEDs in 4 x 4 x 4 arrangement
- Built-in 3.3 V, 1 A LDO
- XBee compatible socket
- Acrylic box
- 3.94 x 3.94 x 4.72 in (10 x 10 x 12 cm)
- 15.87 oz (450 g)
Included
Assembled Kit
- Rainbow Cube
- Rainbowduino v3.0
- Power adapter with North American plug
- USB cable
DIY Kit
- 8mm RGB LED x70
- Cube Panel X1
- Slim Panel PCB X4
- Side A slim PCB X4
- Side B slim PCB X4
- 2.54mm 40pin male header X5
- 2.54mm 40pin female header X2
- 2.54mm 16pin female header X3
- 2.0mm 10pin female header X2
- 8pin female header X5
- 2X3 female header X1
- JST power cable X1
- 3.5mm 4pin green terminal X1
- 3.5mm DC jack X1
- 3mm LED red X1
- 3mm LED green X1
- 1K 1/8w resistor X4
- 10k 1/8w resistor X1
- 15k 1/8w resistor X1
- linear voltage regulator X1
- 10uF_16v_E-CAP X2
Shipping
Estimated ship date is May 11, 2015 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
