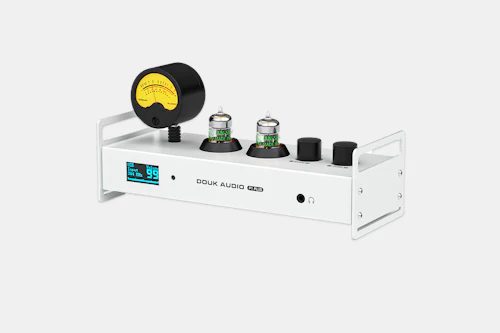

Douk Audio P1 PLUS Tube Preamp/DAC

Douk Audio P1 PLUS Tube Preamp/DAC

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
29 requests
Product Description
A good tube preamp can be a game-changer for any good setup—especially if you’re running a record player or a pair of speakers that need a little something special. With Douk Audio P1 PLUS, that warm tube amplification is complemented by yet another little something special: a high-end DAC to serve as the brains and the beauty of your setup Read More

Tube Preamp Warmth with DAC Detail

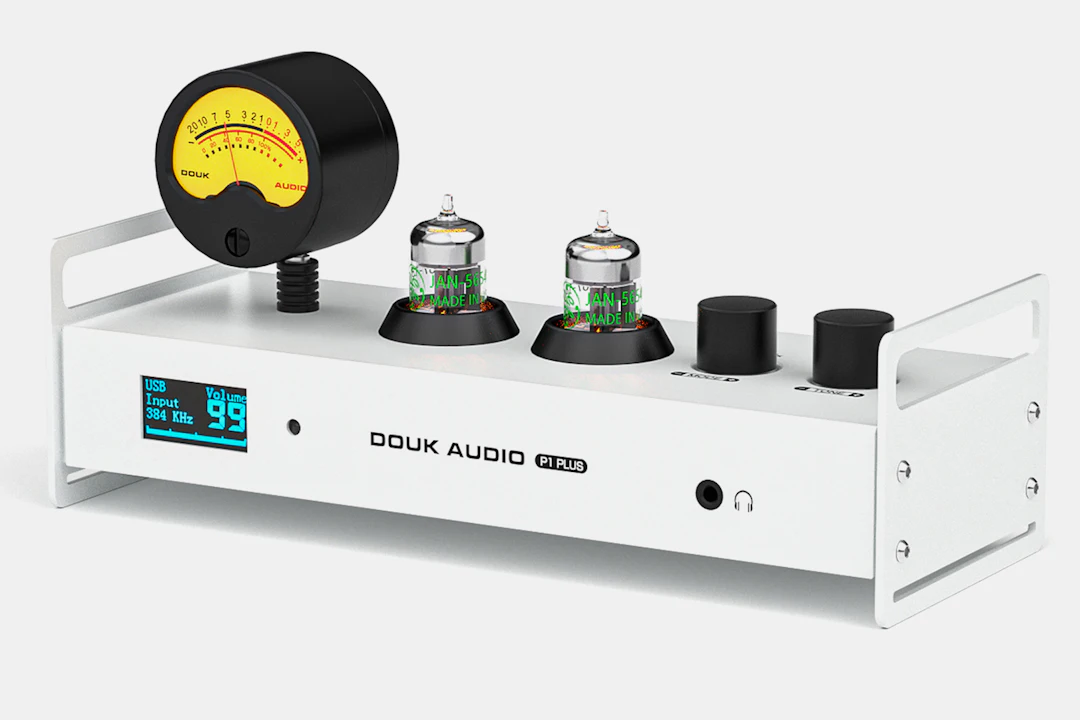

A good tube preamp can be a game-changer for any good setup—especially if you’re running a record player or a pair of speakers that need a little something special. With Douk Audio P1 PLUS, that warm tube amplification is complemented by yet another little something special: a high-end DAC to serve as the brains and the beauty of your setup. The DAC side of the house brings excellent detail supporting up to 384 kilohertz and 32-bit with DSD256 capabilities via the USB input, and up to 192 kilohertz, 24-bit resolution using the coaxial or optical inputs. There are also a ton of output options, including stereo RCA, 3.5-millimeter auxiliary, and 3.5-millimeter headphone jack, plus an optical output that’ll work only with USB inputs. Then there’s the preamp portion of things—supported by all the richness you’d expect with a pair of JAN5654 tubes included right out of the box (though you can swap in 6J1, 6K4, 6J5, and more compatible tubes to your taste). It all comes packed in a beautiful white, retro-looking chassis complete with a pluggable VU meter to really drive the vintage vibes home.

Note:  For Windows 7 users, USB inputs only can be recognized when the driver is installed. For other systems, the driver is only required when playing DSD files. Please download the driver from the supplied U-disk.

Douk Audio P1 PLUS Tube Preamp/DAC
Douk Audio P1 PLUS Tube Preamp/DAC
Douk Audio P1 PLUS Tube Preamp/DAC
Douk Audio P1 PLUS Tube Preamp/DAC
Douk Audio P1 PLUS Tube Preamp/DAC
Douk Audio P1 PLUS Tube Preamp/DAC
Douk Audio P1 PLUS Tube Preamp/DAC
Douk Audio P1 PLUS Tube Preamp/DAC

Specs

  • Douk Audio
  • Processor chips: QCC5125, SA9137L, ES9018K2M, TPA6120, OPA1656

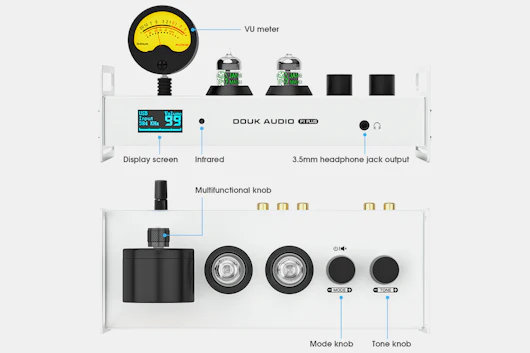

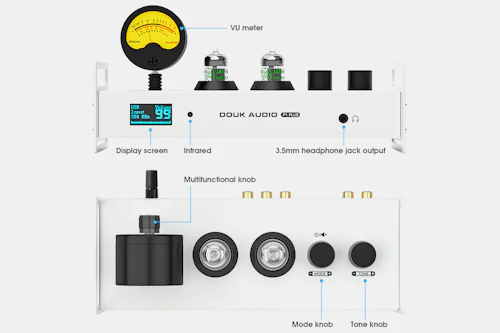

  • Includes pluggable VU meter and display screen
  • Decoding (USB): Up to 384 kHz/32-bit PCM, DSD256
  • Decoding (Coaxial and optical): 192 kHz/24-bit
  • Output level: 2 V
  • Headphone output power: 750 mW
  • THD+N: 0.1%
  • SNR: ≥106 dB
  • Frequency response: 20 Hz – 20 kHz
  • Input sensitivity: 0 dB
  • Match headphone impedance: 16–600 ohm

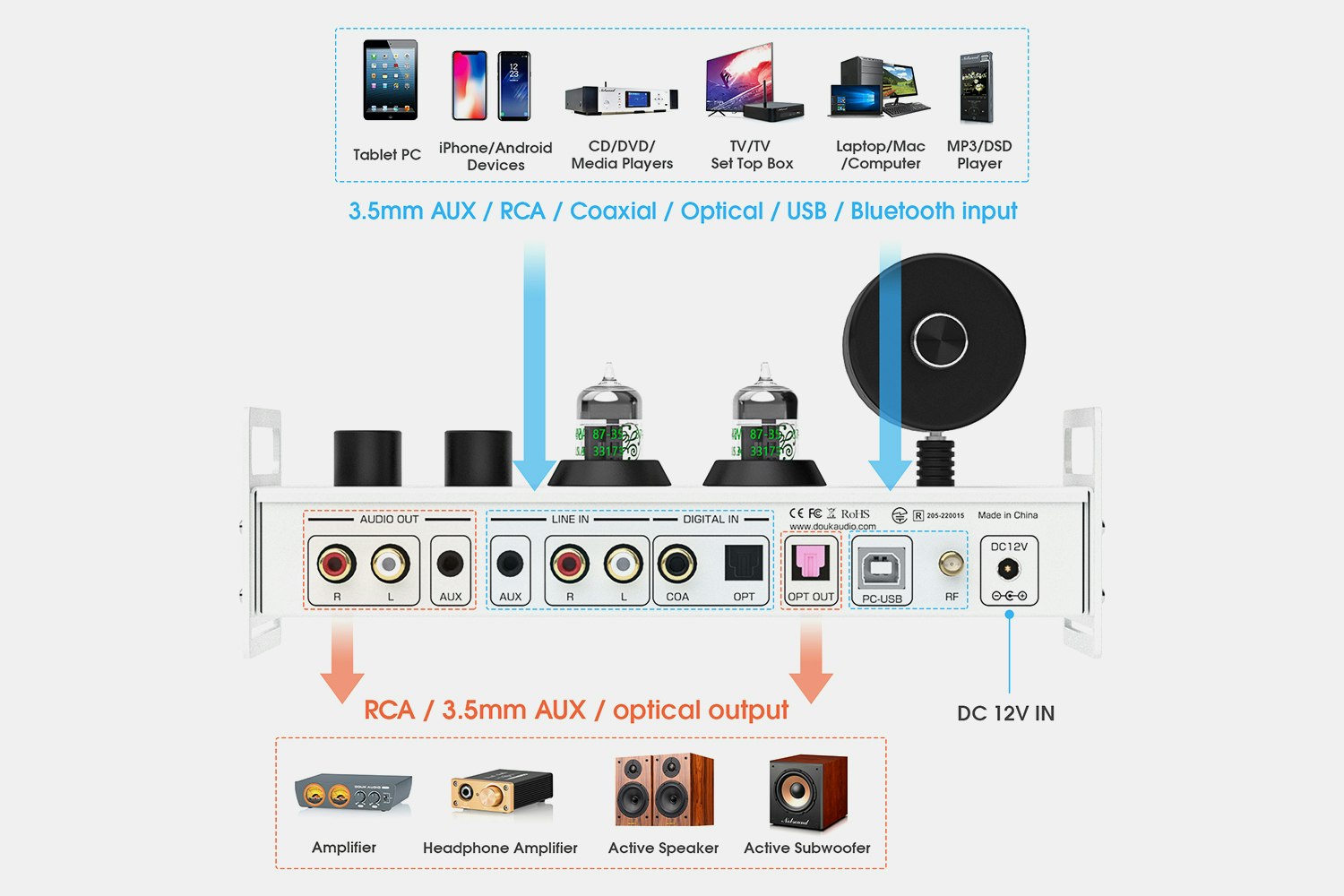

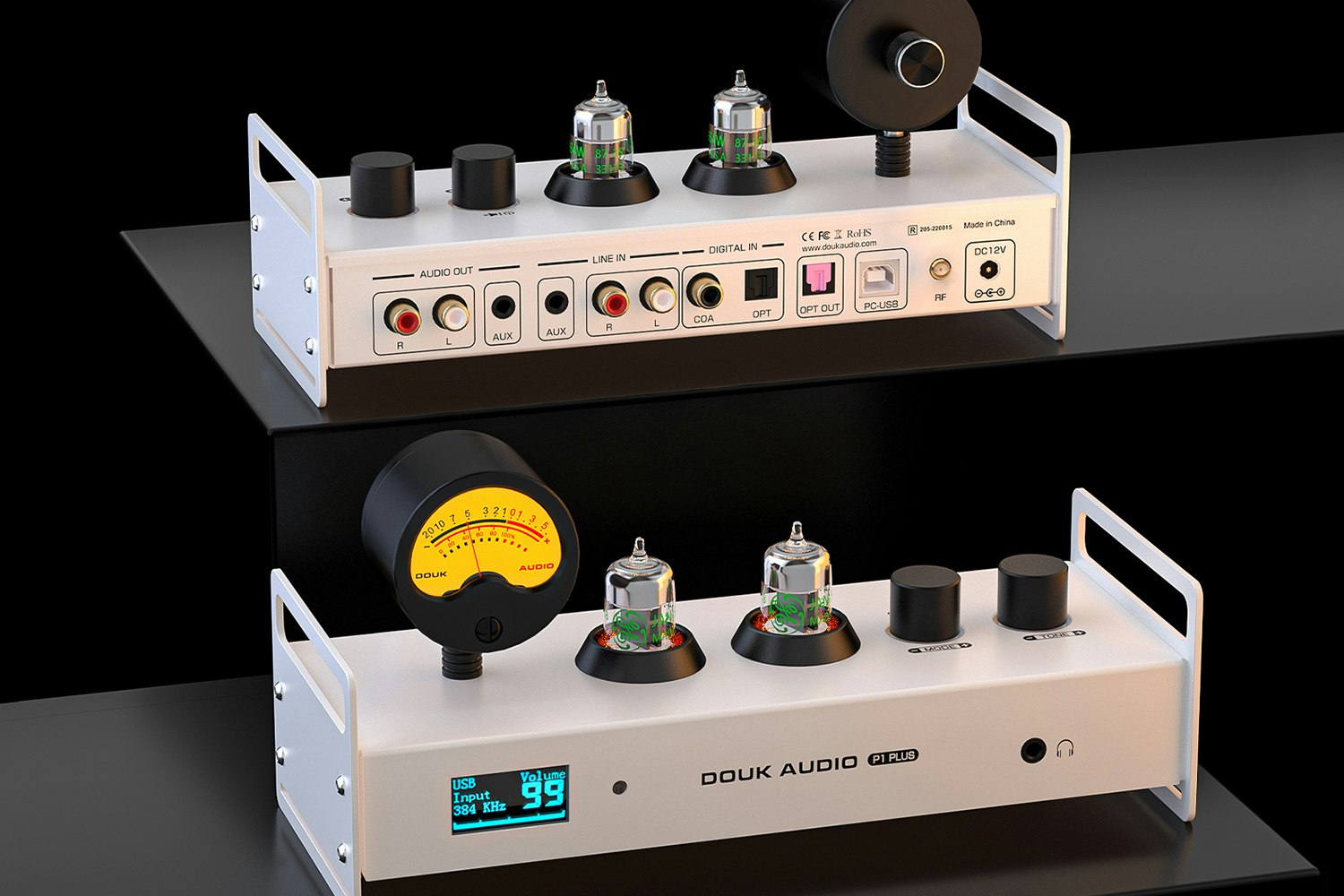

  • Inputs: Bluetooth, USB, coaxial, optical, stereo RCA, 3.5 mm aux
  • Outputs: Optical, stereo RCA, 3.5 mm aux, 3.5 mm headphones
  • Bluetooth version: 5.1
  • Bluetooth codecs supported: AAC, SBC, aptX, aptX-HD, LDAC
  • Working voltage: DC 12V ≥ 1.5A

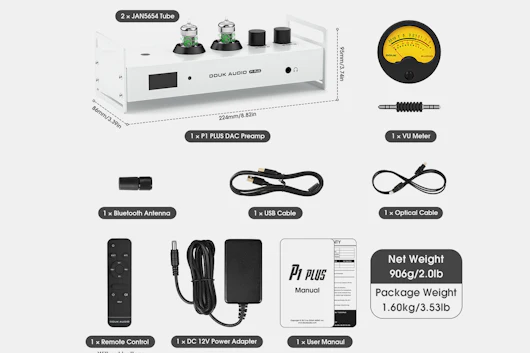

Included

  • Power adapter
  • JAN5654 tubes
  • Pluggable VU meter
  • USB cable
  • Optical cable
  • Bluetooth antenna
  • Owner’s manual

Shipping

Estimated ship date is Jan 2, 2025 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Shop Our Curated Deskscapes
Explore these specially curated spaces to find inspiration for yours.
View All
Top Customer Questions4
search
close
Question
How is volume adjusted?
Aug 30, 2024
Top Answer
EddNog
2
I see a remote control. There's an IR receptor in the front of the unit.Read More
Aug 30, 2024
See 2 More
Question
are the op amps socketed for easy swap ability? is there some kind of eq or tone controls in the software suite?
Aug 30, 2024
Top Answer
Otitisdigital
0
Saw a YouTube video review that said the op amps are swappable!Read More
Oct 6, 2024
