4-5weeks until I get this thing! So stoked! I guess I better get a balanced cable built so it will have enough poost to drive my 6xx's. Time for another trip to mouser... Just need to find a wiring diagram for the 4-pin xlr...
Oct 10, 2018
Jiv_au
100
Oct 11, 2018
bookmark_border
Couldn't find it on google after searching for 30min, so I got a multimeter and did my own research.
This is what I found. (Orientation is facing the female XLR 4-pin on the THX) Left+ = female XLR pin 1 (3 o'clock) = Left 2-pin, fatter pin (should be the right one if facing the 'L' mark) Left- = female XLR pin 2 (5 o'clock) = Left 2-pin, thinner pin (should be the left one if facing the 'L' mark) Right+ = female XLR pin 3 (7 o'clock) = Right 2-pin R, thicker pin (right one if facing the 'R' mark) Right- = female XLR pin 4 (9 o'clock) = Right 2-pin R, thinner pin (left one if facing the 'R' mark)
Oct 11, 2018
Heefty
1329
Oct 11, 2018
bookmark_border
search

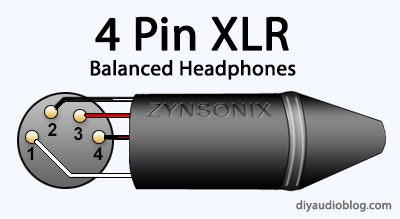

Does this match what you're saying? I don't have a balanced cable to probe it out on...
Oct 11, 2018
Jiv_au
100
Oct 12, 2018
bookmark_border
The one in your diagram seems to have rotated the XLR interface by 180 degrees (compared to the THX), but the pin numbering and corresponding L/R and polarity (+/-) would probably be the same.
Oct 12, 2018
Heefty
1329
Oct 12, 2018
bookmark_border
I gotta be honest, having the left channel on the right side of the connector is one of those devious pranks that people like me play when designing things just to bother people. I suppose it shouldn't be too much of a surprise...
