Dec 9, 2021

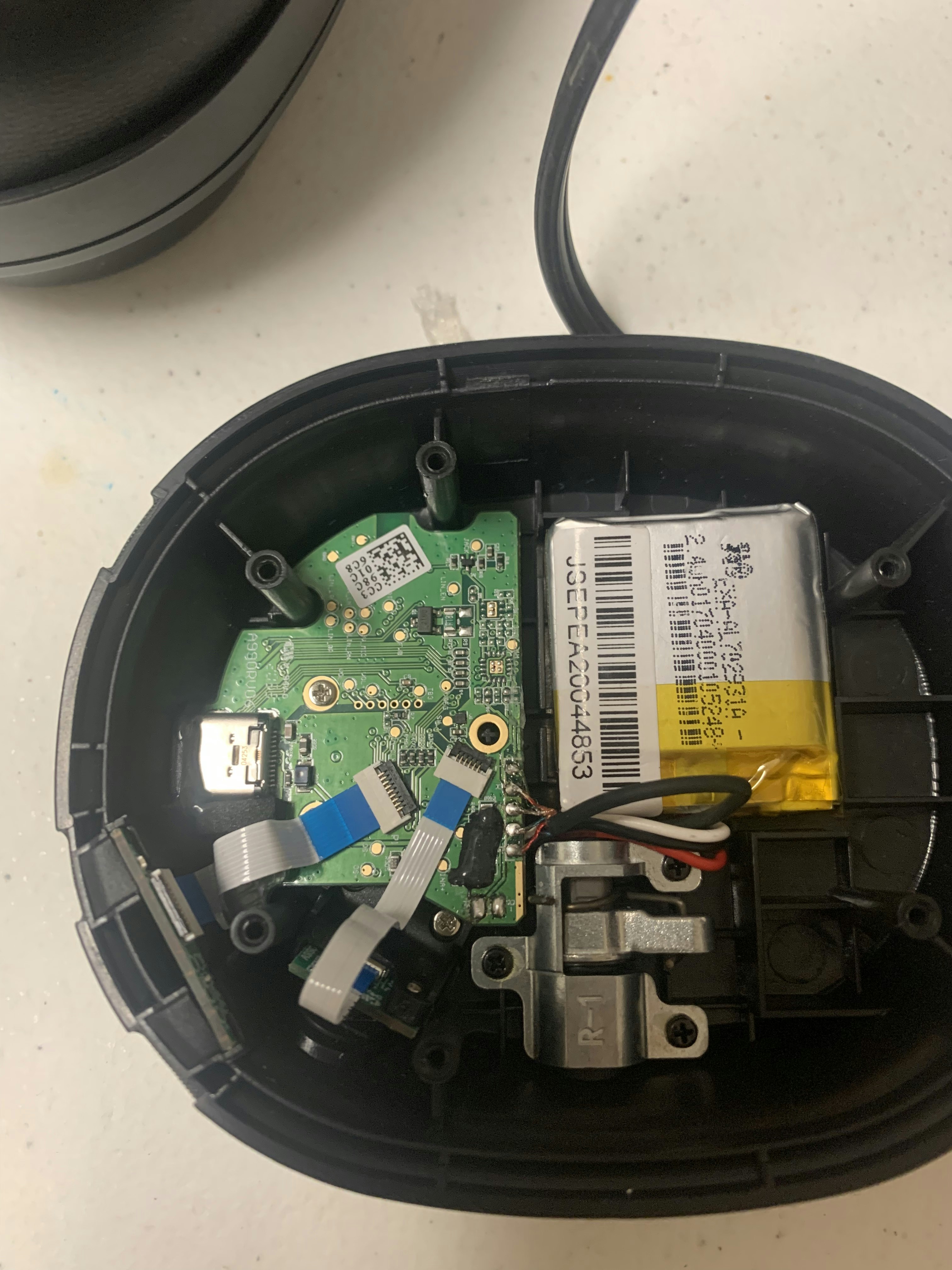

AhmedAlSaeedI just disassembled mine. I looked everywhere for a guide but finally gave up and just did it. Donated the working driver board from a broken pair like yours to a bricked pair. Worked. I’ll post a guide soon.

Dec 9, 2021

Uberclocked

Mar 16, 2022

PennultimateHello, I was wondering if you ever did get around to creating a guide to disassembly of the Pandas. My pair has a loose hinge, and I'm trying to find if there's a way of fixing this (maybe there's a loose screw I can tighten inside the headband or something). Thanks!

Mar 16, 2022

Vote

Mar 18, 2022

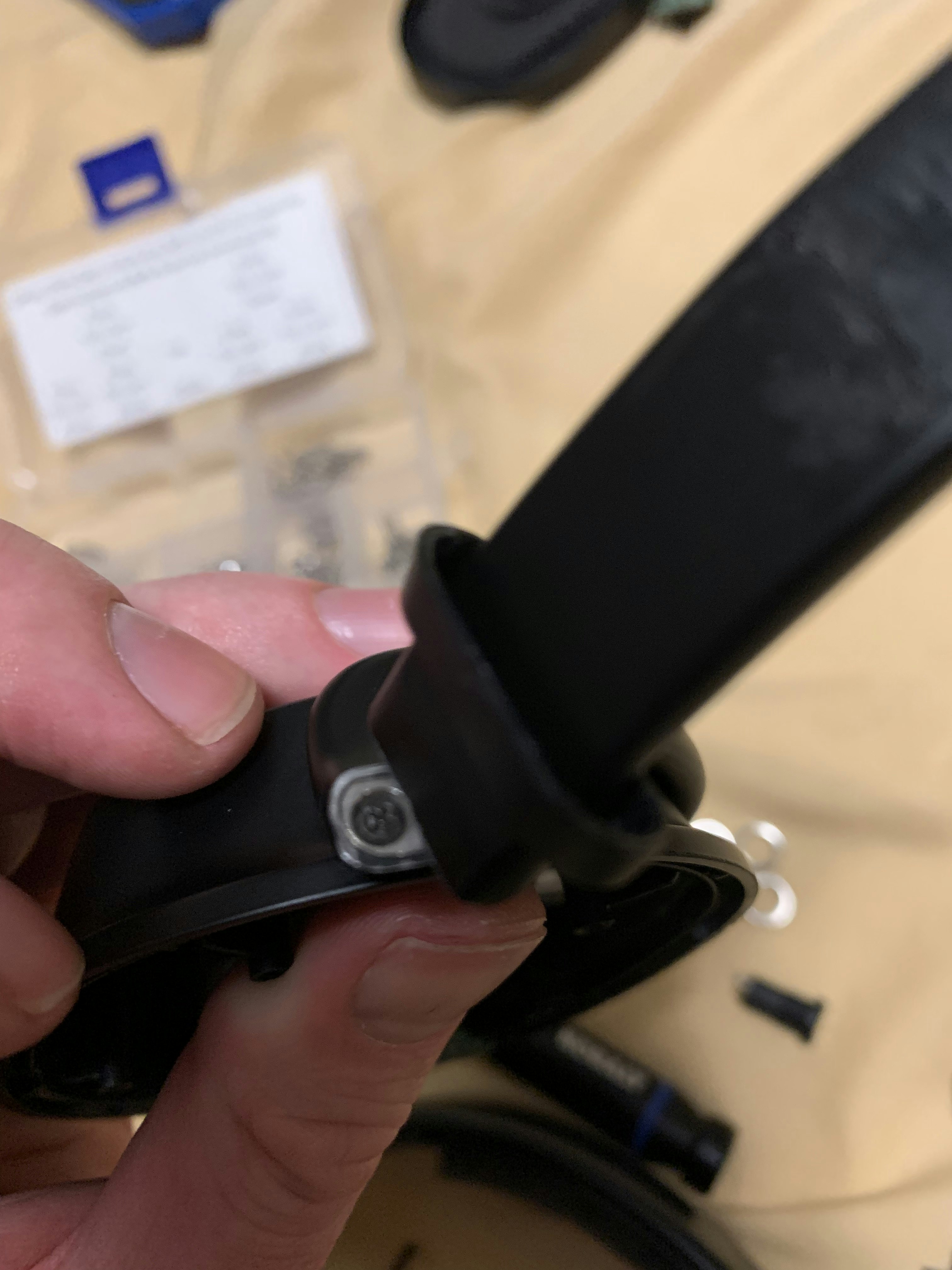

UberclockedI didn’t compile the instructions yet, but I can tell you that fixing a loose hinge is going to be difficult to impossible. The hinge design is horrible! Inside the swivel part is a bent socket that bends then eventually breaks easily and leaves you with no way to fix it. I ended up using jb weld to fix the swivel part permanently. I’ve attached photos that might help you. I’m missing headband pics though. Not too difficult though. The only non intuitive part is the plastic ring at the bottom pries downward to allow you to pull the rubber away and see the needed screws to detach the ear cup and get a screw driver at the swivel hinge.

Mar 18, 2022

Mar 18, 2022

PennultimateAlso you won’t be able to fully remove the ear cup like I have here because I had to cut the wire between the two.

Mar 18, 2022

Uberclocked

Mar 18, 2022

PennultimateRip, my unit just bricked itself anyways, so I think I'm just going to use it as a parts unit, haha. It's got the issue where the thing won't turn on, and pressing down on the nub makes the led gradually fade into white and then turn off. Thanks for the response and pictures. It's very puzzling how Drop bungled the design of this so poorly when the PM-3's design was pretty much foolproof and robust already.

Mar 18, 2022

Vote

Mar 18, 2022

UberclockedRight! They seriously had to try to make this set so poorly.

Mar 18, 2022

Uberclocked

Mar 18, 2022

PennultimateSorry for bothering you again, but I'm still trying to figure out how to remove the swivel part from the headband itself (or rather disassemble the device at the point where the hangars rotate and join with the rest of the headband. I can only see two screws on the top of the hangar, but it's impossible to unscrew them without having already removed the rest of the headband. If it's not too much trouble for any pointers, that would be great.

Mar 18, 2022

Vote

Mar 18, 2022

UberclockedYou will have to disassemble that side of the headband.

Full extend the band on that side and pull the plastic ring down.
start pulling the rubber headband part outwards on both sides and expose 2 or 3 screws in the middle of the headband.
remove the screw that holds the inner plastic peice closest to the hinge and you should now see the extender part pictured above.
carefully remove the metal piece that holds a tiny ball bearing. The inside part of this part slides up to come off. Push upwards with your thumb on the engraved “drop” maybe even pry a little at that bottom to start it.
you may be able to remove the extender part from the headband at this point. Be careful to see how it comes off the inner metal band so you can reassemble. Either way you should now see the inner part of the swivel with two screws attaching it to the headband extender. Once these are undone the earful will be detached from the headband.
the damage that loosens the swivel is under those two screws you saw at first and couldn’t get at until now. If you find a good way to fix the loose swivel part I’m curious to find out so let me know.

I didn’t mention the wire this whole time but recognize that you have just a little slack to work with. Pulling can tear the 5 tiny wires inside it. It’s anchored at the ear cup. If you expose the full headband you can pull the wire off the headband to give you more slack to work with. good luck man. If you get stuck again let me know.

Mar 18, 2022

May 24, 2022

PennultimateHello, hope this isn't a bother. I'm looking into switching the speakers of the headphones because i seem to blow the originals out in the low end. I have a spare being shipped out, and want to know how to disassemble the cans enough to swap speakers?

May 24, 2022

Vote

May 25, 2022

VC777Here’s a link to another post I made about disassembling these. This post includes the pictures and some instructions of removing the drivers to get to the board. https://drop.com/buy/drop-wireless-headphones/talk/2881512?utm_source=linkshare&referer=ZER4PR

May 25, 2022

May 25, 2022

PennultimateThanks! I looked at the guide but unsure what piece(s) is a driver. Basically wanting to replace drivers for my old ones are damaged.

I think the wheel looking piece is the driver but unsure.

May 25, 2022

Vote

May 25, 2022

VC777The wheel looking piece is just the magnet on the back side of the driver assembly

May 25, 2022

May 25, 2022

PennultimateThe driver is the oval piece and the wheel piece attaches to the back of that. You will not want to disassemble that magnet, ribbon, stack unless you are really confident and careful. I would just replace the entire driver assembly.

May 25, 2022

May 25, 2022

PennultimateGot it, thanks a bunch! This seems to be easy enough to disassemble and reassemble

May 25, 2022

Vote

May 25, 2022

PennultimateThe foams taped to the drivers were a pain to remove. I did it successfully but may need new foams when reassembling the pandas

May 25, 2022

Vote

May 25, 2022

VC777Yeah that’s the hard part. I tore the first one up before I found the trick I mentioned about using the snap tweezers to get under the adhesive layer.

May 25, 2022

Vote

NWLierly

May 10, 2023

PennultimateI've got an early serial numbered pair that work perfectly, but they rotational "hinge" is 50% failed already. I'm wondering if you can post this guide somewhere so I don't have to break new ground

May 10, 2023
