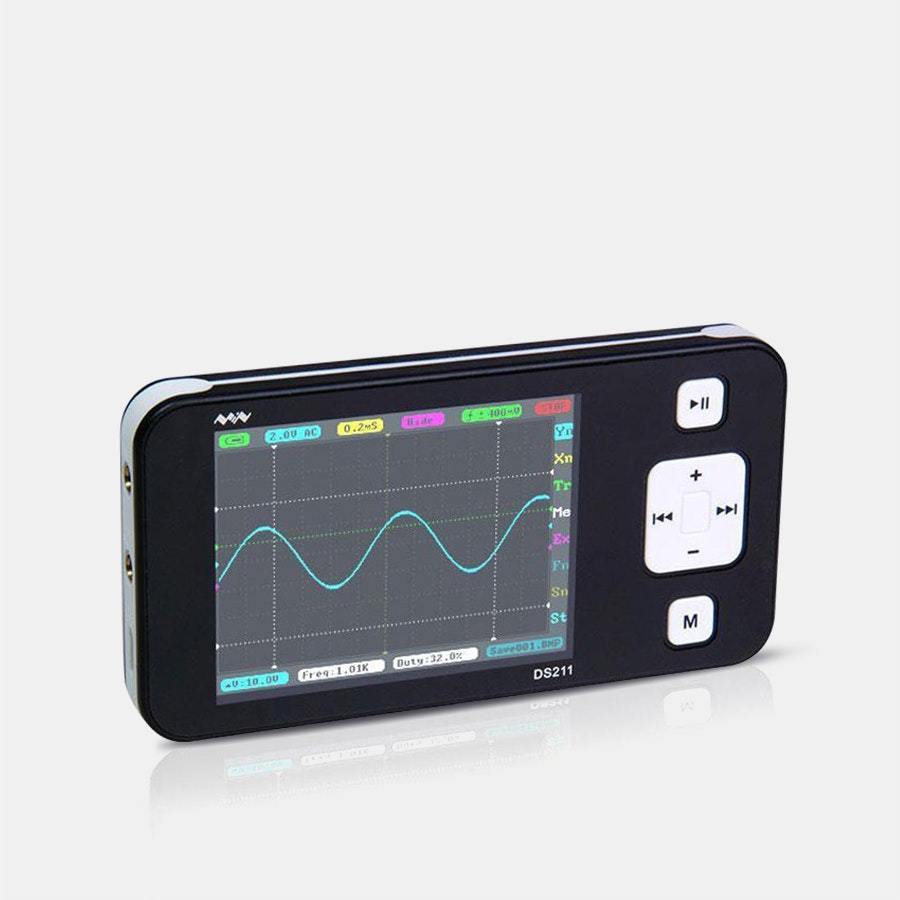

DS211 Nano Arm Digital Portable Oscilloscope

DS211 Nano Arm Digital Portable Oscilloscope

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
9 requests
Product Description
Pocket sized and full of function, this on-the-go oscilloscope from SainSmart fulfills most electronic engineering requirements without all the bulk. Equipped with a nearly 3-inch screen and tactile buttons, it makes it easy to read, visualize, and adjust signals Read More

Compact & Easy To Use

Pocket sized and full of function, this on-the-go oscilloscope from SainSmart fulfills most electronic engineering requirements without all the bulk. Equipped with a nearly 3-inch screen and tactile buttons, it makes it easy to read, visualize, and adjust signals. It outputs square waves, sine waves, triangle waves, and sawtooth waves and has a variety of different trigger modes. It comes with 8 MB of built-in storage and a 550mAh battery for up to 2 hours of operation on a single charge. Use it to observe varying signals and voltages on your next project.

DS211 Nano Arm Digital Portable Oscilloscope
DS211 Nano Arm Digital Portable Oscilloscope
DS211 Nano Arm Digital Portable Oscilloscope

Specs

  • MCU: STM32F103VC
  • ADC: MCU internal ADC
  • Number of channels: Analog channel 1 + 1 internal channel
  • Analog bandwidth: 200KHz
  • Maximum sampling rate: 1MSa / s
  • Maximum memory depth: 8K
  • Horizontal scanning speed: 1uS/Div~2S/Div(1-2-5 sequence step)
  • Vertical sensitivity: 20mv/Div~10V/Div(1-2-5 sequence step)
  • Input resistance: 1MΩ
  • Coupling: DC / AC
  • Trigger mode: Ascend/Descend Edge Trigger Mode
  • Auto adjustment mode: AUTO_FIT
  • Operation waveforms: -A, RecA, A + RecA
  • Signal output: Square wave, sine wave, triangle wave, sawtooth
  • Trigger Mode: Auto, Normal, Single, None, Scan
  • Measurements: Signal frequency / period / duty cycle, peak voltage / RMS / MAX / MIN / AVG
  • Storage: 8MB built U disk
  • APP can be loaded quantity: 1
  • Micro USB interface
  • Battery: 550mAh
  • Screen size: 2.8 in (7.1 cm)
  • Screen resolution: 320 x 240p
  • Open source application layer
  • Authenticate: CE/FCC
  • Dimensions: 4.2 x 2.2 x 0.5 in (10.7 x 5.6 x 1.2 cm)
  • Weight (with battery): 2.3 oz (65 g)

Included

  • DS211 Digital Oscilloscope
  • Probe
  • Allen key
  • Self-printed paper manual

Shipping

Estimated ship date is Apr 25, 2017 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
