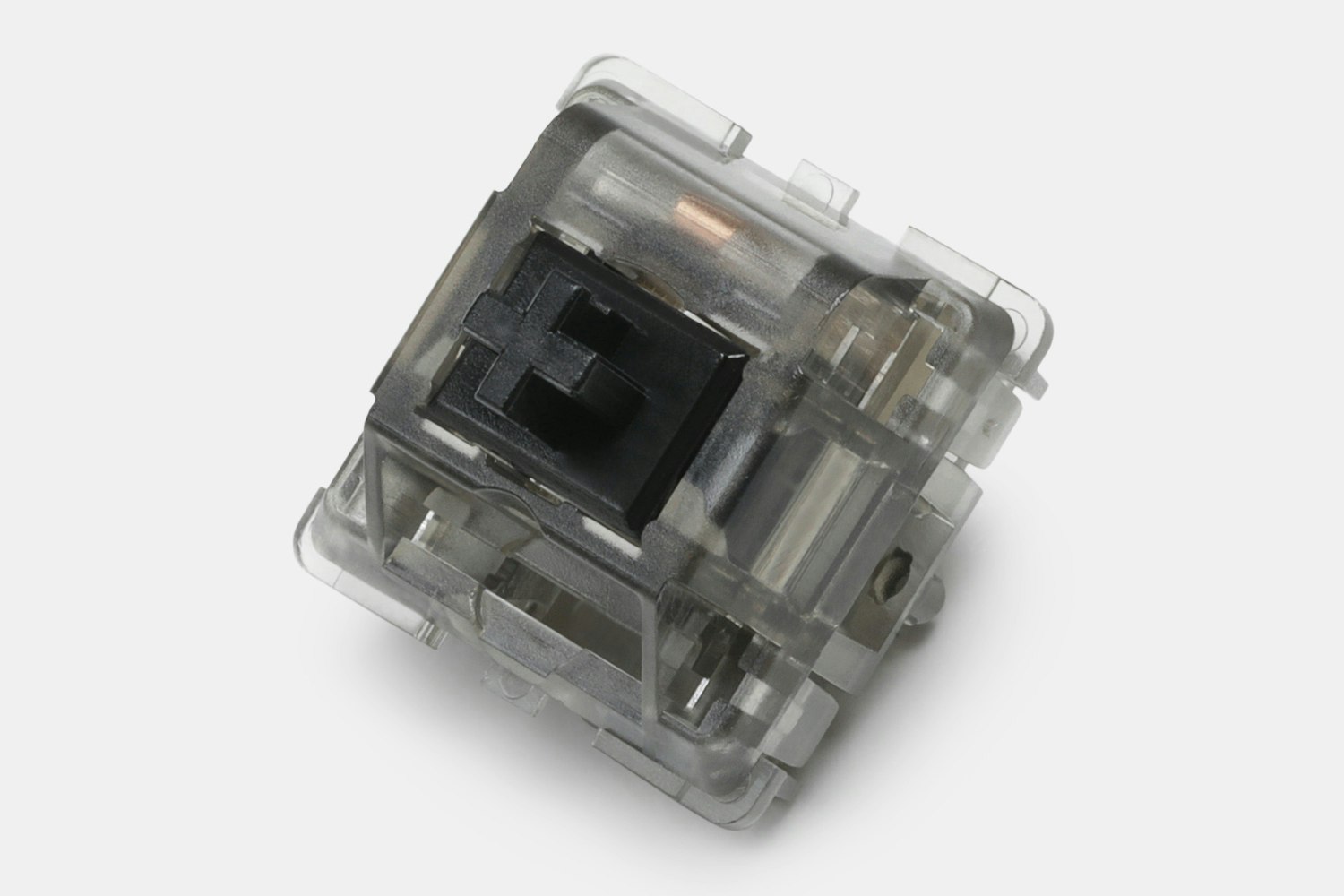

Durock Translucent Smokey L7 Linear Mechanical Switches
Smoky Aesthetics & Smooth Linear Travel in 3 Spring Weights
With ultra-reliable linear action and a translucent smoky look, Durock’s L7 Linear Mechanical Switches make a smooth addition to any keyboard. Available here are three spring weights: 62, 67, and 78 grams—requiring 42, 45, and 52 grams of actuation force respectively. While these three switch options span the spectrum from moderate weight to heavyweight, they all deliver a precise 4 millimeters of total travel with excellent durability, thanks to polycarbonate top housings, nylon bottom housings, gold alloy contacts, and gold-plated stainless steel springs. Light pre-lubricated from the factory, each L7 Linear Switch is rated for 50 million actuations.
Specs
- Durock
- Switch type: Linear
- 5-pin
- POM stem
- Smoky housing
- Top housing material: Polycarbonate
- Bottom housing material: Nylon
- Lifespan: 50 million actuations
- Spring weight: 62 g, 67 g, or 78 g
- Actuation force: 42 gf (± 10 gf, 62 g spring), 45 gf (± 10 gf, 67 g spring), 52 gf (± 10 gf, 78 g spring)
- Bottom out force: 62 gf (± 10 gf, 62 g spring), 67 gf (± 10 gf, 67 g spring), 78 gf (± 10 gf, 78 g spring)
- Total travel: 4.0 (± 0.3 mm)
- Pretravel: 2.0 (± 0.3 mm)
- Contact material: Gold alloy
- Spring material: Gold-plated stainless steel
- Lightly pre-lubricated
- Storage Temperature: 41°F – 104°F (5°C – 40°C)
- Operating Temperature: -40°F – 150°F (-40°C – 70°C)
