Elecfreaks DIY DDS Digital Synthesis Kit
Elecfreaks DIY DDS Digital Synthesis Kit
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
82 Sold
Product Description
Make your own direct digital synthesizer with this all-in-one kit from Elecfreaks. Once assembled, you’ll be able to create arbitrary waveforms from a single, fixed-frequency reference clock Read More
DIY Wave Generator

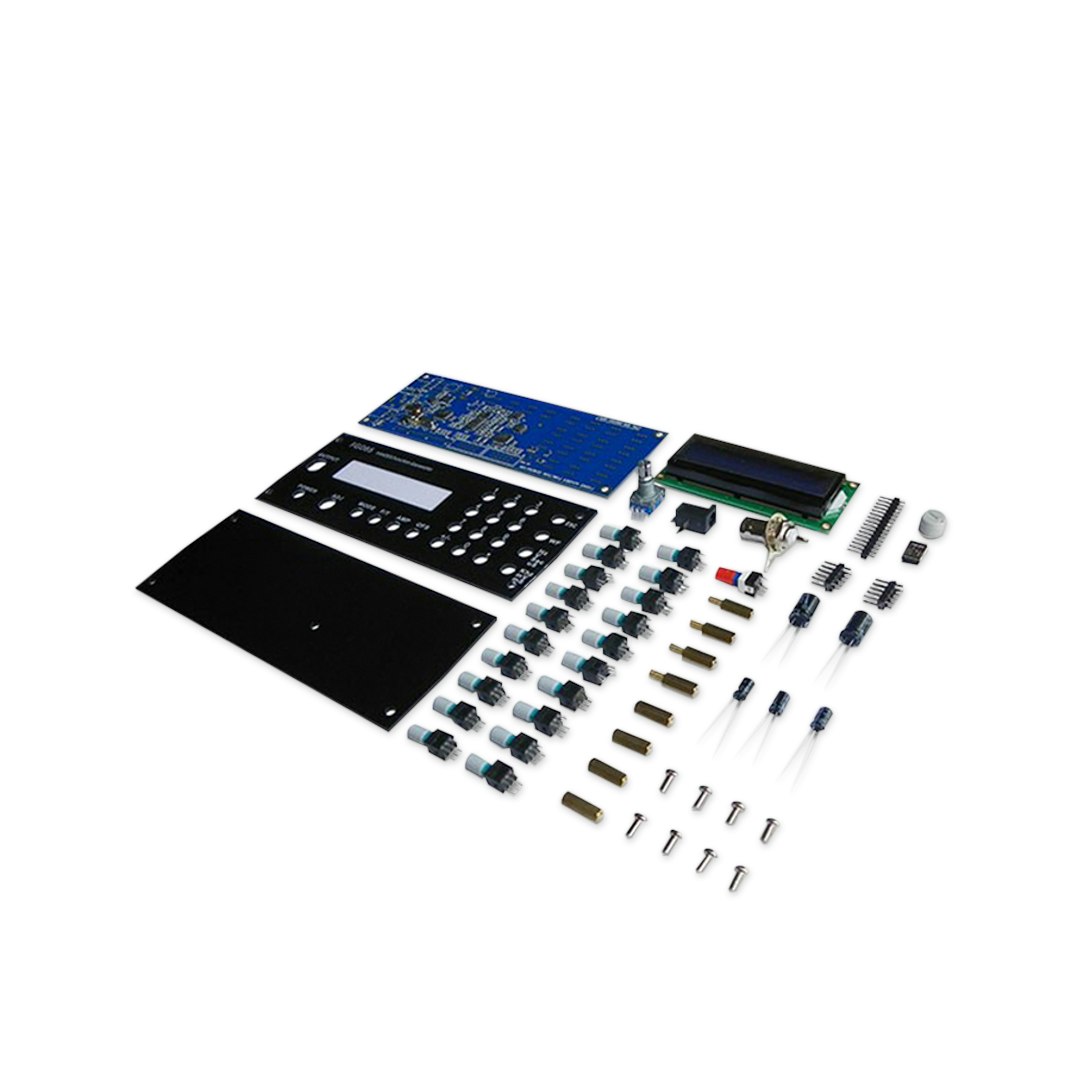

Make your own direct digital synthesizer with this all-in-one kit from Elecfreaks. Once assembled, you’ll be able to create arbitrary waveforms from a single, fixed-frequency reference clock. Capable of putting out signal waves like sine, square, triangle, positive and negative sawtooth, and many more, the kit is great for experimentation. The wide front panel is easy to navigate.

Specs
  • Output signal types: sine, square, triangle, positive and negative sawtooth, positive and negative staircase, user-defined arbitrary waveforms, and servo control signal
  • Frequency range: 0 - 200KHz (sine)
  • Frequency resolution: 1Hz
  • Frequency accuracy: 0.149Hz (when F> 40Hz time), 0.000596Hz (when F <= 40Hz time)
  • Cycle resolution: 1ms
  • Amplitude range: 0 - 10V pp
  • Amplitude accuracy: 0.1V
  • DC offset range: -5V - + 5V
  • DC offset accuracy: 40mV
  • Waveform memory depth: 256 bytes
  • Maximum sample rate: 2.5 Msps
  • Trigger input level: High 3.5V (minimum), low 1.5V (maximum)
  • When the trigger waveform output delay: less than 5 subtle
  • Synchronous output: TTL level
  • Output impedance: 50 ohm
  • Power supply voltage: 15V DC
  • Supply current: <150mA (no load)
Shipping

All orders will be shipped by Drop.

Estimated ship date is Jan 14, 2019 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
