Product Description

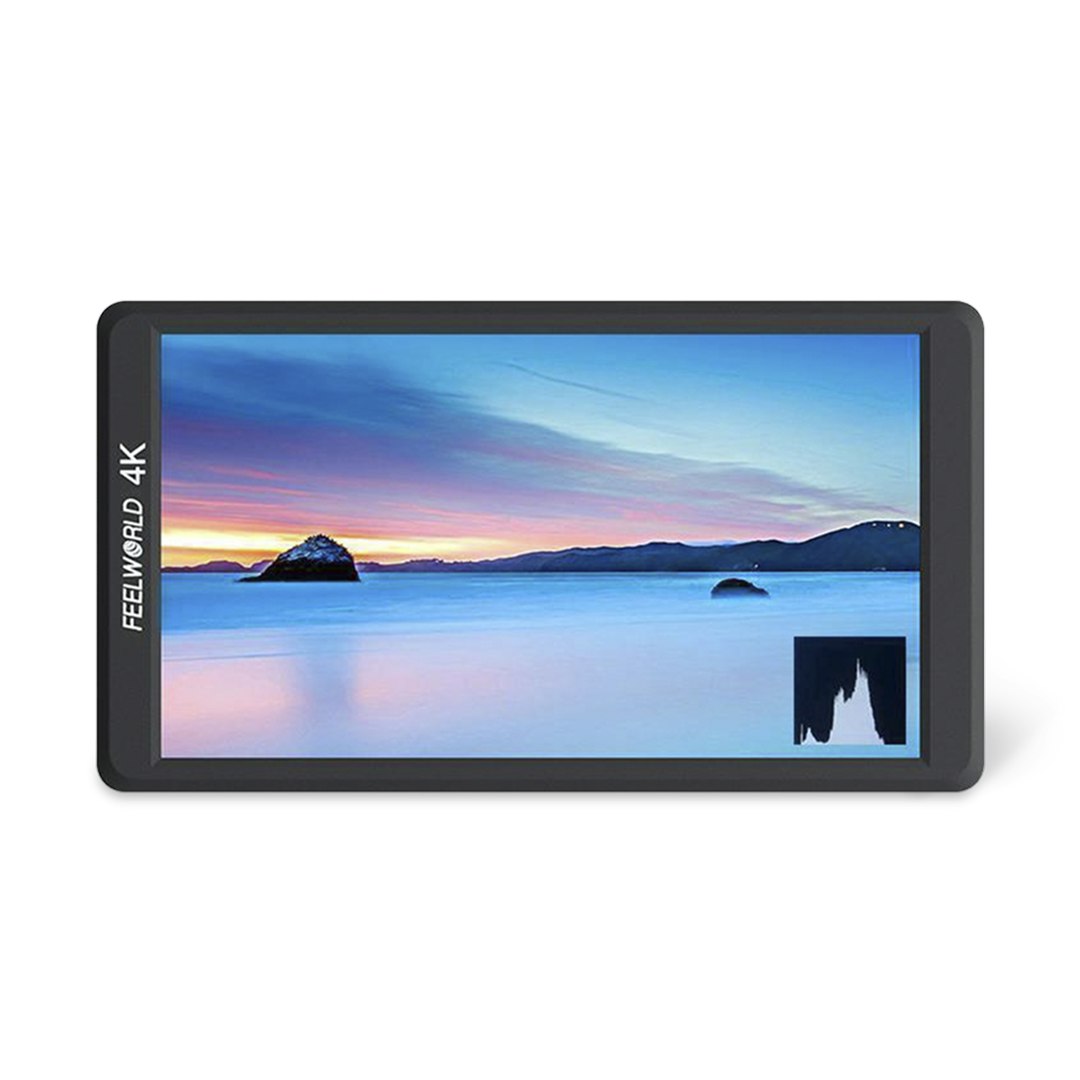

Whether you’re piloting a drone, live streaming an event, or wanting a closer look at captured videos, these FeelWorld on-camera monitors gives you the ability to connect directly to a camera and view images and videos in real time. Each monitor has an IPS LED screen so you can view your content at any angle with stunning clarity Read More

View Your Footage Anywhere

Whether you’re piloting a drone, live streaming an event, or wanting a closer look at captured videos, these FeelWorld on-camera monitors gives you the ability to connect directly to a camera and view images and videos in real time. Each monitor has an IPS LED screen so you can view your content at any angle with stunning clarity. A powerful exposure tool lets you pick apart images by color to determine where the focus should be, while brightness histogram and exposure zebras help you extract details hidden in bright areas. The ¼-20 thread mounts allow you to attach the monitors to a tripod or monopod. In addition to the 3.5-millimeter audio input, each monitor has a 4K HDMI input and output port, so you can connect the monitor to 4K cameras or a TV without an adapter.

Note: At checkout, choose the F570 5-inch monitor, the T7 7-inch monitor, or the MA5 5-inch monitor (- $20)

FeelWorld On-Camera Monitors
FeelWorld On-Camera Monitors
FeelWorld On-Camera Monitors
FeelWorld On-Camera Monitors

FeelWorld On-Camera Monitor Favorite

Specs

FeelWorld F570

  • Model number: F570

Display

  • Screen size: 5.7 in (14.4 cm)
  • Screen type: IPS
  • Resolution: 1920 x 1080p
  • Pixel pitch: 0.0657 x 0.0219 mm
  • Aspect ratio: 16:9
  • Brightness: 460cd/m²
  • Contrast ratio: 1400:1
  • Backlight: LED
  • Viewing angle: 85°/85°(L/R) 85°/85°(U/D)

Features

  • Brightness Histogram
  • Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
  • False Colors
  • Zebra Exposure (1-100IRE adjustable)
  • Check Field (Red, Green, Blue, Mono)
  • Camera Mode
  • Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
  • Image Flip (H, V, H/V)
  • Image Freeze
  • Center Marker
  • Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
  • Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  • Color Temperature Adjustment
  • Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input)
  • Zoom (4X, 9X, 16X) (Nonsupport in 4K input)
  • Aspect Ratio (Nonsupport in 4K input)
  • Pixel to Pixel (Nonsupport in 4K input)
  • Zoom All (Nonsupport in 4K input)
  • U/D Zoom (Nonsupport in 4K input)
  • L/R Zoom (Nonsupport in 4K input)

Inputs & Outputs

  • Input: HDMI
  • Output: HDMI
  • Supported HDMI formats: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

Audio

  • Audio: 3.5mm stereo headphone

General

  • Input voltage: DC 7–24V
  • Power consumption: ≤8W
  • Working temperature: -4–132° F (-20–55° C)
  • Storage temperature: -22–150° F (-30–65° C)
  • Mounting: ¼-20 thread
  • Dimensions: 37.5 x 20.8 x 4.5 in (14.8 x 8.2 x 1.8 cm)
  • Weight: 9.8 oz (280 g)

FeelWorld Master MA5

General

  • Panel Size: 5 in (12.7 cm)
  • Panel Type: IPS LED
  • Resolution: 1920 x 1080p
  • Aspect Ratio: Auto, 4:3, 16:9, Just Scan, Panorama, Pixel to Pixel
  • Pixel Density: 440 PPI
  • Dot Pitch: 0.0571 (H) x 0.019 (W) mm
  • Aspect Ratio: 16:9
  • Brightness: 450cd/m2
  • Contrast: 1000:1
  • Viewing Angle: 80°/80° (L/R) 80°/80° (U/D)
  • Input: HDMI
  • Output: HDMI, DC OUT 8.4V
  • Audio: 3.5mm Stereo Headphone
  • HDMI Support Format: 480i /480p /576i /576p720p (60/59.94/50/30/29/25/24/23.98)1080i (60/59.94/50)1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)DCI 4K 4096×2160p (24Hz)

Features

  • Compatible with DSLR and mirrorless cameras
  • 4K HDMI input/output
  • 3.5mm audio input
  • 3 x 1/4-20-thread mounts
  • 1920x1080 full HD resolution
  • IPS LED screen
  • Brightness: 450 Nits
  • 160°/160° viewing angle
  • DC 8.4V power output
  • Single battery plate fits F970 or LP-E6 battery

Physical

  • Power Input Voltage: DC: 7–24V
  • Power Consumption: ≤8W
  • Mount Points: 3x 1/4-20 (top, bottom, right)
  • Working Temperature: -4–131° F (-20–55° C)
  • Storage Temperature: -22–149° F (-30–65° C)
  • Language: English, 简体中文, Español, Português, Français,Deutsch, 日本語, 繁體中文
  • Dimensions: 5.3 x 2.9 x 1 in (13.6 x 7.5 x 2.7 cm)
  • Weight: 4.9 oz (139 g)

FeelWorld T7

General

  • Model: T7
  • Screen Size: 7 in (17.7 cm)
  • Resolution: 1920 x 1200p
  • Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
  • Aspect Ratio: 16:1
  • Brightness: 450cd/m²
  • Contrast Ratio: 1200:1
  • Backlight: LED
  • Viewing Angle: 160°
  • Input: HDMI
  • Output: HDMI
  • Audio: Stereo Headphone, Speaker
  • HDMI Input/ Output Support Format: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

Features

  • Resolution: Full HD 1920 x 1200
  • Contrast: 1200:1
  • Brightness: 450cd/m²
  • 160° wide viewing angle
  • IPS panel
  • 18mm thick
  • Brightness histogram
  • Peaking focus assist (Red, Green, Blue)
  • False colors
  • Zebra exposure
  • 9 grid
  • Embedded audio
  • Scan mode (Under Scan, Over Scan)
  • Zoom (4x, 9x, 16x)
  • Anamorphic mode (1.3x, 2.0x, 2.0x mag)
  • Pixel to pixel
  • Center marker
  • Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
  • Marker color (Red, Green, Blue, White, Black)
  • Check field (Red/Green/Blue/Mono)
  • Image flip (H, V, H/V)
  • Image freeze
  • Zoom all
  • U/D and L/R zoom
  • Color temperature adjustment

Physical

  • Input Voltage : DC7–24V
  • Power Consumption: ≤8W
  • Working Temperature: -4–131° F (-20–55° C)
  • Storage Temperature: -22–149° F (-30–65° C°)
  • Mounts: 2x 1/4-20 Thread Socket (top, bottom)
  • Battery Plate:  F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
  • Dimensions: 7.1 x 4.7 x 0.7 in (18 x 12 x 1.8 cm)
  • Weight, without battery plate: 11.3 oz (320 g)
  • Weight, with battery plate: 12.3 oz (349 g)
