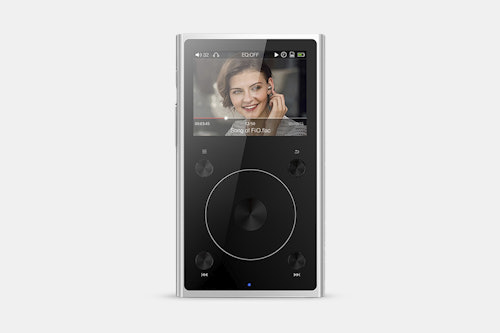

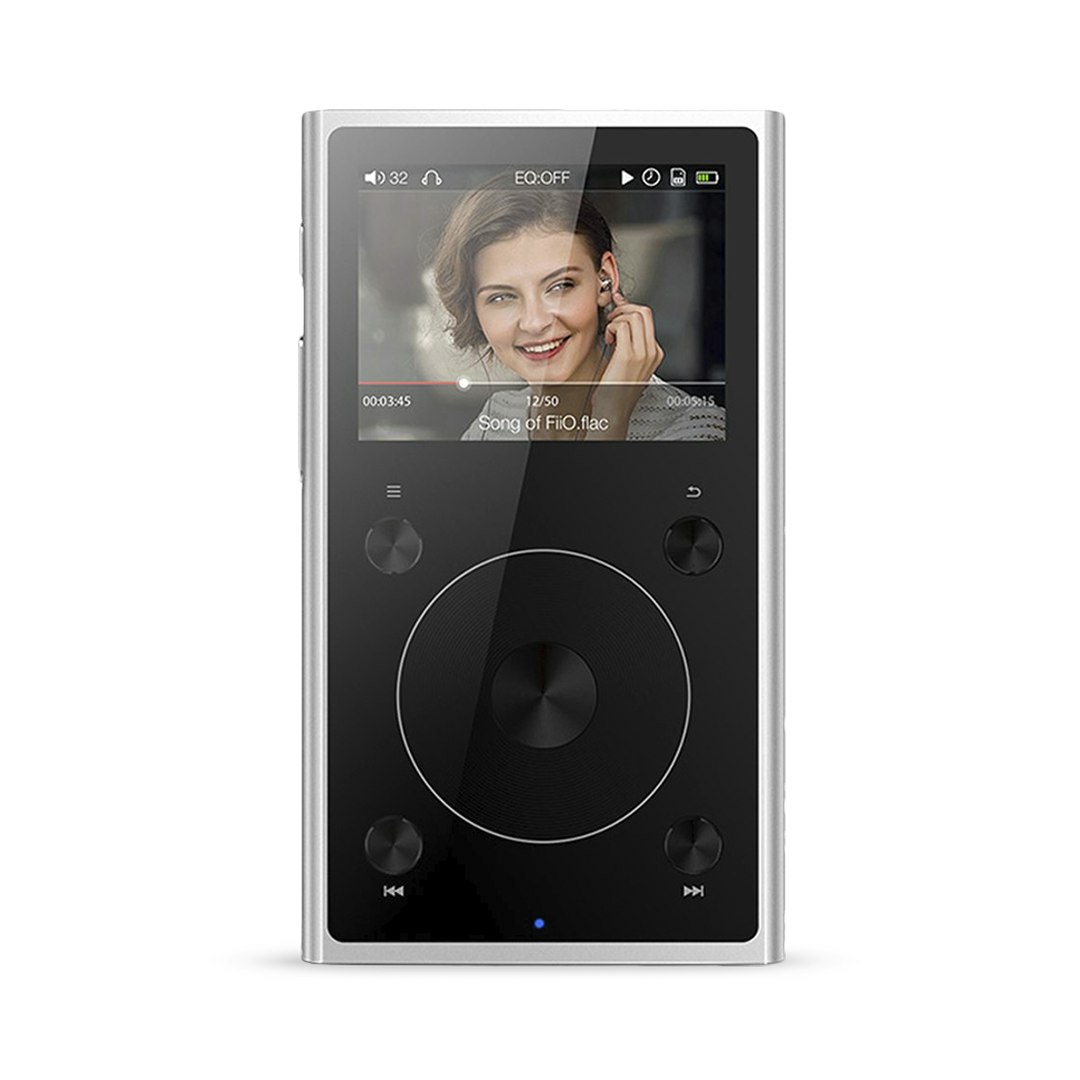

FiiO X1 II Digital Audio Player
FiiO X1 II Digital Audio Player
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
64 Sold
Product Description
The second generation of FiiO’s popular X1 digital audio player is here. Just as portable as its predecessor, the X1 II is “a distinct improvement over the first X1 in terms of sound,” according to reviewers from Headfonics Read More
For Audiophiles on the Go

The second generation of FiiO’s popular X1 digital audio player is here. Just as portable as its predecessor, the X1 II is “a distinct improvement over the first X1 in terms of sound,” according to reviewers from Headfonics. This improvement is due in large part to an onboard PCM5242 DAC, which has a higher signal-to-noise ratio than the PCM5142 DAC on the first X1. The CM5242 also supports full-differential line output to achieve a balanced line output. Other new features on the X1 II include a more sensitive, durable, and ergonomic touch wheel, as well as Bluetooth 4.1 with two-way transmission.

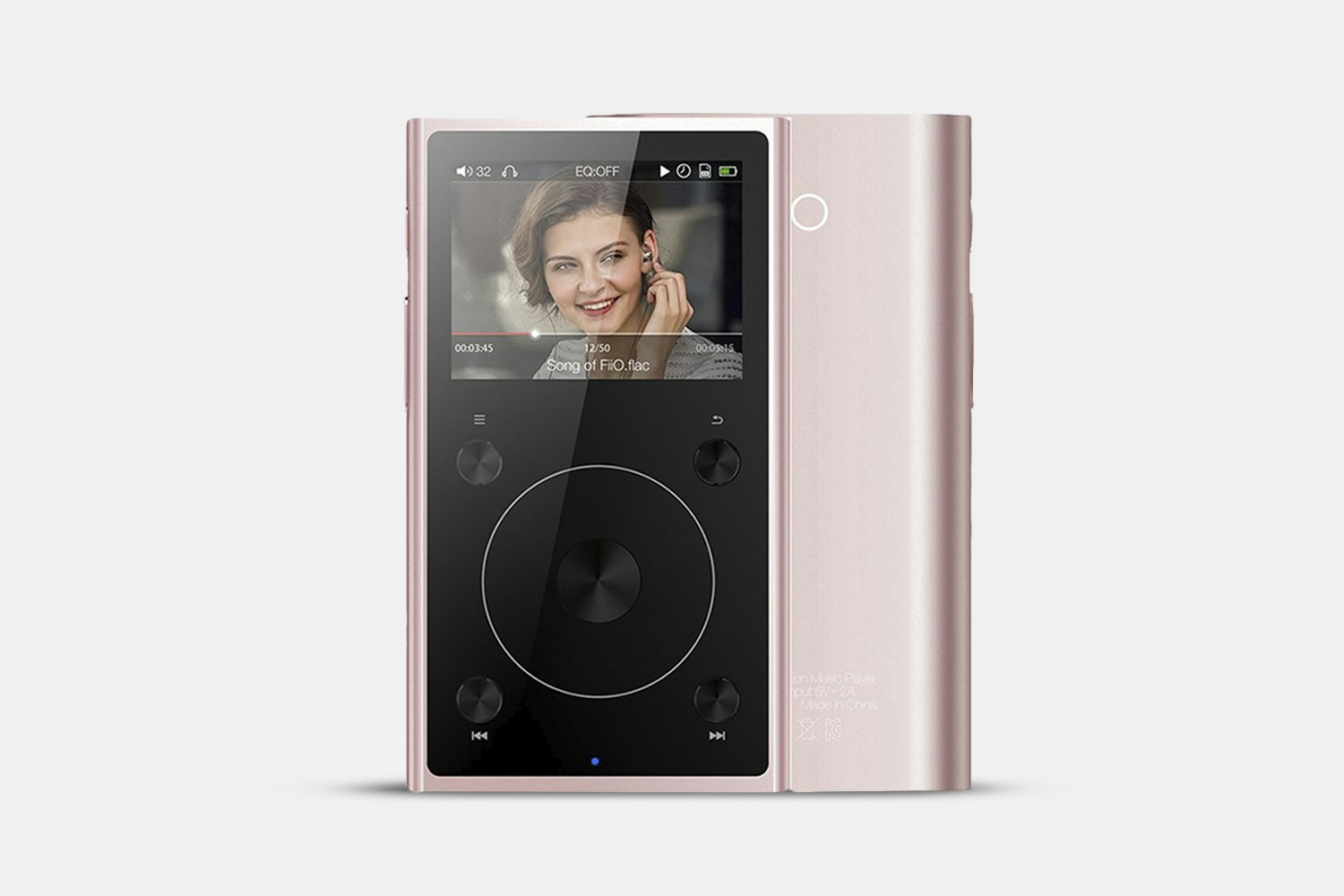

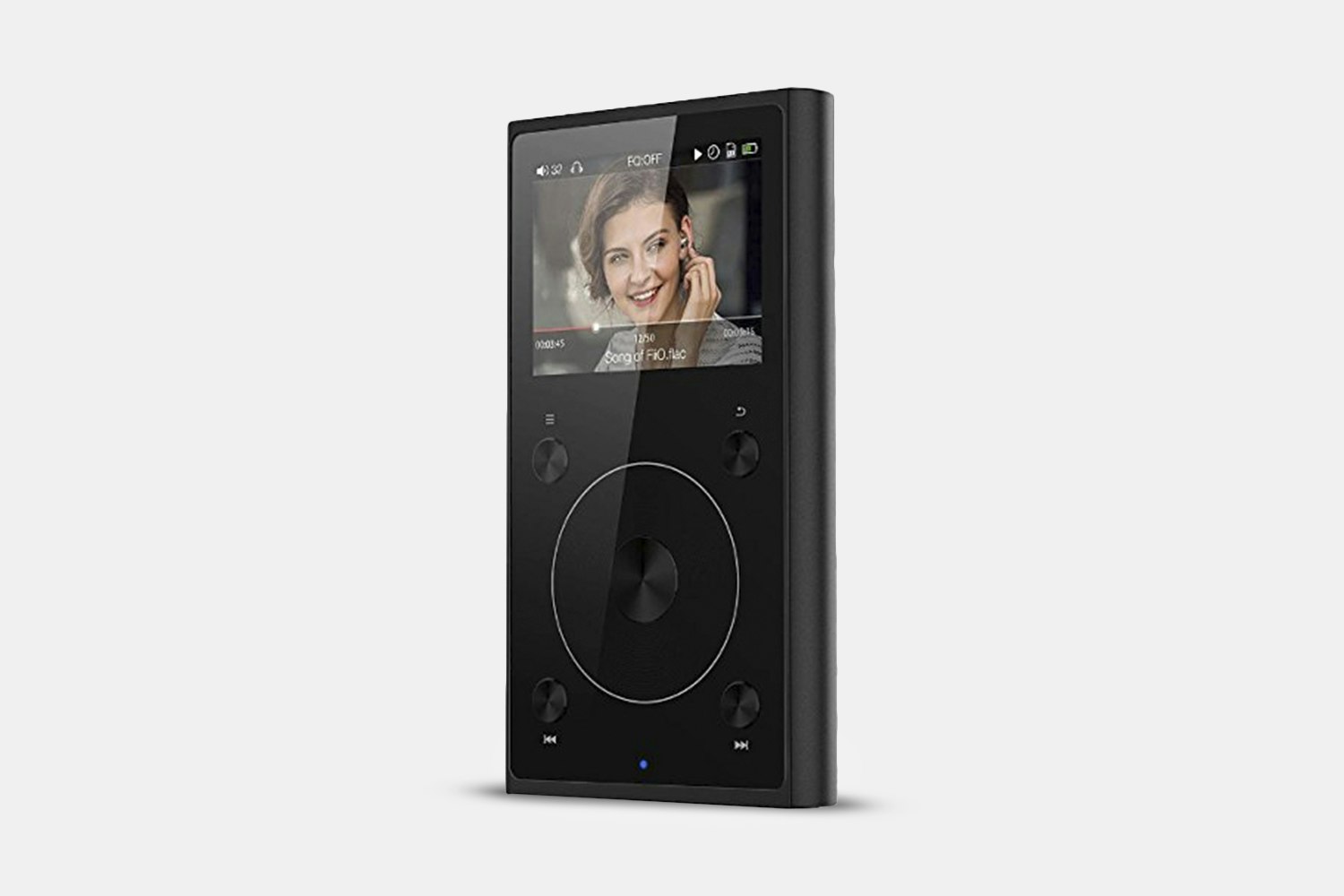

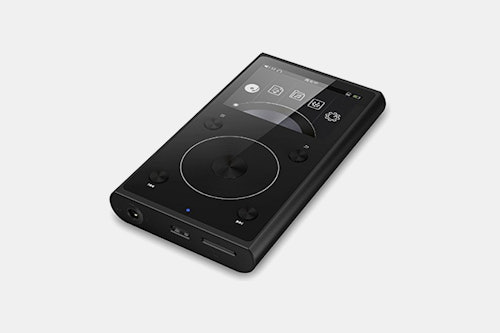

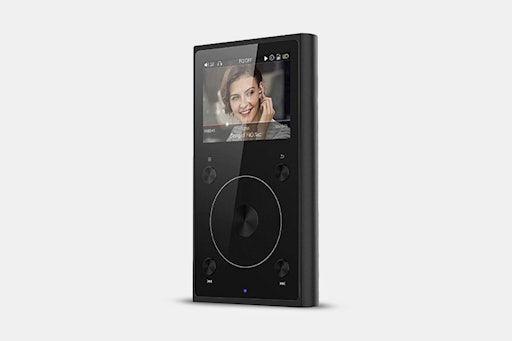

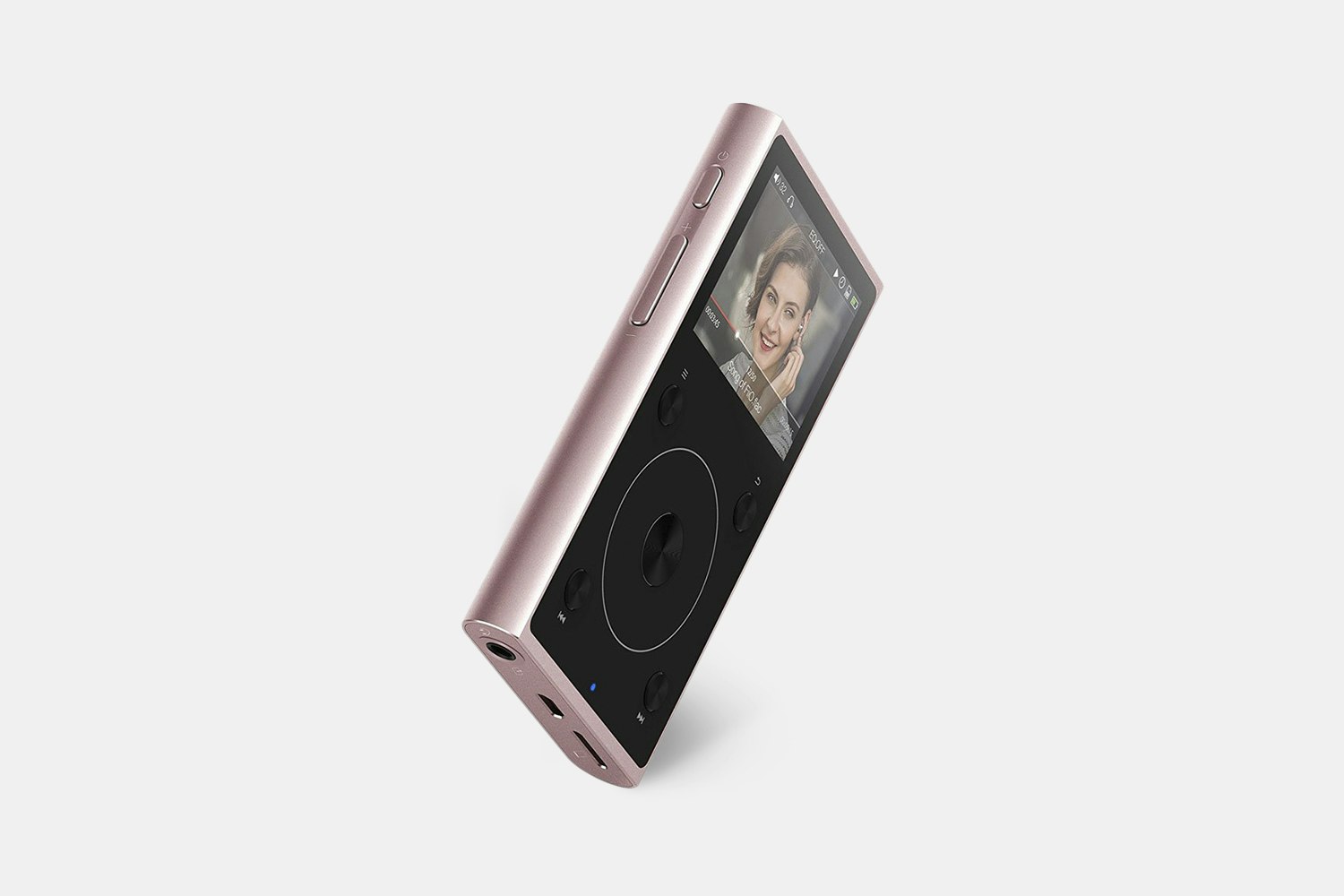

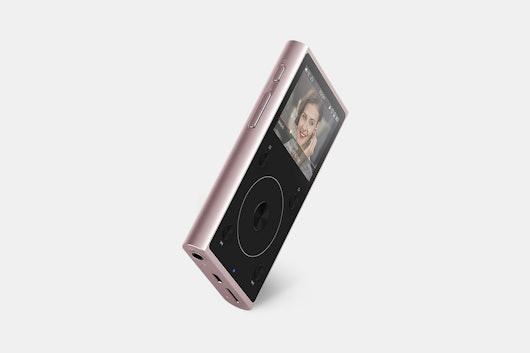

Note: At checkout, choose black, rose gold, or red.

Color Options
Specs

General

  • FiiO
  • Chips: JZ4760B (SoC), PCM5242 (DAC), OPA2322 (LPF), ISL28291 (OP)
  • Display screen: 2.0 in (5.1 cm) TFT screen with 320 x 240 pixels
  • Line out: Standard 3.5mm headphone port
  • Headphone port: Standard 3.5 mm headphone port
  • Drive ability: 16–100 Ω
  • Volume control: 100 steps digital potentiometer
  • Equalizer: 7-band equalizer (± 6dB)
  • Balance: 5 dB
  • Expansion memory: microSD up to 256GB
  • Dimensions: 3.8 x 2.2 x 0.5 in (9.7 x 5.6 x 1.2 cm)
  • Weight: 3.6 oz (102 g)

Line Output Performance

  • THD+N: ≤ 0.003% (1 kHz)
  • Frequency response: 5 Hz–60 kHz (-3dB)
  • Crosstalk: ≥ 101 dB (10 KΩ/1 kHz)
  • SNR: ≥115 dB (A-weighted)
  • Dynamic range: ≥107 dB
  • Line output level: 1.7 Vrms (10 KΩ/1 kHz)

Headphone Output Performance

  • Output power 1: >100 mW (16 Ω/THD+N<1%)
  • Output power 2: ≥ 70 mW (32 Ω/THD+N<1%)
  • Output power 3: ≥ 8 mW (300 Ω/THD+N<1%)
  • Frequency response: 5 Hz–60 kHz (-3dB)
  • SNR: ≥113 dB (A-weighted)
  • Output impedance: <1 ohms (32 ohms loaded)
  • Crosstalk: ≥72 dB (1 kHz)
  • THD+N: <0.003% (1 kHz)
  • Maximum output voltage: >4.0 Vp-p
  • Maximum output current: >130 mA

Power & Battery Performance

  • Power: DC5V 2A
  • Charge display: Red light indicates, green light turns on after fully charged
  • Battery display: Yes
  • Battery capacity: 1800 mAh
  • Battery life: >12 h (27-ohm open earbuds; volume 39; display off; EQ off; MP3 44.1kHz/16bit)
  • Charging time: <3 h (DC5V 2A)

Lossless Audio Formats Supported

  • APE (Fast): 192 kHz/24 bit;
  • APE (Normal): 96 kHz/24 bit;
  • APE (High): 96 kHz/24 bit;
  • FLAC: 192 kHz/24 bit;
  • WAV: 192 kHz/32 bit;
  • Aiff: 192 kHz/32 bit;
  • Aif: 192 kHz/24 bit;
  • WMA Lossless: 48 kHz/24 bit (to be supported by future update)
  • Apple Lossless: 192 kHz/24 bit

Lossy Compression Audio Formats Supported

  • MP3, AAC, WMA, OGG
Included
  • Micro USB cable
  • Screen protector
  • Clear case
  • Quick start guide
  • Bodywork sticker
  • Hi-res sticker
Shipping

All orders will be shipped by Drop.

Estimated ship date is Dec 6, 2019 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.

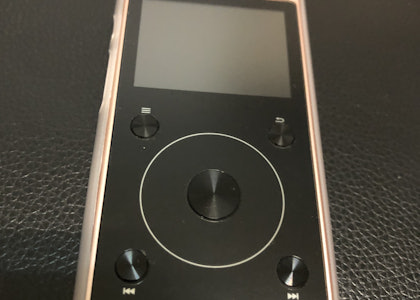

User Photos1
