FocusRite 2i2
Find Your Focus

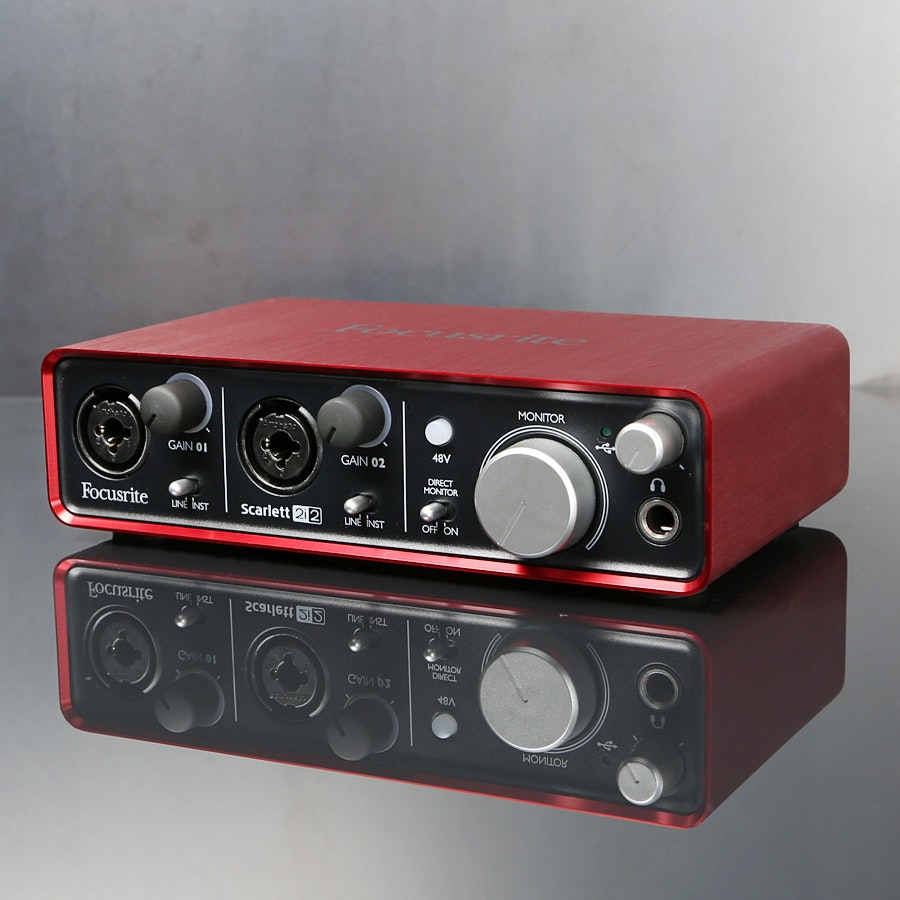

For a completely portable interface able to handle both line and instrument level signals, plug into the Focusrite Scarlett 2i2 USB Interface. Built with two pre-amplifiers, a high quality headphone amplifier, gain adjustment, and a 48 V phantom power switch for use with condenser microphones, the 2i2 is surrounded in an attractive anodized aluminum unibody chassis for good looks and proper protection.
In the 2i2
No matter what input you use, the 2i2 brings you clean, detailed audio with enough gain to handle any instrumental inputs. If you want to hear the input signal without any latency, you can plug into the headphone jack and monitor directly. For a unique final touch, both gain knobs feature LED indicators that alert you if your sound is clipping (red) or if it’s exactly where it should be (green).
Details
- Focusrite
- Capable of up to 24-bit, 96 kHz conversion
- USB recording interface
- 2 Focusrite preamps
- High quality headphone amplifier
- Anodized aluminum unibody chassis
- LED gain halo indicators for signal level
- Monitor dial for tactile volume control
- Direct monitor switch
- Bus-powered
- 2 line inputs: 1/4 in (6.3 mm) XLR TRS jack combo
- 2 line switches
- 2 gain knobs
- 2 gain halo signal indicators
- 48 V phantom power switch
- Direct monitor switch
- Large monitor level dial
- USB connection LED indicator
- Headphone output: 1/4 in (6.3 mm) TRS jack
- Headphone level knob
- 2 balanced monitor outputs: 1/4 in (6.3 mm) TRS jack
- USB 2.0 port
- Kensington Lock slot
- 1.75 x 7 x 4 in (45 x 175 x 100 mm)
- 1.3 lbs (580 g)
- Microphone
- Frequency response: 20 Hz - 20 kHz +/- 0.1 dB
- THD+N: -100 dB (minimum gain, -1 dB FS input with 20 Hz - 20 kHz filter)
- Equivalent input noise: < -127 dB
- Gain range: -4 dB to +46 dB
- Max input level: +4 dBu
- Line
- Frequency response: 20 Hz - 20 kHz +/- 0.1 dB
- THD+N: -91 dB (minimum gain, -1 dB FS input with 20 Hz - 20 kHz filter)
- Noise: -104 dBu
- Signal to noise ratio: > 100 dB
- Gain range: -21 dB to +29 dB
- Max input level: +20 dBu
- Instrument
- Frequency response: 20 Hz - 20 kHz +/- 0.1 dB
- THD+N: -72 dB (minimum gain, -1 dB FS input with 20 Hz - 20 kHz filter)
- Noise: -87 dBu
- Signal to noise ratio: > 100 dB
- Gain range: +4 to +46 dB
- Max input level: +4 dBu
- Analog Output Performance
- Nominal output level: 0 dB FS = 10 dBu, balanced
- Frequency response: 20 Hz - 20 kHz +/- 0.2 dB
- THD+N: -100 dB
- Output impedance: < 10 Ohms
- Power output: 15 mW (150Ohms), 30 mW (50 Ohms)
- Digital Performance
- Internal clock only
- A-D dynamic range: 105 dB A-weighted
- D-A dynamic range: 104 dB A-weighted
- Crosstalk
- Input to input: better than 90 dB
- Output to output: better than 90 dB
- Input to output: better than 85 dB
Included
- Ableton Live Lite
- Scarlett Plug-In software suite
