FX-Audio BOX01 Phono Preamplifier

FX-Audio BOX01 Phono Preamplifier

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
32 requests
Product Description
The sound of vinyl is certainly sought-after—but in many cases, it’s not just the record and record player that influence the listening experience. Often, an external preamplifier is needed to boost a turntable’s signal Read More

Specialized Preamplification for Your MM Turntable

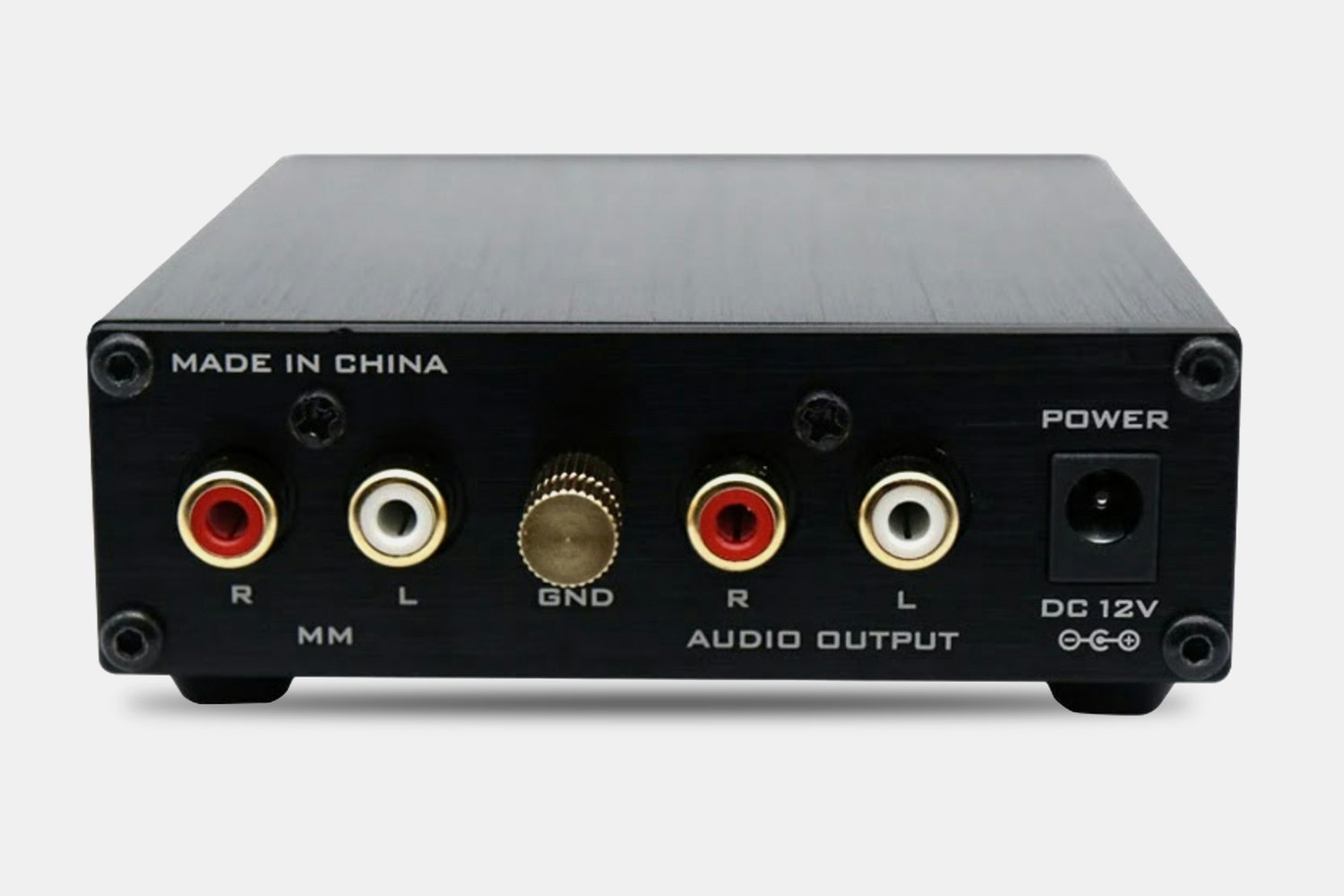

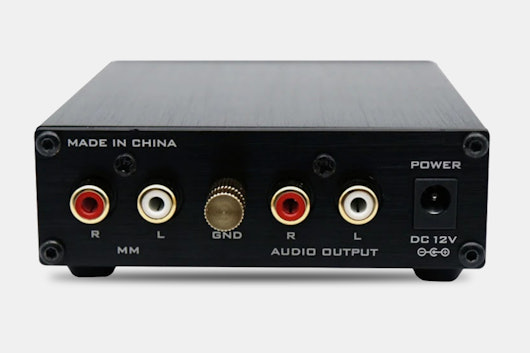

The sound of vinyl is certainly sought-after—but in many cases, it’s not just the record and record player that influence the listening experience. Often, an external preamplifier is needed to boost a turntable’s signal. For owners of a moving magnet (MM) turntable, the FX-Audio BOX01 phono preamplifier is an excellent choice. Equipped with a low-noise, low-distortion NJM2068 op-amp chip and optimized circuitry, the BOX01 delivers clean, uncolored two-way amplification from record player to power amp or powered speaker. Highly sensitive, this compact preamp boasts a wide bandwidth of 27 megahertz, a THD of 0.001-percent, and a slew rate of 6 volts/microseconds. To improve sound quality while filtering and lowering noise even further, it also features both positive and negative power lines. For a clean look, stereo RCA inputs and outputs are located on the back.

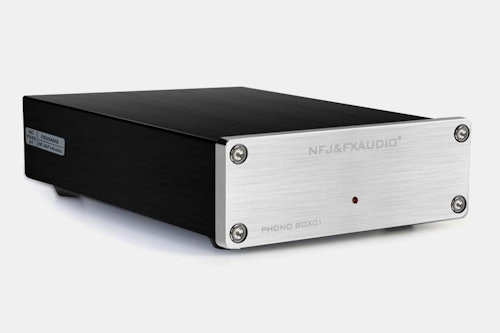

Note: At checkout, choose a US or EU plug in silver or black.

FX-Audio BOX01 Phono Preamplifier
FX-Audio BOX01 Phono Preamplifier
FX-Audio BOX01 Phono Preamplifier

Model

Specs

  • FX-Audio
  • Chipset: NJM2068M
  • Input interface: Phono (MM)
  • Maximum sampling rate: 48 bit / 96kHz
  • SNR: 67 dB at 20 Hz – 20 kHz
  • Frequency response: 20 Hz – 20 kHz, RIAA compliant
  • Output interface: RCA
  • Level output (at 3mVrms input): 308mVrms at 1 kHZ
  • Distortion: 0.08%
  • Impedance: 47 kohms / 100 pF
  • DC power supply: 12V1A
  • Dimensions: 5.1 x 3.9 x 1.4 in (13 x 10 x 3.5 cm)
  • Weight: 1.1 lbs (0.5 kg)

Included

  • Power plug

Shipping

Estimated ship date is Sep 14, 2020 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
