Product Description
For those who want to simplify their audio setup without sacrificing quality, the DAC-X3 Pro from FX Audio is the way to go. Standing 1-inch tall with a 4-inch-by-4-inch base, this compact signal solution functions as both a DAC and a headphone amp Read More
A Compact Combo With Clean Audio

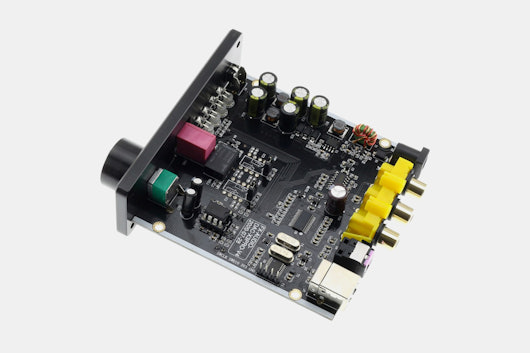

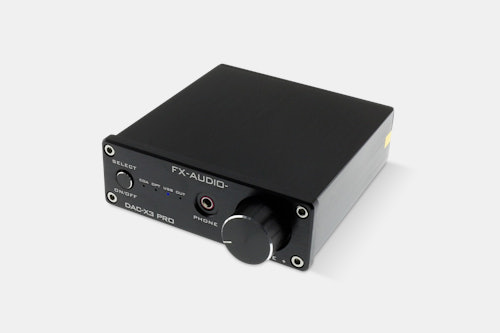

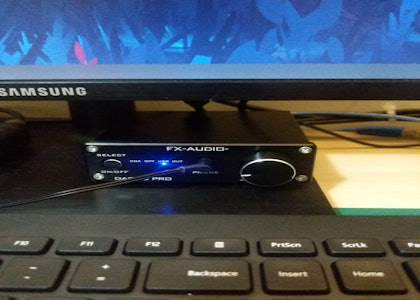

For those who want to simplify their audio setup without sacrificing quality, the DAC-X3 Pro from FX Audio is the way to go. Standing 1-inch tall with a 4-inch-by-4-inch base, this compact signal solution functions as both a DAC and a headphone amp. Driving the digital-to-audio conversion, an ESS ES9023 DAC chip ensures a high degree of detail with next to no distortion. Connecting the DAC to the amp, a reliable CS8416 receiver optimizes transmission for a steady signal. Connect your playback device through a coaxial, optical, or USB input, and listen through speakers or headphones with an RCA or 3.5-millimeter output.

Specs
  • FX Audio
  • DAC chip: ES9023
  • SPDIF interface: CS8416
  • Housing material: Aluminum

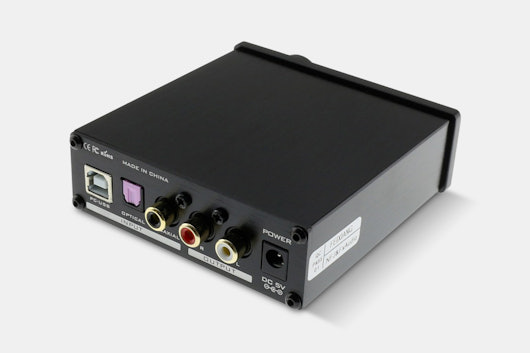

  • Inputs: USB-B, coaxial, optical
  • Outputs: Stereo RCA, 3.5 mm
  • USB sampling rate: PCM up to 24-bit / 96 kHz
  • Optical / Coaxial sampling rate: PCM up to 24-bit / 192 kHz
  • RCA output level: 2Vrms
  • RCA impedance: ≥ 100 ohms
  • Headphone output power: 45 mW (16 ohms), 85 mW (32 ohms), 160 mW (64 ohms), 150 mW (120 ohms), 65 mW (300 ohms)
  • USB transmission mode: ASRC
  • THD+N: 0.04%
  • SNR: 105 dB
  • Dynamic range: 105 dB
  • Frequency response: 20 Hz – 20 kHz
  • Headphone output background noise: -110 dBm
  • Headphone output amplitude level: 4Vrms
  • Recommended headphone impedance: 16 – 300 ohms
  • Dimensions: 3.9 x 3.85 x 1.3 in (9.9 x 9.8 x 3.3 cm)
  • Weight: 19.8 oz (560 g)
Included
  • Power supply
  • USB cable
