FX Audio TUBE-03MKII BT Tube Preamp & Headphone Amp
FX Audio TUBE-03MKII BT Tube Preamp & Headphone Amp
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
122 Sold
Product Description
Between your audio player and your headphones, several pieces of equipment can improve your sound. If you’re looking for signature tube warmth, you can get them all in one device: the TUBE-03MKII from FX Audio Read More
All-in-One Tube Audio

Between your audio player and your headphones, several pieces of equipment can improve your sound. If you’re looking for signature tube warmth, you can get them all in one device: the TUBE-03MKII from FX Audio. This versatile audio solution can be used as a speaker preamp, headphone amp, Bluetooth receiver, and a DAC. Its warm and natural sound comes from a unique tube buffer circuit and two GE5654 tubes—but these can be replaced by 6J1, 6J4, 6AK5, 6K4 tubes for different sound signatures. The onboard headphone op-amp (OPA1656IDR) can also be replaced by higher-end op-amps like the MUSE02 or AD827. A QCC3008 Bluetooth 5.0 chip supports the aptX codec for reliable connectivity, while a well-regarded ESS9023 DAC chip delivers detailed conversion. Fine-tune your sound even further with onboard tone controls.

Note: All units come with a US power adapter.

Model
Specs
  • FX Audio

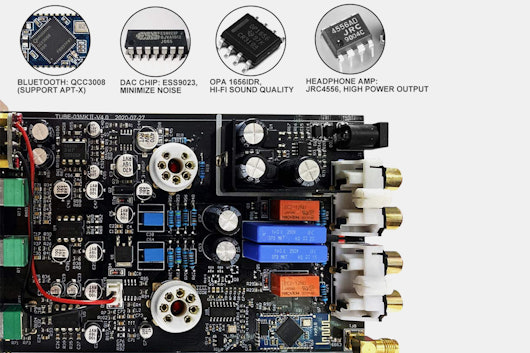

  • Chipset: QCC3008, ESS9023, GE5654, OPA1656IDR, JRC4556

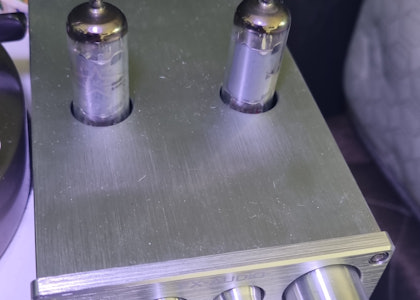

  • Tubes: (2) GE5654 tubes
  • Frequency response: 20 Hz – 22 kHz (± 3 dB)
  • Inputs: RCA, Bluetooth
  • Outputs: RCA, 3.5 mm
  • Bluetooth version: 5.0
  • Bluetooth codecs supported: aptX
  • SNR: 100 dB
  • THD: 0.001%
  • Line output impedance: Up to 600 ohms
  • Headphone output impedance: 16 – 150 ohms
  • Power supply: 12V 1A
  • Weight: 1.5 lbs (0.7 kgs)
Included
  • RCA cable
  • AC adapter
Shipping

All orders will be shipped by Drop.

Estimated ship date is Nov 25, 2020 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
