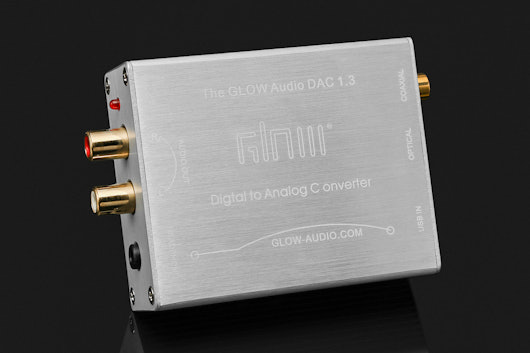

GLOW DAC 1.3
Compact USB-Powered DAC
About the size of a deck of cards, the GLOW DAC 1.3 delivers a whole lot of value for its small footprint and accessible price. It uses the latest version of the tried-and-true 16-bit Burr-Brown 2704 chip and high-quality components throughout the circuit design—including KOA precision resistors, ELNA electrolytic capacitors, and a Simons MKT non-polar capacitor. The result is a smooth, detailed, three-dimensional sound. Plus, because this DAC is powered with a single USB cable from your computer, you won’t need to worry about finding an AC outlet or charging any batteries.
Note: At checkout, you’ll have your choice of finish between Black and Silver.
Better Sound, More Versatility

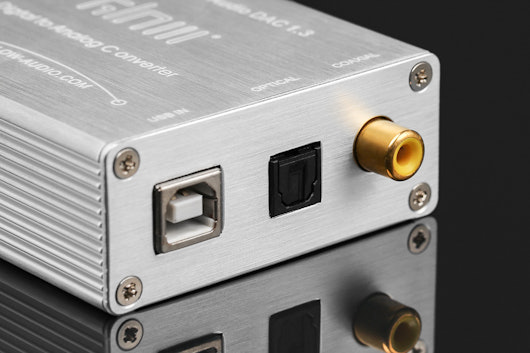

The GLOW DAC 1.3 has four outputs—an RCA analog out, a ⅛-inch headphone out, an optical out, and a coaxial out—for connecting to a variety of music sources. It also boasts a built-in headphone amplifier, ideal for pairing with a higher-end headphone or speaker amplifier.

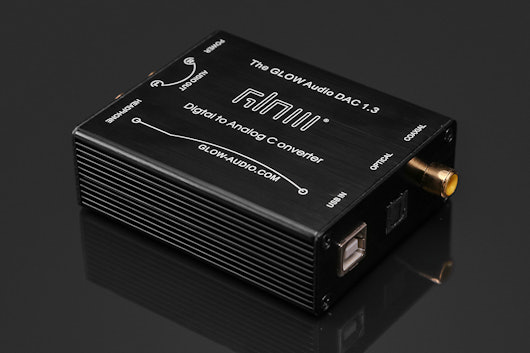

Color Options
Specs
- Glow Audio
- Burr-Brown 2704 DAC chip
- Sampling rate: 32, 44.1, 48 kHz
- On-chip clock generator with single 12 MHz clock source
- 16-bit delta-sigma stereo DAC controlled and SPDIF
- THD+N: 0.006% RL > 10 kohm, 0.025% RL = 32 ohm
- Signal-to-noise ratio: 98 dB
- Dynamic range: 98 dB
- PO: 12 mW
- RL: 32 ohm
- Oversampling digital filter
- Pass-band ripple: +/- 0.04 dB
- Stop-band attenuation: -50 dB
- Single-ended voltage output
- Analog LPF included
- USB-powered input
- RCA analog out, ⅛ in headphone out, optical out, coaxial out
- Power supply, bus-powered: 5 V, typical (VBUS)
- Power supply, self-powered: 3.3 V
Included
- RCA cable
- USB cable
Shipping
Estimated ship date is Aug 12, 2016 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
Ask the Community!
