Hey, some folks were looking for pictures of the inside.

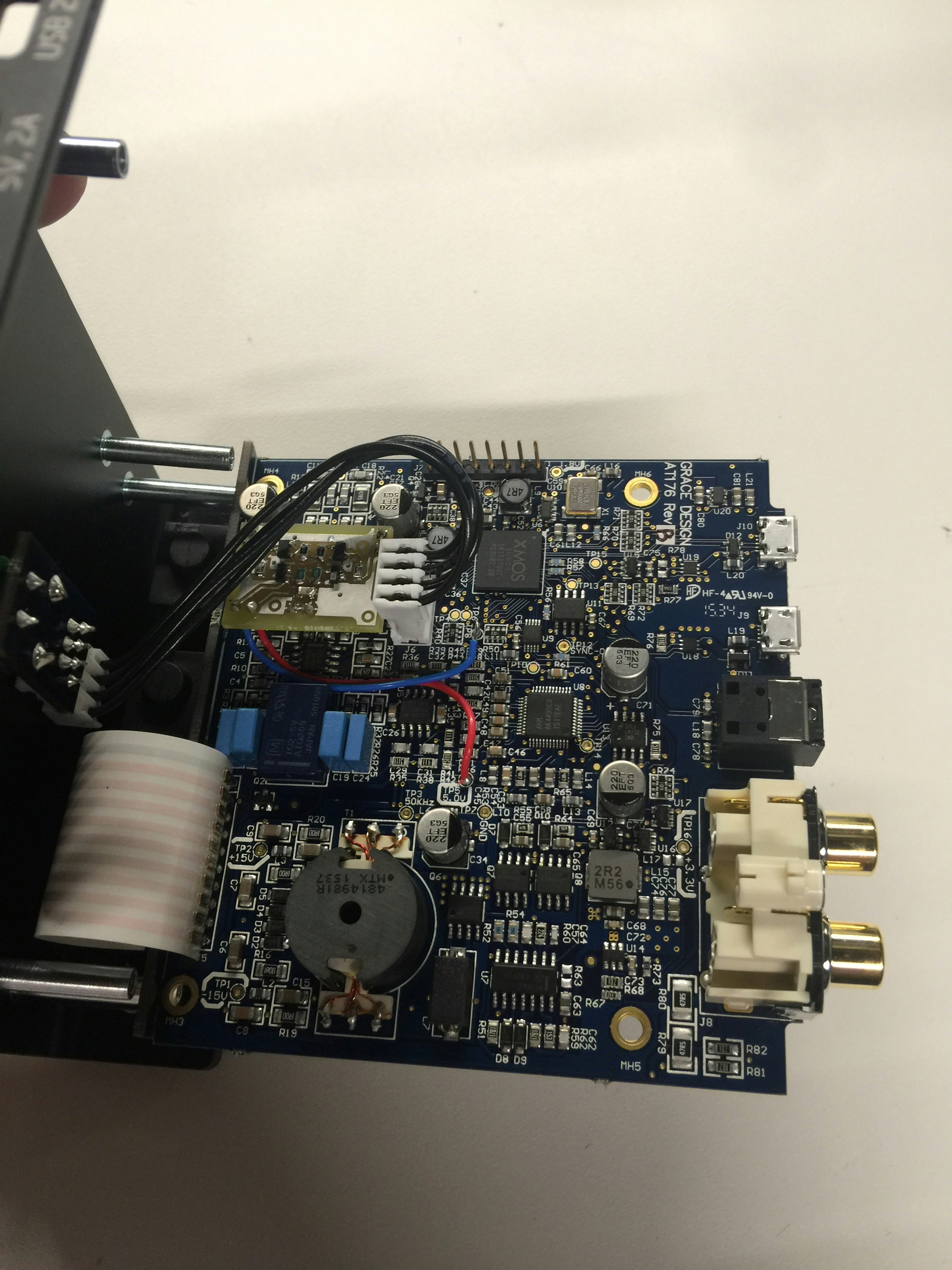

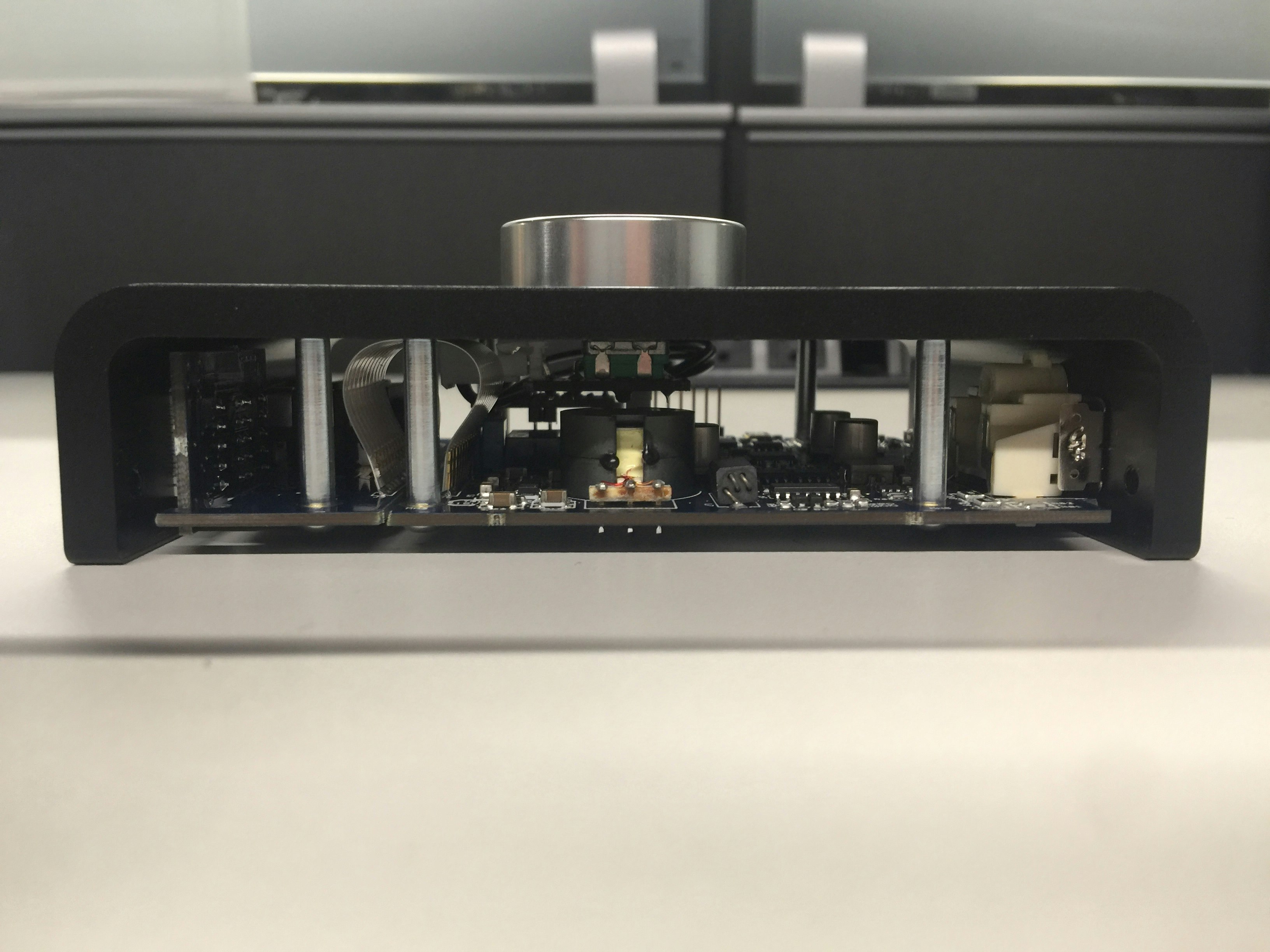

PCB's mounted to the top panel, and it's broken into two components. Smaller of the two has the 1/4" headphone jacks and the seven figure display. Larger of the two (close up picture) has everything else on it.
PCB is four layers, that's the only way it can be this packed without complications. Feast your eyes.
search

search

search
Oct 30, 2015
mohb
45
Oct 30, 2015
bookmark_border
Giggity.
Oct 30, 2015
avitron142
134
Oct 30, 2015
bookmark_border
Could you please get back to me when you have a chance? In another two hours, I won't be able contact you until Saturday night.
Oct 30, 2015
Will
7400
Chief Product Officer
Oct 30, 2015
bookmark_border
Just did.
