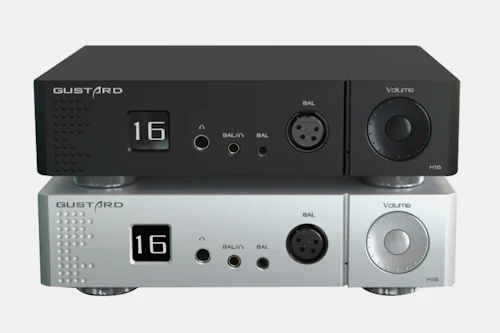

Gustard H16 Balanced Headphone Pre-Amplifier

Gustard H16 Balanced Headphone Pre-Amplifier

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
35 requests
Product Description
Gustard is known for crafting impressive desktop audio units with an eye toward design and an ear toward clean, detailed response. The Gustard H16 Balanced Headphone Pre-Amplifier is an excellent edition to your DAC or amp setup because it delivers solid processing and headroom to spare Read More

Add Richness to Your Audio Chain

Gustard is known for crafting impressive desktop audio units with an eye toward design and an ear toward clean, detailed response. The Gustard H16 Balanced Headphone Pre-Amplifier is an excellent edition to your DAC or amp setup because it delivers solid processing and headroom to spare. Providing balanced output with a handling of up to 600 ohms, it gives plenty of space to work, no matter what headphones you’re using. The up to 120-decibel signal-to-noise ratio is impressively clean, while the 20 hertz to 80 kilohertz frequency ranges ensures that that coverage extends to the full audio spectrum—including ultrasonic frequencies. Combine all of this with a solid build quality, well-rounded input/output options, and an impressively low 0.0004-percent total harmonic distortion, and it’s clear that the H16 will bring balance and richness to virtually any audio setup.

Gustard H16 Balanced Headphone Pre-Amplifier
Gustard H16 Balanced Headphone Pre-Amplifier
Gustard H16 Balanced Headphone Pre-Amplifier

Specs

 Specs:

  • Gustard
  • Preamp analog output specs:
  • THD: <0.0004 %
  • Frequency response: 20 Hz – 80 kHz
  • SNR: 120 dB
  • Channel crosstalk: 120 dB
  • Headphone output:
  • Output impedance: 0.1 – 0.2 ohms
  • THD: <0.0005 %
  • Frequency response: 20 Hz – 80 kHz
  • SNR: 118 dB
  • Channel crosstalk: 120 dB
  • Load power: 3700 mW at 64 ohms, 2268 mW at 150 ohms, 1133 mW at 300 ohms, 566 mW at 600 ohms
  • Power consumption: <20 W
  • Analog Inputs: one set of RCA standard input, typical input sensitivity: 2Vrms; input impedance 4.7kΩ, one set of XLR balanced input, typical input sensitivity: +18dBu maximum + 26dBu; input impedance 10kΩ.

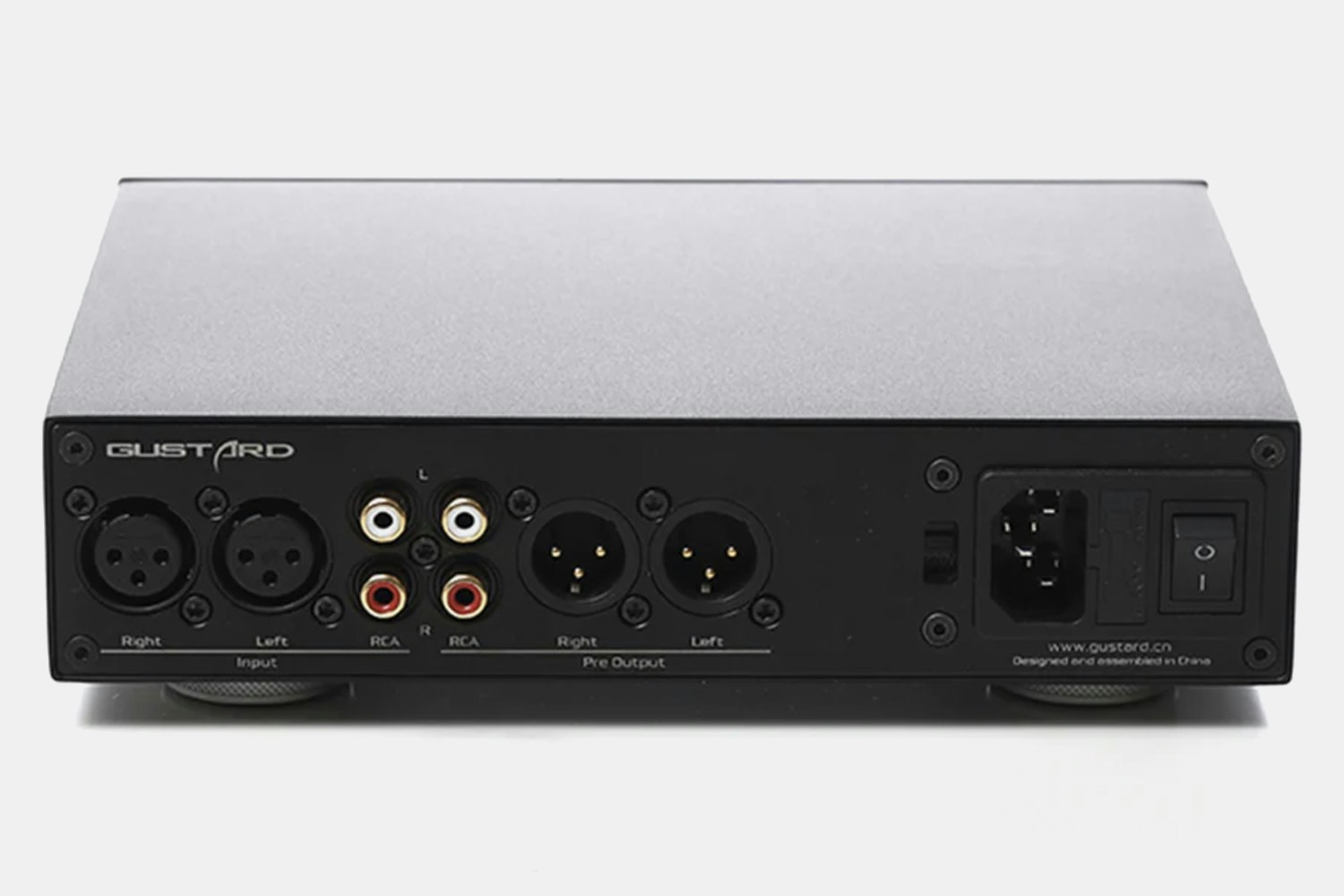

  • Outputs: Stereo RCA, balanced XLR, headphone jack

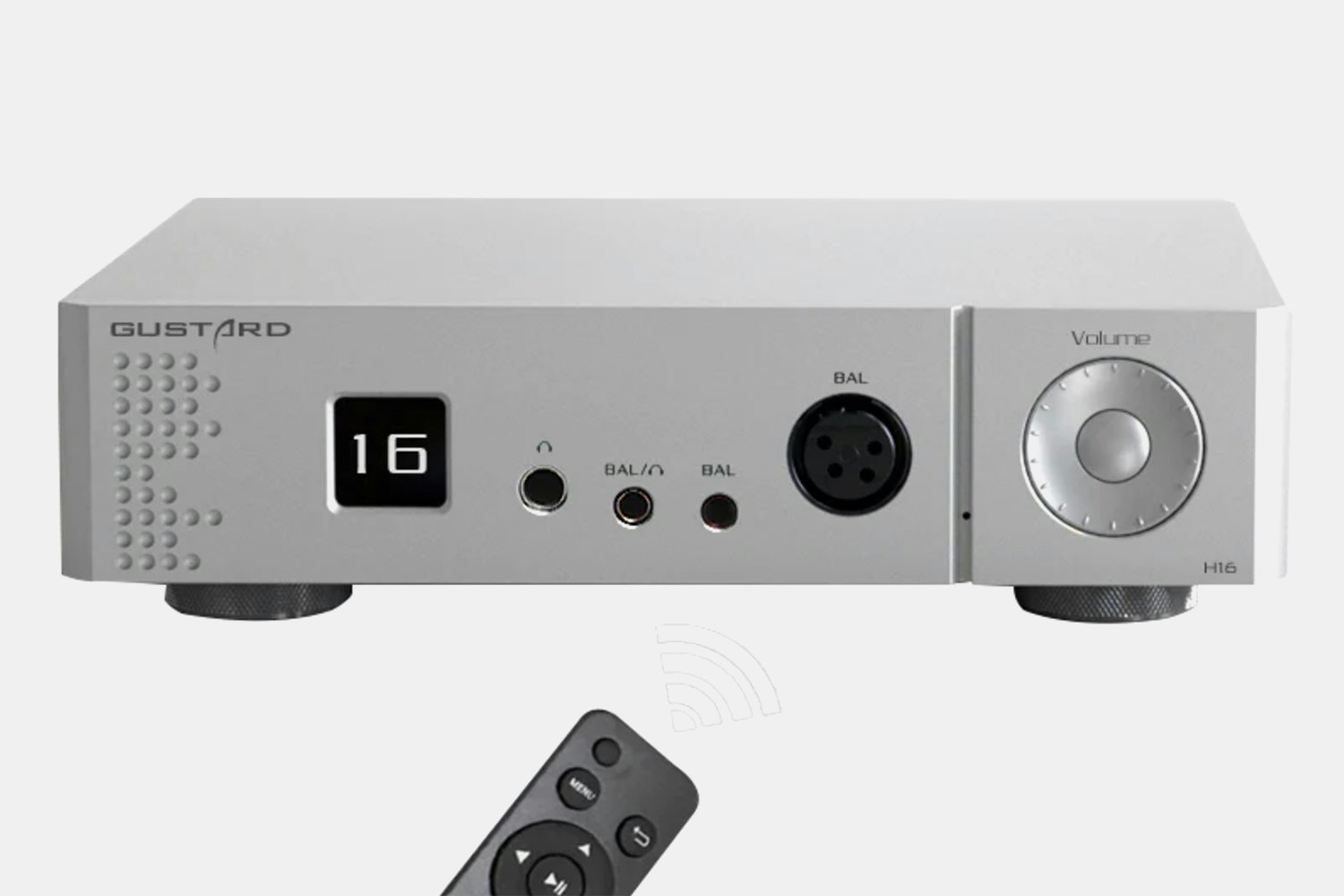

  • Headphone output (front panel output):  Single port output impedance (6.35mm): 0.1Ω,  Balance port output impedance (XLR 4 PIN, TRS4.4,3.5PRO): 0.2Ω,
    SNR: >118dB,  Channel crosstalk: -118dB@1kHz
  • Preamplifier analog output (XLR on the rear panel):  Frequency response: 20-80kHz/-0.1dB, SNR: 120 dB, Channel crosstalk: 120 dB,  THD+N:<0.0004%,  IMD:<0.0004%,
  • Maximum undistorted output power 3700mW into 64Ω LOAD balanced output.
  • Load power (balanced output, high gain):
  • 64Ω    3700mW
  • 150Ω   2268mW
  • 300Ω   1133mW
  • 600Ω   566mW
  • Weight: 5.5 lbs (2.5 kg)
  • Dimensions: 8.7 x 2 x 6.7 in (22 x 5 x 17 cm)

Shipping

Estimated ship date is Sep 1, 2023 PT.

Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.

Shop Our Curated Deskscapes
Explore these specially curated spaces to find inspiration for yours.
View All
Top Customer Questions3
search
close
Question
Are both RCA and XLR outputs active at all times or are they selectable? Does inserting a headphone plug silence the pre-amp outputs, or do you need to select one or the other?
Jan 12, 2023
Top Answer
TaylerS
222
@Banetbob Hello- You can select whether you wish to use the RCA or XLR output on the Gustard H16. Both outputs are not active at all times. Also, inserting a headphone plug will silence the...Read More
Jan 16, 2023
See 1 More
Showing 1 of 3 questions
View All Questions
