High-Voltage Differential Probe for Oscilloscope
High-Voltage Differential Probe for Oscilloscope
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
24 Sold
Product Description
Designed for professionals and experts alike, this high-voltage differential probe works with most oscilloscopes. With it, you can safely measure floating voltages up to 1,300 volts Read More
Test, Evaluate & Tinker With Your Oscilloscope

Designed for professionals and experts alike, this high-voltage differential probe works with most oscilloscopes. With it, you can safely measure floating voltages up to 1,300 volts. It also has a bandwidth up to 100 MHz and can work in two different attenuation ranges: 500X for a max test voltage of 1,300 volts, and 50X for a max test voltage of 130 volts. Use it for floating measurements, motor drive design, power device testing and evaluation, and more.

Specs
  • Model: DP10013
  • Bandwidth: 100MHz
  • Rise time: 3.5ns
  • Range selection (attenuation rate): 50X, 500X
  • Accuracy: ±2%
  • Max differential test voltage (DC+ACPK-PK): 130V (50X); 1300V (500X)
  • Max input common mode voltage (DC+ACPK-PK): 130V (50X); 1300V (500X)
  • Max Input voltage-to-earth: 1000V CATII
  • CMRR: >80dB (DC); >60dB (100KHz); >50dB (1MHz)
  • Input impedance: 10MΩ/1pF (differential); 5MΩ/2pF (Single-ended to ground)
  • Output voltage: >3V
  • Overload alarm: Button light flashes
  • Power supply: DC 5V, USB supply
  • Power: 0.85 W
  • Input cable length: 23.6 in (60 cm)
  • Operating temperature: 0 40℃  32℉ ~104℉
  • Operating humidity: 10–85%RH
  • Storage temperature: -30–70ºC (-22–158ºF)
  • Storage humidity: 5–90% RH
  • Dimensions: 5.7 x 2.4 x 1.1 in (14.5 x 6 x 2.7 cm)

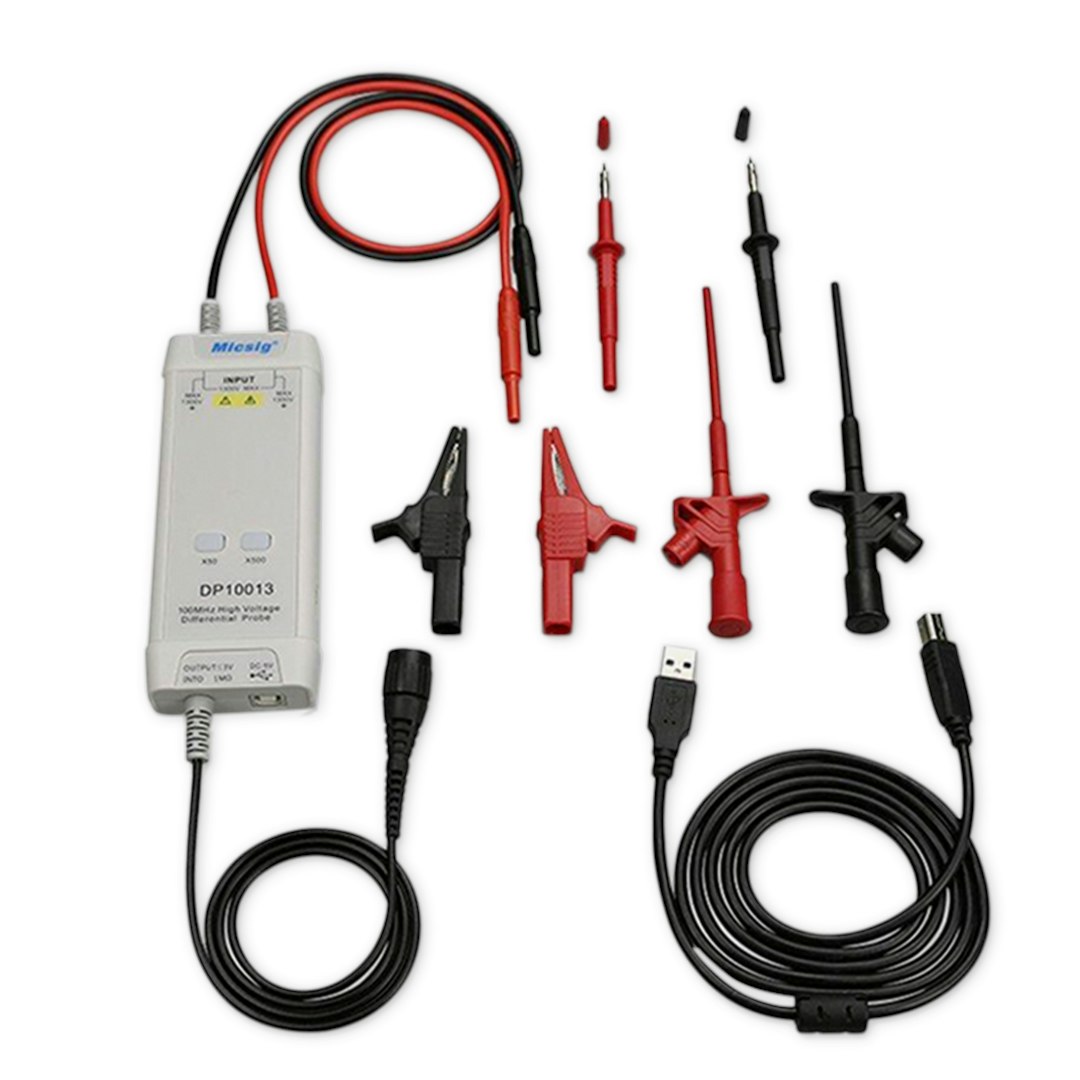

Included
  • (2) 24-inch input cables, in red and black pairs
  • 2 hook clips, in red and black pairs
  • 2 alligator clips, in red and black pairs
  • 2 pincer clips, in red and black pairs
  • 35.4-inch output cable
  • USB power cable
Shipping

Domestic orders will be shipped by the vendor.

Estimated ship date is Apr 16, 2019 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
