I finally finished my Infinity Ergodox keyboard. I received my Carbon SA keycaps yesterday.
This has been an excellent keyboard! It has also been fun to learn to type on it. The layout of the keys is comfortable, and the mechanical switches themselves are a nice feel on this keyboard.
For keycaps I am using the GMK Carbon SA keycaps modifiers and the PBT Double-Shot keycaps (Slate/Lilac) from another drop for the alphas. As I just installed them, I am still figuring out how I like the two sets together (The grays are ever so slightly different.)
I took some time to figure out the default layout, then looked online to see what others were doing. I ended up with a main layer and three additional layers , and I am enjoying it, as I don't have to move my fingers off home row (Except when using linux/unix style vi arrow keys ¯\_(ツ)_/¯ I mapped my windows arrow keys to match this, since I use both OSes ). The first layer is the default function keys over the number keys, and I added the arrow keys to HJKL. On the second layer I made the numbers be a layer lock for all the different layers (I was experimenting on the 4th and 5th layer with different thumb clusters layouts.) The third layer is a COLEMAKs layout, and I plan one day to learn to type using that layout

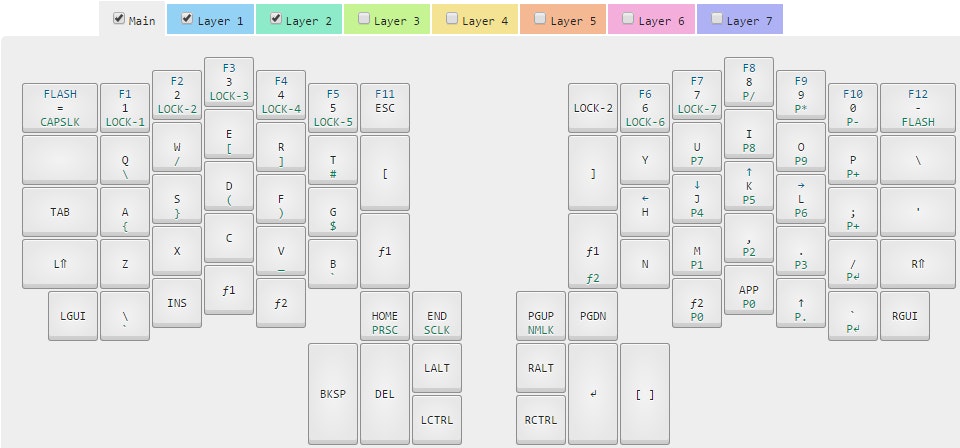

Here is my current layout:
search

The switches are Cherry MX Browns, and I like the slight tactile'ness to them, but thought the springs were a little light (I am guessing 45g-48g). So I ordered 78g and 68g springs from Originative Co to replace some of the keys. I ended up replacing the entire home row with 78g springs, then replaced the keys above and below with 68g springs. The 2u thumb cluster keys were replaced with 78g springs. This has been a better feel (Less accidental presses when my finger slightly touches another key during a press.) I might in the future replace the 78g's with 68g's and replace the 68g's with 58g's.
I am working on a way to know when CapsLock, NumLock, and ScrollLock are "ON", so far my thoughts have been to add LED's along the thumb cluster edge (CTRL, ALT, and END/PGUP), or reprogram the LCD screen to show a status bar with the different icons. I would love to know what others are doing to know the status.

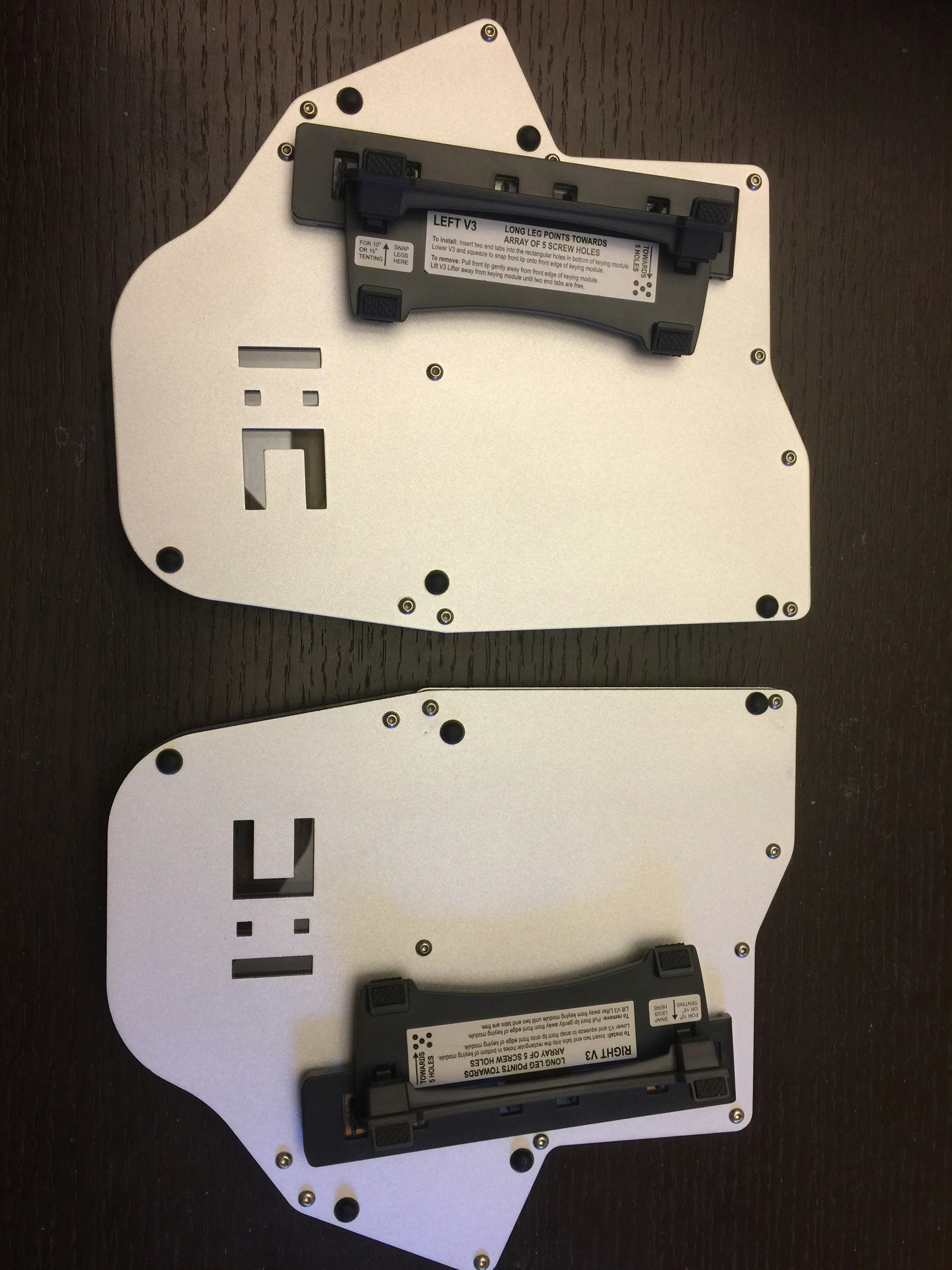

I am tenting my keyboard with the Kinesis tents (V3 Accessory for FreeStyle2) that I modified to let them lay flat on the keyboard. I am testing two methods of attaching them (Velcro and some thin plywood that I cut wedged and dovetailed, then superglued to each side.) both methods seem to work well so far, and I usually tent it to the 10 degree mark.

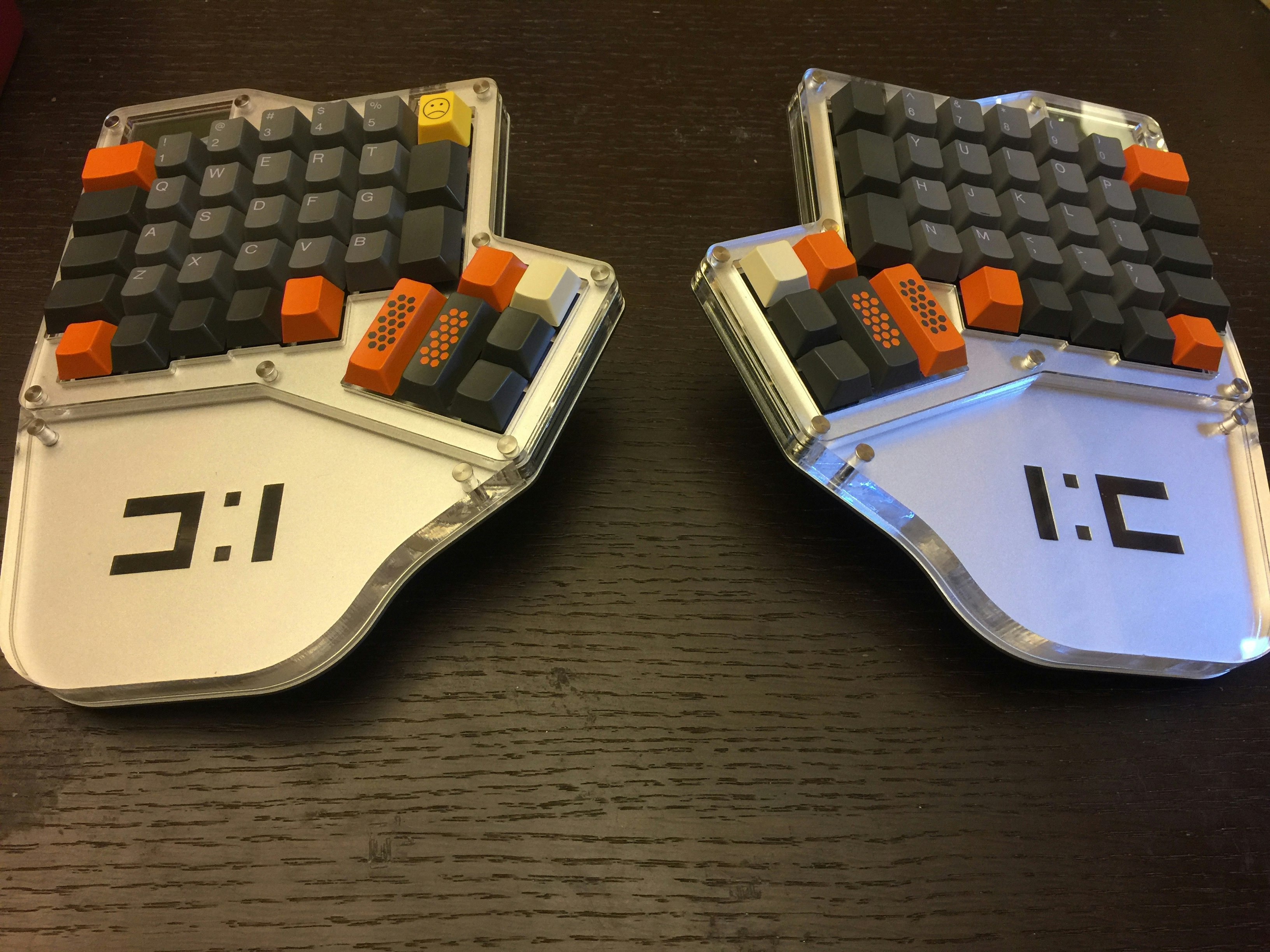

Here an image:
search

I still need to make a case for this, since I haul it back and forth to work in my backpack. I am currently using a folded up towel, and each half slides down into it a separate pouch. It is a little bulky, and I think a little woodworking would create a nice solution.
Well, that's all folks, thanks for reading :-)
graefeln
28
Nov 6, 2016
Bwright86Thank you for a picture of that. I was going to be looking into tenting solutions...
Bwright86
15
Nov 6, 2016
graefelnNot a problem, I would be curious to hear what you end up using.
graefeln
28
Nov 6, 2016
Bwright86I just ordered a 3D printed stand for my regular ergodox the other day (https://github.com/adereth/ergodox-tent) - going to see how that comes out as well. May look for something similar... or just do what you did. Seems like quite a few people are doing it your way.
moazzamk
74
Nov 13, 2016
Bwright86Does your keyboard not rock when you tent? I haven't yet added tenting accessory to mine but I tested it by lifting it and I couldn't get it to be stable (then again I use the tallest tenting thing on that)
Bwright86
15
Nov 13, 2016
moazzamkAs I was building it, i thought about that. The rubber dots on the bottom are in a straight line on the outside, and the tenting accessory is in parallel with these dots... it is stable on the lowest two settings, on the highest setting there is a subtle rocking to it. I would say as long as you make it as paralell as you can, you won't notice any rocking.
moazzamk
74
Dec 10, 2016
Bwright86Thanks Bwright86. My keyboard ended up in my closet unassembled. I got malfunctioning PCBs. The LEDs work on half of the keyboard and they don't for the other half.
MD sent me replacement PCBs but now I have to de-solder 80+ switches and transfer them to the new PCB. I asked MD to send me switches + PCBs and I will return the ones I got but that was a no go. Some day this year (hopefully) I will find time to de-solder the switches and try your idea out.
Bwright86
15
Dec 10, 2016
moazzamkOh wow, that is quite a conundrum. If anything, you can use one half of the keyboard as a macro board, until you go thru the exercise of desoldering. The keyboard is really wonderful to work with, and I will eventually but the Datamancer hardwood case for it.
moazzamk
74
Dec 10, 2016
Bwright86Oh both PCBs were defective, lol. Top half on both light up and bottom half don't. Yeah, I do want to get Datamancer cases. They look like they would support tenting much better than the default case.
I am worried about water damage on it though. My hands tend to sweat a bit in warm temperatures.
Bwright86
15
Dec 10, 2016
moazzamkI imagine the wood cases are waterproof with the sealant they apply, but over years of use, it would gain a patina. Wow, I guess I didn't catch That neither side had full working LEDs. Not sure if it interests you, but have you done some tracing to find the root cause. Maybe the LED driver chips isnt fully soldered, or not grounded properly, a Multimeter could help trace it out.
moazzamk
74
Dec 10, 2016
Bwright86I would love to figure out what the issue is. I just don't have someone to guide me. I have a multimeter. What should I trace?
In case this information helps, some of the LEDs work if I put positive side to the right and some (on the same hand) work if I put negative side to the right. Some don't work at all.
I thought some connection got reversed somewhere maybe that's why this happened but I don't know what to look for. I didn't know there were LED driver chips in there as well. If you can help me out, I will be very grateful.
