Product Description

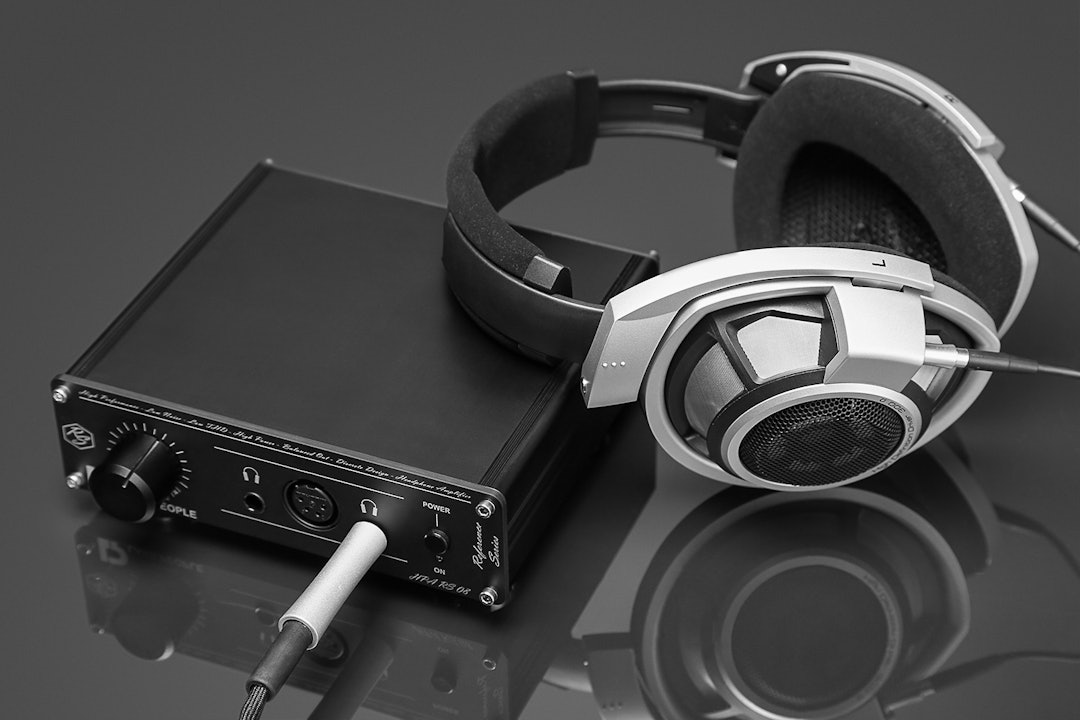

At once compact and powerful, the Lake People HPA RS 08 headphone amplifier delivers neutral sound with a wide soundstage and extremely low self-generated noise. It features four internal amps—left in phase, left out of phase, right in phase, and right out of phase—and has a five-step adaptive gain setting on the back panel that allows you to customize the amp to perfectly match your headphones Read More

Balanced Headphone Amp

Note: At checkout, choose between 115V and 230V power options.

Construction

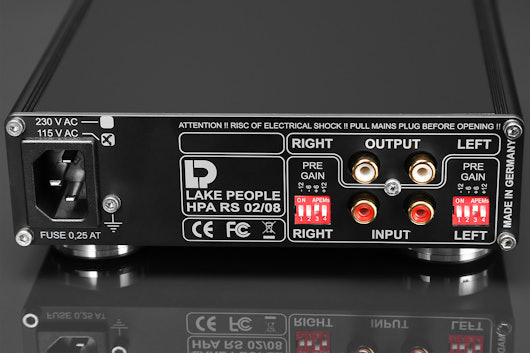

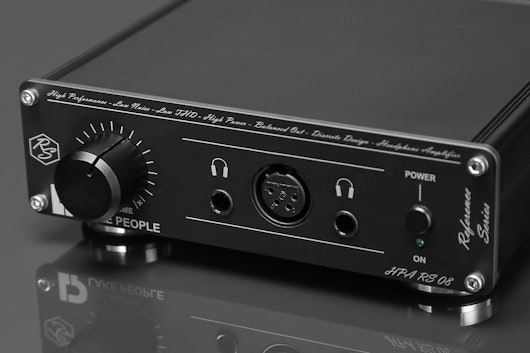

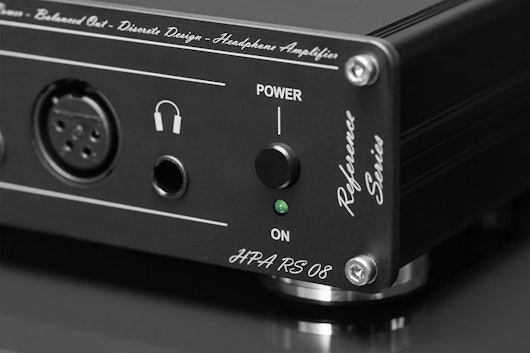

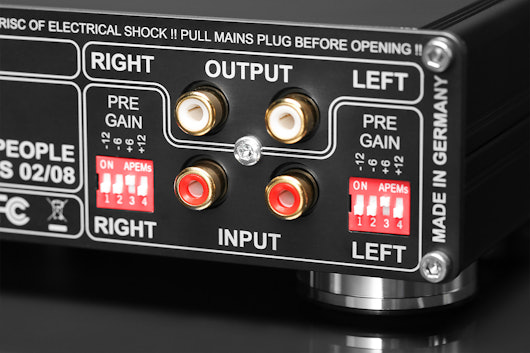

The Lake People HPA RS 08 is equipped with a toroidal transformer, high-quality op-amps and MKP capacitors in the signal path, large filtering capacitors in the power supply, and metal film resistors throughout the unit. The front panel features a balanced headphone out with a four-pin XLR connector and two unbalanced headphone outs with quarter-inch connectors, while the back panel is home to two unbalanced inputs and two unbalanced line outputs, all with gold-plated RCA connectors. The line outputs are internally switchable to three modes: passive feedthrough, active feedthrough with volume control (pre-fader), and active feedthrough with volume control (post-fader).

To learn more, check out this Headfonia review.

Specs

Lake People
Chassis: Black anodized aluminum
Unbalanced inputs: 2 gold-plated RCA connectors
Maximum input voltage: +21 dBu
Input impedance: 10 kohm
Unbalanced outputs: 2 gold-plated RCA connectors, active or passive operation
Amplifier channels: 2 (stereo)
Nominal input level: +6 dBu
Amplifier gain: +8 dBu
With pre-gain: -12 / -6 / 0 / +6 / +12 dB (relative); -4 / +2 / +8 / +14 / +20 dB (absolute)
Frequency range: 5 Hz – 70 kHz (-0.5 dB), 3 Hz – 200 kHz (-3 dB)
Output impedance: < 0.15 ohm unbalanced, 0.3 ohm balanced
Damping factor: 360 unbalanced, 180 balanced (50-ohm load)
Dynamic range: > 127 dB (A-weighted)
Noise: < -99 dBu (A-weighted)
THD + N: < -99 dB / < 0.001% (1 kHz / 2 x 4 V / 32 ohm = 0.5 W)
Crosstalk: < -105 / -90 dB (at 1/15 kHz)
Maximum output level (both channels driven, balanced operation): 31.9 Veff in 600 ohm = 1,700 mW; 27.8 Veff in 300 ohm = 2,570 mW; 17.6 Veff in 100 ohm = 3,100 mW; 9.2 Veff in 50 ohm = 1,680 mW; 6.2 Veff in 32 ohm = 1,200 mW; 3.1 Veff in 16 ohm = 600 mW
Outputs: 2 x ¼ in (6.3 mm) phone jacks
Power supply: 320 or 115 V AC 15 VA
Dimensions: 6.6 x 1.9 x 5.7 in (16.8 x 4.9 x 14.5 cm)
