Leonardo R3+MPU6050 Kit w/Arduino Projects
16 Beginner Arduino Projects
With more than 16 different projects and plenty of components, this kit is great for beginners interested in exploring the potential of their Arduino. The main component is the Leonardo R3 microcontroller board, which is based on ATmega32u4. It features 20 digital input/output pins, seven of which can be used as PWM outputs and 12 of which can be used for analog inputs. Simply connect it to a computer with the USB cable to power it up. In addition to the Leonardo R3, the kit comes with a ProtoShield, an LCD screen, and a variety of sensors, buzzers, LEDs, and other plug ins to start experimenting with.
Specs
SainSmart Leonardo R3 ATmega32u4 Development Board for Arduino
- Microcontroller: ATmega32u4
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 20
- PWM Channels: 7
- Analog Input Channels: 12
- DC Current per I/O Pin: 40 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB (ATmega32u4) of which 4 KB used by bootloader
- SRAM: 2.5 KB (ATmega32u4)
- EEPROM: 1 KB (ATmega32u4)
- Clock Speed: 16 MHz

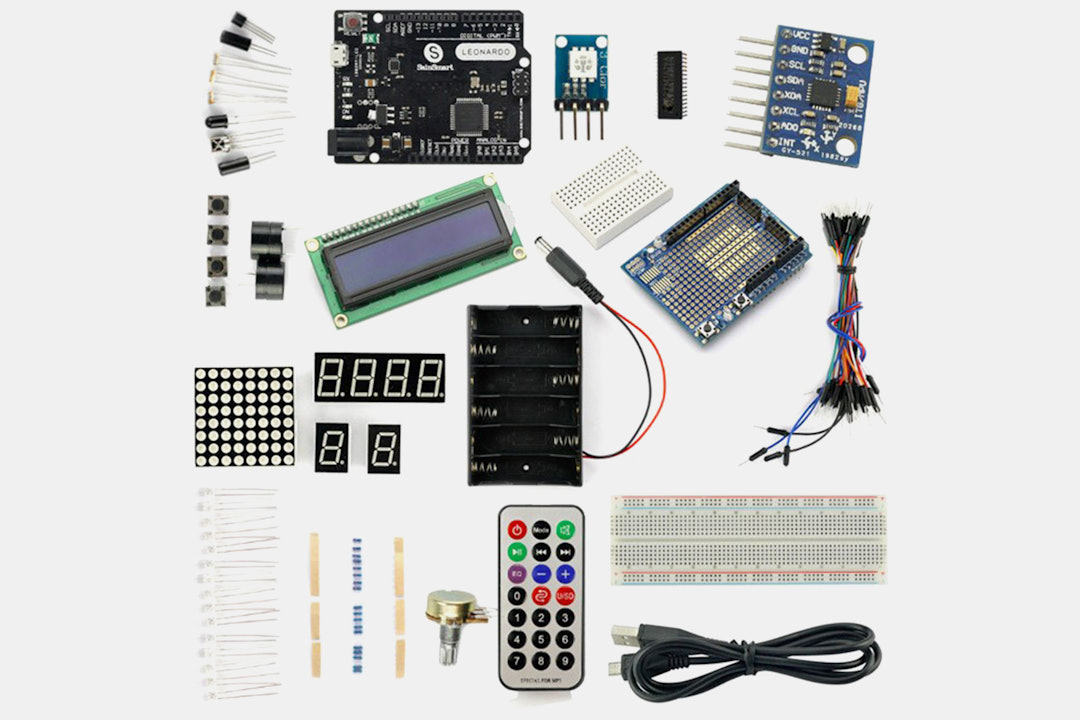

Included
- SainSmart Leonardo R3 ATmega32u4 Development Board for Arduino
- 1602LCD
- SainSmart Prototype Shield ProtoShield Mini Breadboard For Arduino Prototyping
- MPU6050 Sensor
- USB Cable
- Buzzer
- Nixie Tube
- Temperature Sensor
- 74HC595
- Infrared Remote Control
- Infrared Receiver
- Photoresistor
- Potentiometer
- 2 Tilt sensors
- 4 Pushbuttons
- RGB
- Flame Sensor
- Cell Box
- Resistors
- Breadboard & Jumper wires
- LEDs
