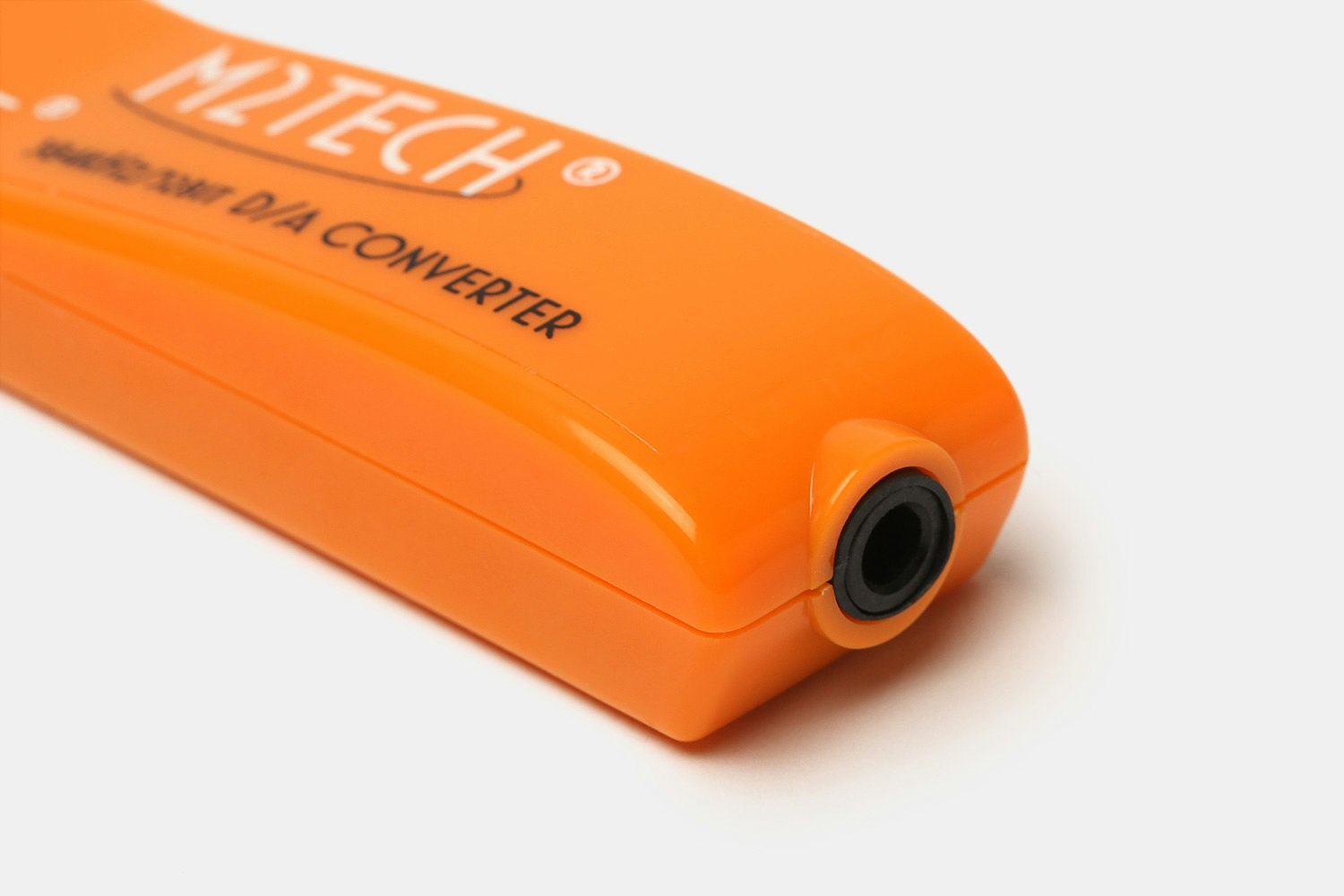

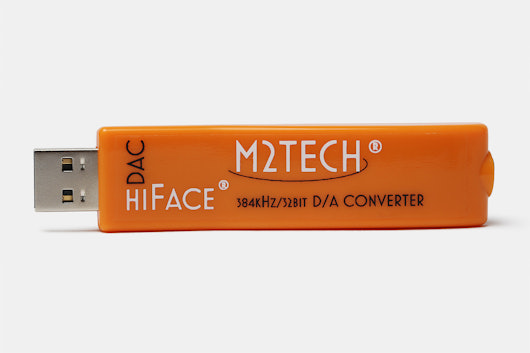

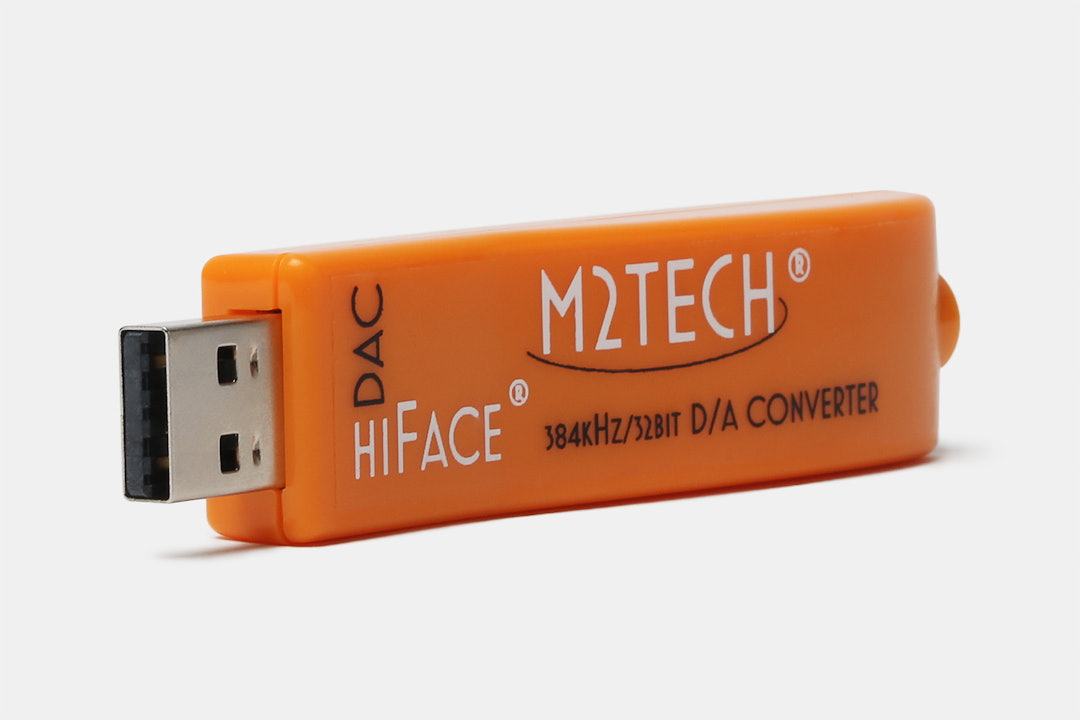

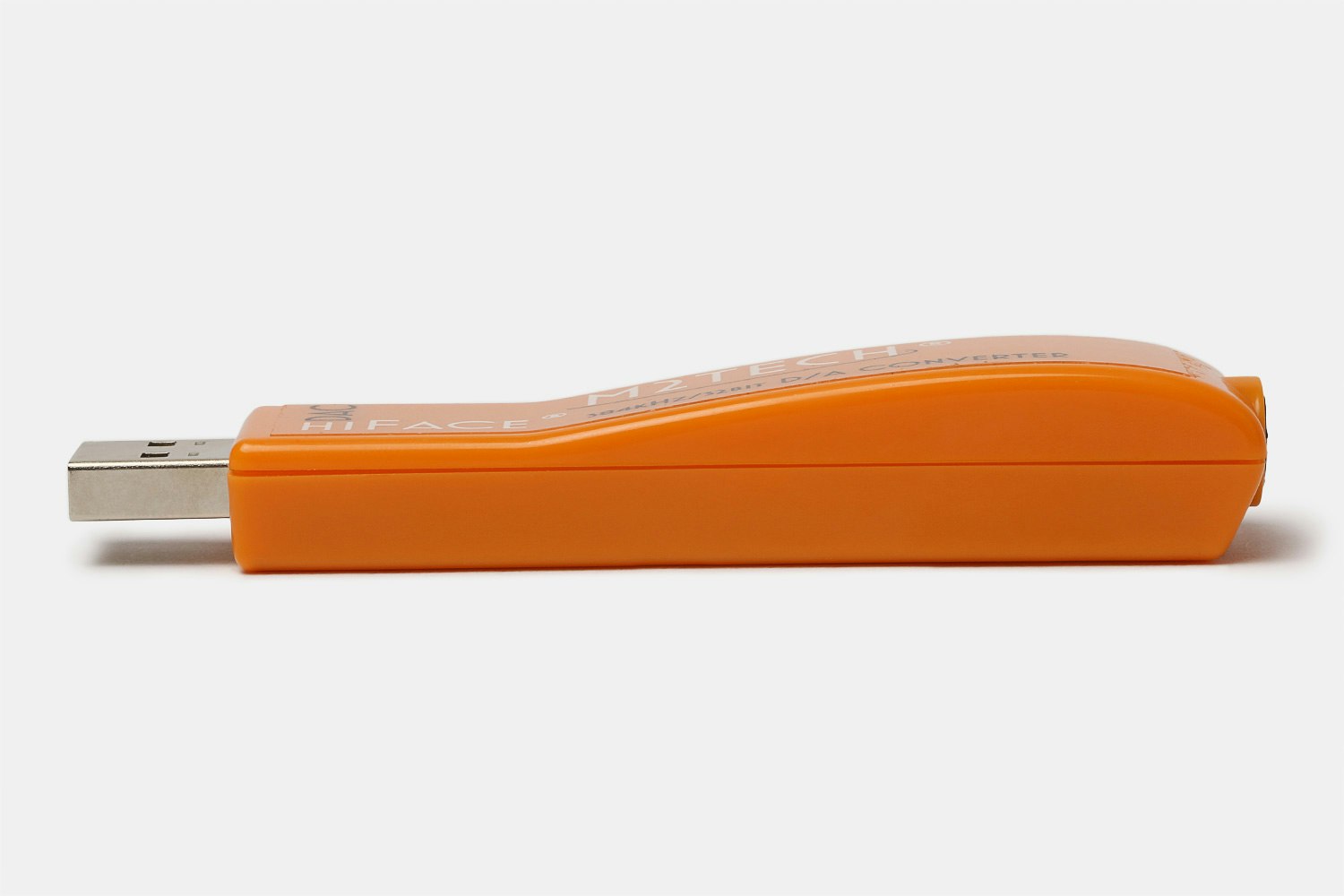

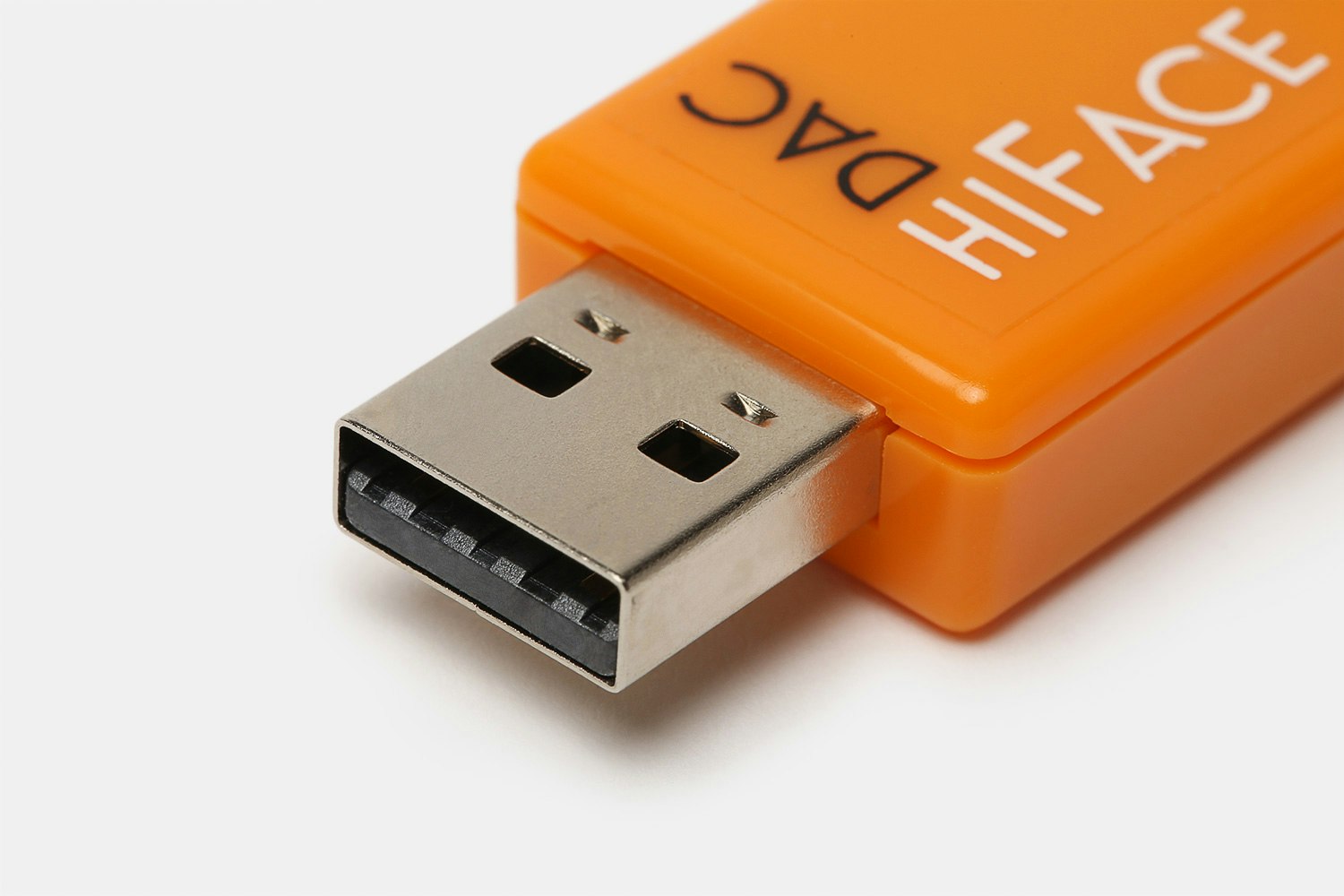

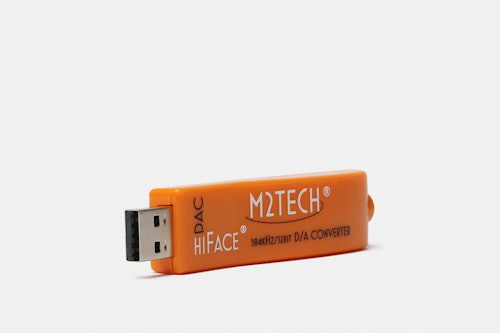

M2 HiFace DAC
Compact USB DAC
Designed to send a signal from a laptop to a higher-power amplifier, the M2 HiFace DAC can also be used to drive medium- to high-impedance headphones. It supports audio up to 384 kHz/32 bit, and has an output voltage of 2.0 Vrms and a THD+N of 112 dB. And thanks to its two quartz precision oscillators, this asynchronous DAC offers very low jitter. Finally, the HiFace is easy to use. Simply connect it to the USB 2.0 port on your Mac, Linux, iPad, or Android tablet, or to your Windows computer (driver required). To learn more, check out these reviews on AudioStream and Digital Audio Review.
Note: This drop is limited to 200 units.
Specs
- M2 Tech
- Input: USB 2.0
- Output: 1 x 3.5mm stereo jack socket
- Sampling frequency: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
- Resolution: 16–32 bit
- Output voltage: 2.0 Vrms at 10 kohms
- Frequency response: 5–22 kHz (fs=44.1 kHz), 5–150 kHz (fs=384 kHz)
- THD+N: 112 dB at 1 kHz, A-weighted
- Power supply: 5V DC from USB bus
- Operating temperature: 0º C–70º C
- Dimensions: 8.8 x 1.4 x 2 in (22 x 4 x 5 cm)
- Weight: 0.7 oz (20 g)
Shipping
Estimated ship date is June 6, 2017 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
