MaceTech RGB LED Shades Kit
MaceTech RGB LED Shades Kit
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
331 Sold
Product Description
Stand out at your next party, trade show, or music festival with these bright programmable sunglasses. Packed with a grid of lights across the front, these hackable shades can display a wide range of colors, animations, and movements Read More
Bright Arduino-Compatible Sunglasses

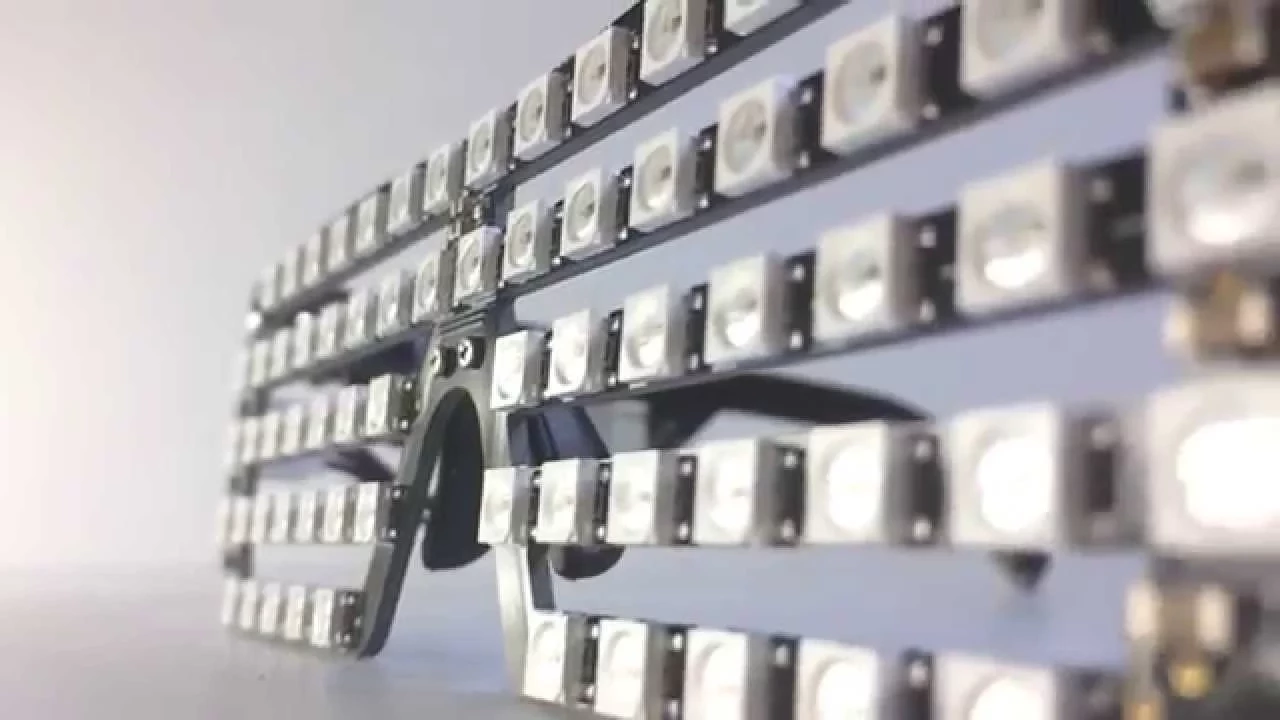

Stand out at your next party, trade show, or music festival with these bright programmable sunglasses. Packed with a grid of lights across the front, these hackable shades can display a wide range of colors, animations, and movements. From the inside, they offer an unobstructed view, but from the outside they’re as bright as can be. The RGB version features 68 programmable full-color RGB LEDs. If you don’t have programming experience, they come with dazzling pre-set modes right out of the box. The Matrix LED version (available in blue or white) has a whopping 166 LEDs. Both are Arduino compatible, meaning you can program them to display just about anything. The RGB version will last around 3 hours on a single charge, while the LED Matrix version will last up to 8.

Note: At checkout, choose between the RGB Shades and the LED Matrix Shades. Both are available in blue or white.

LED Shades Demo
RGB Shades Demo
Model Options & Add-Ons
Specs

RGB Shades

  • Display area: 68 WS2812B RGB LEDs (16 x 5) logical matrix
  • Display bit depth: 256-level PWM brightness control of each color on each LED
  • Display brightness: Global brightness control of full array (up to 256 levels)
  • Power supply: 5V 1A (through mini-USB connector)
  • Battery life: ~3 hours on 2000 mAh battery pack, variable
  • On-board processor: ATmega328P at 16MHz, Arduino-compatible bootloader
  • Communications: Built-in FTDI USB-RS232 converter
  • Auxiliary interface: I/O pins available for hacking
  • Open source hardware

LED Shades

  • Display area: 166 single-color LEDs (24 x 8 logical matrix)
  • Display bit depth: 256-level PWM brightness control of each LED
  • Display brightness: Global brightness control of full array (up to 256 levels)
  • Power supply: 400 mAh Lithium-Polymer battery
  • Battery life: 3 - 8+ hours depending on pattern and brightness
  • Charging supply: Charge from any USB port, 250mA maximum drain
  • Charge indicators: USB power and charging indicator LEDs
  • On-board processor: ATmega328P at 8MHz, Arduino-compatible bootloader
  • Communications: Built-in FTDI USB-RS232 converter
  • Sensor input: Built-in ambient light sensor
  • Auxiliary interface: TTL-serial and I/O pins available for hacking
Included

RGB Shades

  • LED front PCB
  • Controller PCB
  • Hacker PCB
  • Frame PCB
  • Hinge PCBs
  • Heat shrink
  • M3 hardware
  • Hex wrench
  • Nose pad
  • Control cable
  • Thin USB cable
  • Soft carry case
  • Instructions

LED Shades

  • LED Matrix Shades
  • Mini-USB cable
  • Soft sunglasses case
Shipping

All orders will be shipped by Drop.

Estimated ship date is July 30, 2019 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
