Massdrop x Alex Cavalli Tube Hybrid Amp (CTH)
Massdrop x Alex Cavalli Tube Hybrid Amp (CTH)
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
2.1k Sold
Free shipping to USA
Product Description
Built from the ground up by Alex Cavalli, a legend in the world of headphone amps, this hybrid amp combines a solid state section, a tube amp section, and an entirely new circuit design. It delivers the current required by planar magnetics, along with the voltage drive that dynamic headphones need to perform their best ... Read More
Hybrid Amp From a Top-Tier Designer

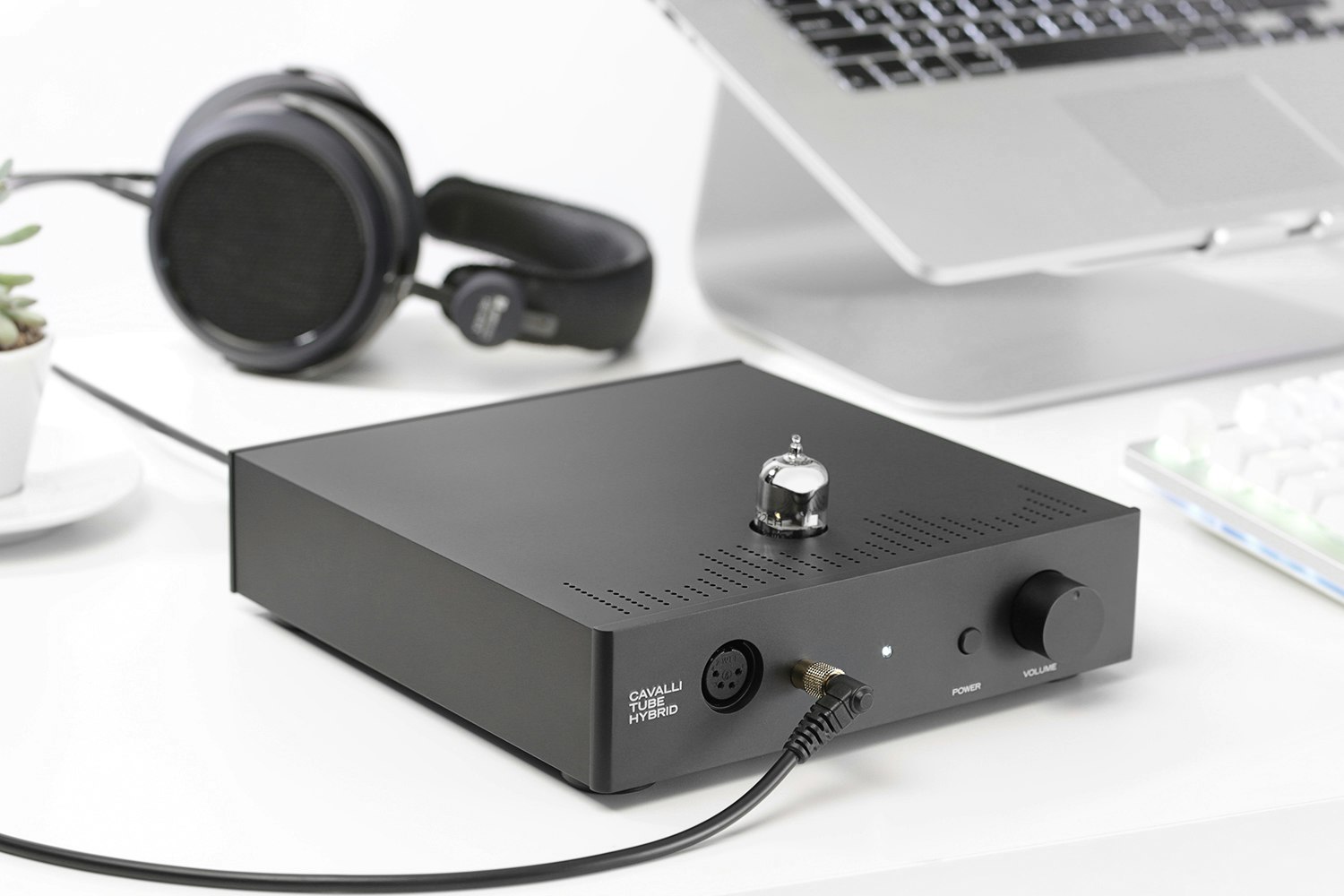

Built from the ground up by Alex Cavalli, a legend in the world of headphone amps, this hybrid amp combines a solid state section, a tube amp section, and an entirely new circuit design. It delivers the current required by planar magnetics, along with the voltage drive that dynamic headphones need to perform their best. It’s quiet enough for sensitive headphones like the Massdrop x Fostex TH-X00 and powerful enough for higher-impedance headphones like the Massdrop x Sennheiser HD 6XX. With the supplied 6922 vacuum tube, the sound is smooth, natural, and resolving with precise detail and just a touch of tube character. And at this price, this amp is an easy addition to any desktop setup—especially when you consider that Cavalli’s desktop amps start at $800, and his tube amps at $3,500.

Note: This item is in stock and will ship within 1 business day. Your payment method will be charged 2 hours after joining. Cancellations are accepted until that time. The drop will launch and end each day to collect purchases.

The Resurgence of Tube Amps

The founder of boutique brand Cavalli Audio and a longtime favorite of the audiophile community, Alex Cavalli has, by all accounts, a pretty impressive background. He earned a PhD in plasma physics from Dartmouth, where he also studied thermonuclear fusion. He then worked on CAD software and semiconductors, and went on to help create one of the first internet search engines and commercial-quality web browsers. But it wasn’t until his son needed an idea for a science project that Cavalli revisited his first passion: tube amplifiers. He had experimented with tube amps when he was a kid and was surprised to discover that they’d seen a resurgence over the years as headphone amps. Smaller and easy to work with, tube headphone amps had inspired many new manufacturers and a vibrant DIY community, and Cavalli decided to get in on the fun.

A Revision of an Early DIY Design

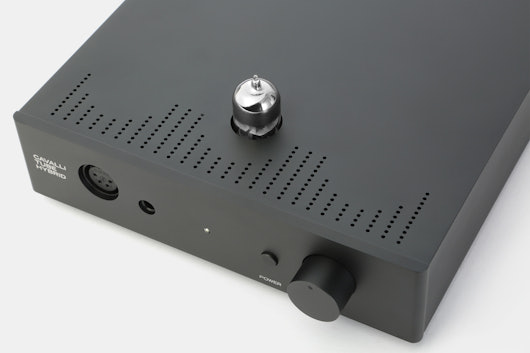

Over the next few years, Cavalli helped design several tube amps that could be built by anyone with patience and a soldering iron. He began developing his own ideas, and after some encouragement from the community, started making prebuilt amps for purchase. Soon after, Cavalli Audio was born: premium amps in limited runs, raved about by audiophiles everywhere. The Massdrop x Alex Cavalli CTH is a revision of one of his early DIY designs: the CTH (Compact Tube Hybrid) amplifier. He reworked every section of the original circuit based on knowledge gained at Cavalli Audio. The chassis is made of CNC-milled aluminum with a clean design and a lack of visible screws, and the ventilation pattern resembles the silhouette of the Golden Gate Bridge in our native San Francisco. Better sounding and made with the desktop user in mind, this amp is no longer “compact”—instead, the “C” stands for Cavalli.

Specs
  • Massdrop x Alex Cavalli
  • Chassis: High-grade CNC-milled aluminum with bead-blasted finish, silicone pads on feet
  • Frequency response: 20 Hz–20 kHz, -0.2 dB
  • Maximum power, 50 ohms: 1W Rms per channel
  • Output impedance: < 0.5 ohm at 1 kHz
  • THD: < 0.008%, 20 Hz–20 kHz 1 Vrms
  • THD: 0.0014% at 1 kHz, 1 Vrms with 50R load
  • IMD: 0.002% CCIF 1 Vrms
  • SNR: -97 dB, 20 Hz–20 kHz (1 Vrms into 45 ohms)
  • Crosstalk: -85 dv at 1 kHz
  • Topology: Capacitor-coupled tube hybrid using 6922 tube, single-ended
  • Gain: 8x (18 dB)

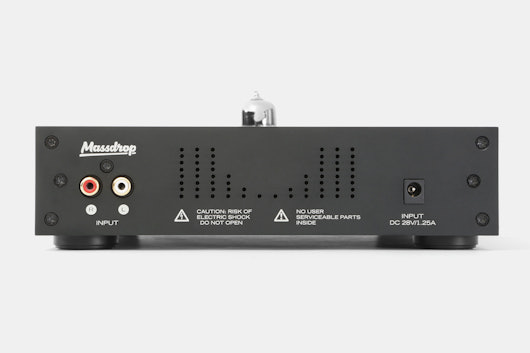

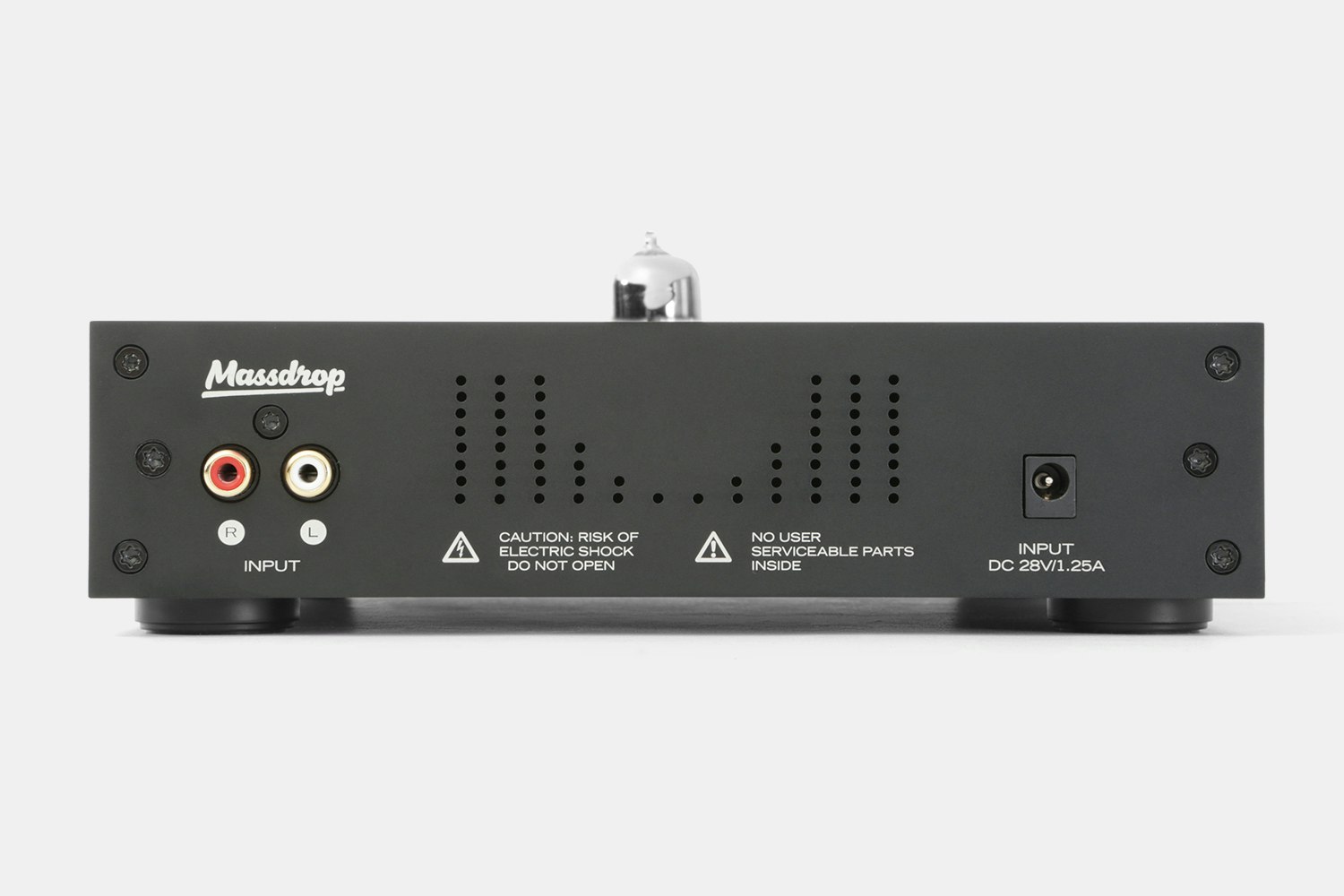

  • Input: RCA

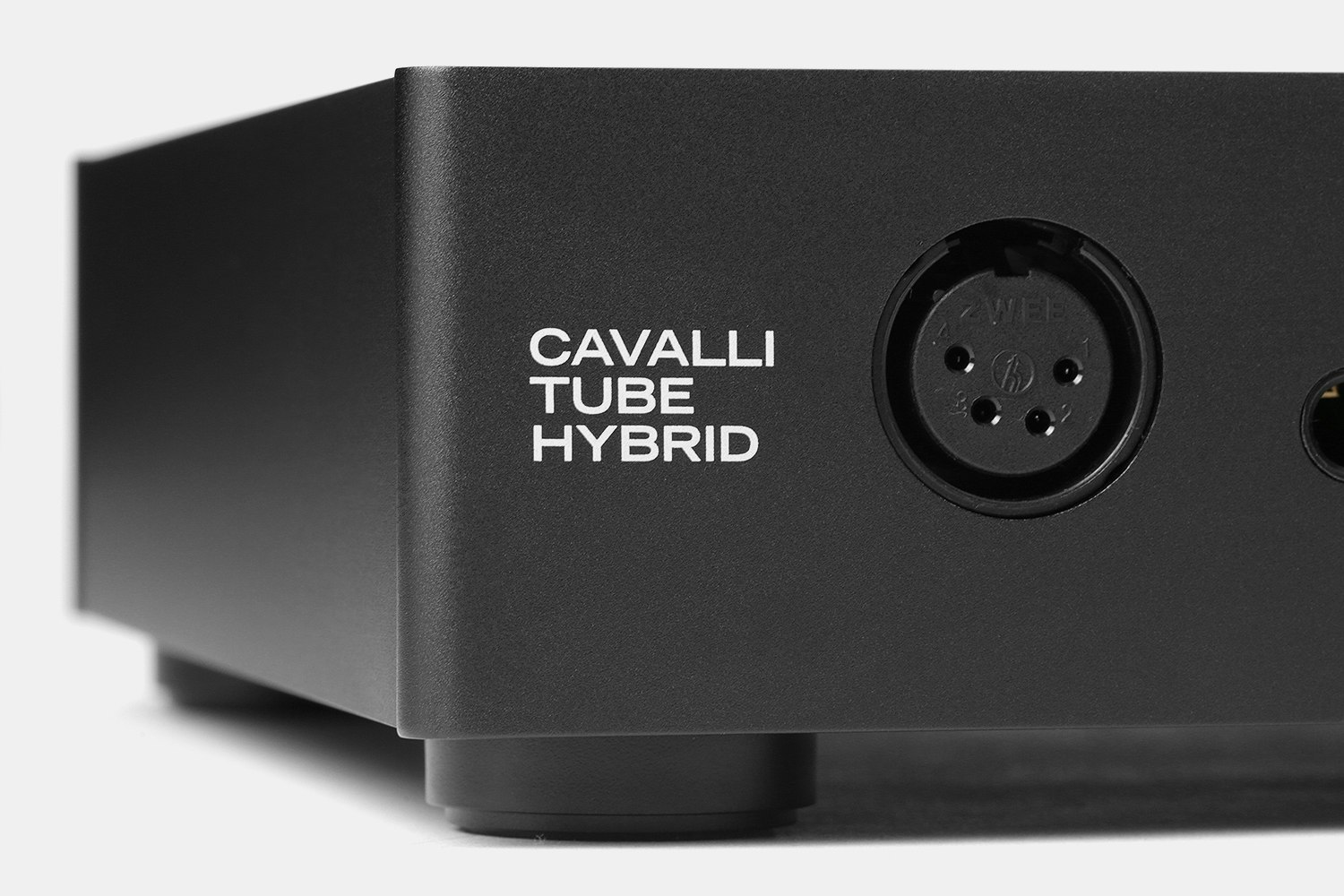

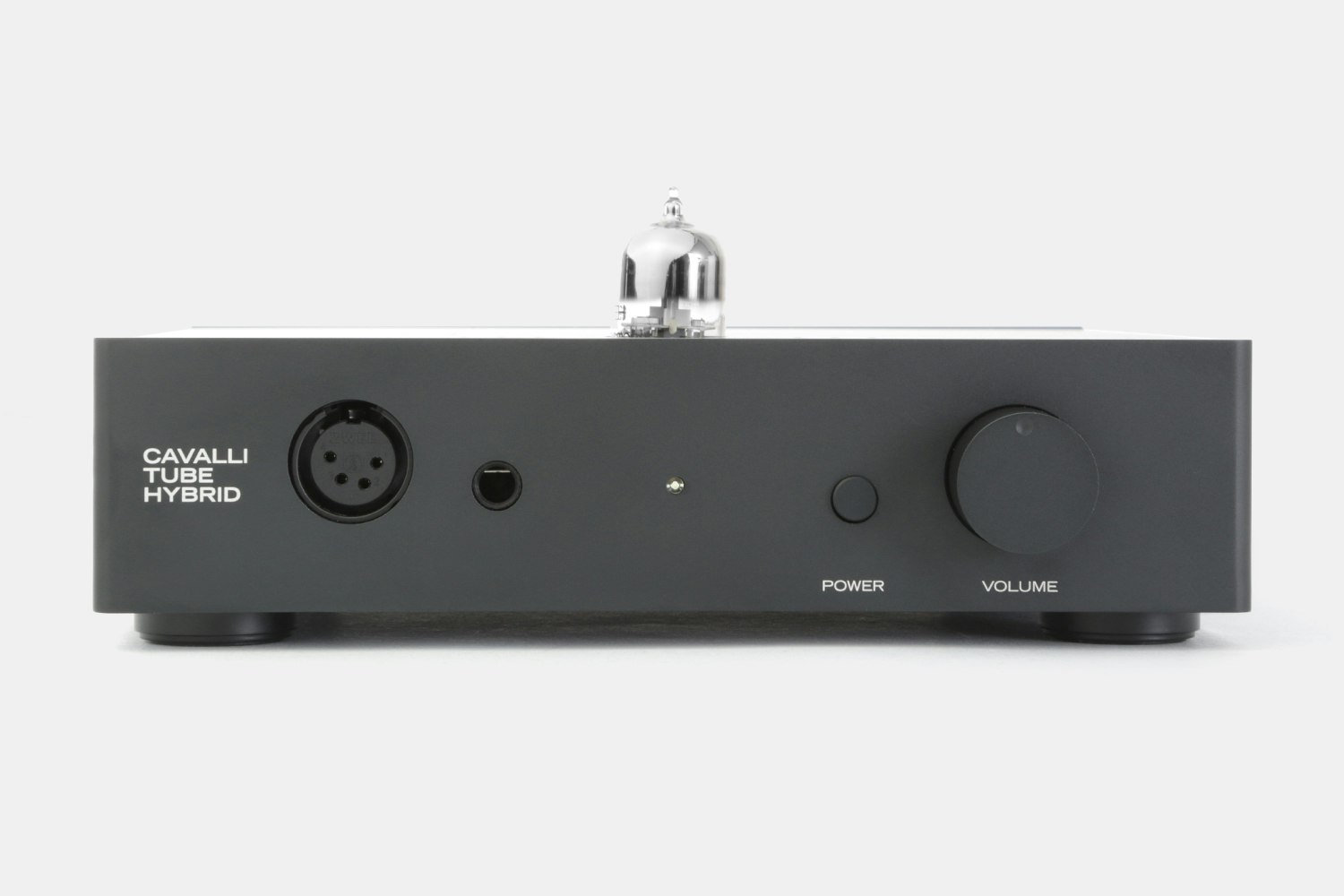

  • Output: 4-pin XLR, ¼ in (6.3 mm) TRS headphone jacks
  • Protection: Delayed start with muting relay and DC offset detection
  • Power supply: Wall wart with 28V DC 1.25A
  • Power consumption: Maximum 35W (28V, 1.25A), ~9W idle
  • Dimensions: 8.3 x 9.1 x 2.2 in (210 x 230 x 57 mm)
  • Weight: 3.6 lbs (1,625 g)
  • Individually serialized

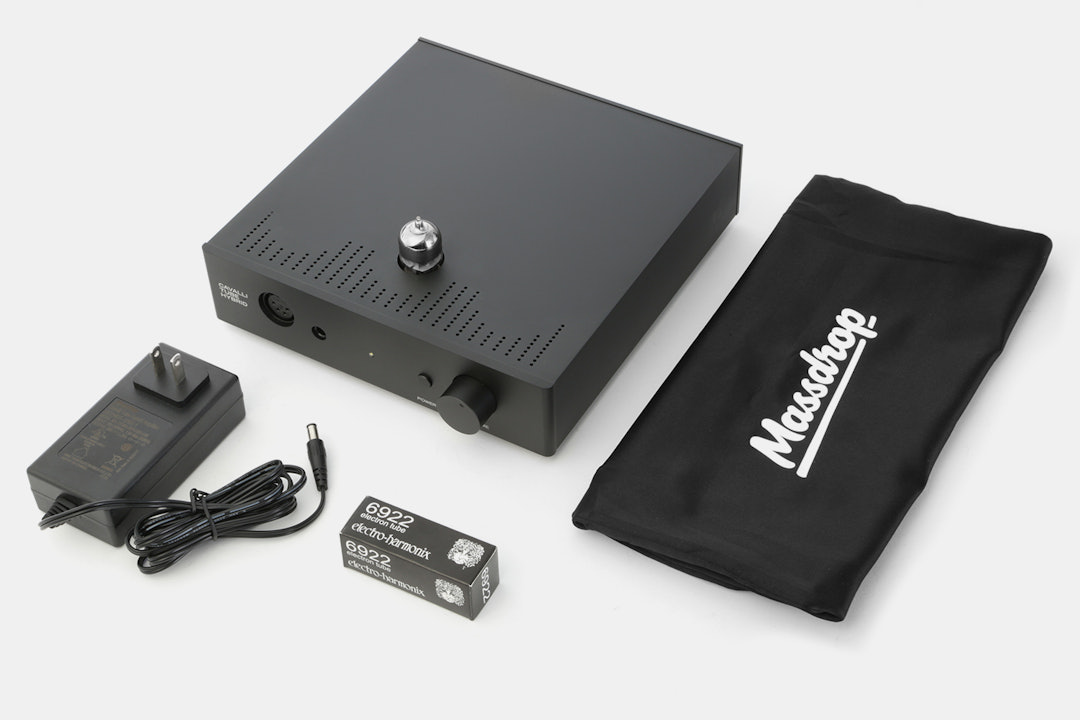

Included

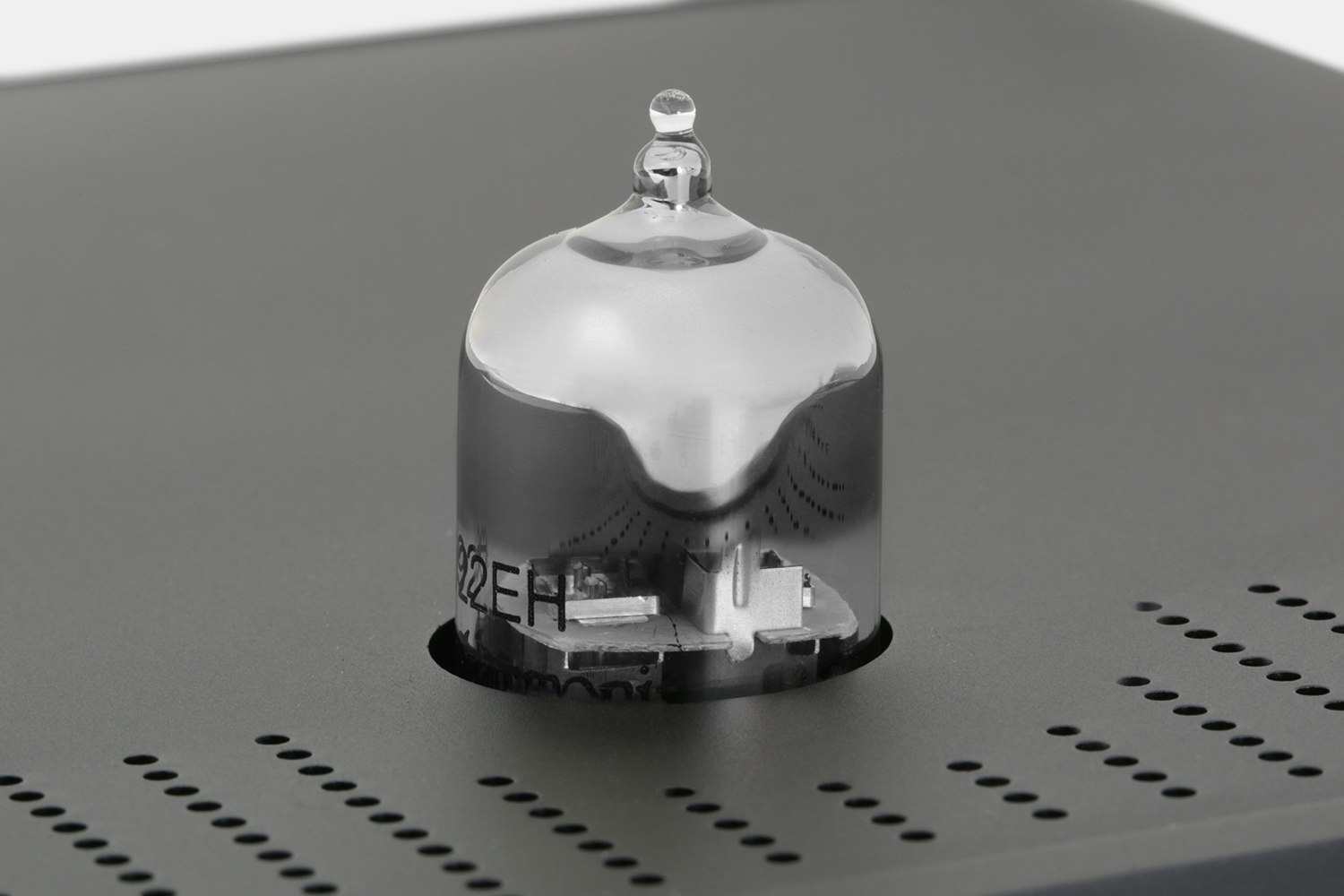

  • 6922 dual-triode vacuum tube
  • Cloth storage bag
  • Switching power supply that handles 100–240 VAC (add plug adapter for your country’s outlet)
  • 1-year warranty
Free Returns & Exchanges

US customers may return or exchange this item in new, unused condition within 30 days of delivery.

Shipping

All orders will be shipped by Drop.

Estimated ship date is July 19, 2019 PT.

Your payment method will be charged 2 hours after purchase. Cancellations are accepted until that time, after which the request will be submitted to vendors to deliver the best delivery time to members, making all sales final. Be sure to check the discussion page for updates.
