Product Description
Made in collaboration with Grace Design, a company known for its incredibly accurate, transparent studio gear, the Standard DAC sets a new standard in entry-level DACs. It applies Grace Design’s pro-audio expertise to a simpler, more accessibly priced model that makes a great addition to any home or office system Read More

A New Standard in Objective Performance

Made in collaboration with Grace Design, a company known for its incredibly accurate, transparent studio gear, the Standard DAC sets a new standard in entry-level DACs. It applies Grace Design’s pro-audio expertise to a simpler, more accessibly priced model that makes a great addition to any home or office system. Designed with the objectivist audiophile in mind, the SDAC delivers objectively good performance meant to meet or exceed the measurements of the popular ODAC while retaining many of its other benefits. Compact, capable, and easy to use, it could be all the DAC you need.

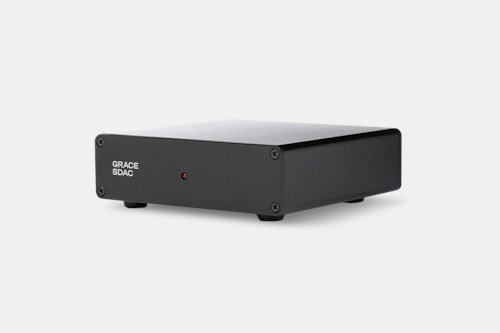

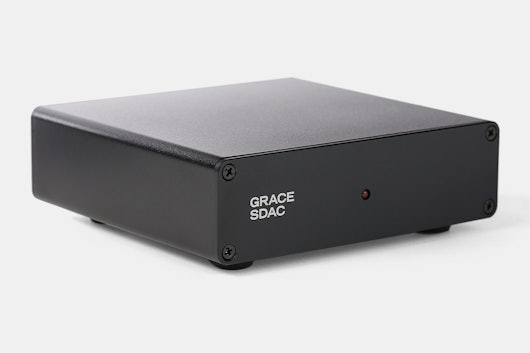

Massdrop x Grace Design Standard DAC

Plug & Play Operation, Small Form Factor

The SDAC is equipped with the new AKM AK4452 digital-to-analog conversion chip from the same family as the one used in the m9XX DAC/amp, our first collaboration with Grace Design. This allows the DAC to process the most common file types up to 24 bit/96 kHz with no harshness or edge and the kind of resolution and detail that’ll make you want to listen on and on. It runs off of USB bus power with plug-and-play operation, which means you won’t need drivers or any special software for your Windows, Mac or Linux computer. Finally, the SDAC’s small form factor is identical to the Massdrop Objective 2 headphone amp, so you can make a matching stack.

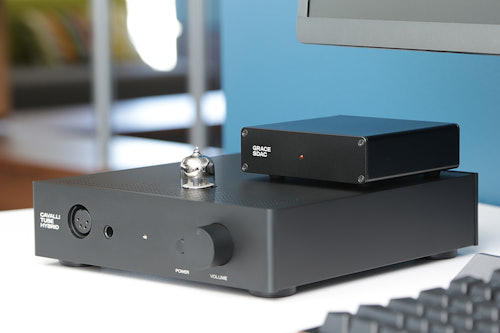

Massdrop x Grace Design Standard DAC
Massdrop x Grace Design Standard DAC
Massdrop x Grace Design Standard DAC

About Grace Design

In Lyons, Colorado, near the foothills of the Rocky Mountains, Grace Design produces some of the most innovative, highly respected pro audio gear on the market. Brothers Michael and Eben Grace started the company 27 years ago, and today, their products can be found around the world, from home studios to the scoring stage at Skywalker Sound. They’re widely praised for delivering a combination of non-fatiguing performance, extremely detailed sound, and legendary reliability.

Massdrop x Grace Design Standard DAC

Graphs

Frequency response, 20Hz–20 kHz:
Frequency Response Deviation
THD+N at 20 Hz -0.15 dBFS
THD+N at 100 Hz, -0.15 dBFS
THD+N at 10 kHz, -0.15 dBFS
IMD CCIF, -6.03 dBFS, 19/20kHz, 24/96k
IMD SMPTE -6 dBFS, 24/96k
Noise, A-weighted
Dynamic range, A-weighted
Crosstalk at 1 kHz, -10 dBFS (3.5mm jack)
1kHz Sine
FFT – Left

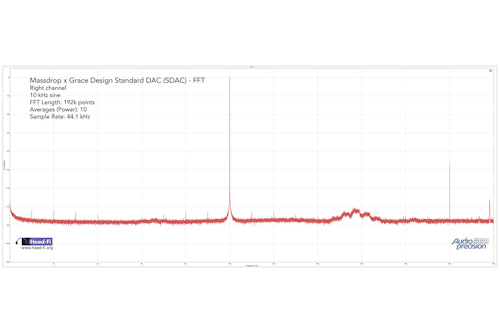

FFT – Right

Specs

  • Massdrop x Grace Design
  • Chassis material: Anodized aluminum
  • DAC chip: AKM AK4452
  • Audio formats: Up to 24 bit/96 kHz
  • Frequency response, 20Hz–20 kHz: +/-0.02 dB
  • THD+N at 20 Hz -0.15 dBFS: 0.0013%
  • THD+N at 100 Hz, -0.15 dBFS: 0.0013%
  • THD+N at 10 kHz, -0.15 dBFS: 0.0024%
  • IMD CCIF, -6.03 dBFS, 19/20kHz, 24/96k: 0.0005%
  • IMD SMPTE -6 dBFS, 24/96k: 0.0015%
  • Noise, A-weighted:  -105 dBu
  • Dynamic range, A-weighted: >114 dB
  • Linearity, -90 dBFS: -0.07 dB
  • Crosstalk at 1 kHz, -10 dBFS (3.5mm jack): -102 dB
  • Sum of jitter components at 11,025 Hz, -1 dBFS: -133 dB
  • Maximum output:  2.15VRMS
  • USB controller: XMOS XU208-128-TQ64
  • Inputs: USB micro

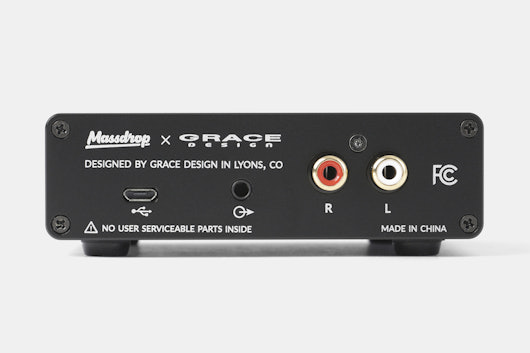

  • Output: ⅛ in (3.5 mm) TRS, RCA
  • Power: USB Class 1 (no drivers required for Windows, Mac, or Linux)
  • Dimensions, L x W x H: 3.9 x 4.1 x 1.2 in (100 x 104 x 30 mm)
  • Length with RCA port: 4.2 in (105.5 mm)
  • Height with rubber feet: 1.4 in (34 mm)
  • Weight: 7.44 oz (210.8 g)

Included

  • Manufacturer’s 1-year warranty
  • 3.3 ft (1 m) micro-USB to USB cable

RETURNS—NO QUESTIONS ASKED

We get it. Sometimes what you ordered just doesn’t work out. If that’s the case for you, don’t fret! All customers (both US and international) may return this item in new, unused condition within 30 days of delivery.

Shipping

Estimated ship date is July 24, 2023 PT.

Payment will be collected at checkout. Cancellations are accepted up to 2 hours after checkout for in-stock items, or up until pre-order ships.

Shop Our Curated Deskscapes
Explore these specially curated spaces to find inspiration for yours.
View All
Top Customer Questions21
search
close
Question

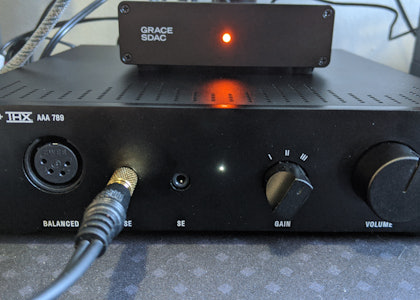

I would like to know whether or not I would need to purchase seperate cable to connect this to my amp(THX 789 Linear balanced amp) If so can someone please link me some cables.
Mar 26, 2021
Top Answer
ElectronicVices
2940
A USB cable is included to connect to your PC/Laptop/source device. You will also need a stereo RCA interconnect cable, you can get them from anywhere, Monoprice makes good cheap options...Read More
Mar 26, 2021
Question
Will this make an audible difference with bookshelf speakers?
Jan 25, 2021
Top Answer
jgillingham
183
Only if the DAC in your existing system sounds worse than the Grace DAC.Read More
Feb 8, 2021
Question
Can i plug powered speakers in the 3.5mm jack at the back?
Feb 2, 2021
Top Answer
Feb 8, 2021
