Matrix Mini-i Pro 2 DAC/Amp
Better Amplification, Display & Build
The original Matrix Mini-i DAC/amp was a big hit with the audiophile community, boasting impressive specs and versatility in a small package. Now, the Mini-i Pro 2 makes the design even better. The headphone amplifying circuits have a 40 percent improvement, allowing 210 mW of distortionless power under 300 ohms. The build quality has been improved, too, with a new aluminum body and a tempered glass display with embedded OLED for better clarity, visibility, and scratch resistance. Like its predecessor, the Mini-i Pro 2 has loads of great features, including XLR and RCA outputs, plus coaxial, AES/EBU in, optical USB, and aptX Bluetooth connectivity. Equipped with an ESS Ultra ES9016S DAC chip, it supports up to 32-bit/384-kHz PCM and DSD256.
Note: At checkout, choose black or silver.
.jpg?auto=format&fm=jpg&fit=crop&w=346.667&bg=f0f0f0&dpr=3&q=24)
Color Options

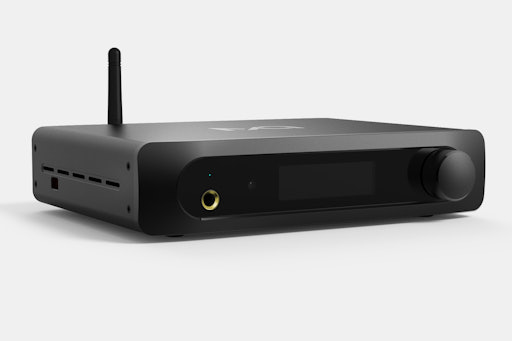

Black
Silver
Specs

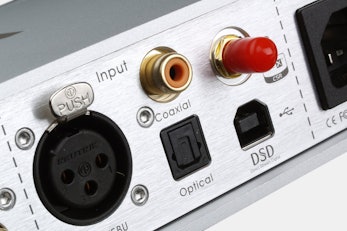

Digital Input
- AES: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Coaxial: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Optical: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- USB: PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz; DSD DSD64/DSD128 (DoP), DSD64/DSD128/DSD256 (ASIO Native)
- Bluetooth: PCM 16Bit/48kHz aptX/AAC/SBC
- Bluetooth version: Bluetooth V4.0
- Frequency band: 2.402GHz–2.480GHz
- Power level: Class II
- Operating distance: 32.8–49.2 ft (10–15 m)
- Latency: ＜130ms
System Support
- Windows7/8/8.1/10 systems need to install the supplied drivers
- Mac OS X 10.6.4 and above version without installing drivers
- Most Android devices can be used via OTG cable
- iOS devices can be used via the Apple Camera Connection Kit

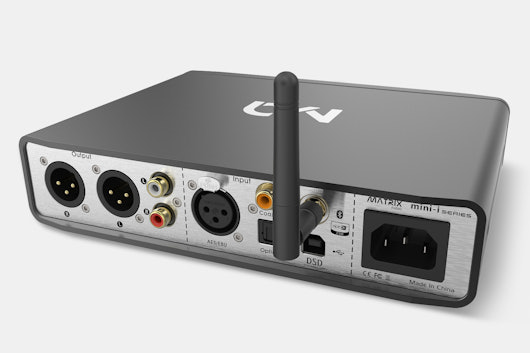

Analog Output, XLR
- SNR: ＞ -123dB 20Hz–20kHz A-Weighting
- THD+N: ＜0.0003% at 1kHz A-Weighting
- Frequency response: 20Hz–20kHz (+0.01dB/-0.02dB)
- Crosstalk: ＞-130dB @1kHz
- XLR output: 4vrms fixed at 0 dBFS DAC MODE; 0–4vrms adjustable at 0 dBFS PRE MODE
Analog Output, RCA
- SNR: ＞ -120dB 20Hz–20kHz A-Weighting
- THD+N: ＜0.0005% at 1kHz A-Weighting
- Frequency response: 20Hz–20kHz (+0.01dB/-0.02dB)
- Crosstalk: ＞-126dB @1kHz
- RCA output: 2vrms fixed at 0 dBFS DAC MODE; 0–2vrms adjustable at 0 dBFS PRE MODE
Headphone Output
- SNR: ＞-116dB 20Hz–20kHz A-Weighting
- THD+N: ＜0.0007% at 1kHz A-Weighting at 300ohms 25mW
- Frequency response: 20Hz–20kHz (+0dB/-0.1dB)
- Crosstalk: ＞-126dB @1kHz
- Headphone output impedance: 10ohms
- Headphone output power: 820mW at 33ohms at THD+N=0.1%; 210mW at 300ohms at THD+N=0.1%; 110mW at 600ohms at THD+N=0.1%
Power/Physical
- Power voltage: 230V position is fit for AC220V–240V 50/60Hz; 115V position is fit for AC100V–120V 50/60Hz
- Power consumption: ＜10W
- Dimensions, including protrusions: 6.6 x 8.1 x 1.9 in (168 x 205 x 47 mm)
- Weight: 2.9 lbs (1.3 kg)
Included
- Quick-start guide

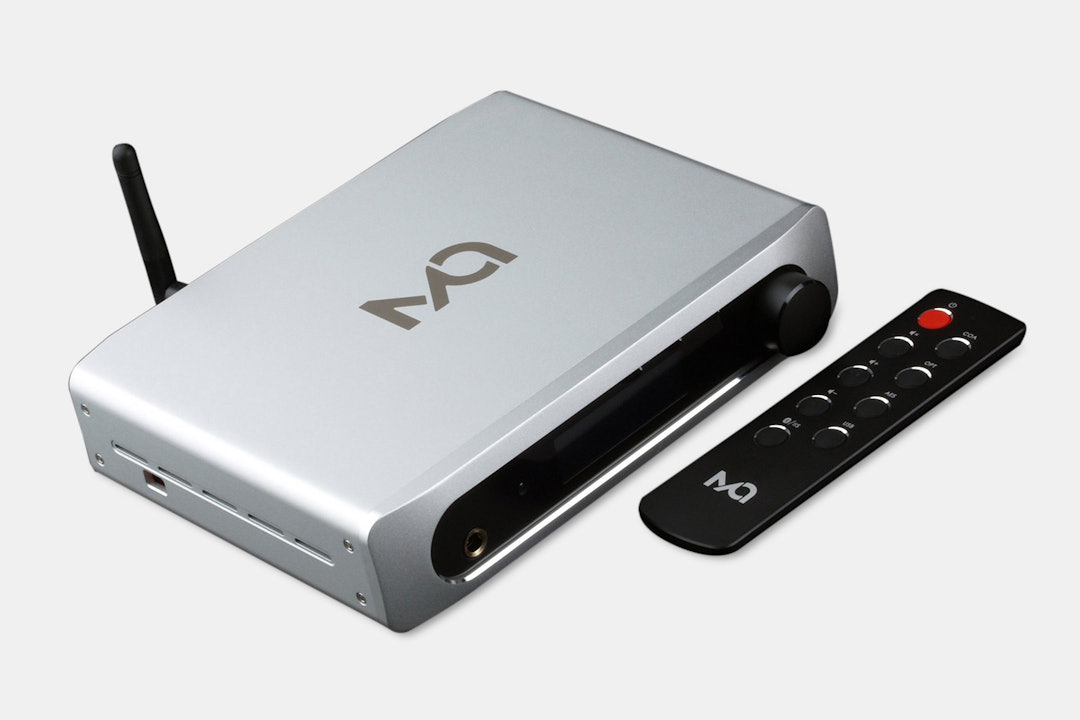

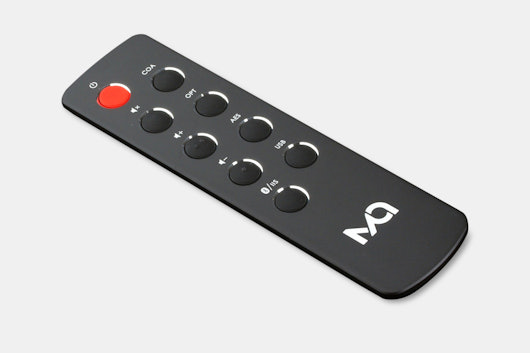

- RM2 remote control
- Bluetooth antenna
- Power cord
- USB cable
