Mousai MSD192 DAC
Mousai MSD192 DAC
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
21 Sold
Product Description
For casual music fans, the DAC in your computer or phone works just fine, but you need a quality digital-to-analog converter to squeeze the most out of your audio experience. With an advanced DAC chip to improve clarity and realism, the Mousai MSD192 DAC is a mighty combination of fine detail and uninhibited dynamics Read More
Throw That Onboard DAC Overboard

For casual music fans, the DAC in your computer or phone works just fine, but you need a quality digital-to-analog converter to squeeze the most out of your audio experience. With an advanced DAC chip to improve clarity and realism, the Mousai MSD192 DAC is a mighty combination of fine detail and uninhibited dynamics. To see a sound engineer's take on the device, check out LFF's review on Changstar.

Note: At checkout, you’ll have your choice between the 110V and 220V models. This drop is limited to 36 units.

Chip In

The Q129 is packed with powerful processing capabilities that dramatically improve your output. Supported by three separately controlled power regulators and WIMA FKP2 capacitors, the Wolfson WM8741 DAC chip eliminates transient intermodulation distortion and noise pollution. It carries the same components and general design of the Questyle CAS192, but instead of including all four digital filters, the MSD192 only features the most natural sounding filter.

Run the Circuit

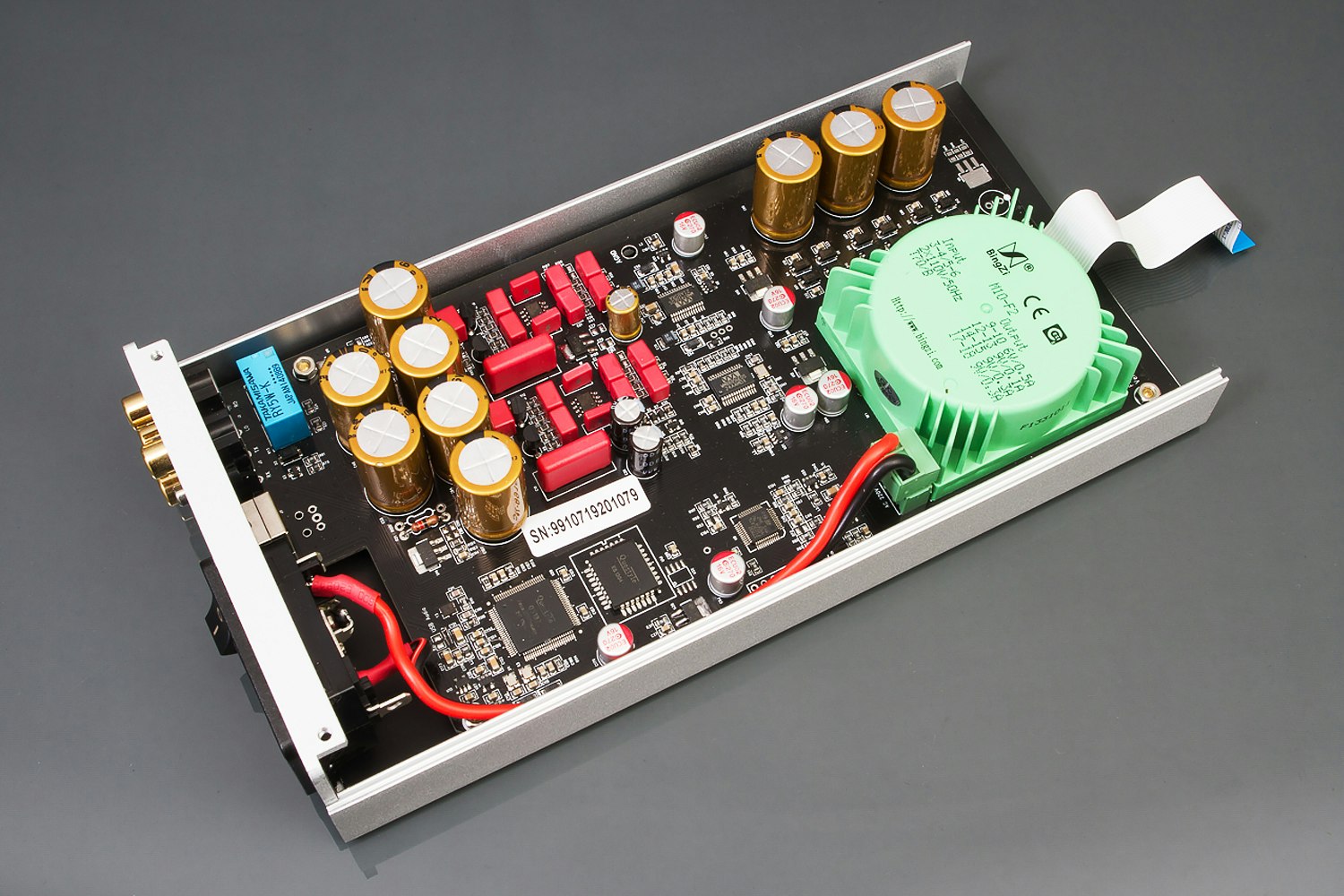

With a novel circuit design comprised of Schottky rectifiers, Nichicon FG capacitors, and 15 sets of regulators, the MSD192 provides premium conversion and voltage regulation for the outbound 192 kHz, 24-bit audio. Designed to synchronize with desktop systems and high impedance headphones and monitors, the MSD192 DAC accepts input through three ultra-low phase noise clocks via asynchronous USB transmission.

New DAC, Old Tricks

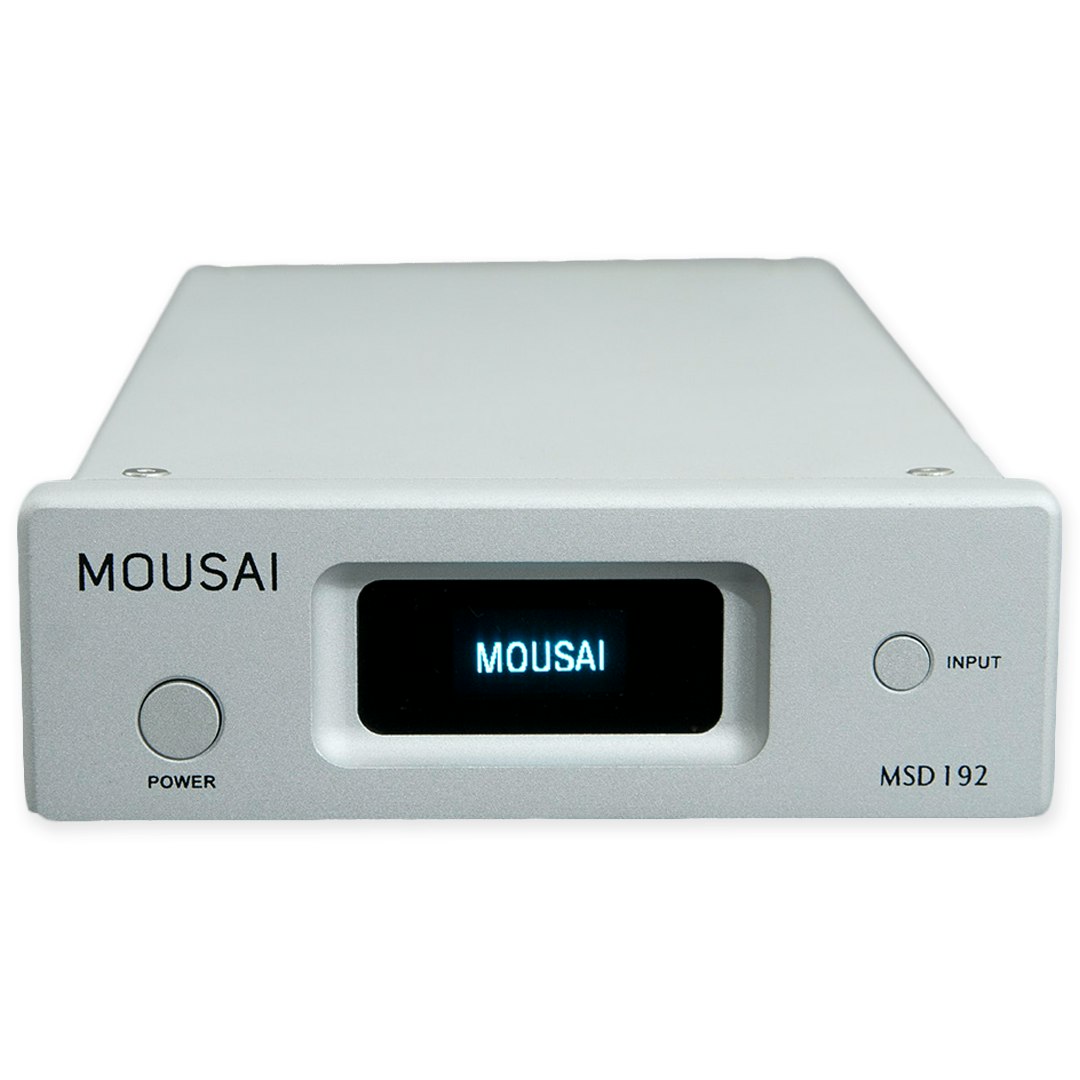

Enclosed in a solid aluminum casing, the MSD192 DAC is small yet sturdy, fitting perfectly on your desk or audio rack. Attractively designed, the device is sleek and modern, casually complementing the aesthetics of any set-up. On the front panel, a blue LED display details your input source and sample rate, giving you a convenient way to check your settings at any time. With a build quality on par with Questyle’s industry leading products, the Mousai MSD192 DAC will last many years, not only for its manufacturing, but for the top-notch technology packed inside.

Specs
  • Produced by Mousai
  • Designed by Questyle
  • DAC chipset: WM8741
  • Supports up to 44.1 - 192 K/16-24bit conversion
  • Digital filter: IIR (MP)
  • 3 independent ultra-low phase clocks for USB asynchronous transmission
  • Dedicated OPA627+BJT hybrid LPF output stage
  • Low pass and baffle with WIMA FKP2 capacitors
  • Ring-shape Bingzi transformer
  • Schottky rectifier
  • 9 pieces of 220 uF Nichicon FG capacitors
  • 15 groups of power regulators
  • Aluminum chassis
  • LCD display screen
  • Input and power switches

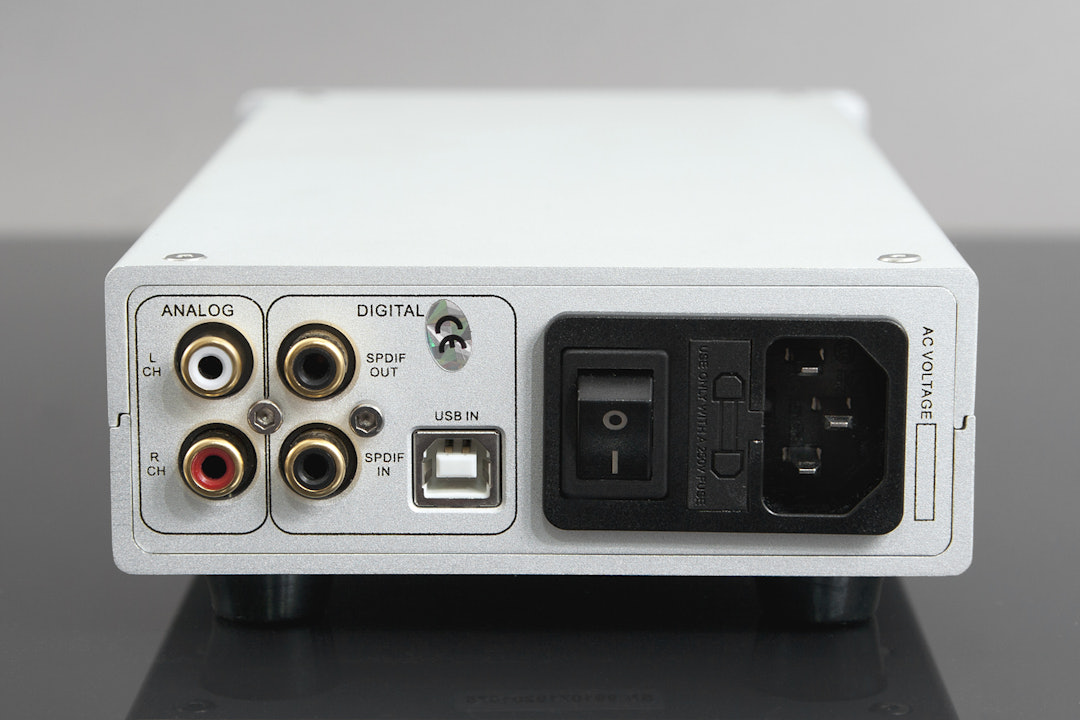

  • Digital input: USB, coaxial, PCM
  • Digital output: coaxial
  • Analog output: RCA
  • Compatible with WASAPI, ASIO, KS
  • Compatible with Windows XP/Vista/7/8 and Mac
  • SNR for headphone output: 110 dB
  • Analog output amplitude: RCA 2.44 V RMS
  • Frequency response: DC- 77.5 kHz (192 kHz sample rate, +0, -3 dB)
  • THD+N: < 0.005%
  • SNR: 112 dB
  • 9.65 x 5.12 x 2.17 in (245 x 130 x 55 mm)
  • 1 Year Manufacturer's Warranty
Included
  • Detachable power cord with North American plug
  • Driver program CD
  • User’s manual
  • Warranty card
Shipping

All orders will be shipped by Drop.

Estimated ship date is July 6, 2017 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
