Showing 1 of 145 conversations about:
Napoleonove7
81
Feb 26, 2017
bookmark_border
In monoblock mode, can I use a 4 pin xlr to two 3 pin xlr adapter? because I only have 4 pin xlr cable for my HD800s, akg K812, and LCD-2, and I don't want to invest a lot of $$ to buy extra 3 pin xlr cable.
Feb 26, 2017
Napoleonove7
81
Feb 26, 2017
bookmark_border
Anyone? Please help? I know technically, it should just work. But still, please help...
Feb 26, 2017
hobojoe
1
Feb 28, 2017
bookmark_border
I plan on doing the same and as far as I can tell yes you can. One of the 3 pins is a ground and balanced cables don't use ground so the only issue that might pop up is one side being out of phase depending on how the adapter is wired. I don't know if there's a standard. You should check to make sure the pins are properly assigned for your already made balanced cables. Using a multimeter would be easiest. I'm by no means an expert but I hope to be making my own adapter shortly.
Feb 28, 2017
TheHun
100
Feb 28, 2017
bookmark_border
Of course you can.
search

search
Feb 28, 2017
Napoleonove7
81
Feb 28, 2017
bookmark_border
Thanks. I want to make my own adapter too, the only adapter that I found is Audeze's 4pin to dual 3pin, and it looks so thin, and may not last long.
Feb 28, 2017
Napoleonove7
81
Feb 28, 2017
bookmark_border
Great! I know from technique side, it should works. I just want some real life proof. And you just gave me exactly what I want. Thanks!
Feb 28, 2017
MattRG
35
Mar 1, 2017
bookmark_border

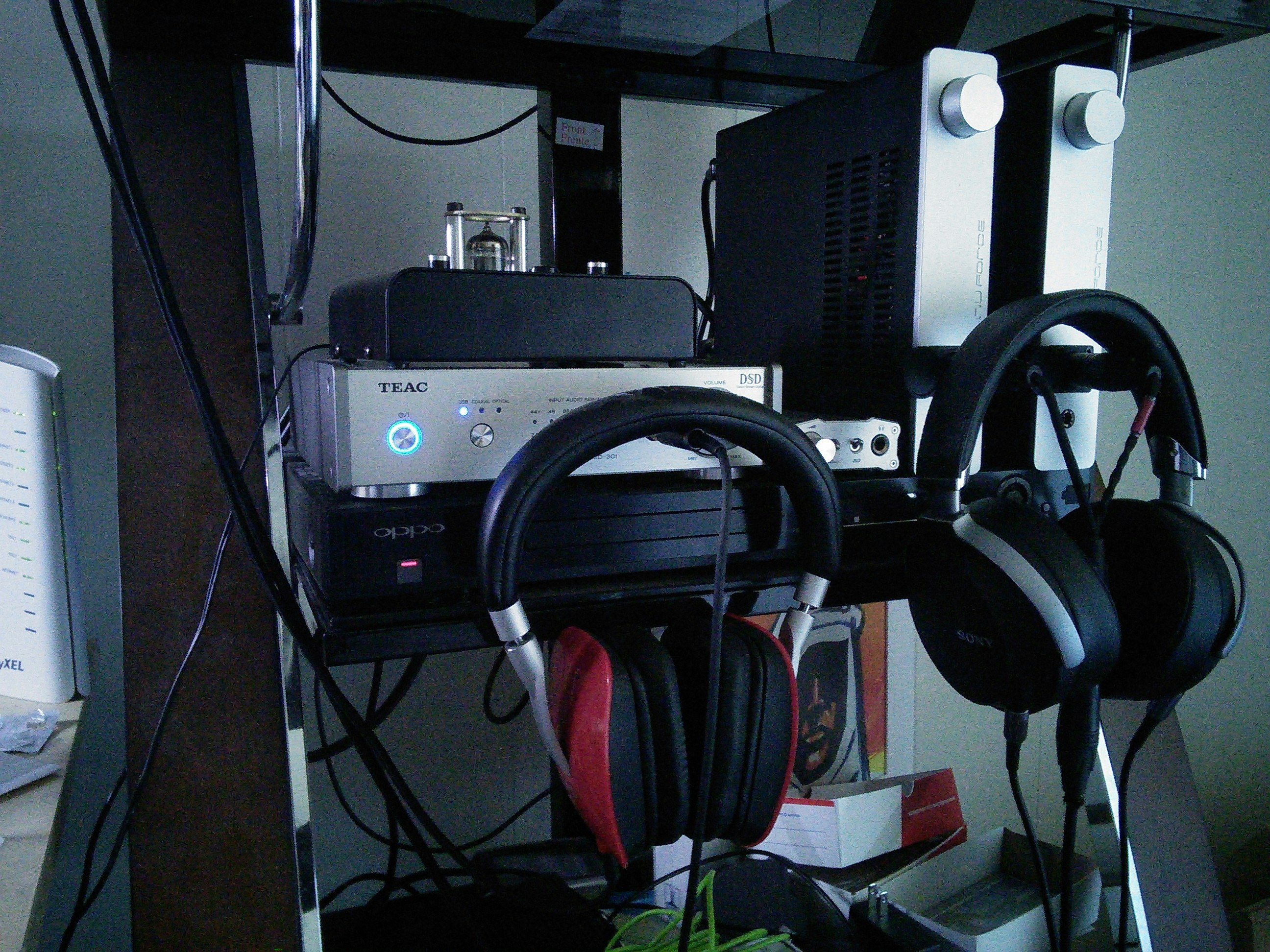

Mad props for running those on their sides like that. That's actually sort of ingenious as long as it doesn't mess with the heat dissipation too badly. That way you get a smaller footprint and can easily use the dual 3 pin xlr to 4 pin xlr on your headphones without stacking the amps.
Mar 1, 2017
TheHun
100
Mar 1, 2017
bookmark_border

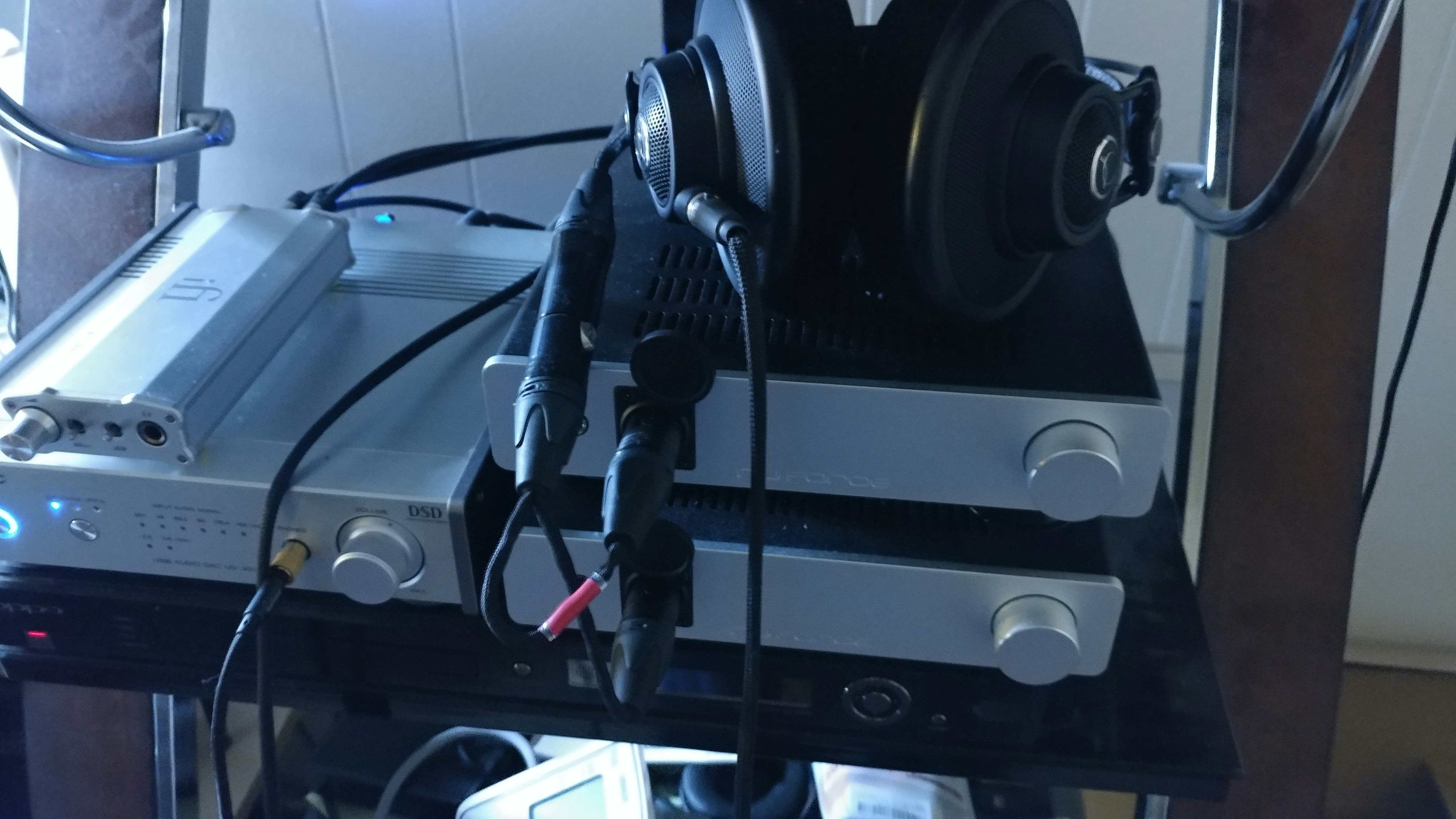

Thanks, yes that was idea it creates a sufficient airflow as well, however I did buy some big feet to elevate the second unit on top when I decided to stack it horizontally on the second photo which is the current scenario. The best is to place them side by side horizontally for best heat dissipation , but one will need a much longer XLR adapter , which mine was made before I realized that fact. But yes the side by side vertical arrangement can work as well, as the amps are heavy enough to stay in place .
Mar 1, 2017
boortmiser
38
Jun 9, 2017
bookmark_border
The other issue is in mono-block mode you will have to adjust the volume to both ears independently.
also the whole appeal of mono-block amps is they have 'better' independent power supplies but Im fairly sure these us SMPS (not linear). I also question ether the device matching between units will be rigorous enough. IMO this is a gimmicky design that's not worth it even at a decent price, especially considering your already invested in some good gear.
Audio-gd all the way for quality and value
Jun 9, 2017
