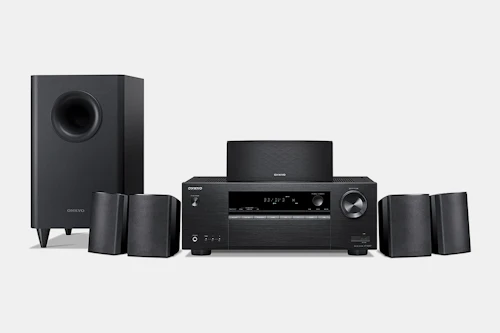

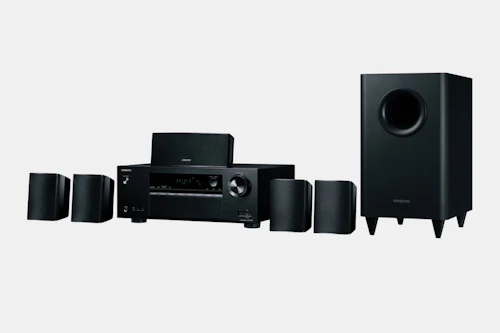

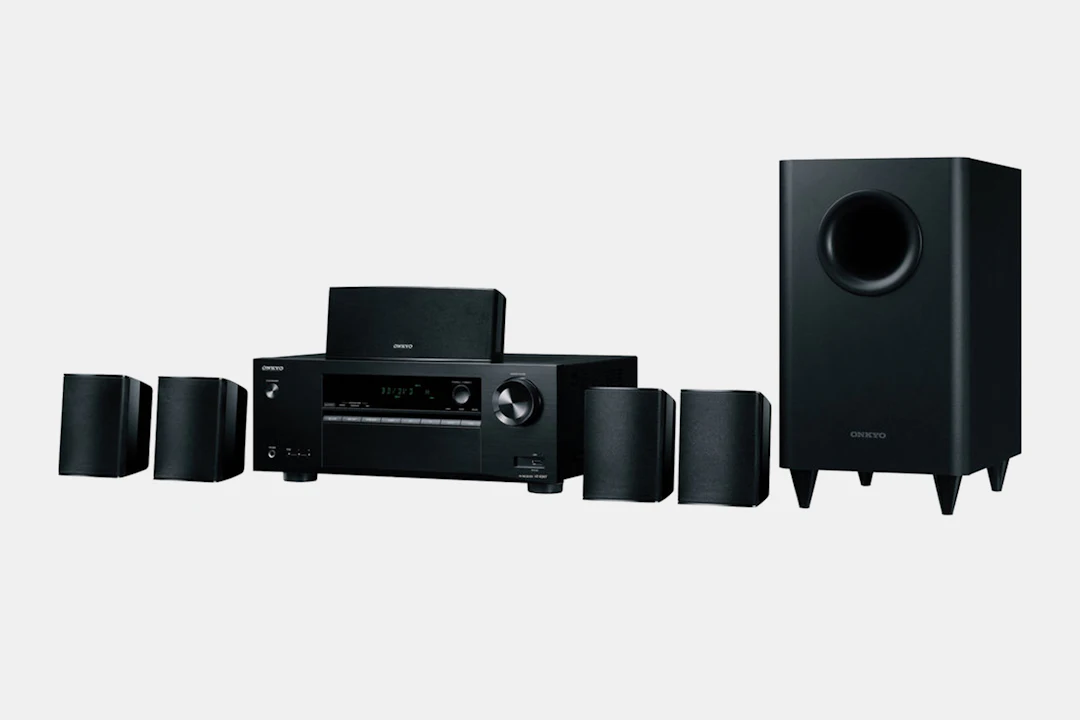

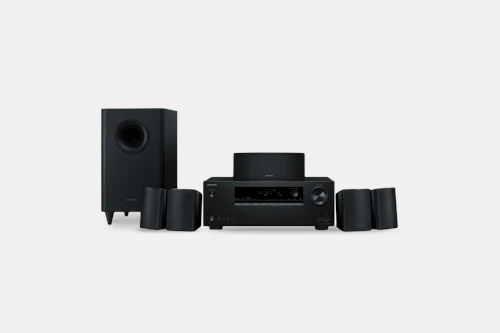

Onkyo HT-S3900 5.1 Receiver & Speaker System
All-in-One Audio for Any Room
Engineered for immersion and versatility, the Onkyo HT-S3900 5.1 receiver and speaker system brings studio-quality sound to any space. Outfitted with a powerful receiver and six speakers, the HT-S3900 outputs an impressive 60 watts per channel at 8 ohms. Connect wirelessly via Bluetooth with support for the aptX codec to easily stream music from a wide range of sources. You can also hook the HT-S3900 up to other hardware in your setup via four HDMI 4K ARC, two composite video, one optical, one digital coaxial, and three stereo RCA audio inputs. Whether you’re spinning records, listening to the radio, or streaming the latest TV shows, this speaker system helps you get the most out of your sound.
Specs
General
- Onkyo
- Power consumption (active): 190 W
- Power consumption (standby): 0.35 W
- Power requirements: 120 VAC, 60 Hz
- Dimensions (receiver: 17.1 x 6.7 x 12.9 in (43.5 x 16.8 x 32.7 cm)
- Dimensions (one front/surround speaker): 4 x 5.5 x 3.75 in (10 x 14 x 9.5 cm)
- Dimensions (center speaker): 9.4 x 3.75 x 3.75 in (24 x 9.5 x 9.5 cm)
- Dimensions (subwoofer): 9.1 x 16.5 x 14.1 in (23 x 41.8 x 35.8 cm)
- Weight (receiver): 17 lb (7.7 kgs)
- Weight (one front/surround speaker): 1.3 lb (0.6 kgs)
- Weight (center speaker): 1.5 lb (0.7 kgs)
- Weight (subwoofer): 11.6 lb (5.3 kgs)

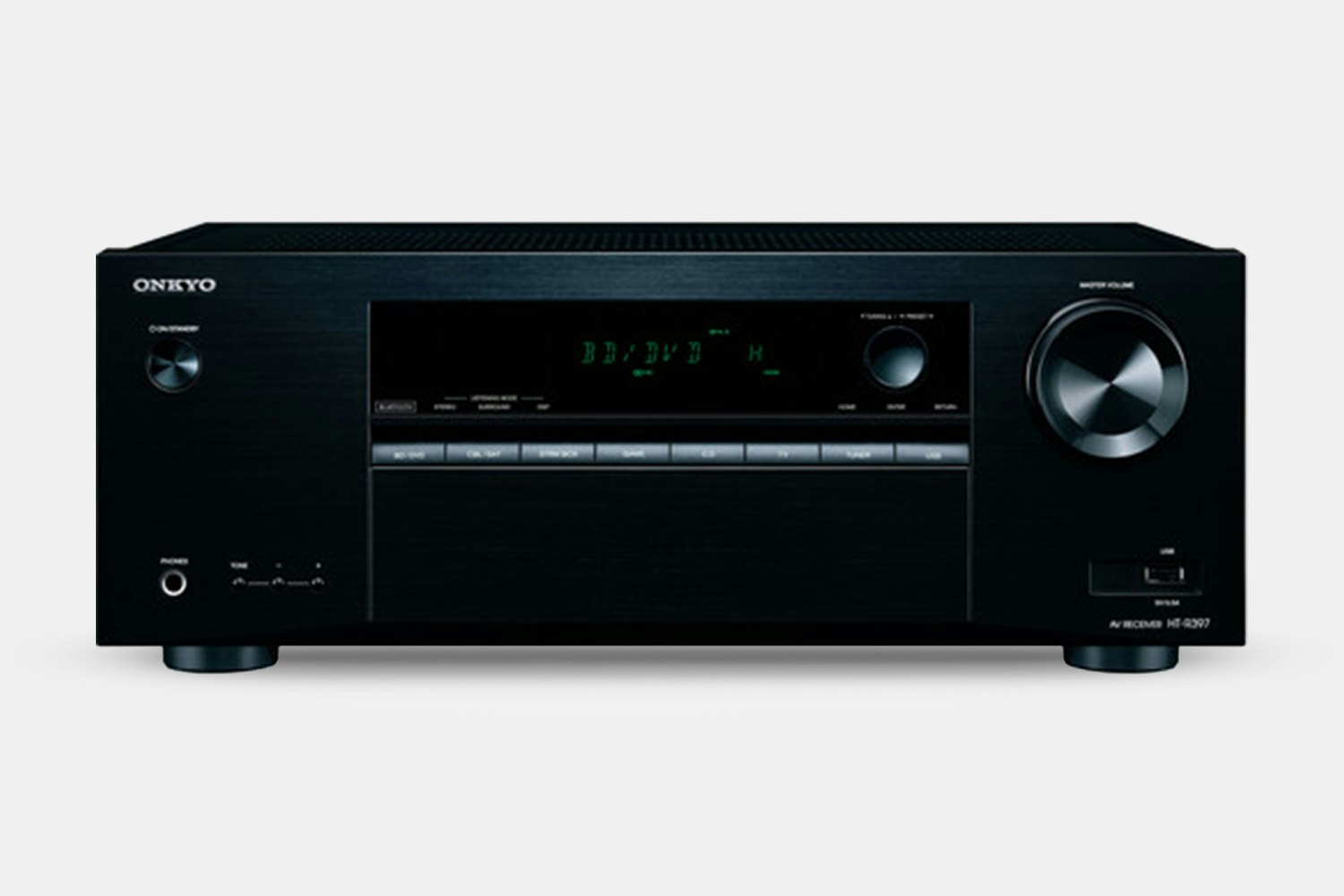

Receiver
- Channels: 5.1
- Power output (per channel): 60 W at 8 ohms, 20 Hz – 20 kHz, 0.7% THD, 2-channels driven, FTC; 120 W per channel at 6 ohms, 1 kHz, 10% THD, 1-channel driven
- THD & Noise: 0.06% (20 Hz – 20 kHz, 8 ohms, 1-channel driven, 50 W)
- Input Sensitivity and impedance: 250 mV / 47 kOhms (line)
- Frequency response: 10 Hz – 100 kHz / 0 dB, -3 dB (Direct Mode)
- Tone control: ± 10 dB, 100 Hz (bass); ± 10 dB, 10 kHz (treble)
- SNR: 106 dB (line, IHF-A Network, 1 kOhm shorted)
- Impedance: 6 – 16 Ohms
Video & Tuner Section
- Input sensitivity / output level and impedance: Composite (1.0 Vp-p ± 5% / 75 ohms)
- Tuning frequency range: FM: 87.5 MHz – 108 MHz; AM: 530 kHz – 1700 kHz
- FM/AM preset memory: 30 stations

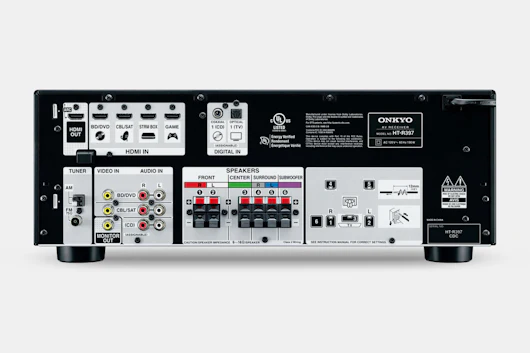

Connectivity
- Audio Return Channel (ARC) equipped
- Inputs: (4) HDMI, (2) composite video, (1) optical TOSLINK, (1) digital coaxial, (3) stereo RCA, (1) USB (front), Bluetooth
- Outputs: (1) HDMI, (1) composite video, (1) 6.35 mm headphone (front)
- Other connections: (1) AM antenna input, (1) FM antenna input
- Bluetooth codecs supported: aptX
- Speaker connectors: (6) spring clip pairs
Speaker System
- Channels: 5.1
- Speaker type (front, center, surround): Full-range, acoustic suspension, passive
- Speaker (subwoofer): Bass reflex, passive
- Drivers (front, center, surround): 3 in (7.7 cm) cone
- Drivers (subwoofer): 6.44 in (16 cm) cone
- Frequency response (front, surround): 80 Hz – 20 kHz
- Frequency response (center): 70 Hz – 20 kHz
- Frequency response (subwoofer): 28 – 5 kHz
- Output sound pressure level (front, surround, subwoofer): 83 dB/W/m
- Output sound pressure level (center): 84 dB/W/m
- Maximum input power (front, center, surround): 150 W
- Maximum input power (subwoofer): 100 W
- Nominal impedance: 6 ohms
Included
- Remote control
- (2) AAA batteries
- Indoor FM antenna
- AM Loop antenna
- Color-coded speaker cables
- Non-skid pads
- Manufacturer’s limited 2-year warranty
