Onkyo TX-NR646 Receiver
Onkyo TX-NR646 Receiver
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
10 Sold
Product Description
A 7.2-channel network AV receiver with all the latest and greatest features, the Onkyo TX-NR646 delivers powerful, dynamic sound for movies and music alike. Along with built-in Bluetooth and Wi-Fi, it has support for Apple AirPlay, Dolby Atmos, DTS:X, and more ... Read More
Full-Featured Receiver with Bluetooth, Wi-Fi & More

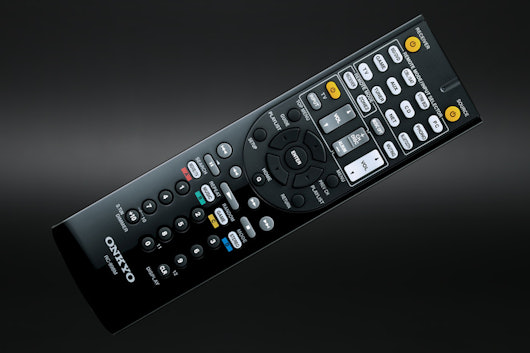

A 7.2-channel network AV receiver with all the latest and greatest features, the Onkyo TX-NR646 delivers powerful, dynamic sound for movies and music alike. Along with built-in Bluetooth and Wi-Fi, it has support for Apple AirPlay, Dolby Atmos, DTS:X, and more. Once you start it up, you’ll find a laundry list of home-theater audio codecs, along with music-streaming services like Spotify, Pandora, SiriusXM Internet Radio, Slacker, and TuneIn. Because the 646 is HDCP 2.2 compliant, you won’t have any issues when 4K Ultra-HD material is more abundant. Finally, Onkyo’s slick remote app allows you to control basic functions using your iOS and Android devices.

Powerful Sound, Connections Aplenty

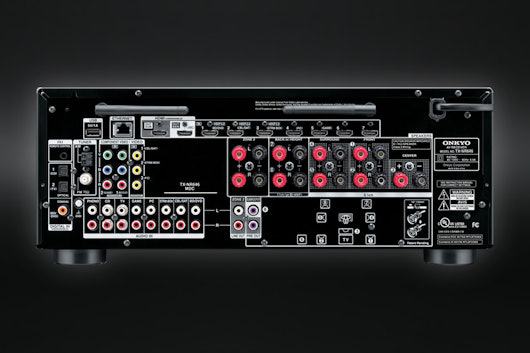

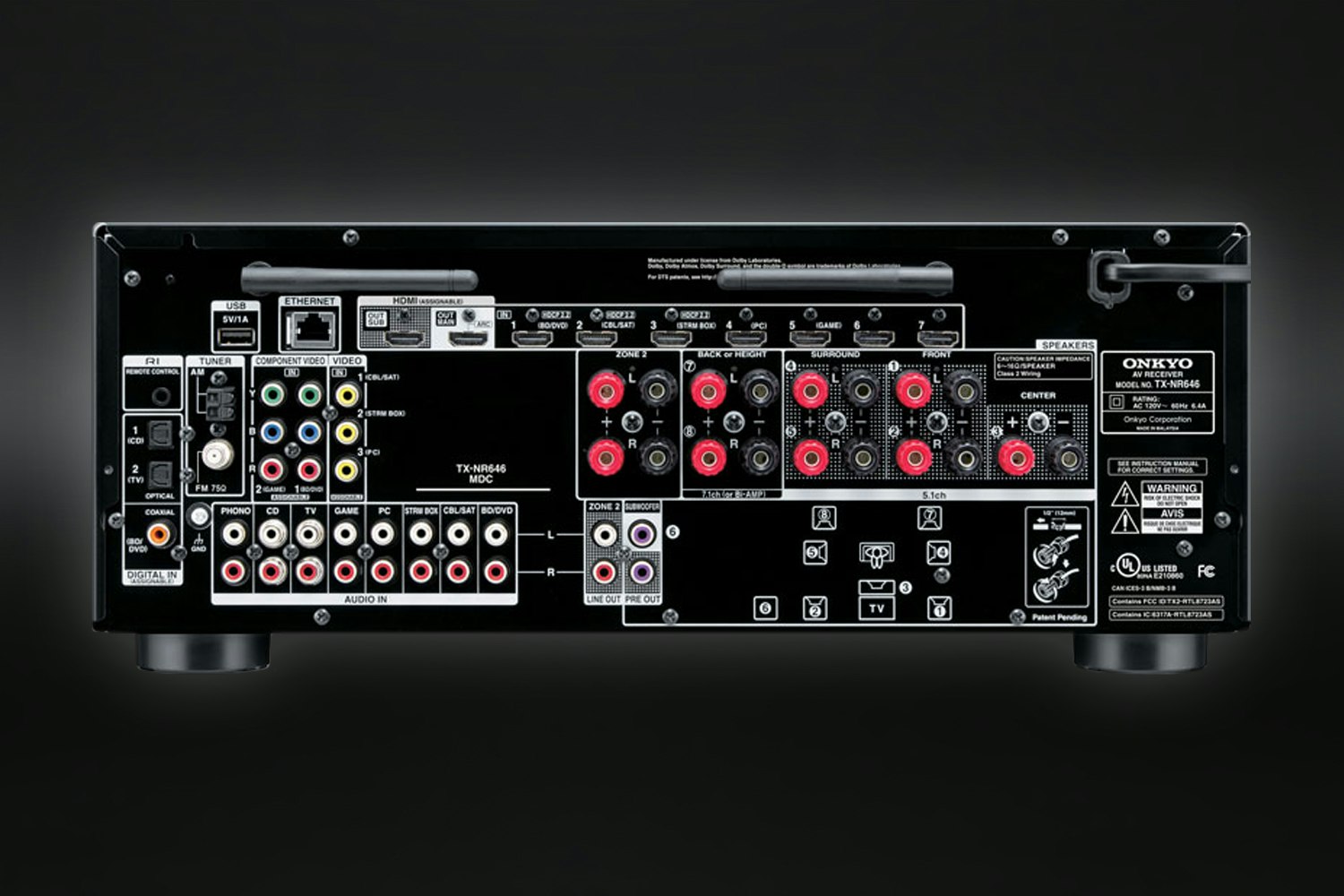

Rated at 170 watts, the 646 has no shortage of power, and uses a high-grade AK4458 DAC to offer some really impressive music playback for the price. This receiver decodes a wide range of high-res, lossless, and compressed audio files, including MP3, WMA, WMA Lossless, FLAC, ALAC, WAV, OggVorbis, AAC, Apple Lossless, and DSD 5.6 MHz. And of course, it comes packed with the connectivity options we’ve come to expect from Onkyo. Along with eight HDMI inputs and two outputs, you’ll find seven analog connections (including a phono input), three digital inputs, and two composites—plus powered zone 2 outputs and zone 2 line-outs for multi-room setups.

Specs
  • Onkyo
  • Channels: 7.2
  • Processing: High-grade AK4458 DAC
  • Power supply: AC 120 V, 60 Hz
  • Power consumption: 6.4 A
  • No-sound power consumption: 70 W
  • Standby power consumption: 0.1 W
  • Dimensions: 17.1 x 6.9 x 13 in (43.5 x 17.4 x 32.9 cm)
  • Weight: 20.7 lb (9.4 kg)

Amplifier

  • Power output, all channels: 170 W/ch, 6 ohm, 1 kHz, 0.9% THD, 1 channel drive, FTC; 100 W/ch, 8 ohm, 20 kHz–20 kHz, 0.08% THD, 2 channels driven, FTC)
  • Dynamic power: 240 W (3 ohm, front); 210 W (4 ohm, front); 120 W (8 ohm, front)
  • THD + N: 0.08% (20 kHz–20 kHz, half power)
  • Damping factor: 60 (front, 1 kHz, 8 ohm)
  • Input sensitivity and impedance: 200 mV/47 kohm (line); 3.5 mV/47 kohm (phono MM)
  • Rated RCA output and impedance: 100 mV/2.2kohm (zone 2 line out); 200 mV/470 ohm (subwoofer pre-out)
  • Max RCA output and impedance: 1 V/2.2 kohm (zone 2 line out); 2 V/470 ohm (subwoofer pre-out)
  • Phono overload: 70 mV (MM, 1 kHz, 0.5%)
  • Frequency response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
  • Tone control: +/- 10 dB, 20 Hz (bass); +/- 10 dB, 20 kHz (treble)
  • Signal-to-noise ratio: 100 dB (line, IHF-A); 80 dB (phono MM, IHF-A)
  • Speaker impedance: 6–10 ohm

Video

  • Input sensitivity/output level and impedance: 1 Vp-p/75 ohm (component), 0.7 Vp-p/75 ohm (component PB/CB, PR/CR), 1 Vp-p/75 ohm (composite)
  • Component video frequency response: 5 Hz–13.5 MHz / + 0 dB, - 3 dB

Tuner

  • Tuning frequency range, FM: 87.5 MHz–107.9 MHz
  • Tuning frequency range, AM: 530 kHz–1,710 kHz
  • FM/AM preset memory: 40 stations
