Pioneer Elite Home Theater Speaker Bundle
A Truly Immersive Speaker System
Designed by Pioneer’s Chief Speaker Engineer, Andrew Jones, the Pioneer Elite home theater speaker bundle will turn your living room into a full-on theater. It includes a pair of floorstanding speakers, a center channel speaker, and a powered subwoofer. At the heart of each speaker is the Coherent Source Transducer: a proprietary design that reduces interference between the driver and tweeter by controlling sound at all frequencies, ensuring direct and reflected sound arrive at the listening position at the same time. Both the floorstanding and center speakers have a true three-way speaker design that allows them to fire in multiple directions for the best possible reflection. The floorstanding speakers have three 5-inch drivers and an upward-firing concentric speaker, while the center speaker has two 5-inch drivers with a 5-inch front-mounted passive radiator enclosure. To deliver deeper bass, the 600-watt powered subwoofer has a 10-inch long-throw woofer, a sealed enclosure with DSP processing, and an integrated BASH amplifier.
Note: At checkout, choose bundle 1 (Pair of speaker towers, center speaker) (base price), bundle 2 (pair of speaker towers, subwoofer) (+ $100), or bundle 3 (pair of speaker towers, subwoofer, center speaker) (+ $300)
Bundle Options

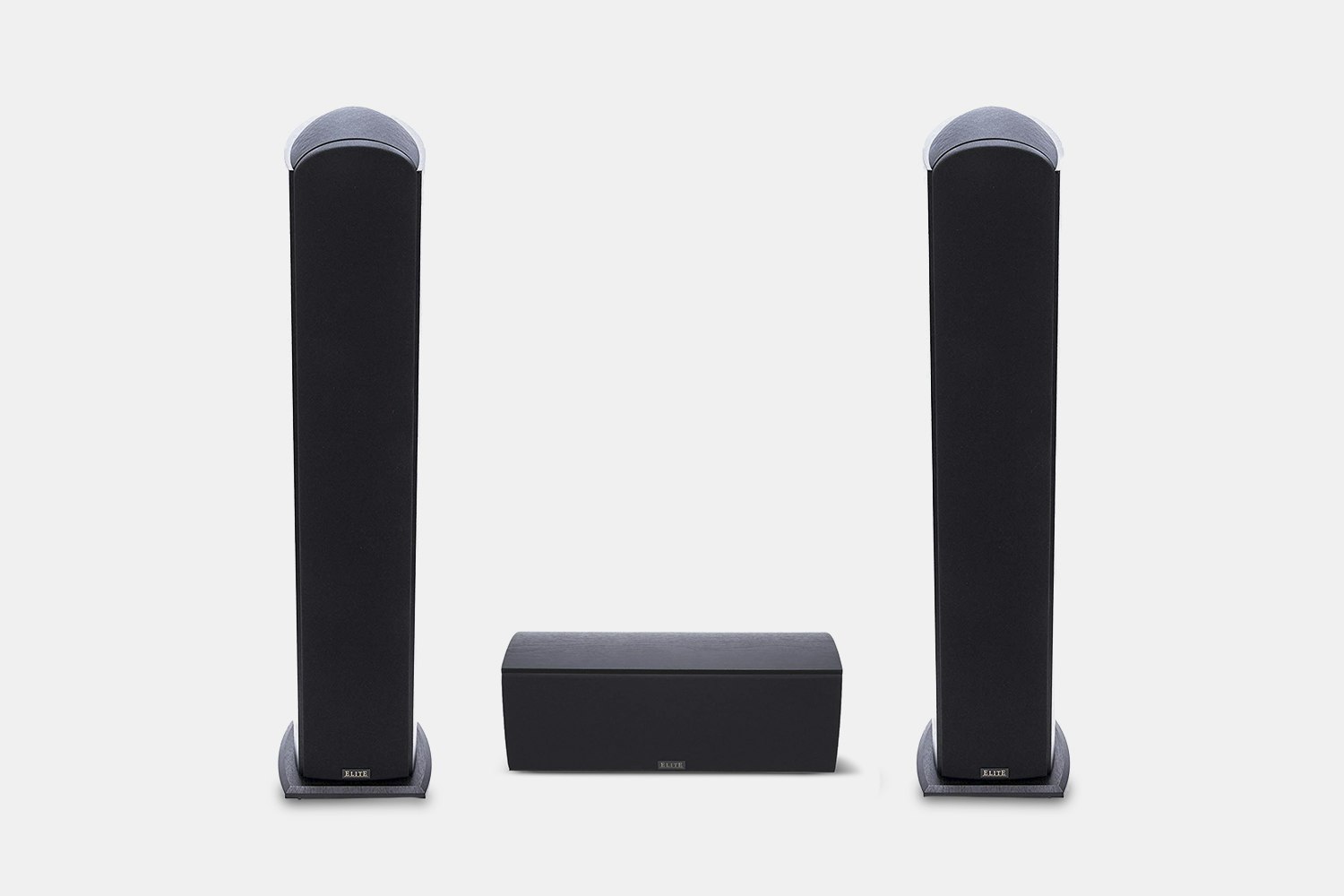

Pair of Speaker Towers + Center Speaker (SP-EFS73 x 2) + (SP-EC73 x 1)
Pair of Speaker Towers + Subwoofer (SP-EFS73 x 2) + (SW-E10 x 1) (+$100)
Pair of Speaker Towers + Subwoofer + Center Speaker (SP-EFS73 x 2) +(SW-E10 x 1) + (SP-EC73 x 1) (+$300)
Specs

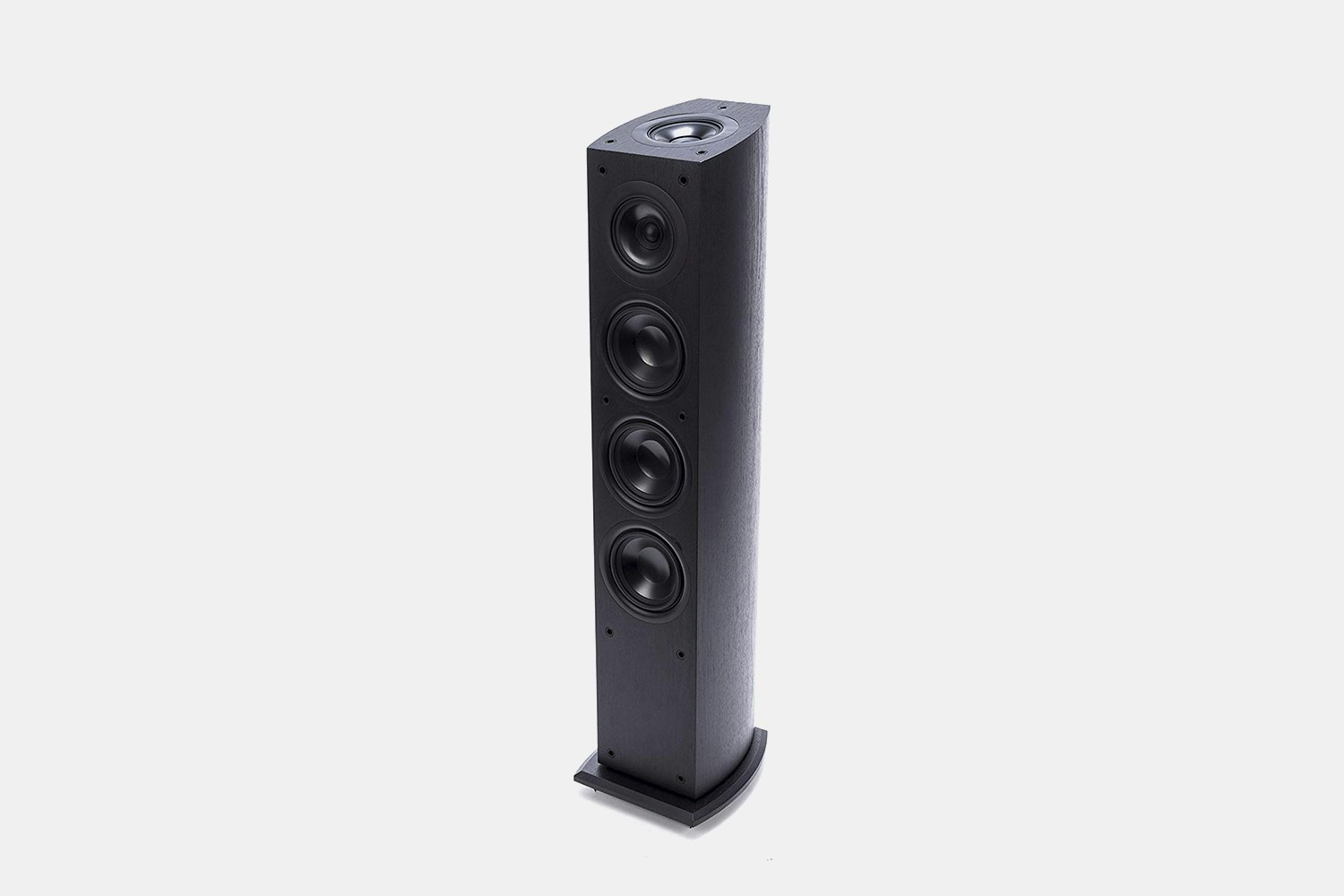

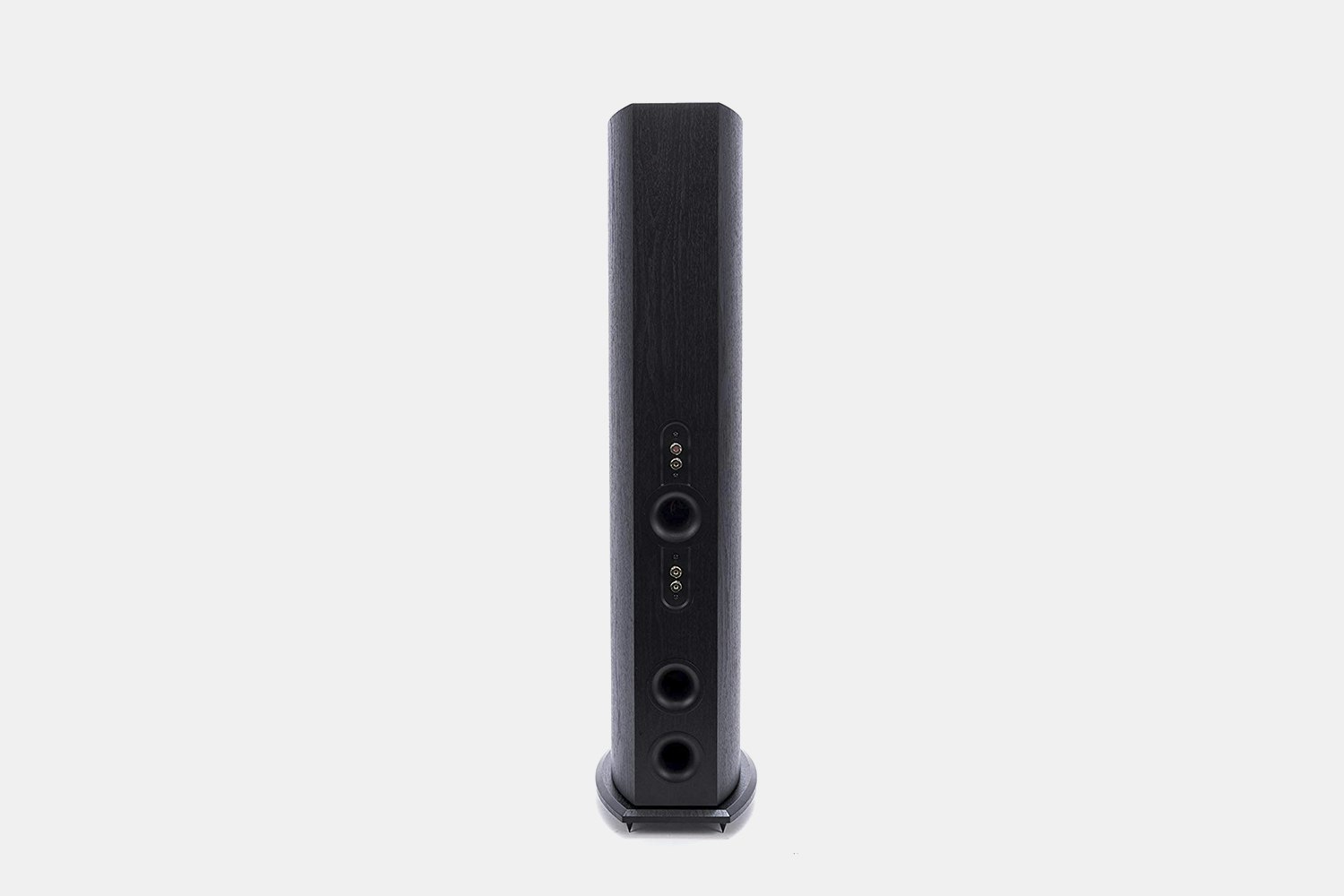

Pioneer Elite SP-EFS73 Floorstanding Speakers
- Enclosure: Bass reflex
- Configuration: 3-way
- Front: (1) 4 in (10.1 cm) concentric aluminum mid-range drivers each with 1 in (2.5 cm) tweeters, (3) 5.25 in (13.3 cm) aluminum woofers
- Top: 4 in (10.2 cm) concentric aluminum mid-range with 1 in (2.5 cm) soft dome tweeter
- Frequency range: 38 Hz–20 kHz
- Nominal impedance: 4 ohms
- Sensitivity: 86 dB (2.83 V)
- Maximum input power: 140 W
- Crossover frequency: 260 Hz, 2.6 kHz
- Connectors: Dual gold-plated 5-way binding posts
- Two-way CST driver
- Upward-firing Dolby Atmos-enabled driver
- Multi-element complex crossover
- Multi-element complex crossover
- Oversized magnets with vented pole piece
- Dimensions without grill, spikes, and feet: 7.4 x 37.2 x 8.7 in (18.8 x 94.4 x 22.1 cm)
- Dimensions with grill, spikes, and feet: 9.3 x 39.7 x 10.4 in (23.6 x 100.8 x 26.4 cm)
- Weight per speaker: 35.3 lbs (16 kg)

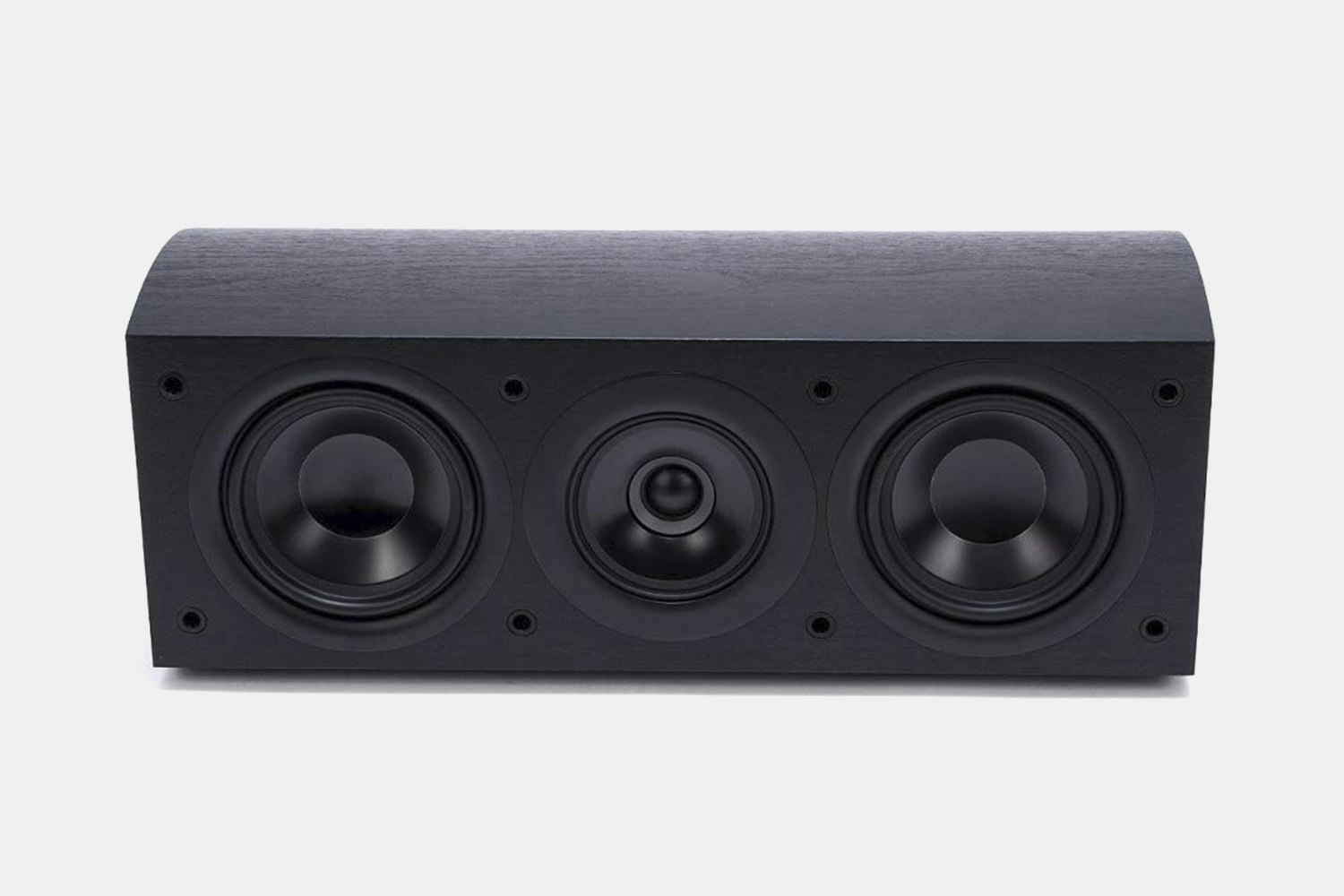

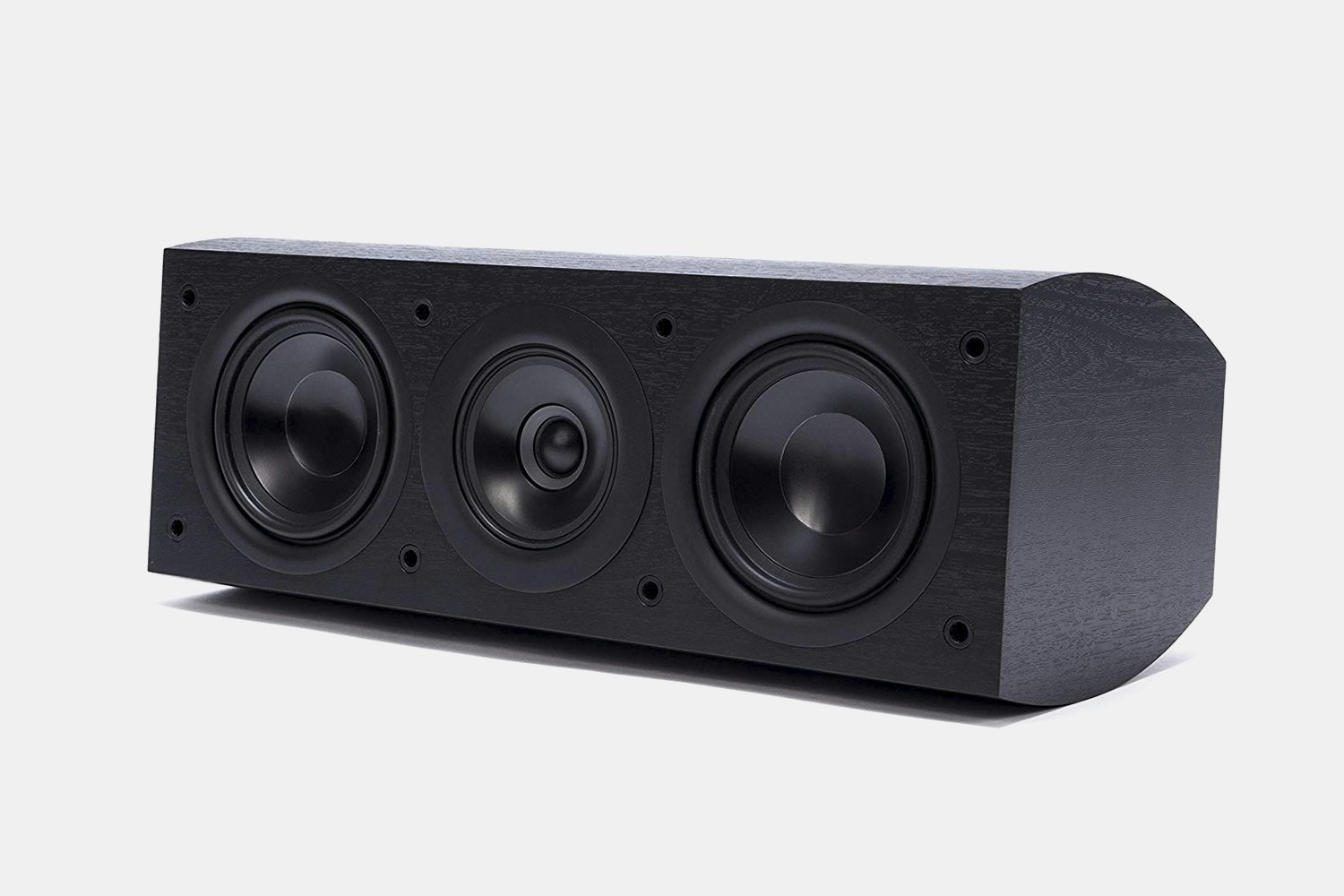

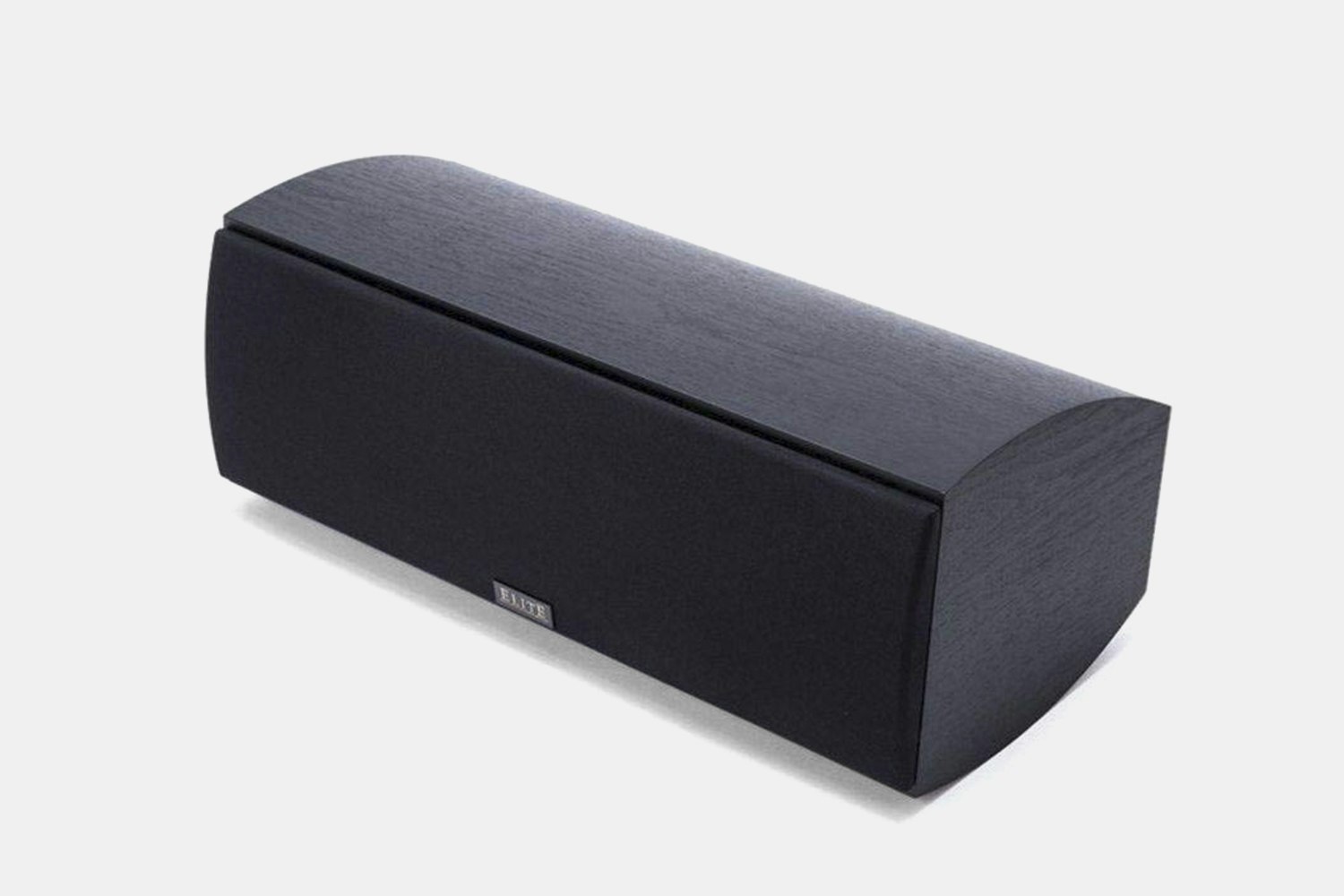

Pioneer Elite SP-EC73 Center Speaker
- Enclosure: Passive radiator
- Configuration: 3-way
- Frequency range: 45 Hz–20 kHz
- Nominal Impedance: 4 Ohms
- Sensitivity (2.83 V): 85 dB
- Maximum input power: 140 W
- Crossover frequency: 260 Hz, 2.6 kHz
- Woofer: Aluminum, 5.25 in (13.3 cm)
- Passive radiator: Aluminum, 5.25 in (13.3 cm)
- Midrange: Aluminum, 4 in (10.1 cm)
- Tweeter: Soft dome, 1 in (2.54 cm)
- Connectors: Dual gold-plated 5-way binding posts
- Multi-element complex crossover
- Oversized magnets with vented pole piece
- Dimensions (without grill): 19.5 x 7.4 x 8.7 in (49.5 x 18.7 x 22 cm)
- Dimensions (With grill): 19.5 x 7.4 x 9.7 in (49.5 x 18.7 x 24.6 cm)
- Weight: 17.6 lbs (7.9 kg)

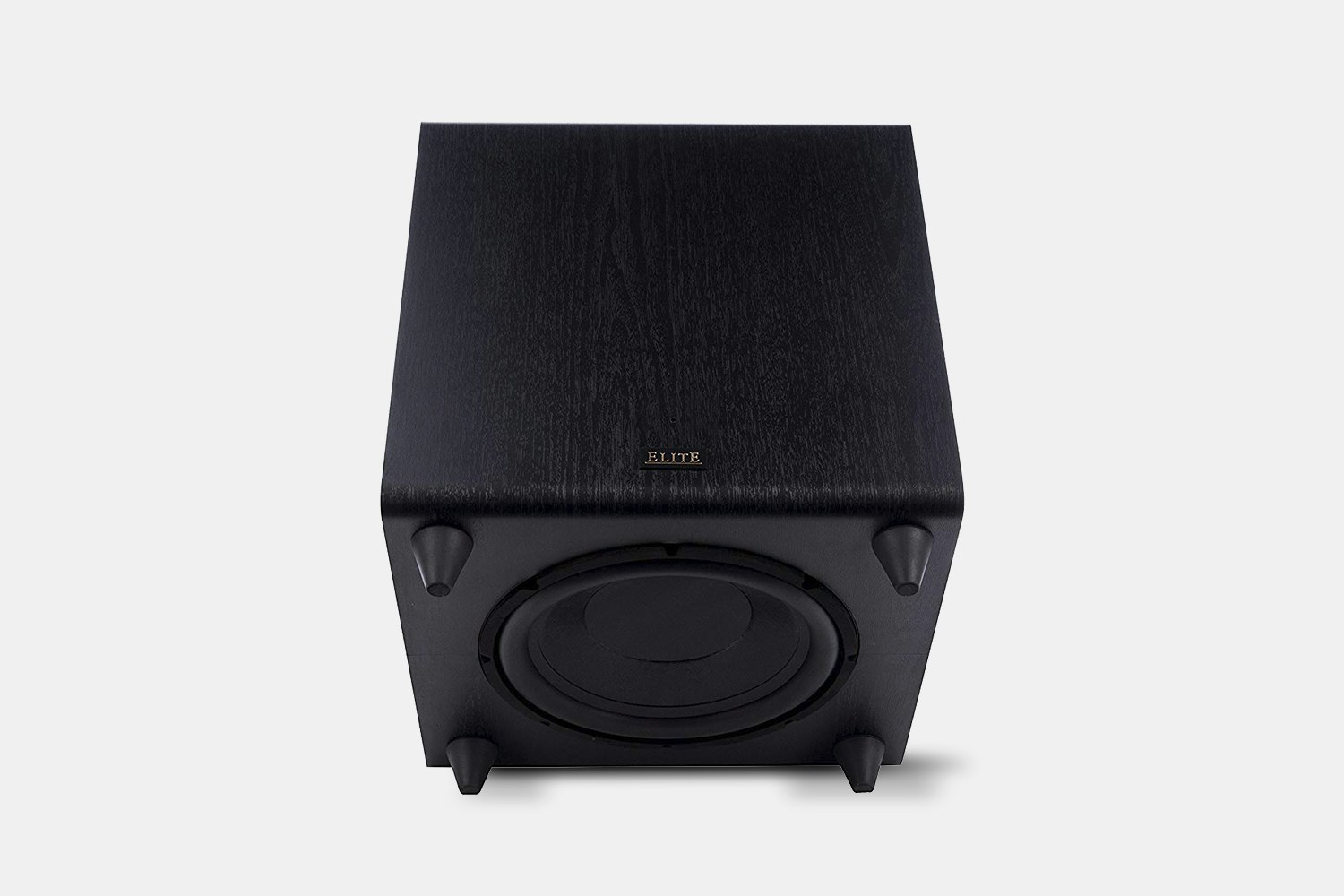

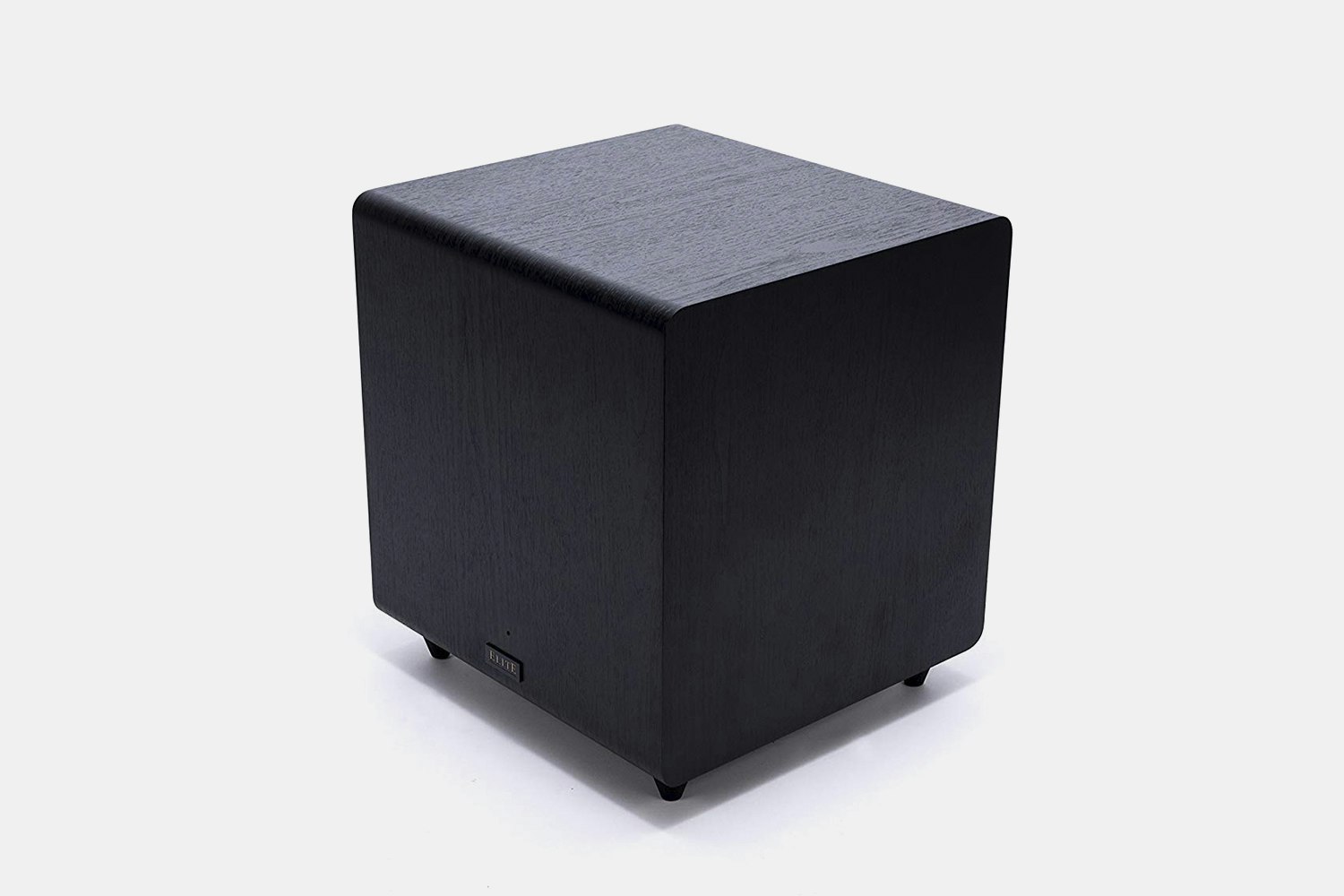

Pioneer Elite SW-E10 Powered Subwoofer
- Enclosure: Sealed
- Frequency rang: 30 Hz–150 Hz
- Maximum output power: 600 watt peak, 300 RMS
- Crossover frequency: 40 Hz–150 Hz continuously adjustable
- Power consumptionL Less than 0.5 watts in standby
- Power requirement: 100–240V
- Woofer: 10 in (25.4 cm)
- Dimension: 13.2 x 13.2 x 13.2 in (33.5 x 33.5 x 33.5 cm)
- Dimensions, with feet: 13.2 x 15.4 x 13.4 in (33.5 x 39.1 x 34 cm)
- Weight: 34 lbs (15.4 kg)
Included: Bundle 1
- (2) SP-EFS73 floorstanding speakers
- (1) SP-EC73 center channel speaker
- Pioneer’s 2-year warranty
Included: Bundle 2
- (4) SP-EFS73 floorstanding speakers
- (2) SW-E10 powered subwoofers
- Pioneer’s 2-year warranty
Included: Bundle 3
- (2) SP-EFS73 floorstanding speakers
- (1) SP-EC73 center channel speaker
- (1) SW-E10 powered subwoofers
Shipping
Estimated ship date is May 21, 2019 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
