Raspberry Pi 3 Camera Kit
A Full-HD Camera & Recorder for Raspberry Pi
The latest version of the Raspberry Pi–compatible camera, this handy little device plugs directly into the Raspberry Pi (model A or B) and instantly generates a high-quality camera for it. The 5-megapixel Omnivision camera module offers a still resolution of 2592 x 1944, so you can start taking crisp photos along with your experiments. It even offers full 1080p HD video recording at 30 frames per second. This drop includes the Raspberry Pi Model 3 B with Bluetooth and Wi-Fi, as well as a clear case, 8GB micro SD card, HDMI cable, rainbow cable, aluminum heatsinks, and more.
Optional Add-Ons
Specs
Camera Kit
- Fully compatible with Model A and Model B Raspberry Pi
- 5MP Omnivision 5647 camera module
- Still picture resolution: 2592 x 1944
- Video: Supports 1080p at 30fps, 720p at 60fps, and 640 x 480p 60/90 recording
- 15-pin MIPI camera serial interface plugs directly into Raspberry Pi
- Dimensions: 0.8 x 1 x 0.4 in (2 x 2.5 x 0.9 cm)
Raspberry Pi 3 Model B
- RAM: 1 GB
- 1.2GHz 64-bit quad-core ARMv8 CPU
- 802.11n wireless LAN
- Bluetooth 4.0
- Bluetooth low energy (BLE)
- 4 USB 2.0 ports
- 40 GPIO pins
- Full HDMI port
- Ethernet port
- Combined 3.5 mm audio jack and composite video
- Camera interface (CSI)
- Display interface (DSI)
- Micro SD card slot (now push-pull rather than push-push)
- VideoCore IV 3D graphics core
- Complete compatibility with Raspberry Pi 1 and 2
- Dimensions: 3.3 x 2.2 in (8.5 x 5.6 cm)
- Weight: 1.49 oz (42.2 g)
SainSmart ES120 Rechargeable Screwdriver (Optional)
- Work voltage: DC3-5V
- Material: 304 stainless steel
- No-load speed: About 270 rpm
- Electronic torque: 2.8 kgf.cm
- Maximum torque: 30 kgf.cm (manual mode)
- Screwdriver bit: 4M hexagon
- Charging time: 45 minutes
- Running time: 30 minutes (full power)
- Charging mode: Micro USB 5V input
- OLED screen
- Battery: 10440 lithium-ion
- Rotor: Bi-directional overrunning clutch
- Gearbox: 1:144 integrated planetary gearbox
- Motor: 25,000 rpm brush motor
- Main chip: STM32
- Sensor: Angular velocity sensor
SainSmart Pro 32-Piece Soldering Tool Set (Optional)
- Operating voltage: 12V to 24V
- Power: 17W to 65W
- Screen: OLED
- USB port: Micro USB
- Power port: DC5525
- Temperature stability: ± 2%
- Soldering tip resistance to ground: < 2Ω
- Temperature range: 212–752°F (100–400°C)
- Dimensions, control part: 3.8 x 0.6 in (9.6 x 1.65 cm)
- Dimensions, heating part: 2.8 x 0.2 in (7.2 x 0.55 cm)
- Compliant with EU certification: CE FCC

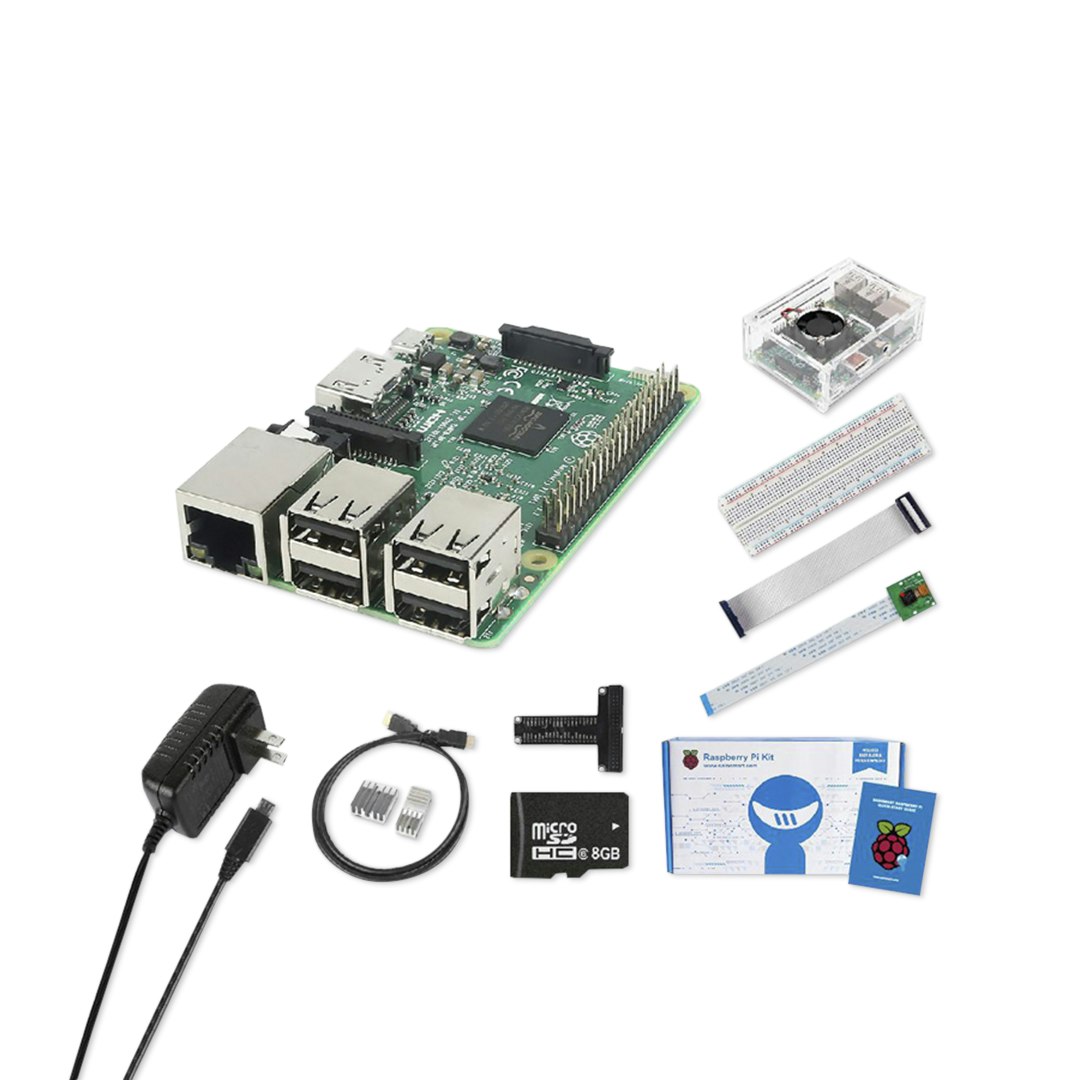

Included (Camera Kit)
- Raspberry Pi Model 3 B
- SainSmart camera module board 5MP webcam video
- SainSmart transparent clear case enclosure box and cooling fan
- 3 aluminum heatsinks
- Rainbow cable
- Breadboard
- Black 40-pins GPIO adapter board
- HDMI cable

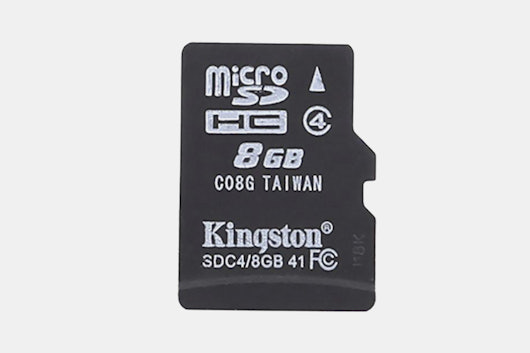

- 8GB microSD card
- SainSmart 5V micro USB charger (UL Listed)
- Quick-start guide with codes and PDF tutorial downloads
- SainSmart gift box
