Red Scarf II+ Ver.b Custom Mechanical Keyboard Kit
Red Scarf II+ Ver.b Custom Mechanical Keyboard Kit
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
179 Sold
Product Description
The Red Scarf II+ is an improved version of the second generation of the very popular Red Scarf custom mechanical keyboard. Like the rest of the Red Scarf II family, its layout comes from the IBM Model F and has several variants, like the 77-, 68-, and 78-key layouts Read More
Fully Programmable Lighting, Layout & Color

The Red Scarf II+ is an improved version of the second generation of the very popular Red Scarf custom mechanical keyboard. Like the rest of the Red Scarf II family, its layout comes from the IBM Model F and has several variants, like the 77-, 68-, and 78-key layouts. This build-it-yourself kit—featuring a unique 78-key layout—consists of a PCB, clear acrylic bottom, and a CNC aluminum case, plate, and feet. It allows for customization of the RGB underglow lighting, layout (including ISO and ANSI), and color. The Red Scarf II+ is also fully programmable, allowing users to utilize the layout as they see fit.

Note: At checkout, you’ll have your choice of anodized aluminum color (Black, Gray, Red, or Silver). You’ll also have the option of adding the Essentials Pack (stabilizers and USB cable) and the Switches Pack (in your choice of Gateron, Cherry, or Zealio switches). You can also add a set of standard layout Blank or laser-etched Front-Printed PBT keycaps (Gray) in Cherry profile.

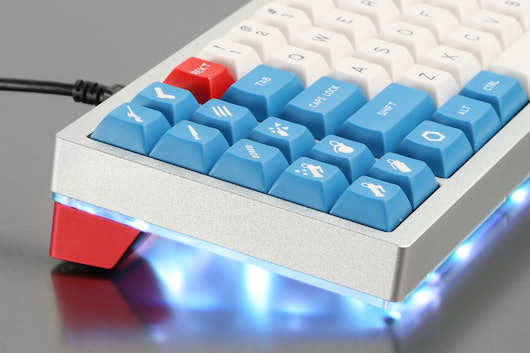

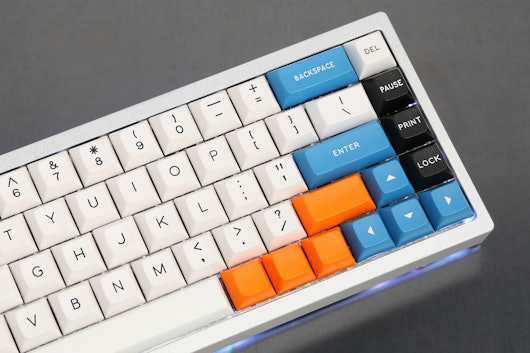

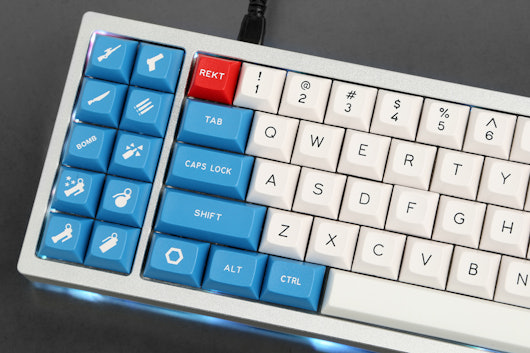

The white, blue, and orange keycaps shown in the photos here are from Overcast / Sci-Fi DSA.

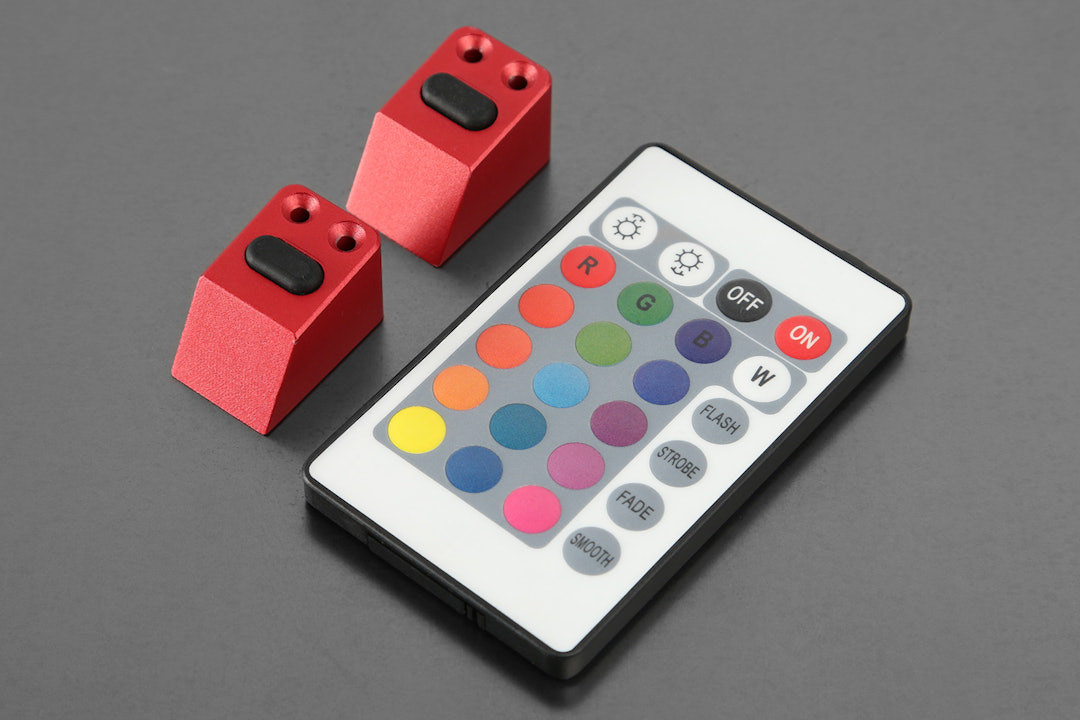

Remote-Control Lighting

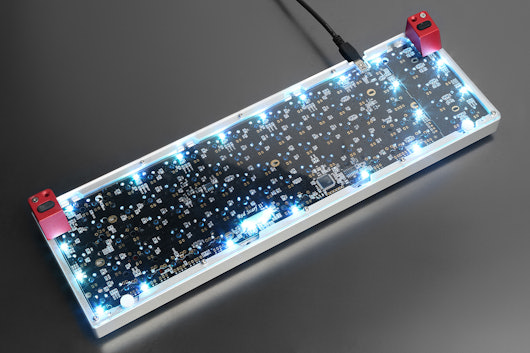

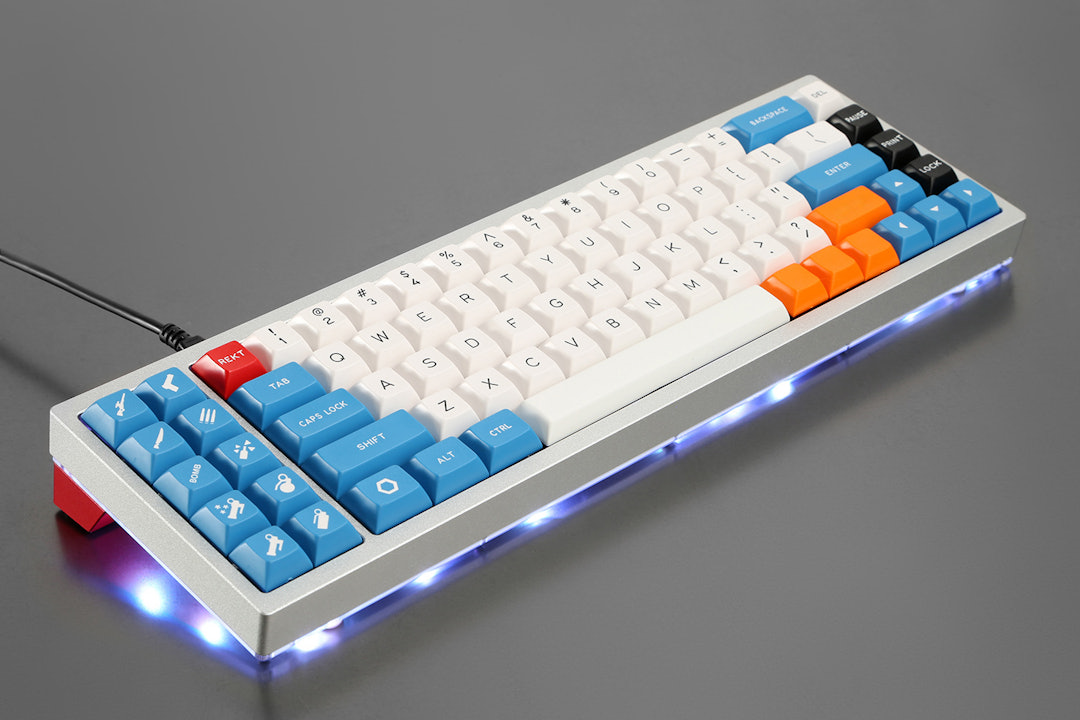

The acrylic bottom allows the RGB LEDs, which are easily controlled via remote, to shine through the bottom of the board and reflect off your desk. With a simple click of the remote, it’s a breeze to change the lighting modes and colors on the fly, without the need for any complicated programming.

ANSI & ISO Compatible

The 78-key layout consists of 68 keys—arrow cluster included—plus 10 function keys broken up into two rows of five on the far left side of the board. The modifier keys can be configured in a variety of ways to allow for you to fine tune the layout, as the board caters to both ANSI and ISO layouts. Should you choose to reprogram the Red Scarf, you can do so via LUFA's Bootloader Printer software.

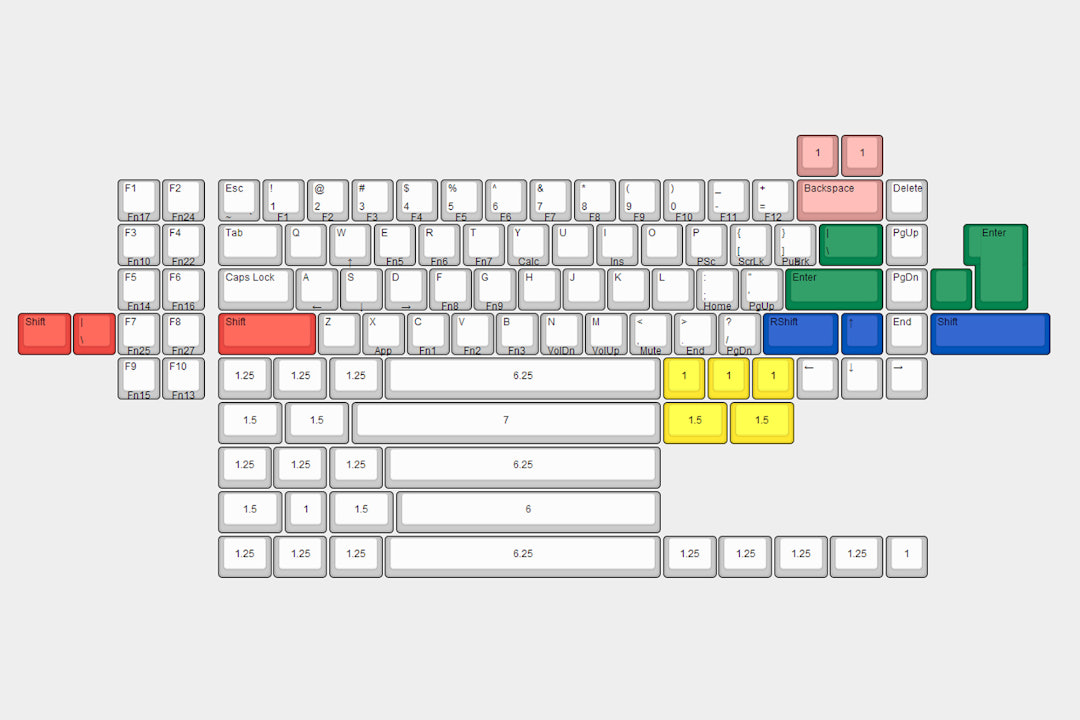

Potential Layouts

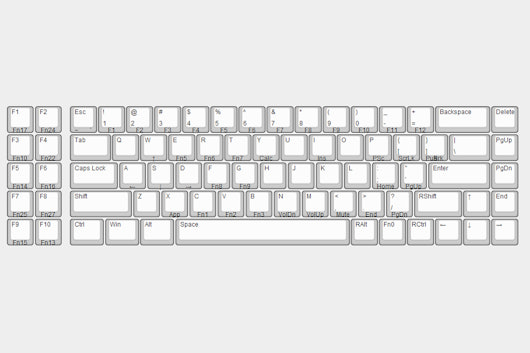

Standard Layout

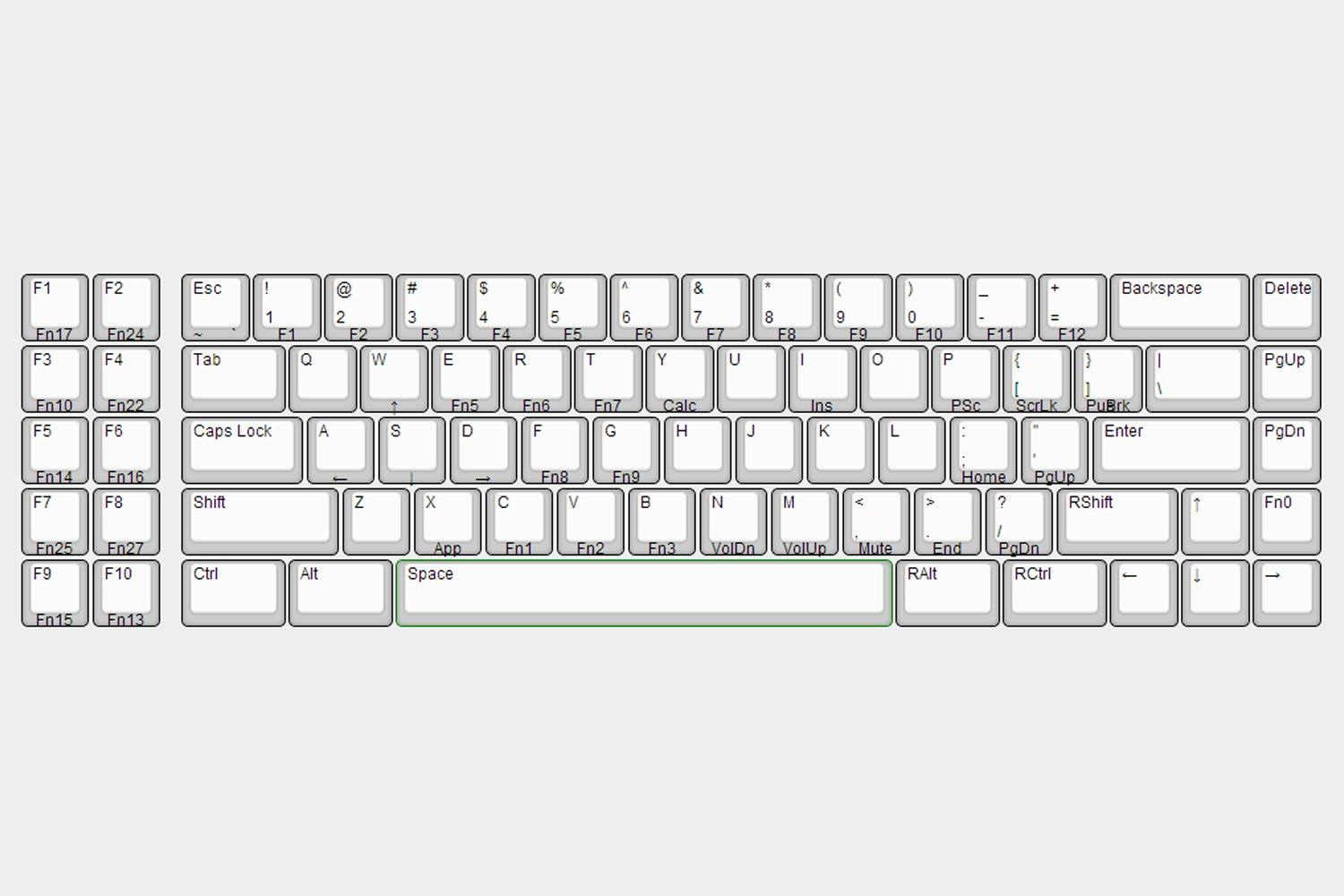

Winkeyless

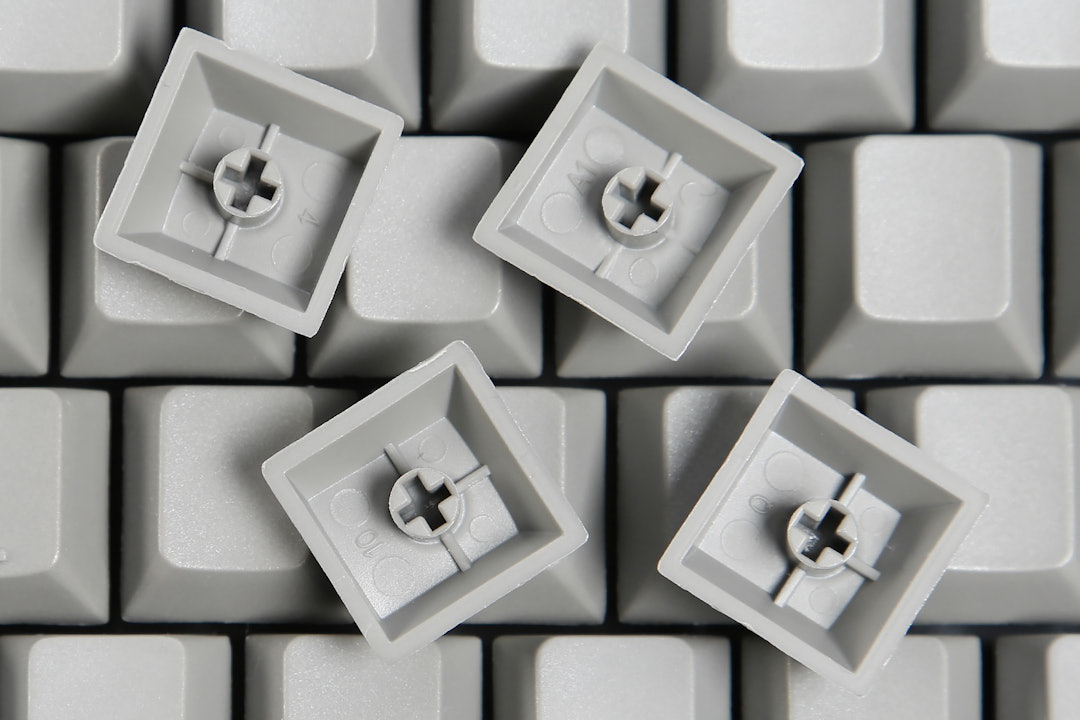

Cherry Profile PBT Keycap Add-on
Specs
  • 78 keys
  • 10 function keys
  • Pre-soldered (switch soldering required)
  • Pre-programmed
  • ISO and ANSI layouts
  • LED-ready
  • Dimensions: 14.2 x 4.3 x 0.8 in (360 x 110 x 20 mm)
  • Red Scarf II+ User’s Guide
Included in the Base Kit
  • Red Scarf II+ ver.B PCB
  • CNC aluminum case
  • CNC aluminum plate
  • CNC aluminum feet
  • Clear, flat acrylic bottom
Stabilizers (PCB Mounted Cherry) Include
  • 5 x 2u stabilizers
  • 1 x 6.25u stabilizer
  • 1 x 7u stabilizer
Shipping

All orders will be shipped by Drop.

Estimated ship date is May 3, 2017 PT.

After this product run ends, payment will be collected and orders will be submitted to the vendor up front, making all orders final. Check the discussion for updates on your order.
