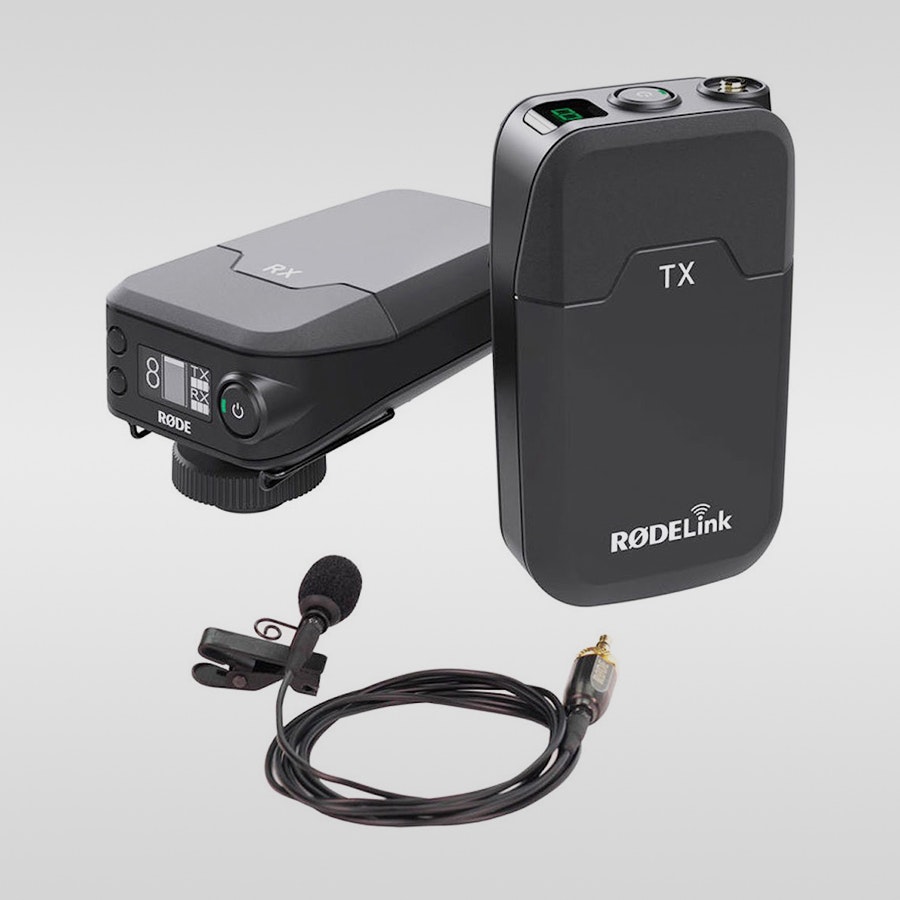

RØDELink Filmmaker Kit
Easy-to-Use Digital Wireless System
The RØDELink Filmmaker Kit comes with everything you need to start shooting video wirelessly, including a receiver, transmitter, and broadcast-grade lavalier microphone. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it’s able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 328 feet. The receiver has an OLED screen that displays information on level, battery status, mute, and channel selection. It can be mounted on a three-eighths-inch thread, a belt clip, or a standard camera shoe mount in one of two positions. The lightweight transmitter can be fitted to your belt or clothing, and features a locking thread to ensure the microphone connection is as secure as possible.
To learn more, check out this review.
Features
- Series II 2.4GHz digital transmission
- 128-bit encryption
- Range up to 328 ft (100 m)
- OLED display on receiver
- 1-button pairing
- 3-level gain control
- AA battery or USB powered
- Includes a broadcast lavalier microphone
Specs
Filmmaker Kit
- Transmission type: 2.4GHz fixed-frequency agile system
- System dynamic range: 112 dB
- Range (distance): Up to 328 ft (100 m)
- Frequency range: 35Hz–22kHz
- Maximum output level: 1v Rms (2.8v P-p)
- Maximum input signal level: 1v Rms (2.8v P-p)
- Maximum latency: 4ms
Receiver (RX-CAM)
- Power source: 2 X AA battery or microUSB
- Antenna: Internal
- Output connection: 3.5mm TRS locking jack socket, dual mono
- Output impedance: 300 ohm
- Dimensions: 4.4 x 2.6 x 2 in (111 x 65 x 52 mm)
- Weight: 6.7 oz (190 g)
Transmitter (TX-BELT)
- Power source: 2 X AA battery or microUSB
- Antenna: Internal
- Input connection: 3.5mm TRS locking jack socket
- Input impedance: 10 kohm
- Dimensions: 4.4 x 2.6 x 1.6 in (111 x 65 x 40 mm)
- Weight: 6.7 oz (190 g)
Lavalier
- Acoustic principle: Permanently polarized
- Active electronics: JFET impedance converter
- Capsule: 0.1 in (2.5 mm)
- Address type: End
- Frequency range: 60 Hz–18 kHz
- Output impedance: 3,000 ohm
- Maximum SPL: 110dB SPL (at 1kHz, 1% THD into 1kohm load)
- Maximum output level: 189 mV
- Sensitivity: -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
- Equivalent noise level (A-weighted): 25dB-A
- Dimensions: 0.5 x 0.2 x 0.2 in (12 x 4.5 x 4.5 mm)
- Weight: 0.04 oz (1 g)
