Ryloo Studio "Hello" M0110 Mechanical Keyboard Kit

Mech Keys

Showing 1 of 109 conversations about:

Ryloo Studio "Hello" M0110 Mechanical Keyboard Kit

SpencerL

2946

keeb weeb

Sep 28, 2020

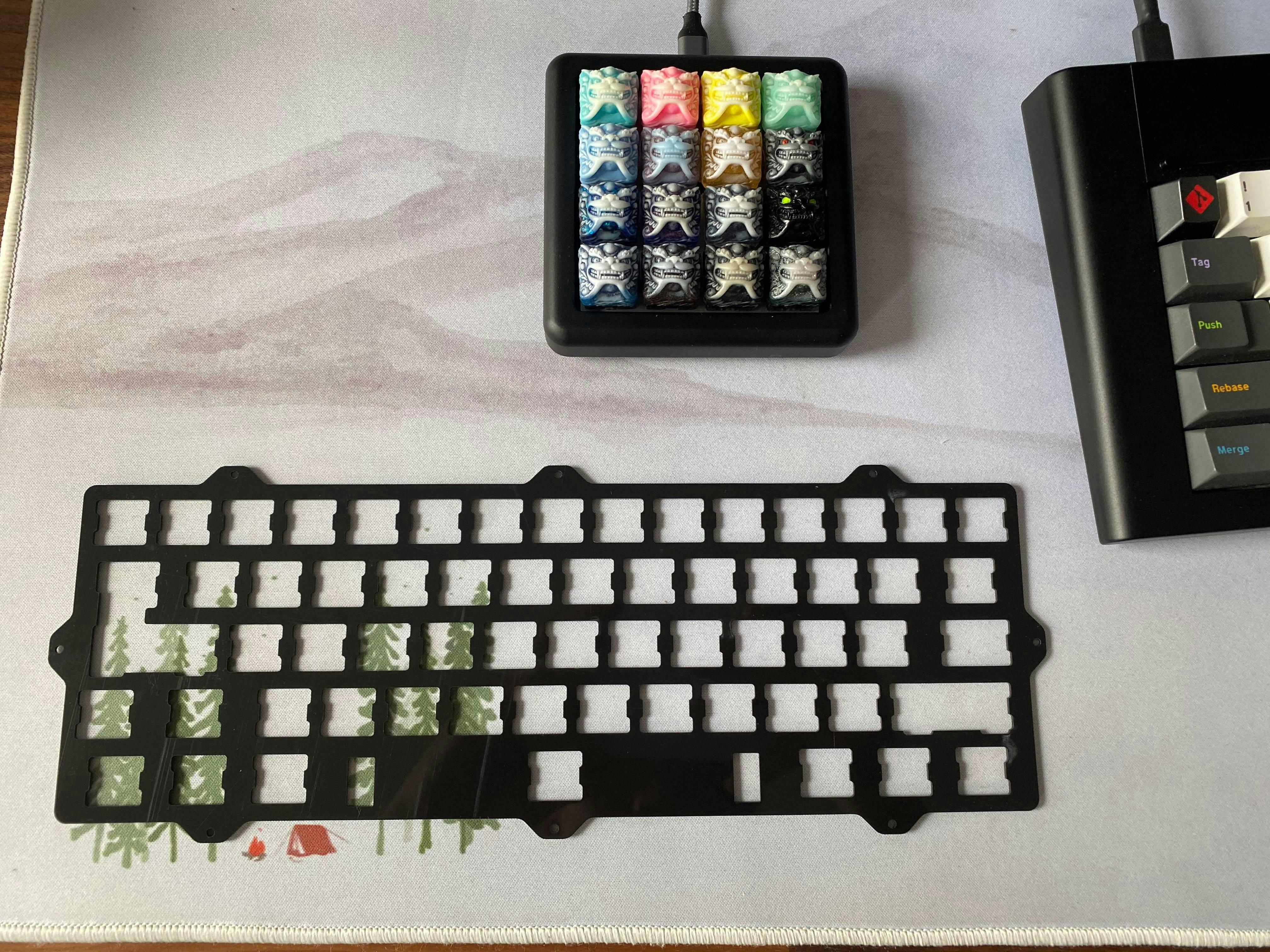

VIA hex and HHKB plate file here - https://drive.google.com/drive/folders/1sDQ88GOsrZ6MLrWAHXouCiD0VSrLI5DF?usp=sharing Edit: I'm sorry to hear about people's experience with the packaging. As the cases/parts where handled by the vendor and not by us, I'm really disappointed to hear that the PCBs were not even wrapped and just thrown into the packaging. I myself have ordered one (haven't received it yet) but I will share my experience here as well. 9/29: I've reuploaded the plate file (which has been looked through by a friend and I trying to figure this out for a few hours), and tested it by uploaded to Sendcutsend. Make sure you sets units to mm! I had a POM one cut from Ponoko a few months back in preparation with split BS (the only difference). I'm trying to figure out the VIA situation stay tuned and I appreciate the patience.

(Edited)

rockydbull

568

Keyboard Club Member

Sep 28, 2020

SpencerLThanks for posting the VIA hex. I am curious to hear if your spare pcb is also missing the daughter board. It seems a few of us already have that issue, which is quite disappointing.

Vote

batkev512

Sep 28, 2020

SpencerLThanks for the files! I was fortunate to receive mine in perfect condition and I am loving it.

Vote

yanfali

1544

Sep 28, 2020

SpencerLThe DXF looks off. Importing into sendcutsend says it's 10x smaller than the other plate. Thanks for posting it, but it's unusable.

(Edited)

Vote

SpencerL

2946

keeb weeb

Sep 28, 2020

yanfaliLet me get back to a friend and see if he can get the sizing correct. I'm getting 30 inches on SCS and that's definitely off.

Vote

ghdals1997

Sep 28, 2020

SpencerLVia can't find the keyboard. I don't think it's officially supporting.

rockydbull

568

Keyboard Club Member

Sep 29, 2020

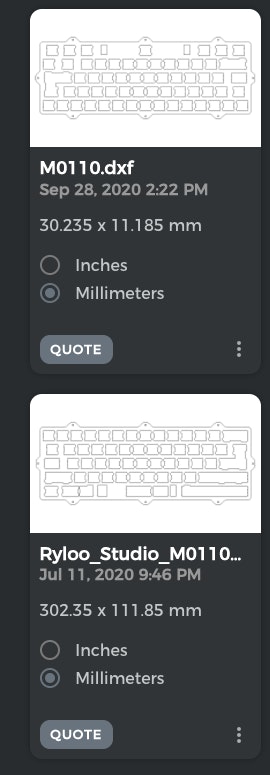

SpencerLIf you look at the pic @yanfali posted there is a spot to select millimetres. If you select that it will take it off inches (would be way too big). As you can see in his pic it should be 302.35 x 111.85, but the decimals are off so its 30.235 x 11.185 millimetres.

Vote

yanfali

1544

Oct 1, 2020

SpencerLThanks Spencer. Downloading it now.

Vote

yanfali

1544

Oct 13, 2020

SpencerLMight want to tweak the DXF one more time and change the holes from m1.5/m2 to M3. You're going to need to drill the plate, or just use screws to cut into the POM.

rockydbull

568

Keyboard Club Member

Oct 30, 2020

SpencerL @SpencerL any chance you could tweak the screw holes in the plate to be m3? Currently they are m2 size and too small.

Vote

MrBenBurns

May 23, 2021

SpencerL @SpencerL thanks for uploading this stuff! Will the plate file only work for the HHKB case? I have the other case but still would love a split backspace.

(Edited)

Vote
