Savox Digital Servo
Coreless Design

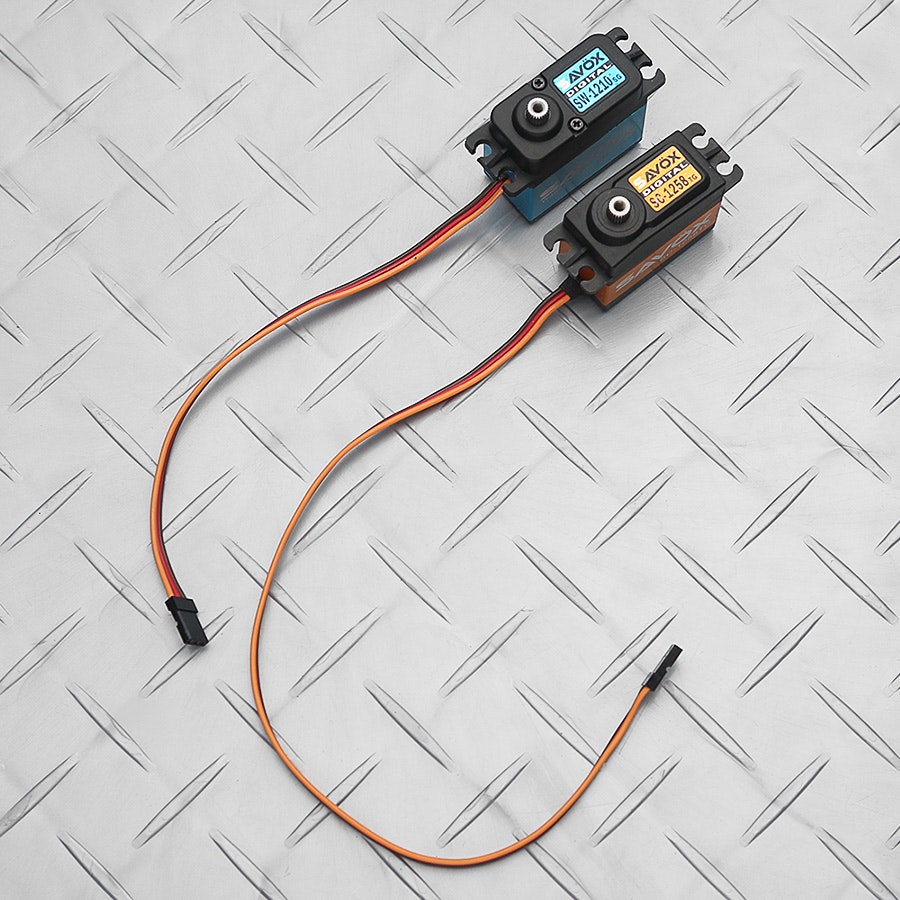

The ideal coreless servo for racing, the SC1258TG by Savox offers 12-bit resolution coupled with titanium and aluminum gears for lightweight, tough construction. It boasts 167 ounce-inches of torque and a lightning-quick rotation time of 0.08 seconds per 60 degrees at 6 volts. For use in a bashing vehicle, the SW1210SG digital servo by Savox offers a waterproof design that can handle all kinds of weather conditions. Chalking up more than 277 ounce-inches of torque, this coreless servo spins at 0.15 seconds per 60 degrees at 6 volts. Like the SC1258TG, this model offers 12-bit resolution.
Note: At checkout, you’ll have the option of purchasing the Waterproof SW1210SG Servo (+$20) or the SC1258TG Servo.
Specs
SC1258TG
- Speed (at 4.8V sec/60): 0.1
- Torque (at 4.8V oz-in): 133.3
- Speed (at 6.0V sec/60): 0.08
- Torque (at 6.0V oz-in): 166.6
- Gear: Titanium and aluminum
- Bearing: 2BB
- Case: Aluminum
- 25-tooth spline
- Frequency: 250–333hz
- Pulse width frequency: 1520
- Dimensions: 40.3 x 20.2 x 37.2 mm
- Weight: 52.4 g
SW1210SF
- Speed (at 4.8V sec/60): .18
- Torque (at 4.8V oz-in): 222.2
- Speed (at 6.0V sec/60): .15
- Torque (at 6.0V oz-in): 277.7
- Gear: Steel
- Bearing: 2BB
- Case: Aluminum
- 25-tooth spline
- IP rating: 67
- Frequency: 250–333hz
- Pulse width frequency: 1520
- Dimensions: 40.6 x 20.7 x 42.0 mm
- Weight: 71 g
Shipping
Estimated ship date is Feb 18, 2016 PT.
Payment will be collected at checkout. After this product run ends, orders will be submitted to the vendor up front, making all orders final.
