Seeed 5" Capacitive Touchscreen for Raspberry Pi

Seeed 5" Capacitive Touchscreen for Raspberry Pi

bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
149 requests
Product Description

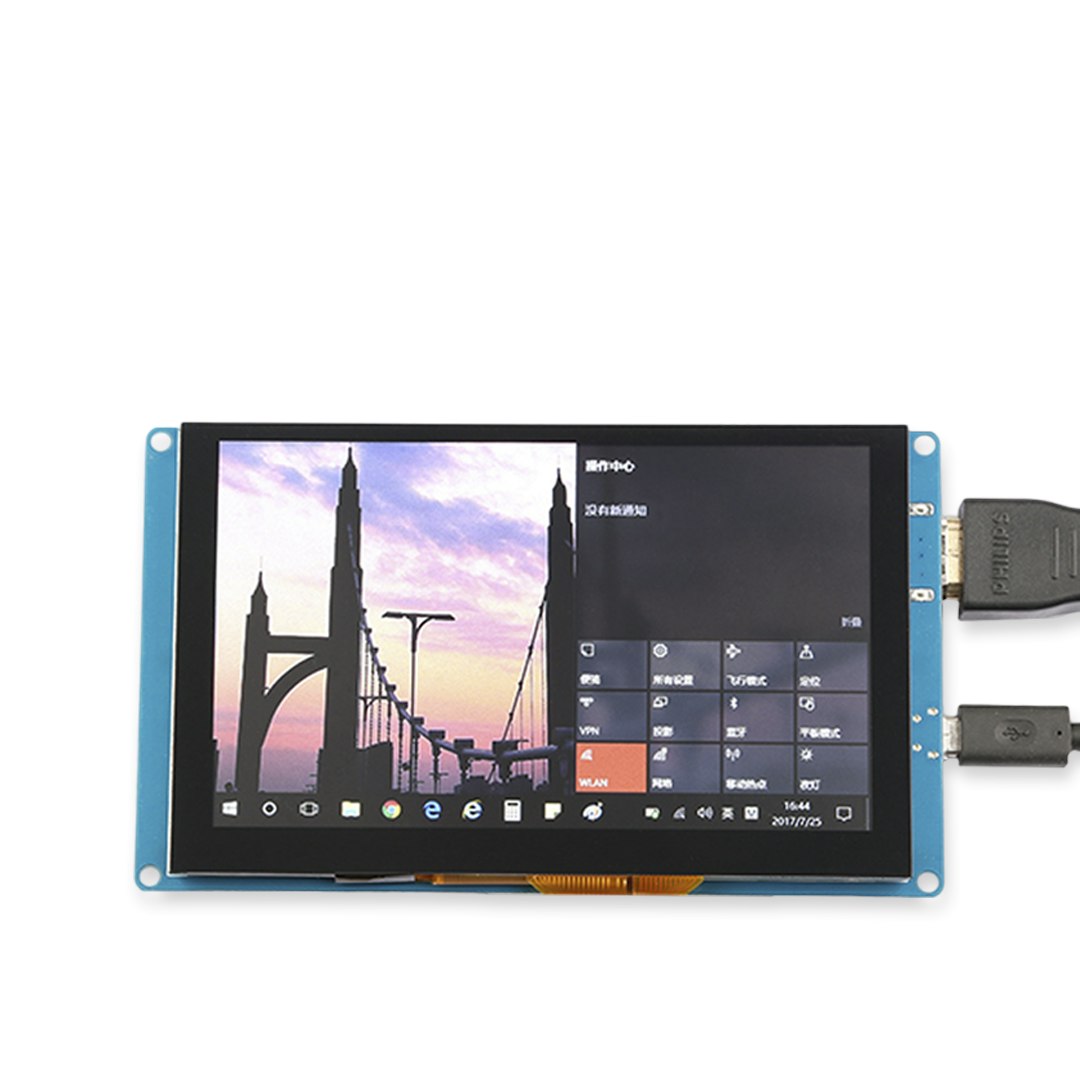

Interact with and control your projects and experiments in a whole new way with the Seeed LCD capacitive touchscreen display. Designed as a monitor for your Raspberry Pi, the 5-inch display has an 800-by-480p resolution and can be connected via the HDMI input and powered using a micro-USB cable Read More

Ultra-Sensitive Touchscreen Monitor

Interact with and control your projects and experiments in a whole new way with the Seeed LCD capacitive touchscreen display. Designed as a monitor for your Raspberry Pi, the 5-inch display has an 800-by-480p resolution and can be connected via the HDMI input and powered using a micro-USB cable. Unlike resistive touchscreens, which rely on pressure, capacitive touchscreens use the conductive properties present on your skin. This creates a more touch-sensitive surface that responds better to touches of all types. In addition to working with Raspberry Pis, the screen can also be used with BeagleBone, Windows, Ubuntu, and Mac OS systems.

Note: At checkout, you can add a Raspberry Pi 3 B+ (+ $35)

Seeed 5" Capacitive Touchscreen for Raspberry Pi
Seeed 5" Capacitive Touchscreen for Raspberry Pi
Seeed 5" Capacitive Touchscreen for Raspberry Pi
Seeed 5" Capacitive Touchscreen for Raspberry Pi
Seeed 5" Capacitive Touchscreen for Raspberry Pi

Raspberry Pi 3 B+ (Optional)

Following the success of the first two versions, the Raspberry Pi 3 B+ makes significant improvements to the speed and performance. This version features a 64-bit quad-core processor that runs at 1.4 GHz, as well as dual-band 2.4 GHz and 5 GHz wireless LAN. Bluetooth 4.2 and BLE let you connect compatible devices. With a host of plugins, connectors, pins, and ports, it’s fully equipped to help you start prototyping and exploring the internet of things.

Seeed 5" Capacitive Touchscreen for Raspberry Pi
Seeed 5" Capacitive Touchscreen for Raspberry Pi
Seeed 5" Capacitive Touchscreen for Raspberry Pi

Specs

Seeed 5-Inch Capacitive Touchscreen

  • Model number: 104990342
  • Display size: 5 in (12.7 cm)
  • Display type: Capacitive LCD touchscreen
  • Touch points: 10 points
  • Resolution: 800 x 480
  • Interface: HDMI and USB 2.0 full speed
  • Power: 5V power via micro-USB
  • Current: 400mA
  • Driver free
  • ULP (ultra-low power) consumption backlight
  • Supports Raspbian, Ubuntu Mate, NOOBS with Raspberry Pi
  • Supports Debian, Angstrom with BeagleBone
  • Supports Windows, Ubuntu, Mac with PC
  • Supports Intel-Processor Base MiniPC
  • Dimensions: 5.2 x 3.1 x 0.5 in (13.3 x 7.9 x 1.3 cm)
  • Weight: 4.5 oz (130 g)

Raspberry Pi 3 B+ (Optional)

  • Model number: 102110138
  • Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC at 1.4GHz
  • Memory: 1GB LPDDR2 SDRAM
  • Connectivity: 2.4GHz, 5GHz IEEE 802.11.b/g/n/ac wireless LAN
  • Bluetooth: 4.2, BLE
  • Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
  • Inputs: 4 USB 2.0 ports
  • Extended 40-pin GPIO header
  • Video sound: HDMI; MIPI DSI display port; MIPI CSI camera port; 4 pole stereo output and composite video port
  • Multimedia: H.264, MPEG-4 decode (1080p30); H.264 encode(1080p30); OpenGL ES 1.1, 2.0 graphics
  • SD card support: Micro SD format for loading operating system and data storage
  • Input power: 5V/2.5A DC via micro USB connector; 5V DC via GPIO header; Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
  • Operating temperature: 32–122° F (0–50° C)
  • Dimensions: 4.7 x 2.9 x 1.3 in (12 x 7.5 x 3.4 cm)
  • Weight: 2.6 oz (75 g)
