Product Description

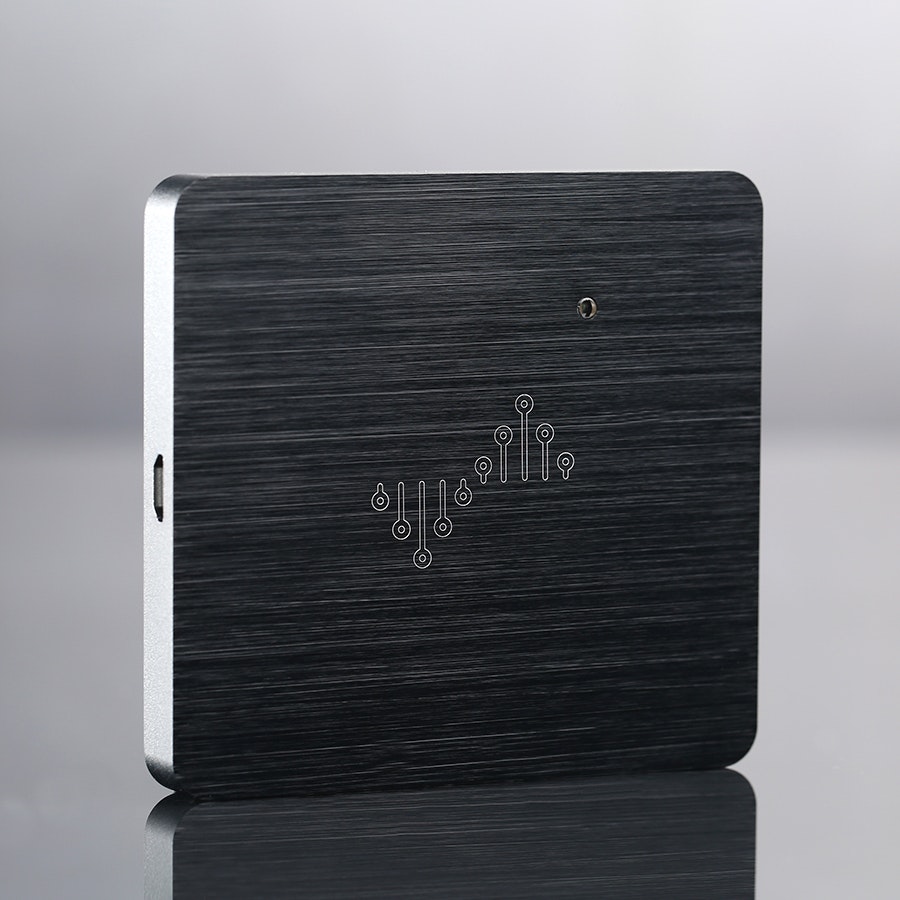

An accessible and versatile electronic instrument, the Seeed DSLogic Pro was designed by makers, for makers. The DSLogic was originally funded by a Kickstarter campaign, and the Pro is an upgraded version that stays true to the company’s DIY roots: It’s open-source, extensible, and designed to allow endless innovation and creativity Read More
Made for Makers

An accessible and versatile electronic instrument, the Seeed DSLogic Pro was designed by makers, for makers. The DSLogic was originally funded by a Kickstarter campaign, and the Pro is an upgraded version that stays true to the company’s DIY roots: It’s open-source, extensible, and designed to allow endless innovation and creativity.

Endless Possibilities

DSLogic Pro consists of a reconfigurable circuit board (DSLogic-Core) and extension modules. DSLogic-Core has a maximum sampling rate of 400 MHz, 256 MB of onboard memory, and an advanced trigger system. Alone, it works as a fully functional logic analyzer, and with various extension modules, it can also serve as an oscilloscope, a data-acquisition system, a protocol analyzer, and even an RF analyzer.

  • Seeed
  • Casing: Unibody aluminum
  • Input channels: 16
  • Max sampling rate: 400 MHz at 4 channels, 200 MHz at 8 channels, 100 MHz at 16 channels
  • Max sampling depth: 1G/channel at stream mode, 16M/channel at buffer mode
  • Hardware memory size: 256 MB
  • Threshold voltage: 0 ~ 5V (continuous adjustable, 0.1v step)
  • Min pulse width captured: 5ns
  • Input bandwidth: 50 MHz
  • Max state clock input: 50 MHz
  • Trigger position support
  • Advanced trigger stages: 16 stages
  • Advanced trigger count: 16 bits
  • Advanced trigger set: 2 sets per stage
  • Input voltage range: -30 ~ + 30V
  • Input impedance: 250 kohm / ~7pF
  • State sample support
  • External trigger input support
  • External trigger output support
  • Support for 40+ protocol analyzers
  • Upgradable hardware
  • Compatibility: Windows, Linux, OS X
  • Dimensions: 3 in x 3 in x 0.4 in (7.9 x 7.4 x 0.9 cm)
