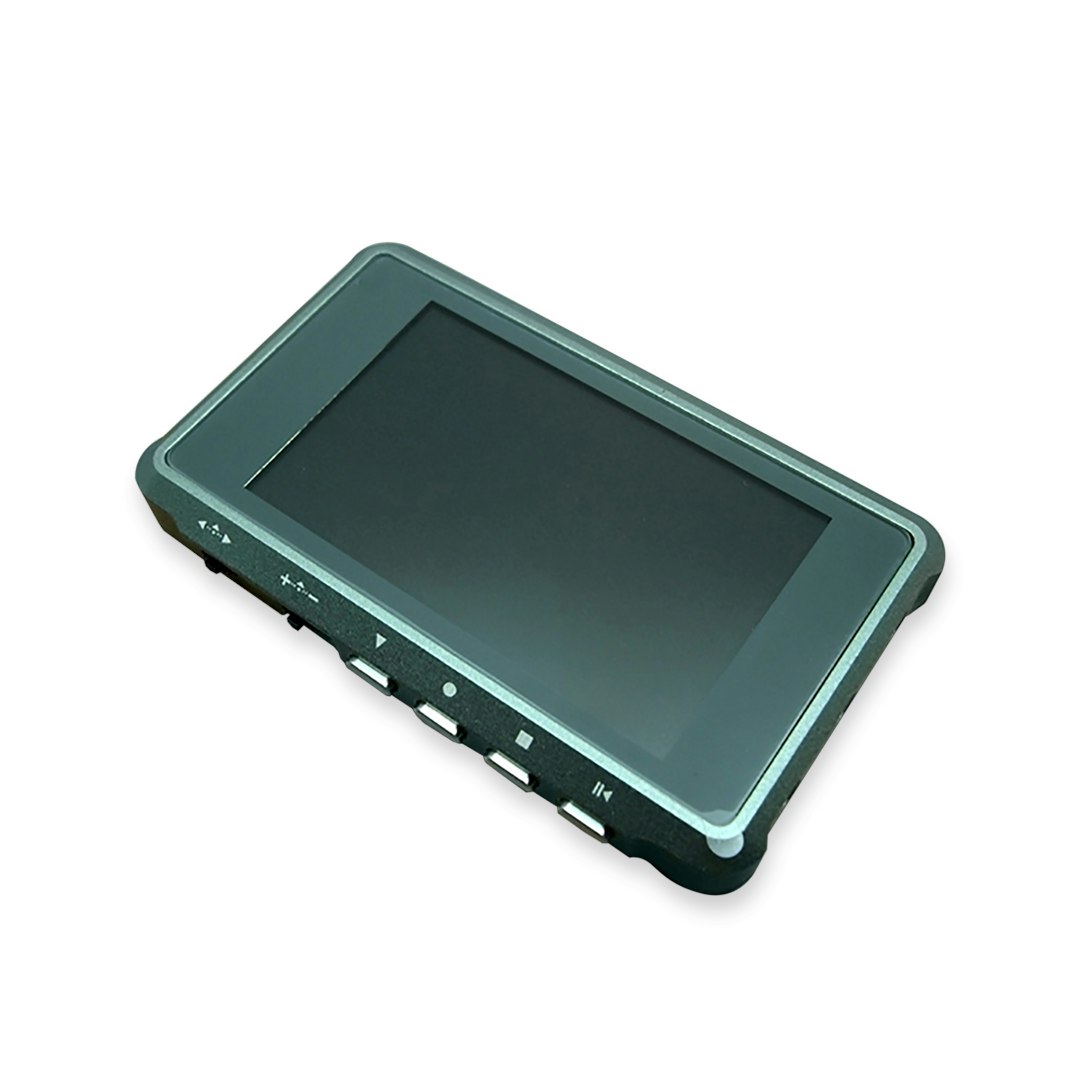

Seeed DSO Quad - Aluminium Alloy Silver
Seeed DSO Quad - Aluminium Alloy Silver
bookmark_border
Where's the price?
To negotiate the best possible price for our customers, we agree to hide prices prior to logging in.
Product Description
An upgrade to SEEED’s single-channel DSO Nano, the DSO Quad v2.6 is a pocket-size oscilloscope with four separate channels and a signal generator for electrical testing and experimentation. Based on an ARM cortex M3 (STM32F103VCT6) 32-bit platform, which provides a 72 MS/s sampling rate with built-in FPGA and high-speed ADC, the device delivers powerful performance in a lightweight and portable package Read More
Portable 4-Channel Oscilloscope

An upgrade to SEEED’s single-channel DSO Nano, the DSO Quad v2.6 is a pocket-size oscilloscope with four separate channels and a signal generator for electrical testing and experimentation. Based on an ARM cortex M3 (STM32F103VCT6) 32-bit platform, which provides a 72 MS/s sampling rate with built-in FPGA and high-speed ADC, the device delivers powerful performance in a lightweight and portable package. Its clear 2.5-inch screen and easy-to-navigate buttons make operating the DSO Quad a breeze. With its 2 MB internal USB disk, you can store waveforms, user applications, and upgrade your firmware, too.

Specs
  • SEEED
  • Analog channel 2 : [CH_A]  [CH_B]
  • Digital channel 2 : [CH_C]  [CH_D]
  • Vertical scale: 20mV-10V/div (x1 probe)
  • Vertical solution: 8 bit
  • Input coupling: AC/DC
  • Max input voltage: 80Vpp (x1 probe)
  • Storage: 4K per channel
  • Software trigger type: edge, pulse, level (to be added)
  • Hardware trigger type: edge
  • Trigger source: CH1/CH2/EXT
  • Test signal generator: 10Hz to 1Mhz
  • Storage: internal 2MB USB disk
  • Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
  • Cursor measurement: Level, Voltage
  • Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
  • Sampling mode: real time
  • Sampling rate: 1kSa/s - 72MSa/S
  • Power: Lipo battery
  • Dimensions: (9.8 x 6 x 1.45 cm)
  • Weight, without battery: 2.8 oz (80g)
Included
  • Battery
  • 2 mueller mcx oscilloscope probes
  • 2 digital probes
  • Screwdriver
